810-1012

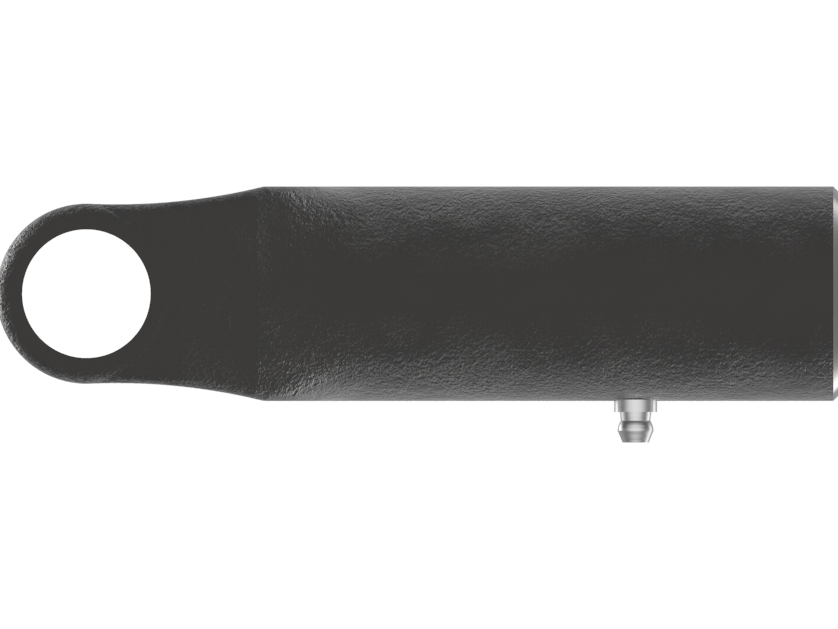

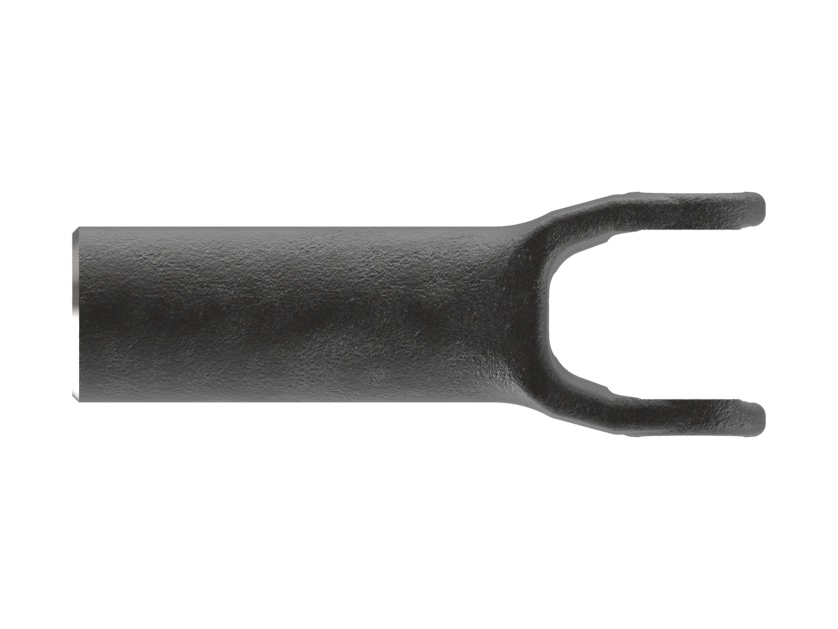

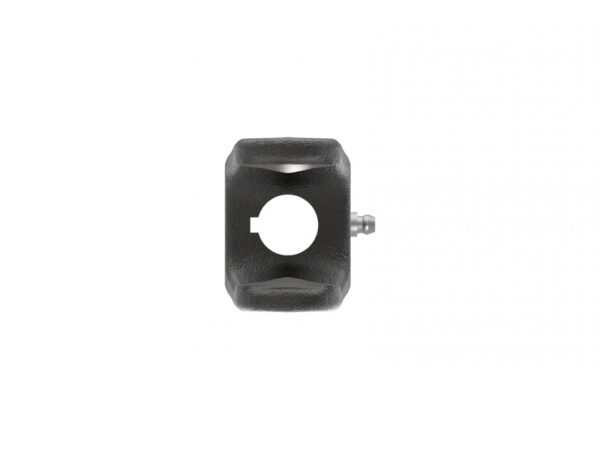

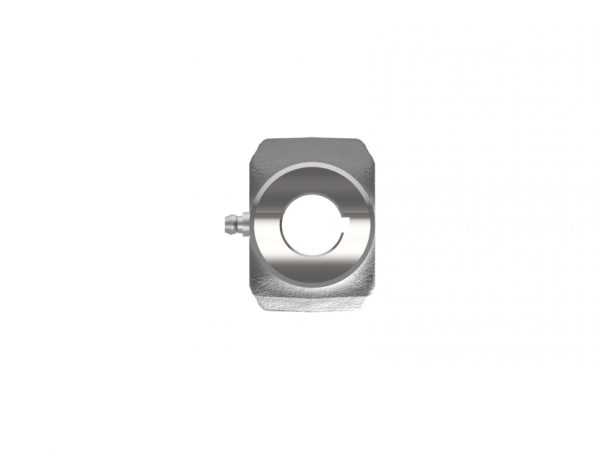

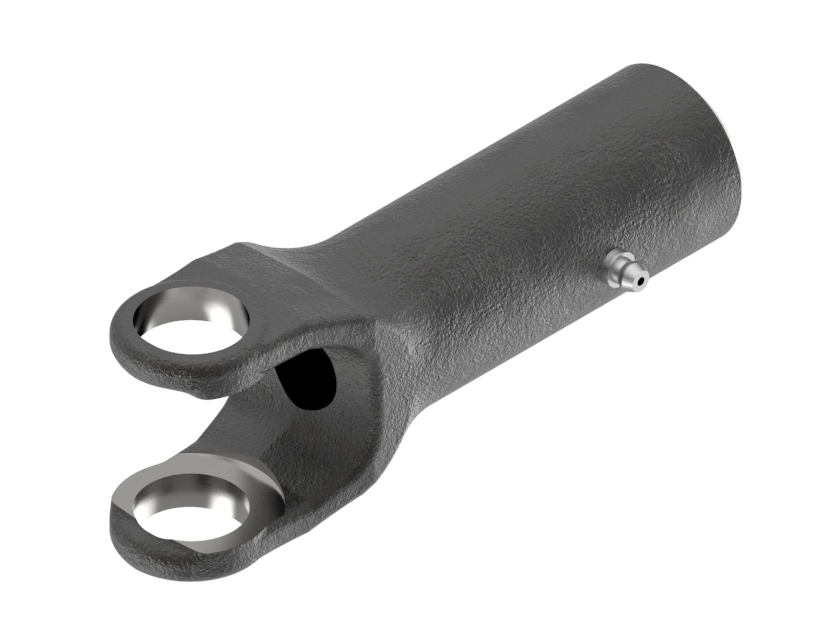

TELESCOPING YOKE1000 Series Telescoping Yoke
1000 series yoke with round with keyway bore and telescoping connection
Telescoping yokes combine tube yoke and slip sleeve where length restrictions are present.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 0.75 inches | 19 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | TELESCOPING | |
| Height | 2.50 inches | 64 mm |
| HP@1000RPM | 22 HP | 16 kilowatts |
| HP@540RPM | 15 HP | 11 kilowatts |
| Length | 5.50 inches | 140 mm |
| Shipping Dimensions | 6.17" L × 2.5" H × 2" W | 16cm L × 6cm H × 5cm W |
| Shipping Volume | 30.85 in3 | 506 cm3 |
| Shipping Weight | 1.80 pounds | 1 kilograms |
| Weight | 1.80 pounds | 1 kilograms |
| Width | 2.00 inches | 51 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
