801-1213

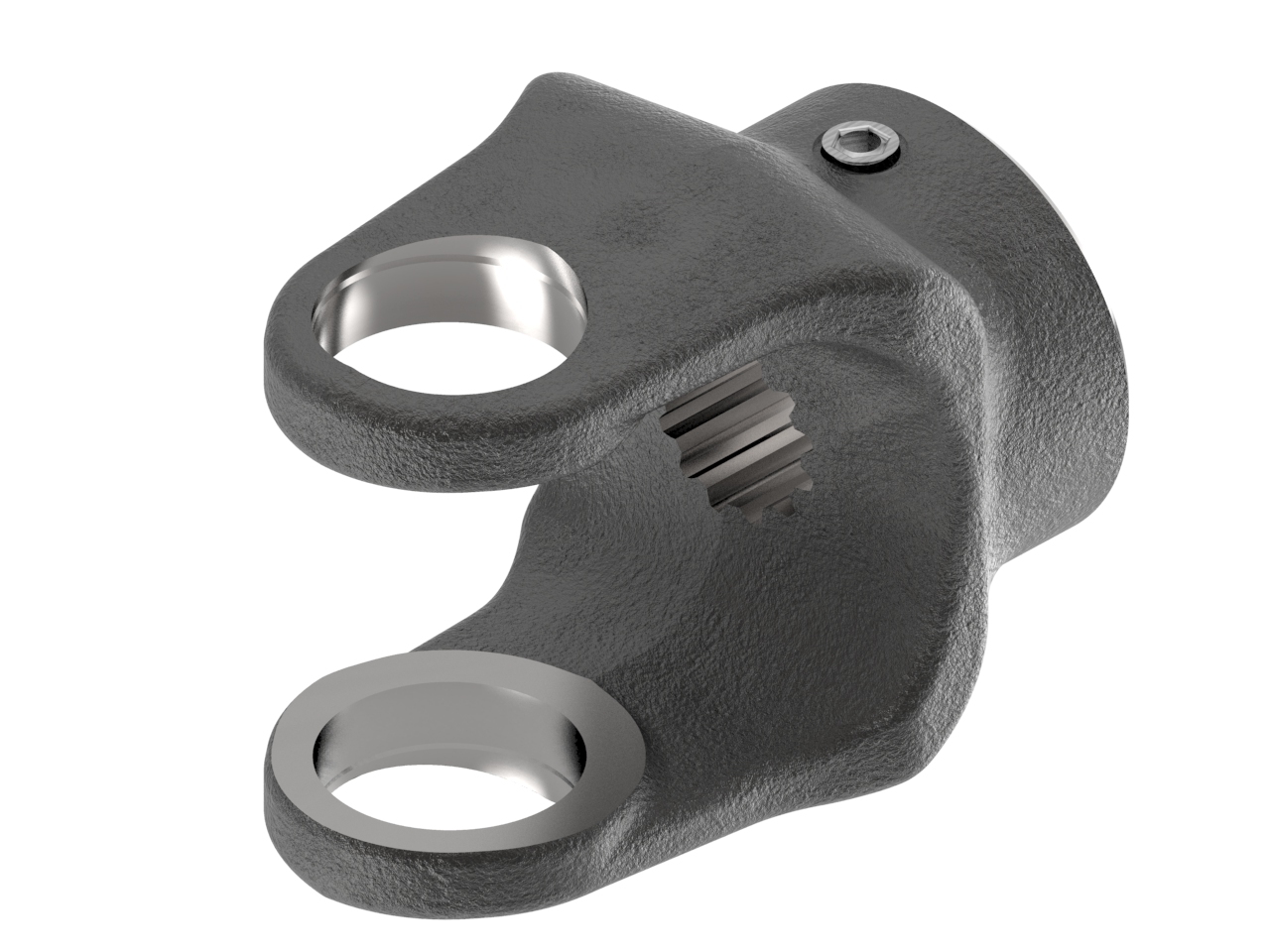

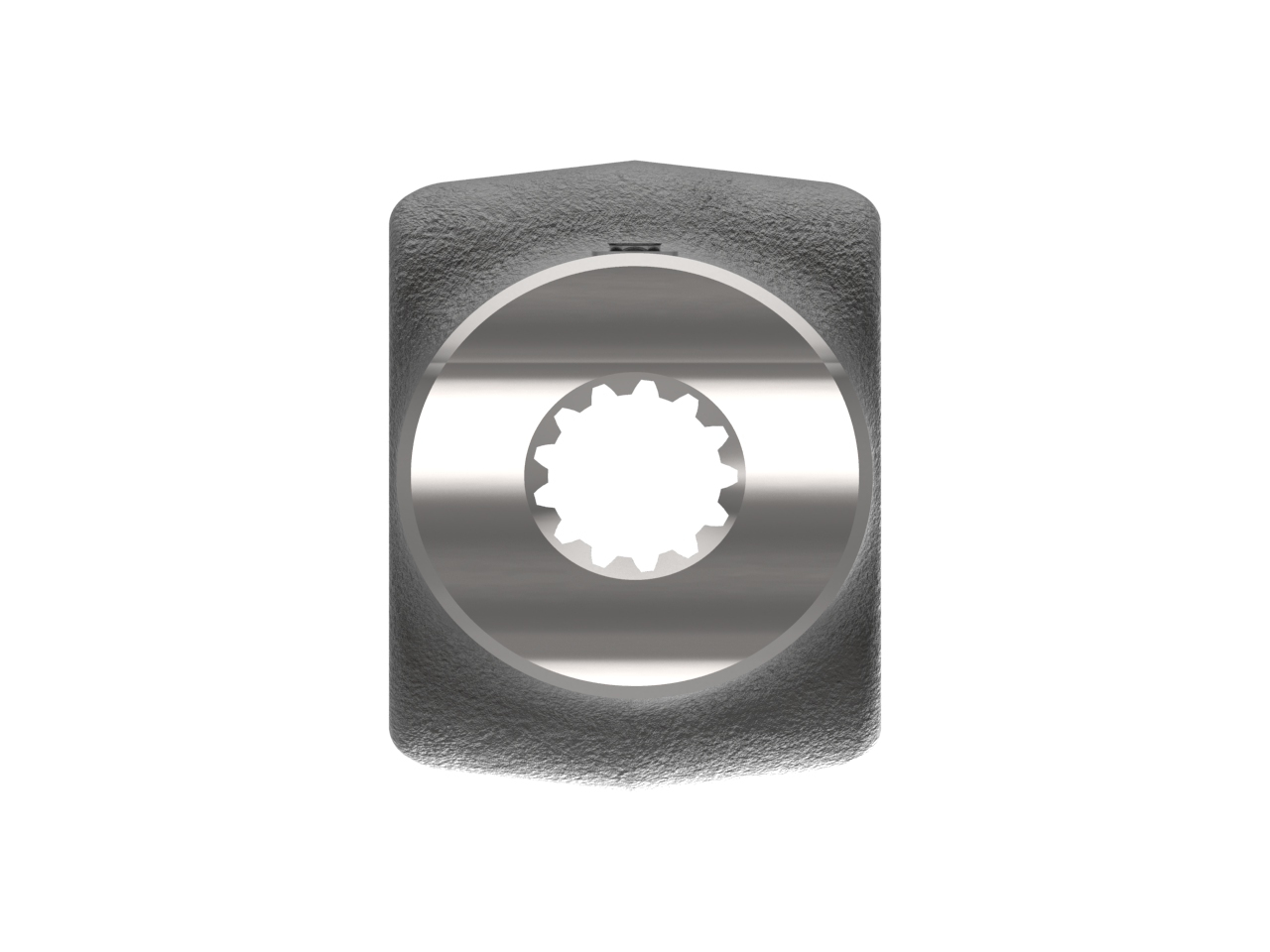

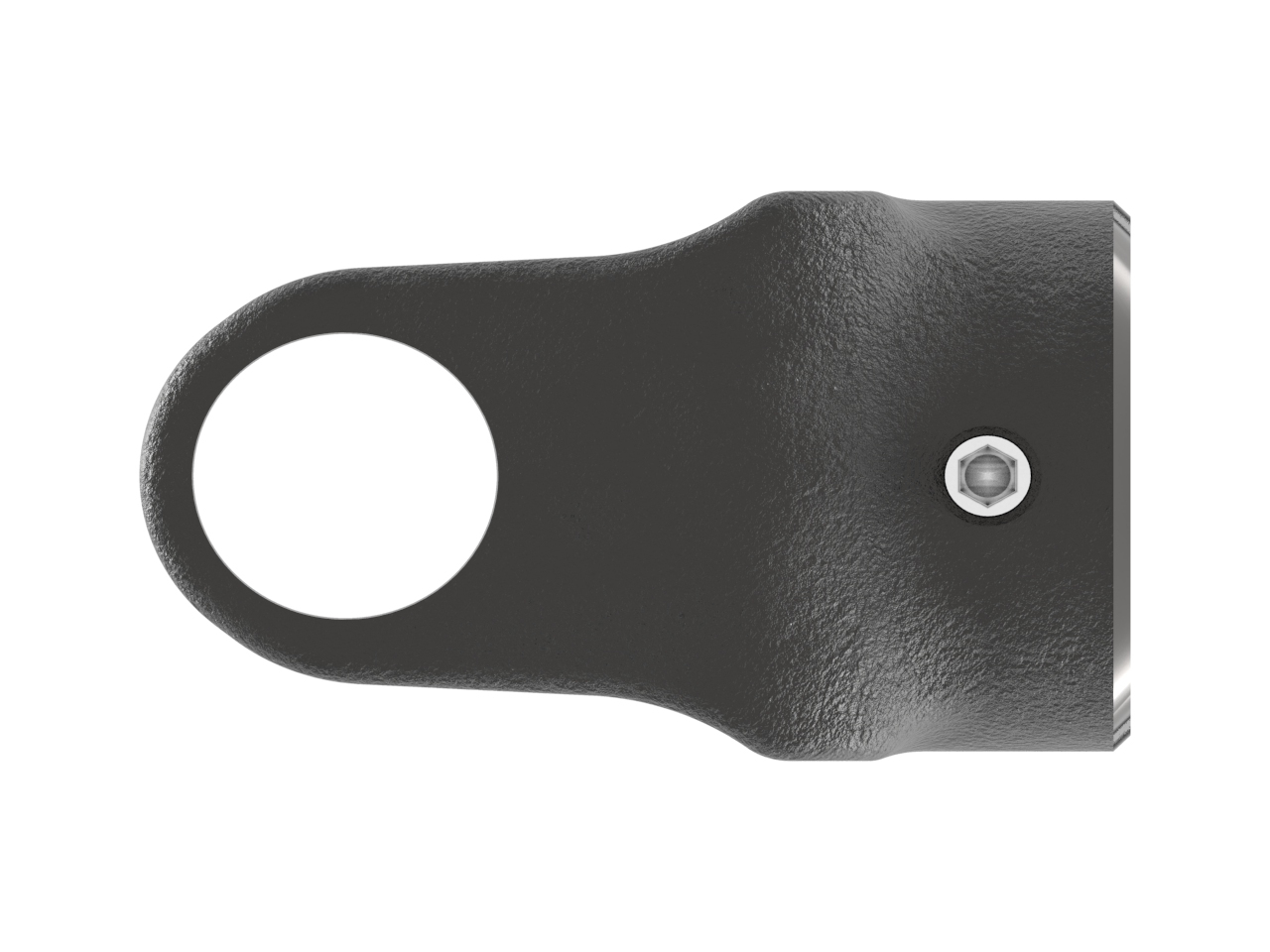

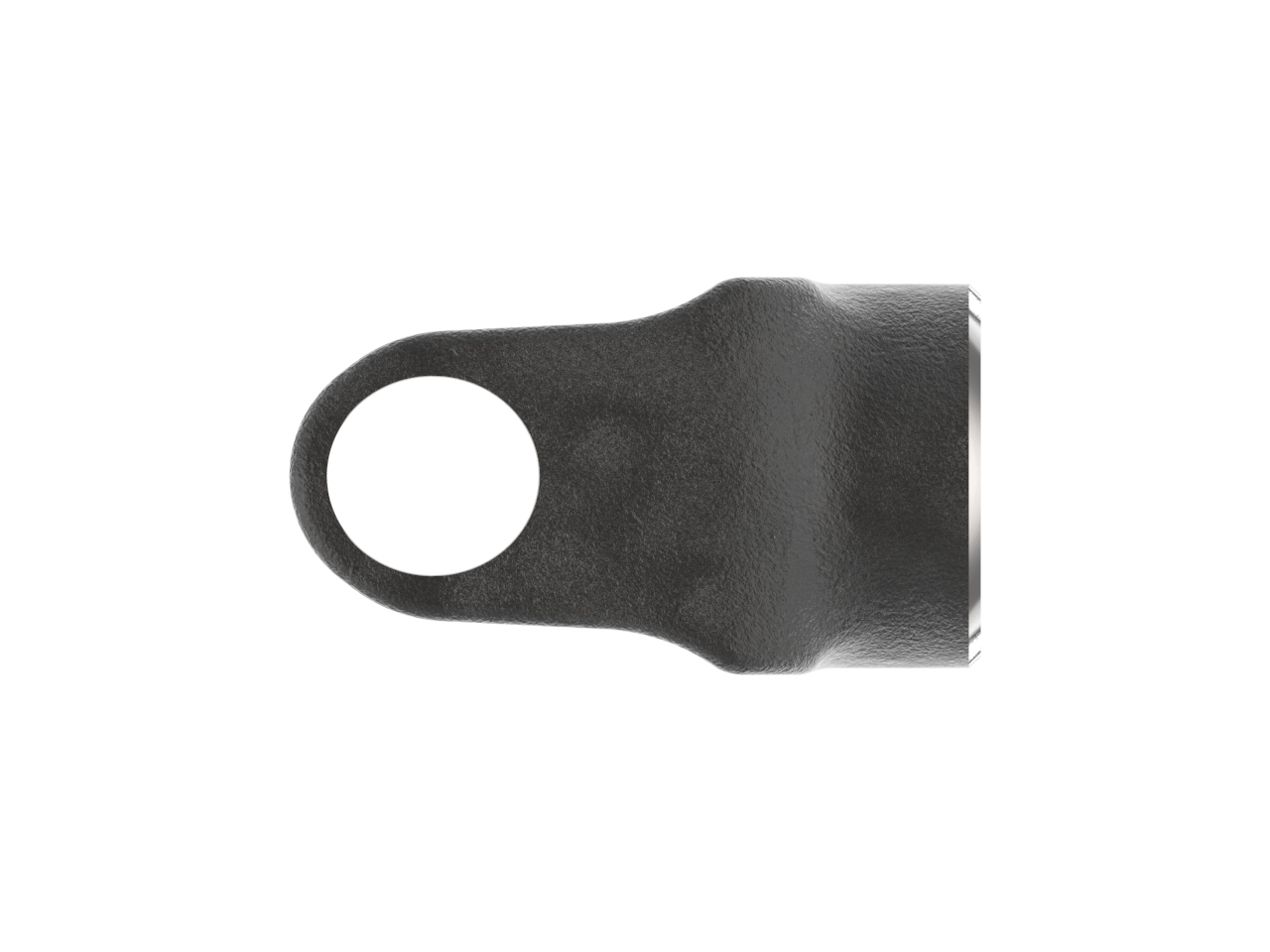

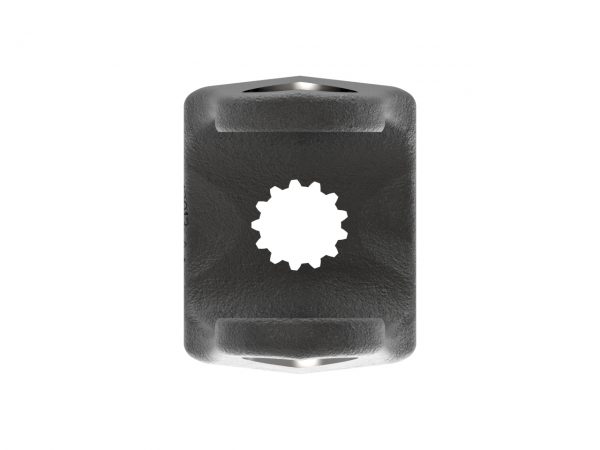

IMPLEMENT YOKE12 Series Setscrew Yoke
12 series yoke with 7/8-13 spline bore and setscrew connection
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 0.87 inches | 22 mm |
| Bore 1 | 7/8-13 SPLINE | |
| Connection 1 | SETSCREW | |
| Height | 3.00 inches | 76 mm |
| HP@1000RPM | 40 HP | 30 kilowatts |
| HP@540RPM | 26 HP | 19 kilowatts |
| Length | 2.75 inches | 70 mm |
| Setscrew | 3/8-16 | |
| Shipping Dimensions | 3.55" L × 3" H × 2.16" W | 9cm L × 8cm H × 5cm W |
| Shipping Volume | 23.00 in3 | 377 cm3 |
| Shipping Weight | 1.78 pounds | 1 kilograms |
| Weight | 1.78 pounds | 1 kilograms |
| Width | 2.16 inches | 55 mm |
