809-1216

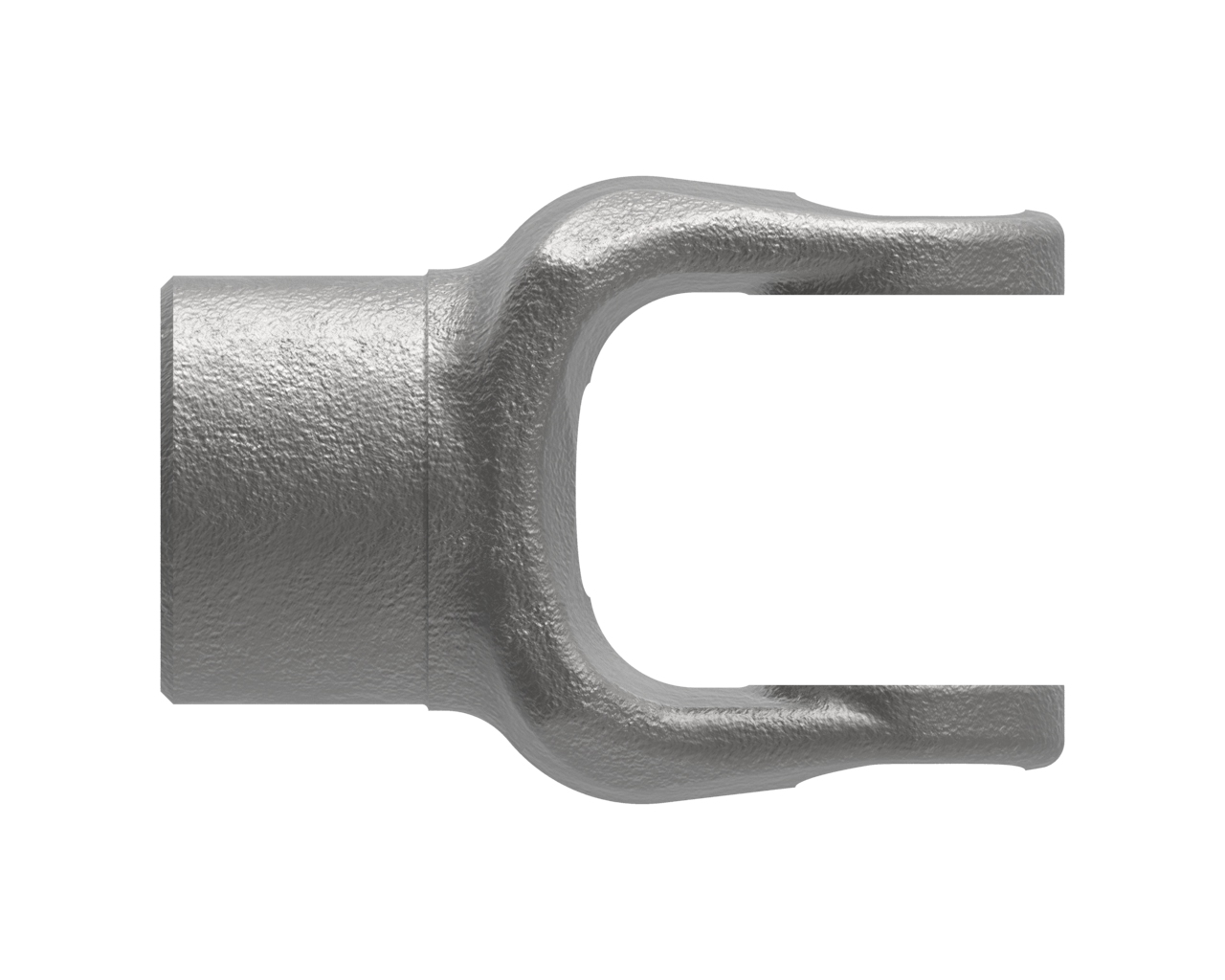

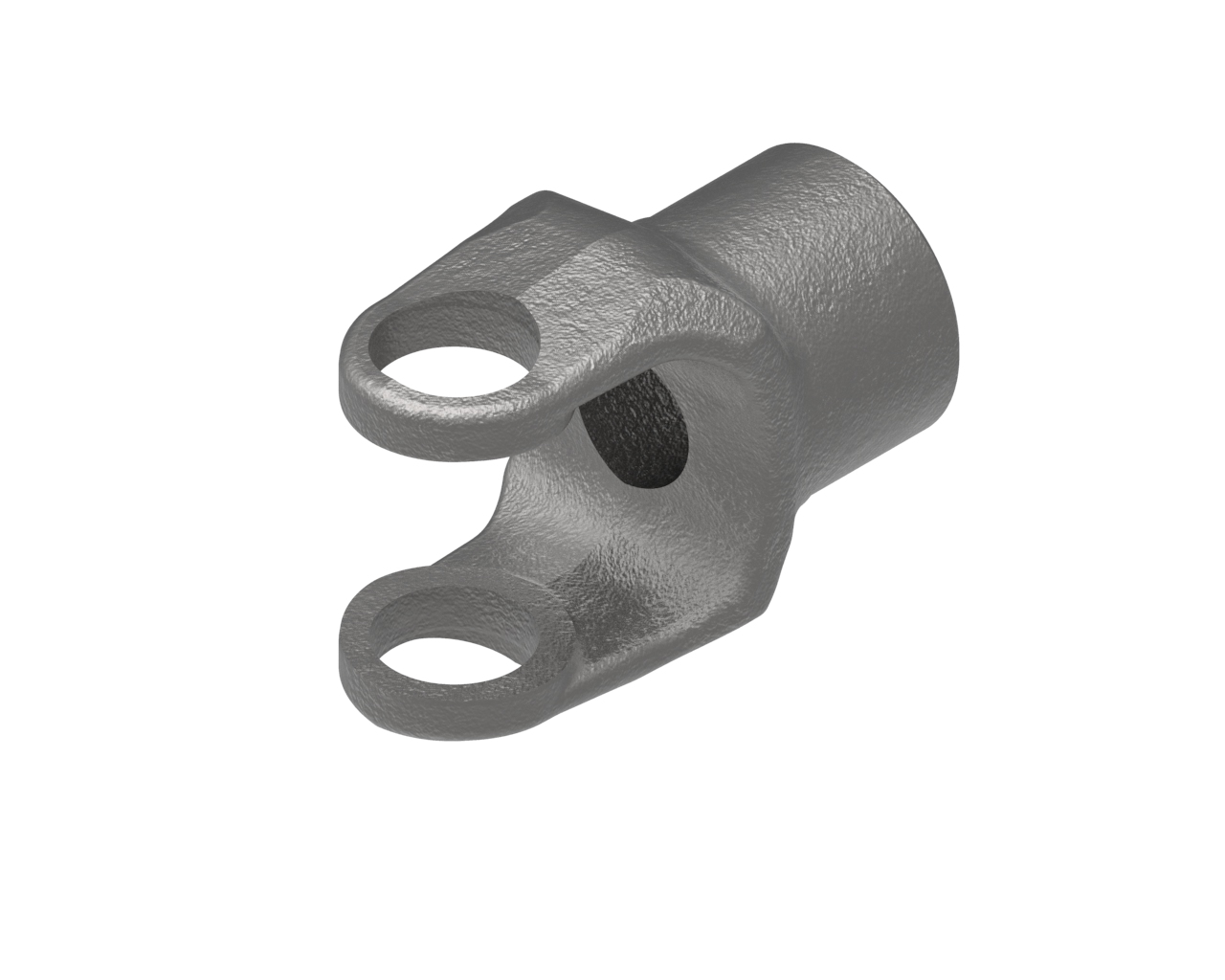

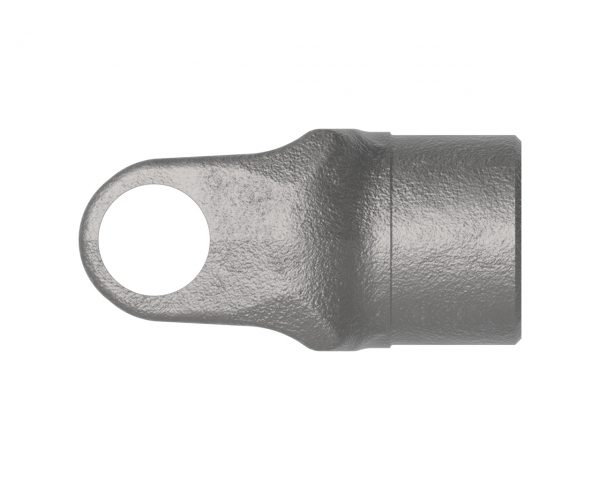

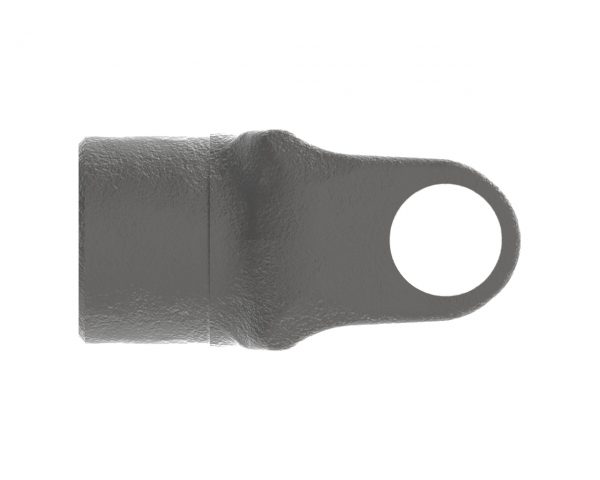

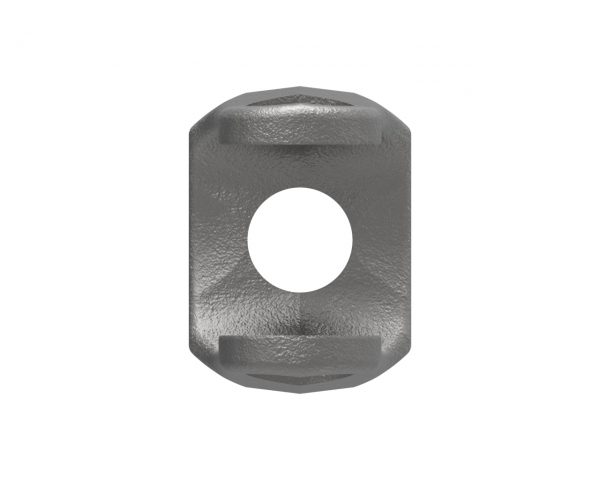

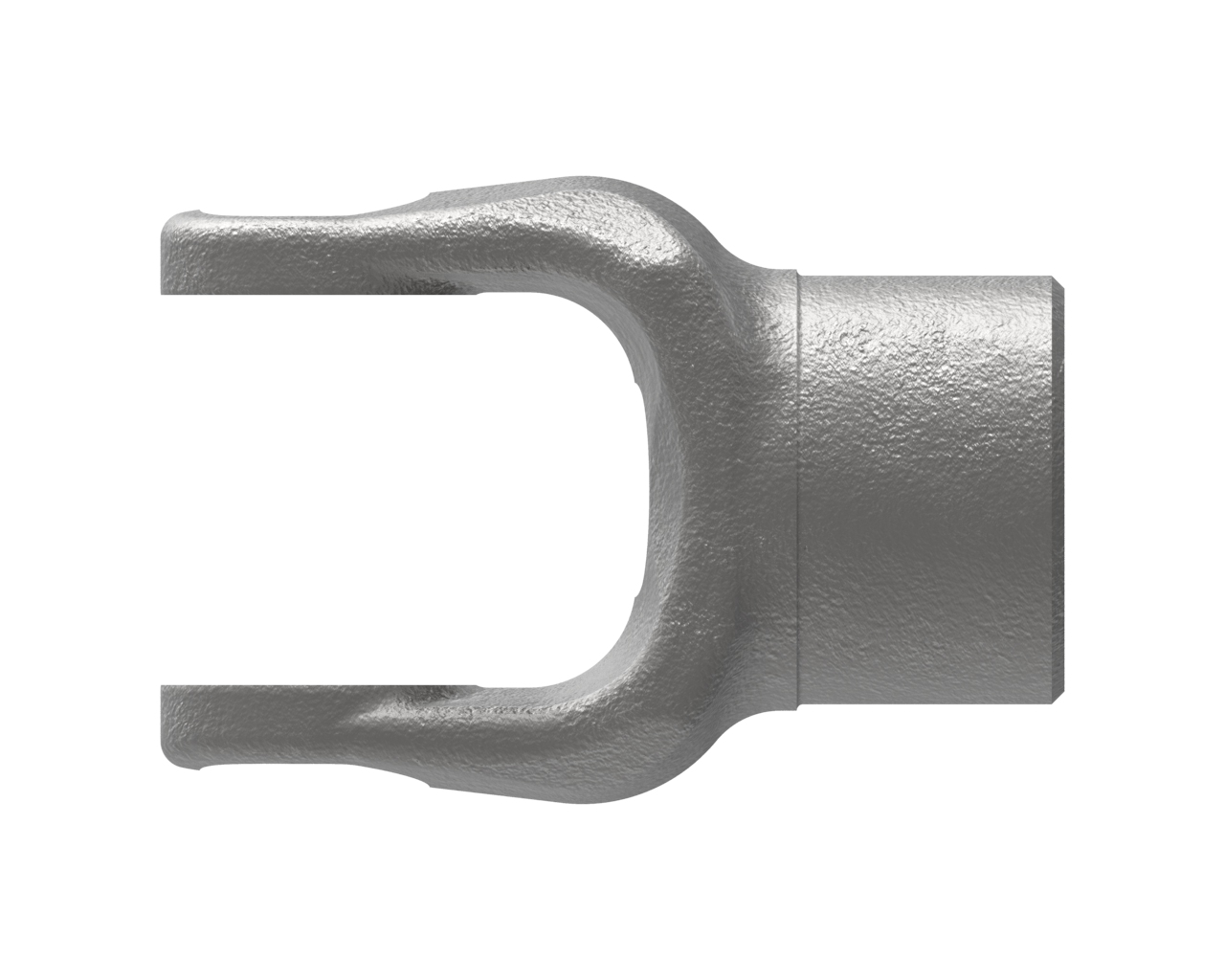

IMPLEMENT YOKE12 Series Stock Bore Yoke
12 series yoke with round bore and stock bore connection
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.00 inches | 25 mm |
| Bore 1 | ROUND | |
| Connection 1 | STOCK BORE | |
| Height | 3.00 inches | 76 mm |
| HP@1000RPM | 40 HP | 30 kilowatts |
| HP@540RPM | 26 HP | 19 kilowatts |
| Length | 3.50 inches | 89 mm |
| Shipping Dimensions | 4.3" L × 3" H × 2" W | 11cm L × 8cm H × 5cm W |
| Shipping Volume | 25.80 in3 | 423 cm3 |
| Shipping Weight | 1.95 pounds | 1 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
| Width | 2.00 inches | 51 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
