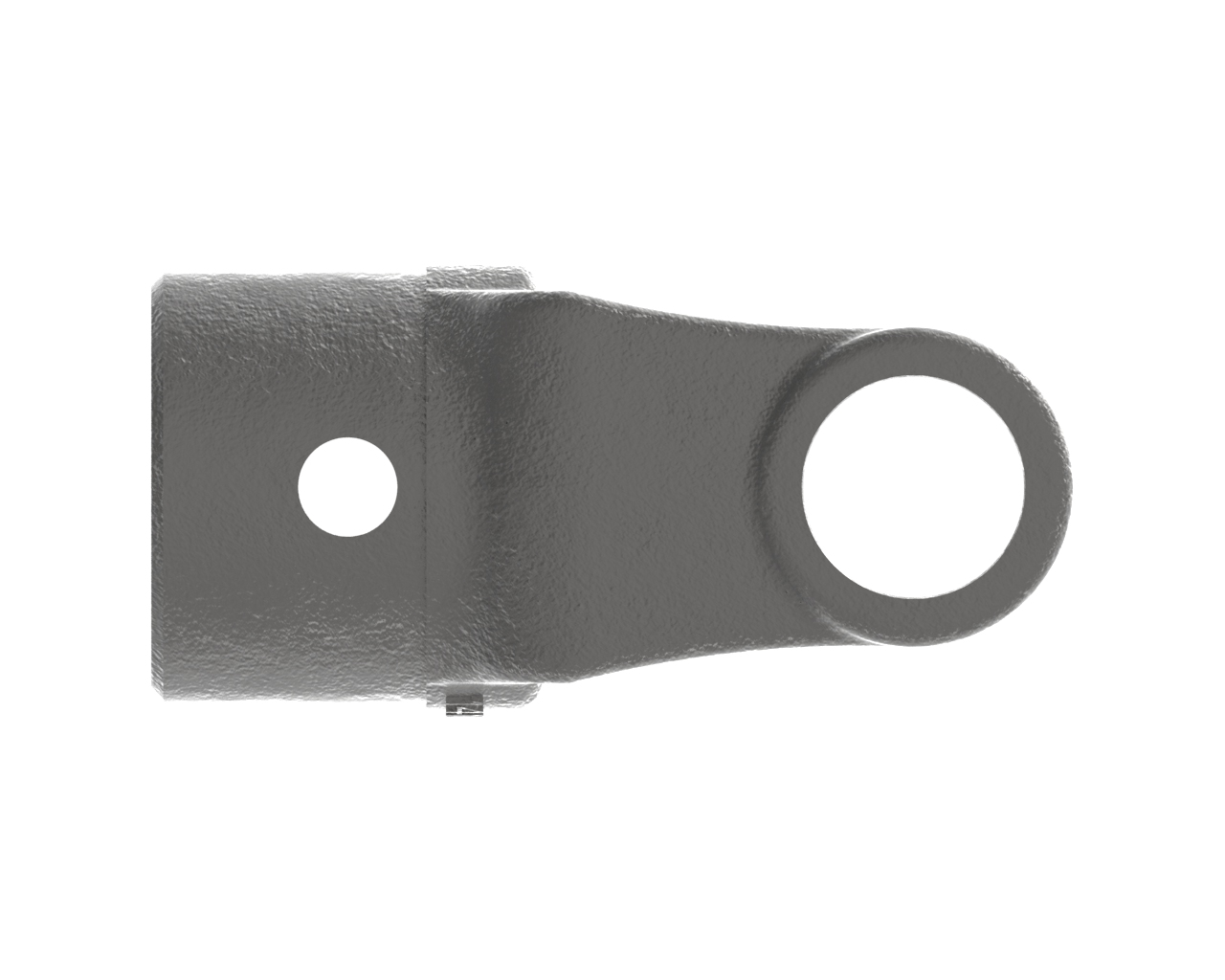

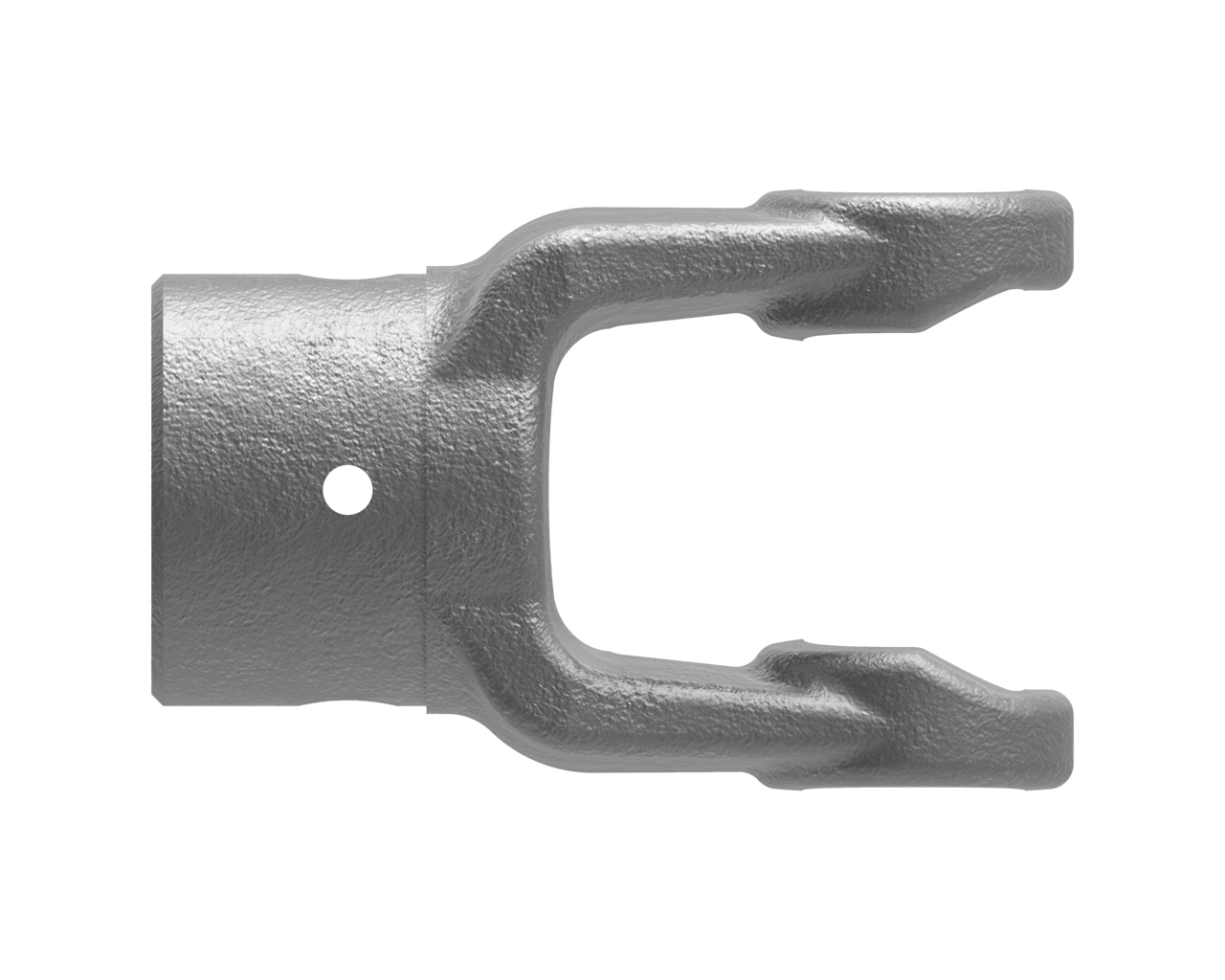

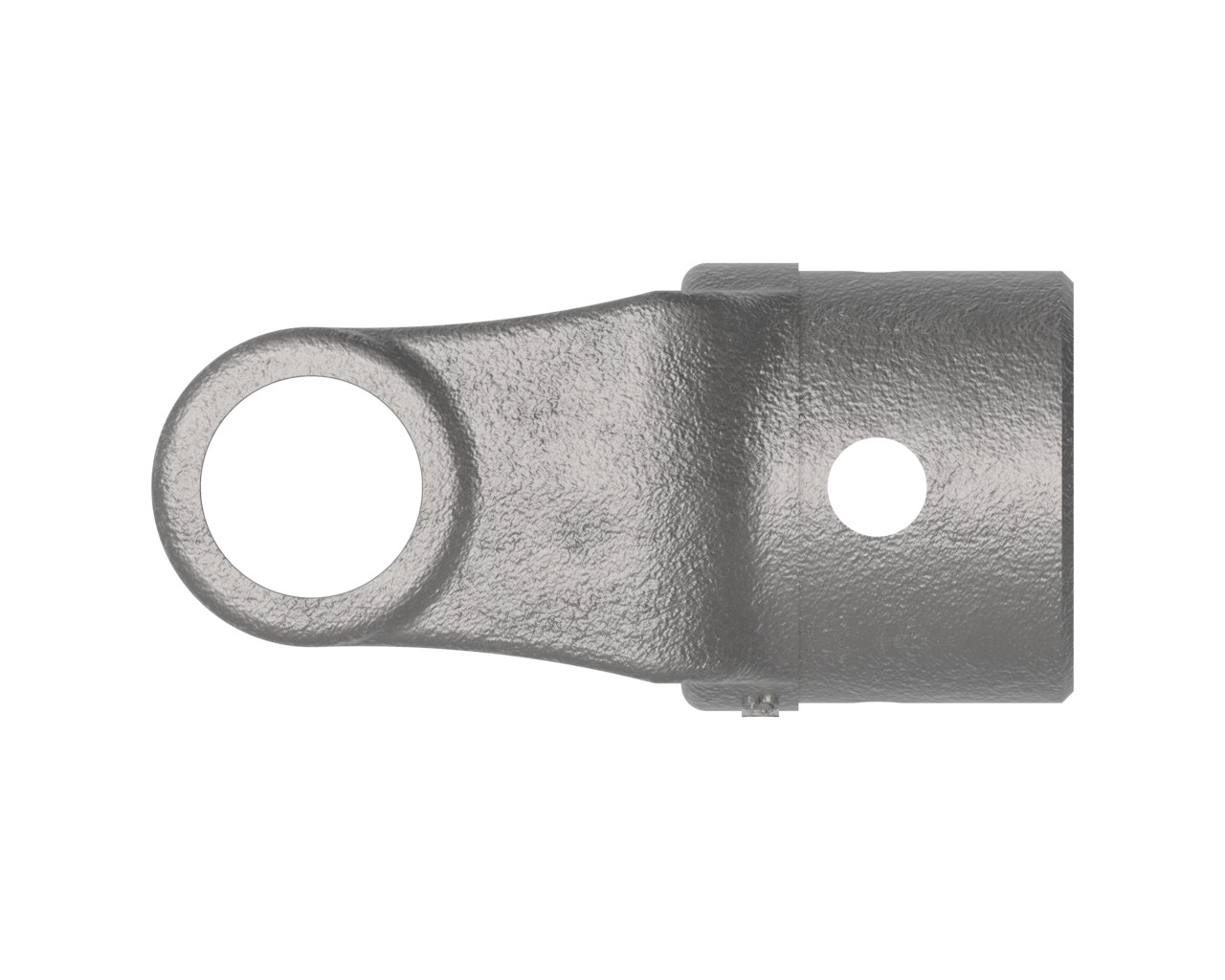

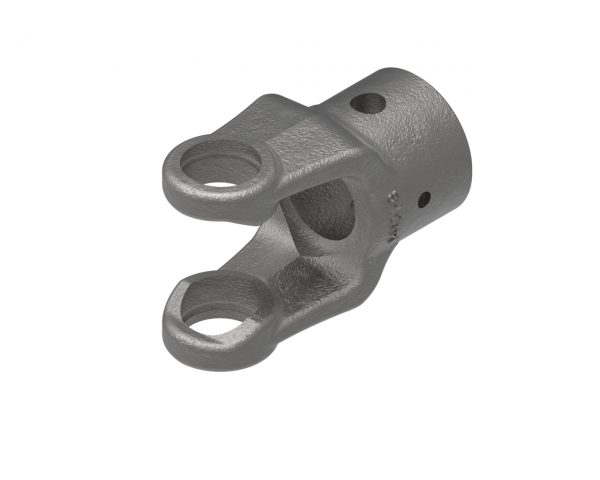

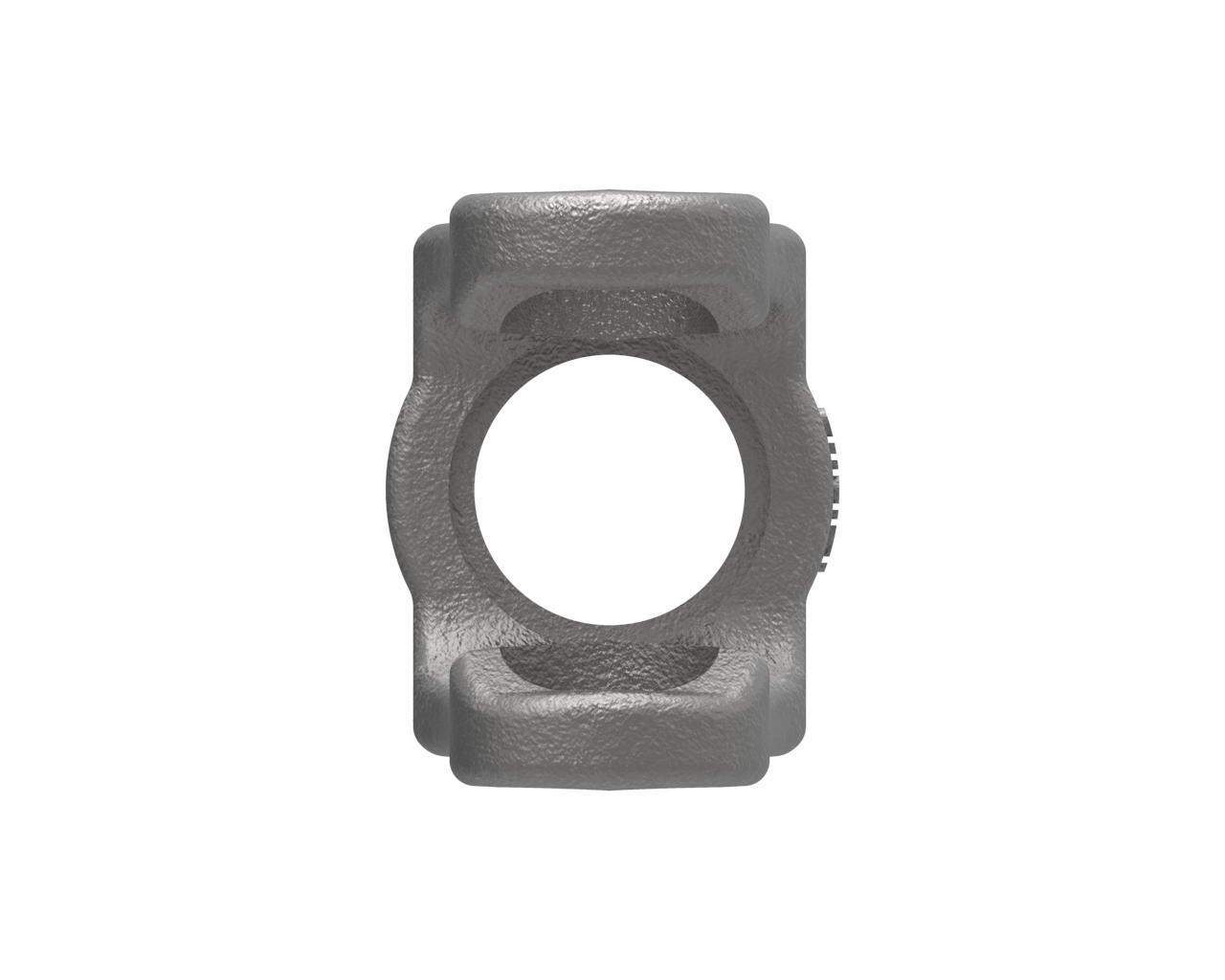

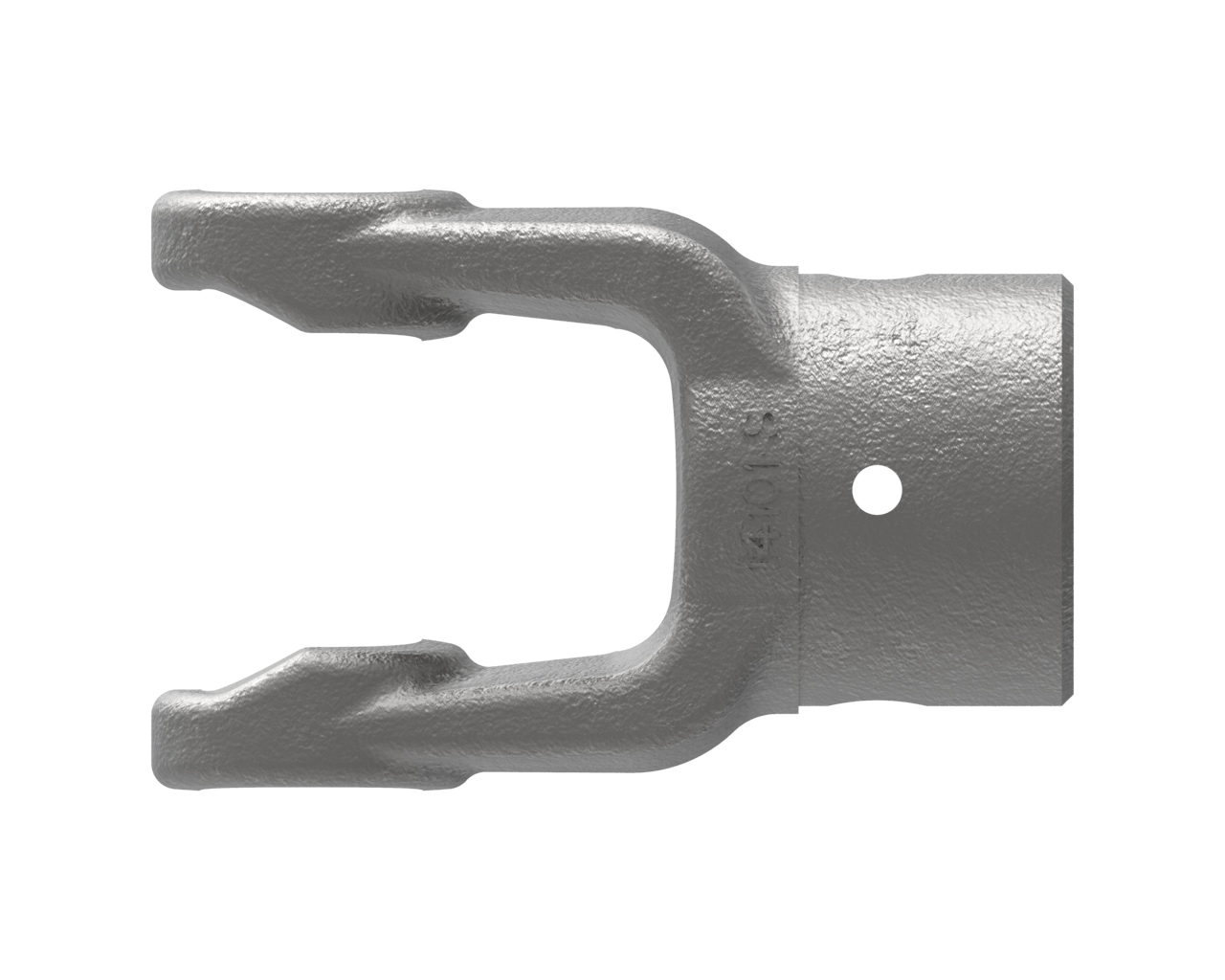

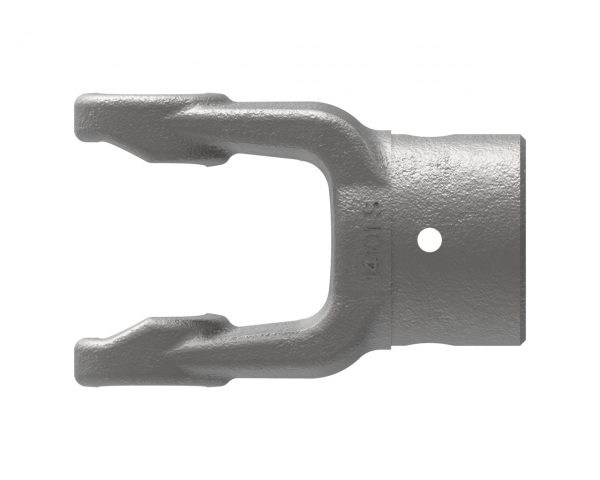

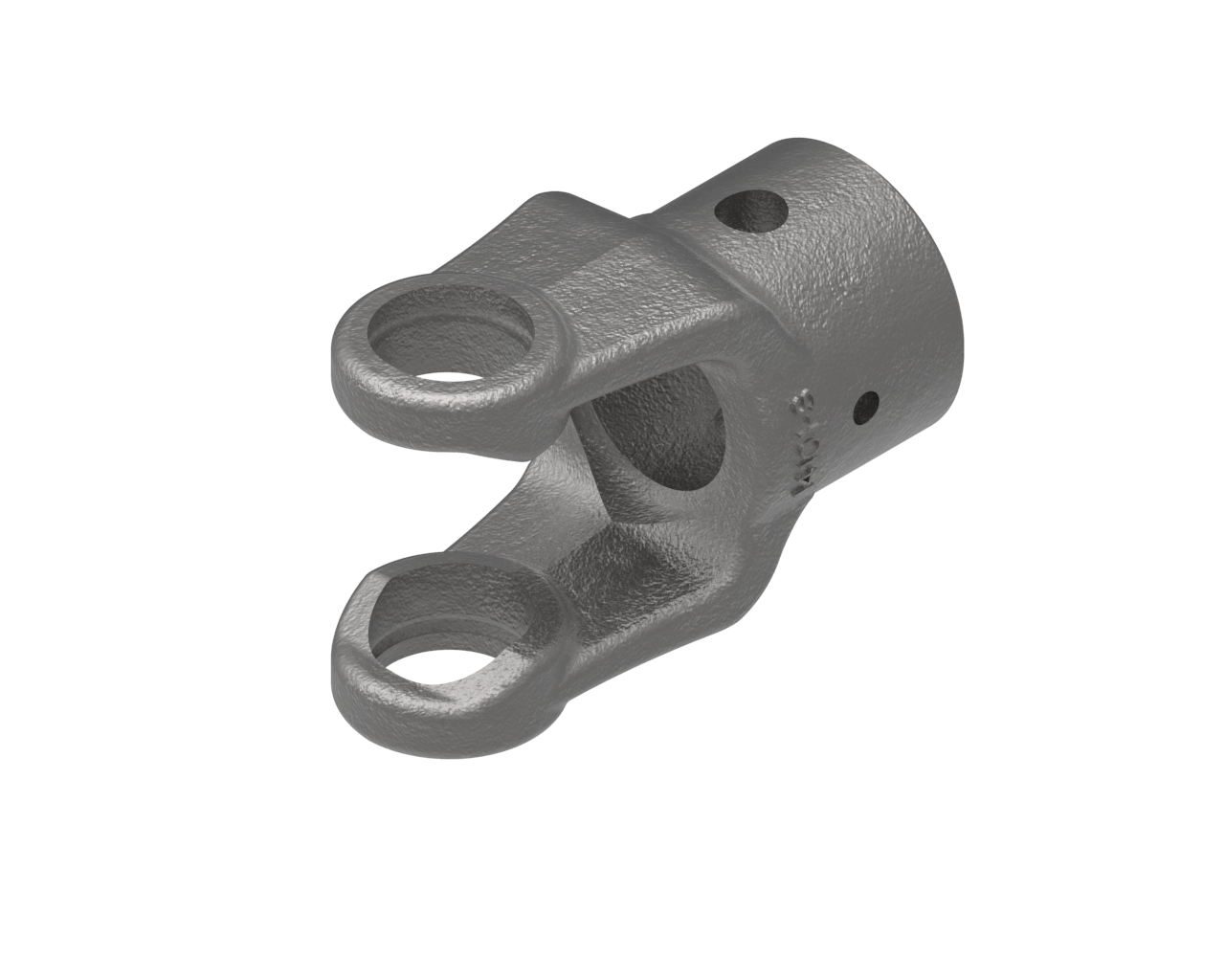

14 Series Pin Yoke
14 series yoke with round bore and pin connection
Weasler yokes are made to withstand robust conditions, and engineered for a precise fit. Weasler’s Shear Pin Yoke features a pin (bolt) that extends through the yoke and if broken during operation will spin. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.
PERFORMANCE BENEFITS
• Implement overload protection.
• Minimal maintenance.
• No damaging heat generation for higher productivity.
• Repeatable overload disengagement setting.
• Smooth disengaged operation, no damaging torque spikes.
• Reduces possibility of damage.
Specifications
Product Series: 14
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.13 (1 1/8) in | 29 mm |
| Bearing Cap to Cap Span | 2.63 (2 5/8) in | 67 mm |
| Bore | 1.37 (1 3/8) in | 35 mm |
| Bore Description | ROUND | |
| HP@1000RPM | 58 HP | 43 kilowatts |
| HP@540RPM | 38 HP | 28 kilowatts |
| Centerline to End Dim | 3.88 (3 7/8) in | 99 mm |
| Bolt | (1) 1/4 Grade 8 | |
| Weight | 2.40 pounds | 1 kilograms |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 200-1400 |
| Shear Bolt | (1) 1/4 Grade 8 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
