801-1418

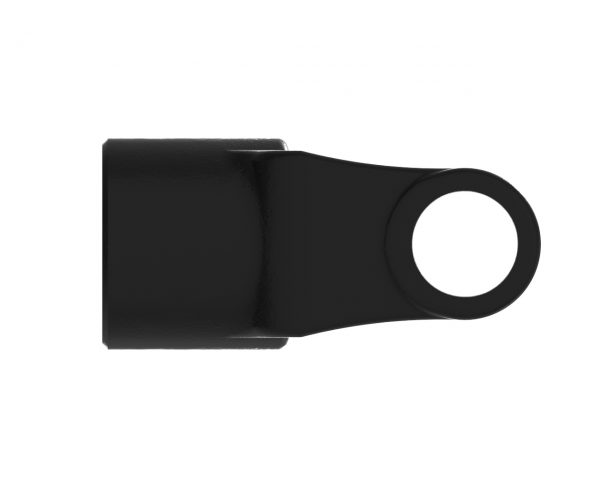

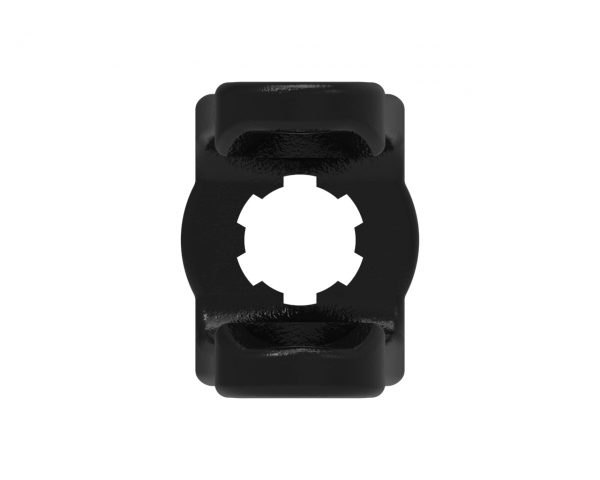

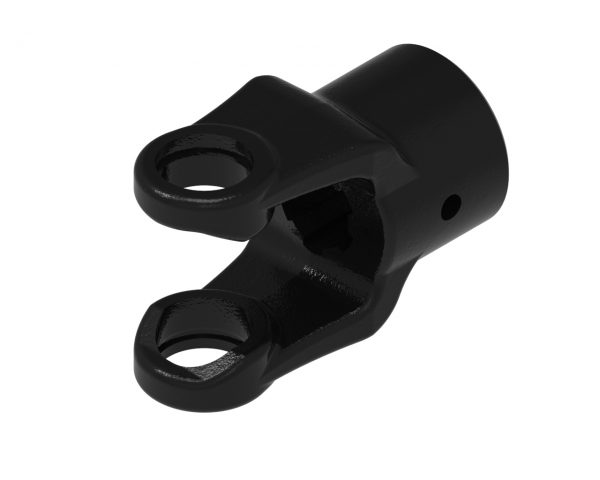

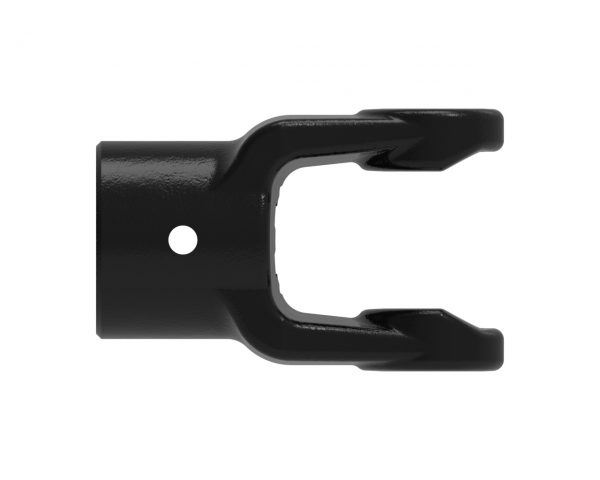

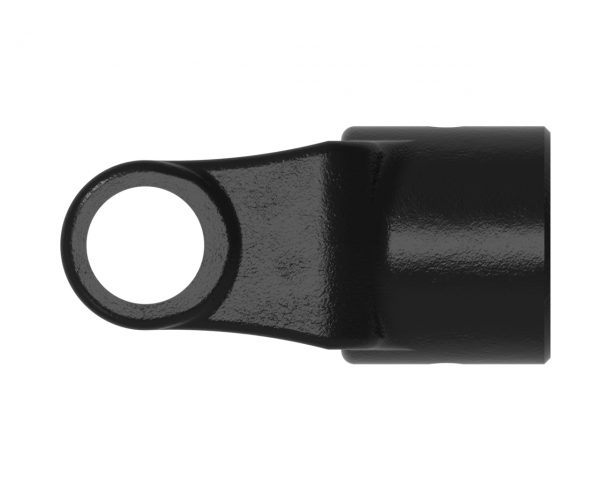

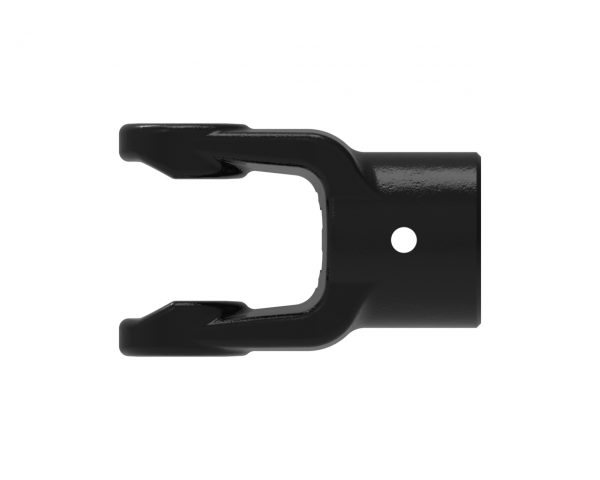

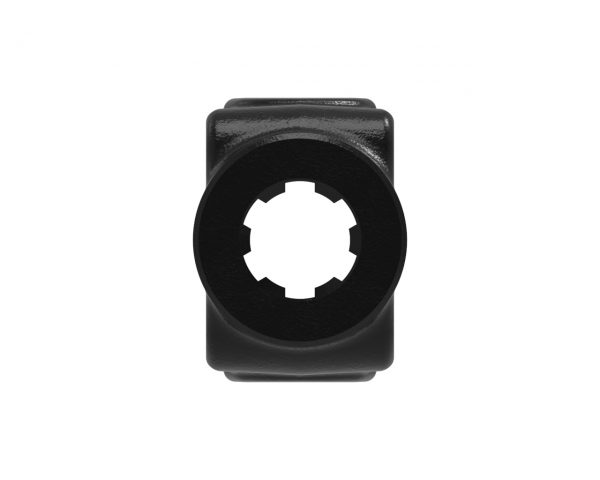

IMPLEMENT YOKE14 Series Pin Yoke
14 series yoke with 1 1/8-6 spline bore and pin connection
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.12 inches | 28 mm |
| Bore 1 | 1 1/8-6 SPLINE | |
| Connection 1 | PIN | |
| Height | 3.38 inches | 86 mm |
| HP@1000RPM | 58 HP | 43 kilowatts |
| HP@540RPM | 38 HP | 28 kilowatts |
| Length | 3.88 inches | 99 mm |
| Pin Hole | 0.33 inches | 8 mm |
| Shipping Dimensions | 4.7" L × 3.38" H × 2.31" W | 12cm L × 9cm H × 6cm W |
| Shipping Volume | 36.70 in3 | 601 cm3 |
| Shipping Weight | 2.70 pounds | 1 kilograms |
| Weight | 2.70 pounds | 1 kilograms |
| Width | 2.31 inches | 59 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
