3-50 Series Clamp Yoke

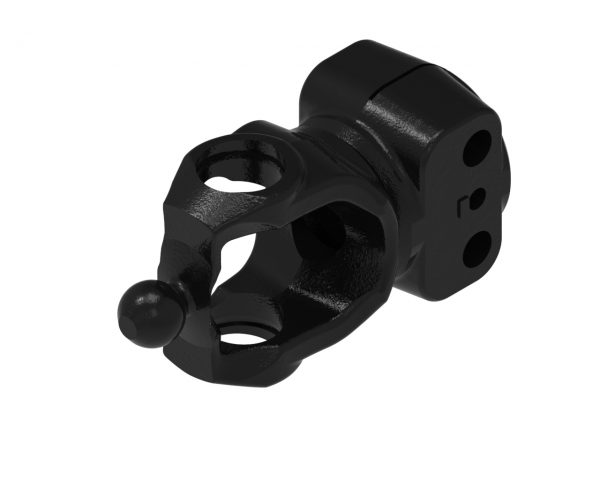

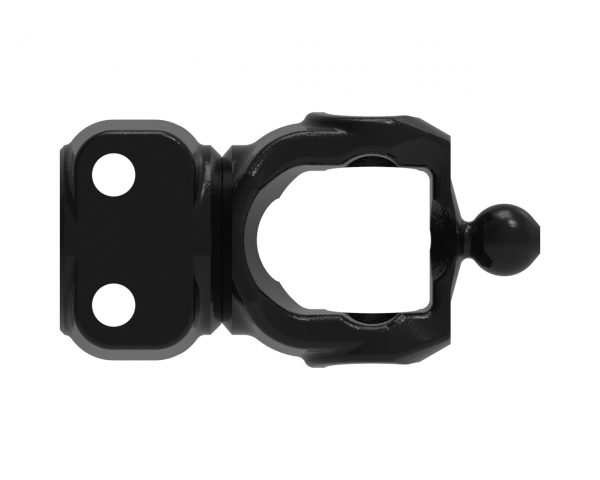

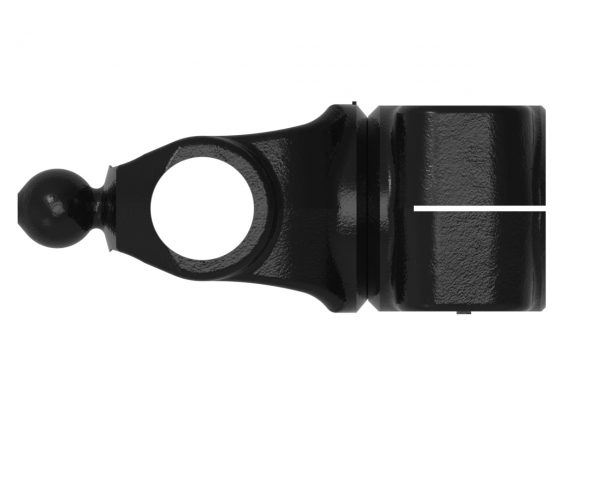

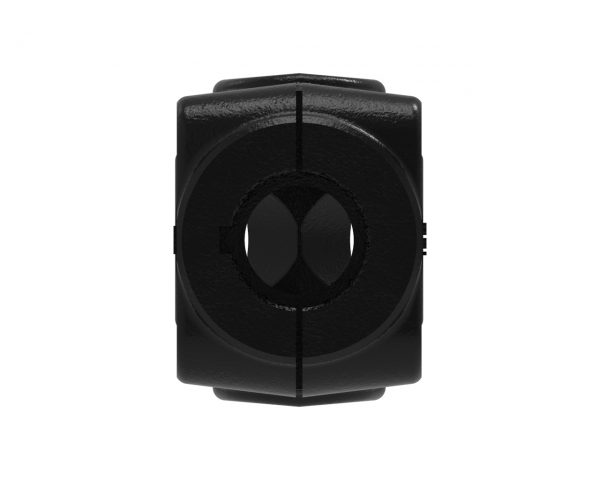

3-50 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.
Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Product Series: 3-50
| Spec. | Imperial | Metric |
|---|---|---|
| Bore | 1.25 (1 1/4) in | 32 mm |
| Bore Description | ROUND WITH KEYWAY | |
| Connection 1 Type | CLAMP | |
| Keyway | 0.25 (1/4) in | 6 mm |
| Centerline to End Dim. | 3.75 (3 3/4) in | 95 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-50-Deg-CV | Maintenance Document | English |
| Service-Instructions-CV-Joint | Service Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| Lack-of-Grease-50-deg-Ball-Socket | Troubleshooting Document | English |
| 50-deg-CV-Joint-Over-Angle | Troubleshooting Document | English |
| WE0101001_0118_USL_50DegConstantVelocityJoint | Performance Benefits Document | English |
