200-0310

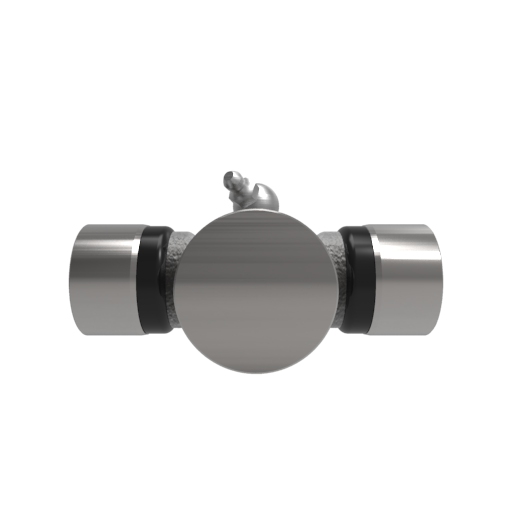

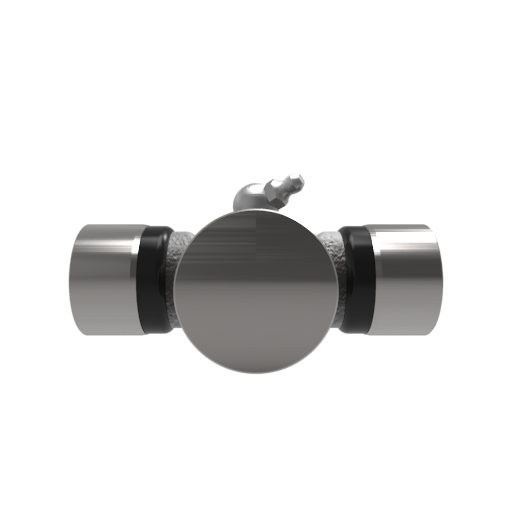

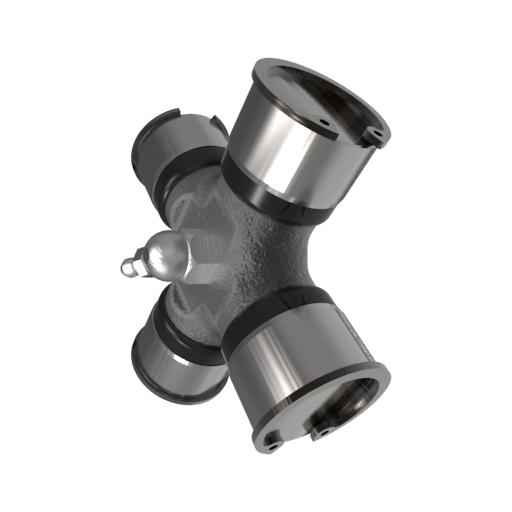

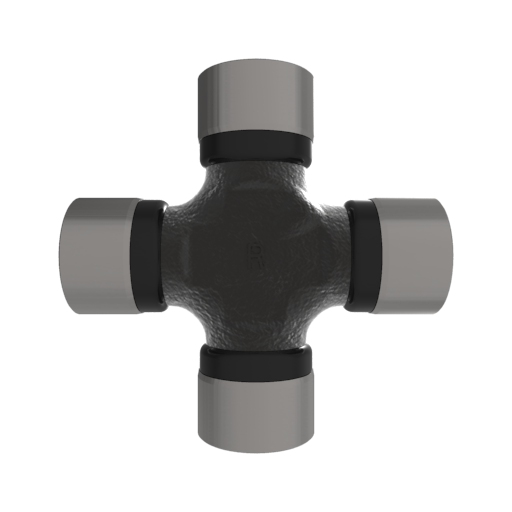

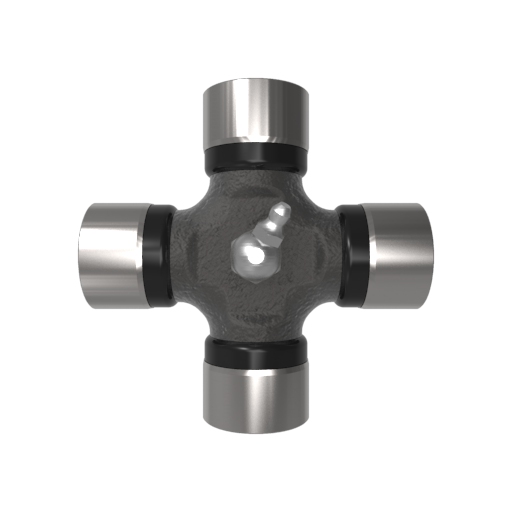

R STANDARD, CENTER GREASE FITTING3-80,310 Series Cross And Bearing Kit
3-80,310 series cross and bearing kit, r standard, center grease fitting
R-Kits are standard and offer a highquality lube cycle of 8 hours which is acceptable for many applications. R-kits and E-kits are interchangeable for all available Weasler series as well as with standard cross and bearing sets in the market. This means that a Weasler PTO drive shaft with R-kits can still be upgraded to E-kits or M-kits.
PERFORMANCE BENEFITS
Lubrication cycle of up to 8 hours.
Interchangeable with standard North American cross and bearing kits available in the market.
DESIGN FEATURES
A black seal with grease fitting makes it fast and easy to find a P-Kit.
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter | 1.06 inches | 27 mm |
| Bearing Span | 3.21 inches | 82 mm |
| Bearing Diameter | 1.06 inches | 27 mm |
| Bearing Span | 3.21 inches | 82 mm |
| Height | 1.06 inches | 27 mm |
| HP@1000RPM | 54 HP | 40 kilowatts |
| HP@540RPM | 35 HP | 26 kilowatts |
| Kit Type | R | |
| Length | 3.21 inches | 82 mm |
| Lubrication Interval | 8.00 | |
| Shipping Dimensions | 3.216" L × 1.063" H × 3.216" W | 8cm L × 3cm H × 8cm W |
| Shipping Volume | 10.99 in3 | 180 cm3 |
| Shipping Weight | 2.00 pounds | 1 kilograms |
| Snap Ring Location | External | |
| Weight | 2.00 pounds | 1 kilograms |
| Width | 3.21 inches | 82 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| WE0101007_0118_USL_EKit.pdf | Performance Benefits Document | English |
Support Videos
Performance Benefits Video
