857-3506
CV WIDE ANGLE CLAMP YOKE4-50 Series Clamp Yoke

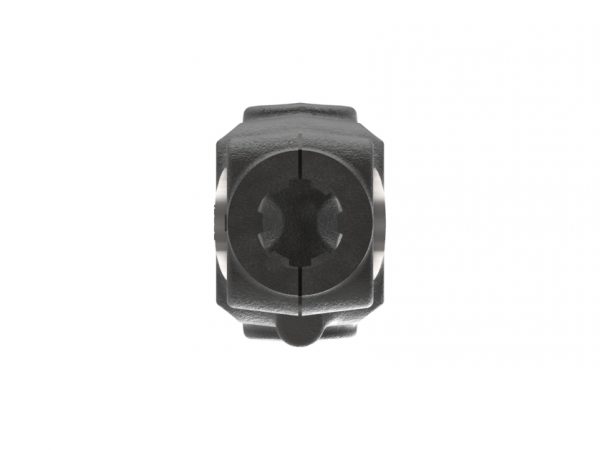

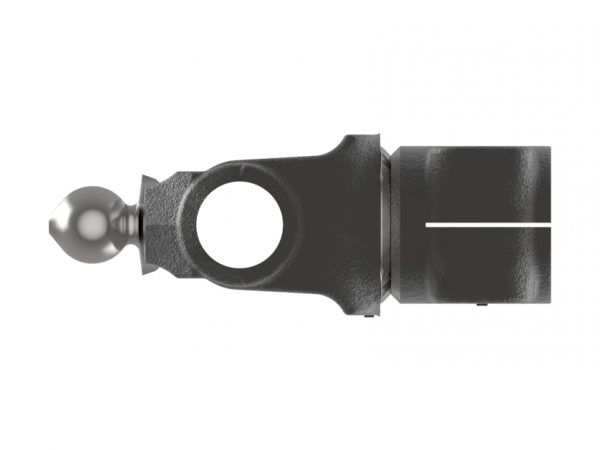

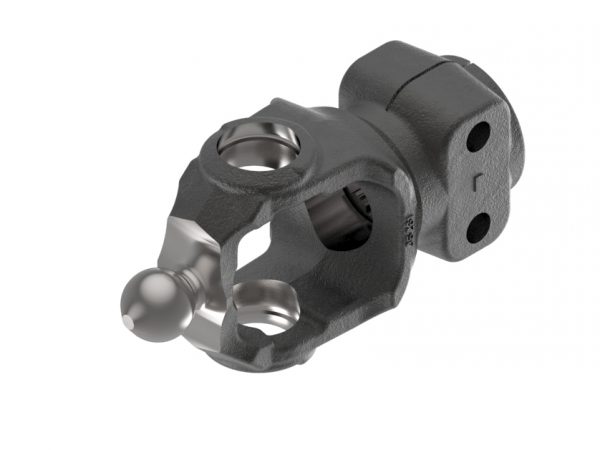

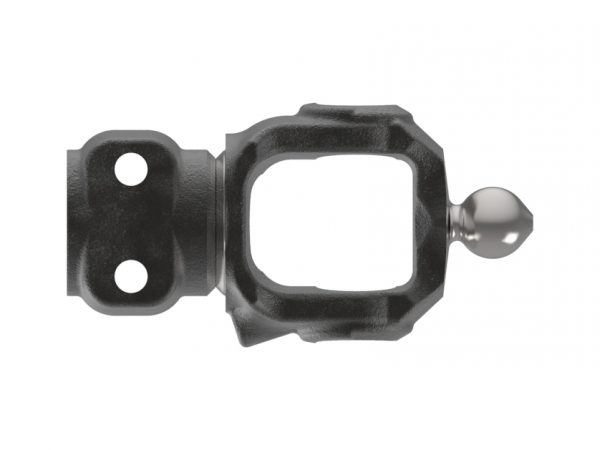

4-50 series yoke with 1 3/8-6 spline bore and clamp connection. Note: Image color may not represent actual part.
Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 3.91 inches | 99 mm |
| HP@1000RPM | 119 HP | 89 kilowatts |
| HP@540RPM | 77 HP | 57 kilowatts |
| Length | 4.50 inches | 114 mm |
| Shipping Dimensions | 7.25" L × 3.91" H × 2.81" W | 18cm L × 10cm H × 7cm W |
| Shipping Volume | 79.66 in3 | 1305 cm3 |
| Shipping Weight | 0.00 pounds | 0 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
| Width | 2.81 inches | 71 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating 50 Deg CV.pdf | Maintenance Document | English |
| Service Instructions - CV Joint.pdf | Service Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| 50 deg CV Joint - Over Angle.pdf | Troubleshooting Document | English |
| WE0101001_0118_USL_50DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
