850-3520

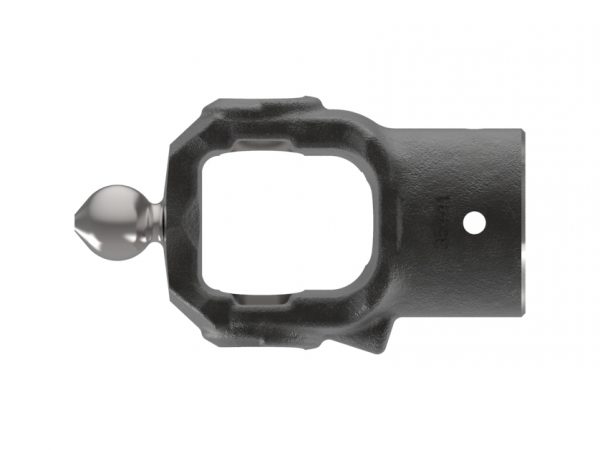

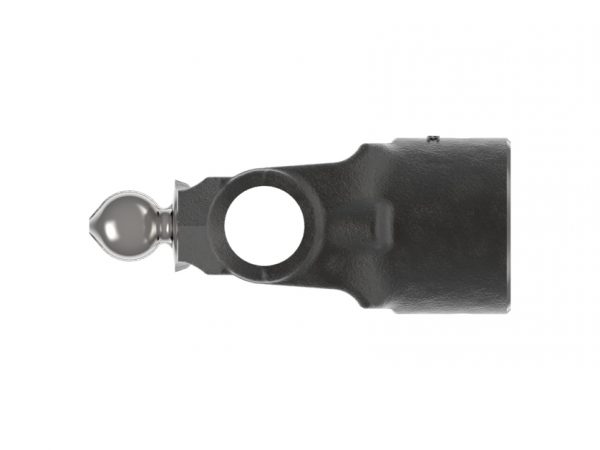

CV WIDE ANGLE IMPLEMENT YOKE4-50 Series Pin, Setscrew Yoke

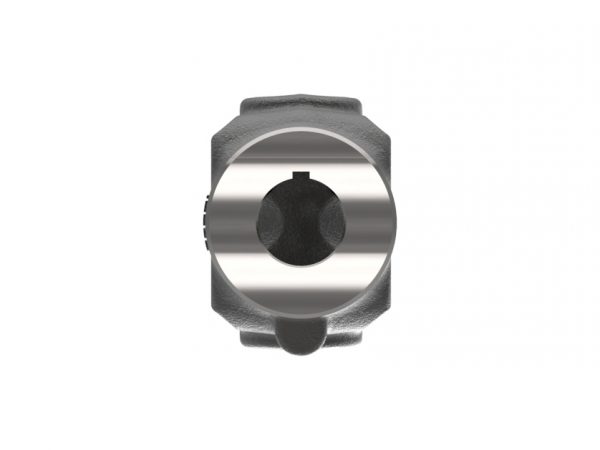

4-50 series yoke with round with keyway bore and pin, setscrew connection
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler CV wide angle implement yokes are provided in a variety of bore and mounting options.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.75 inches | 44 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | PIN, SETSCREW | |
| Height | 3.91 inches | 99 mm |
| HP@1000RPM | 119 HP | 89 kilowatts |
| HP@540RPM | 77 HP | 57 kilowatts |
| Keyway 1 | 0.25 inches | 6 mm |
| Length | 3.87 inches | 98 mm |
| Pin Hole | 0.33 inches | 8 mm |
| Pin Hole | 0.75 | |
| Setscrew | 3/8-16 | |
| Shipping Dimensions | 6.62" L × 3.91" H × 2.75" W | 17cm L × 10cm H × 7cm W |
| Shipping Volume | 71.18 in3 | 1166 cm3 |
| Shipping Weight | 5.00 pounds | 2 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
| Width | 2.75 inches | 70 mm |
