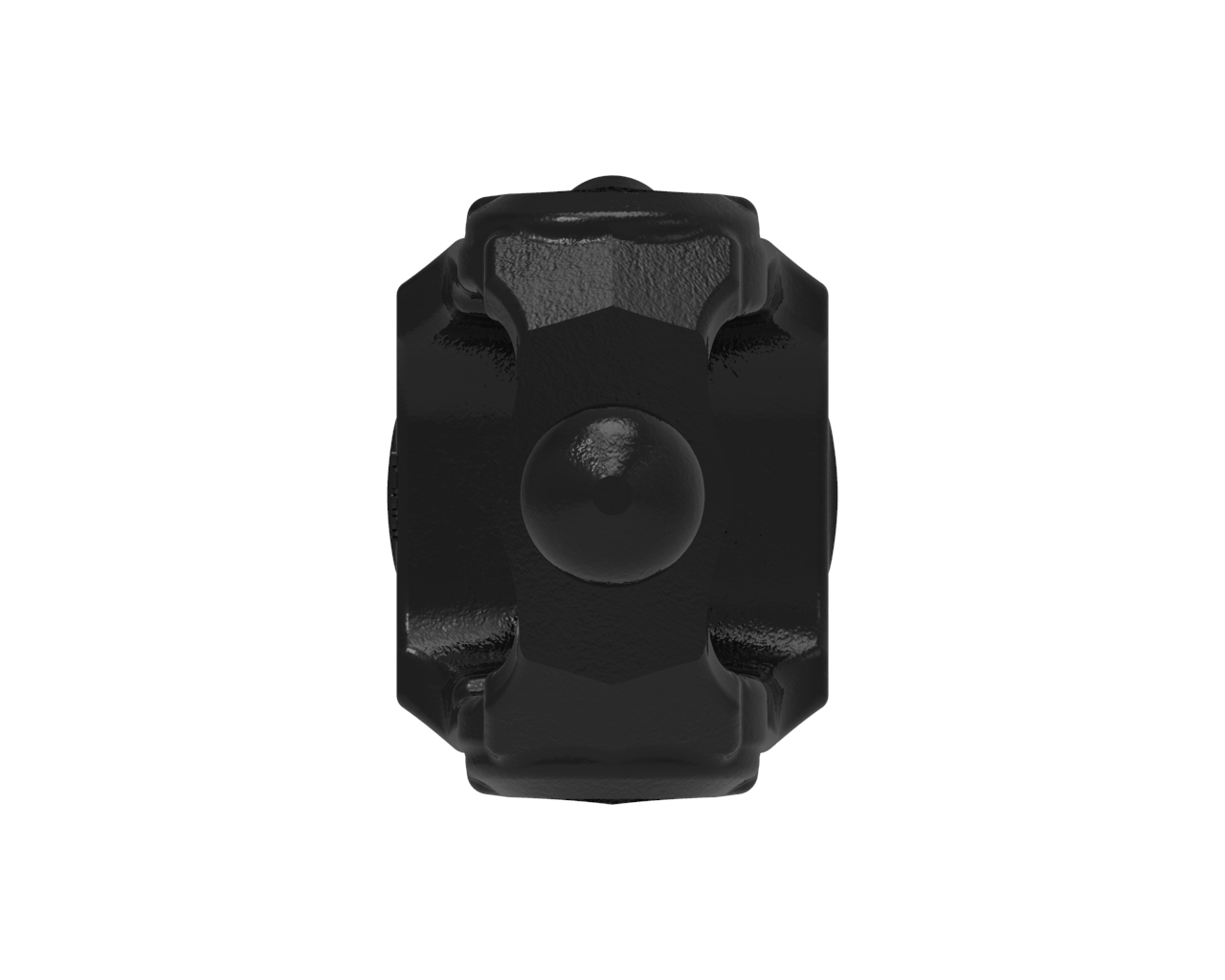

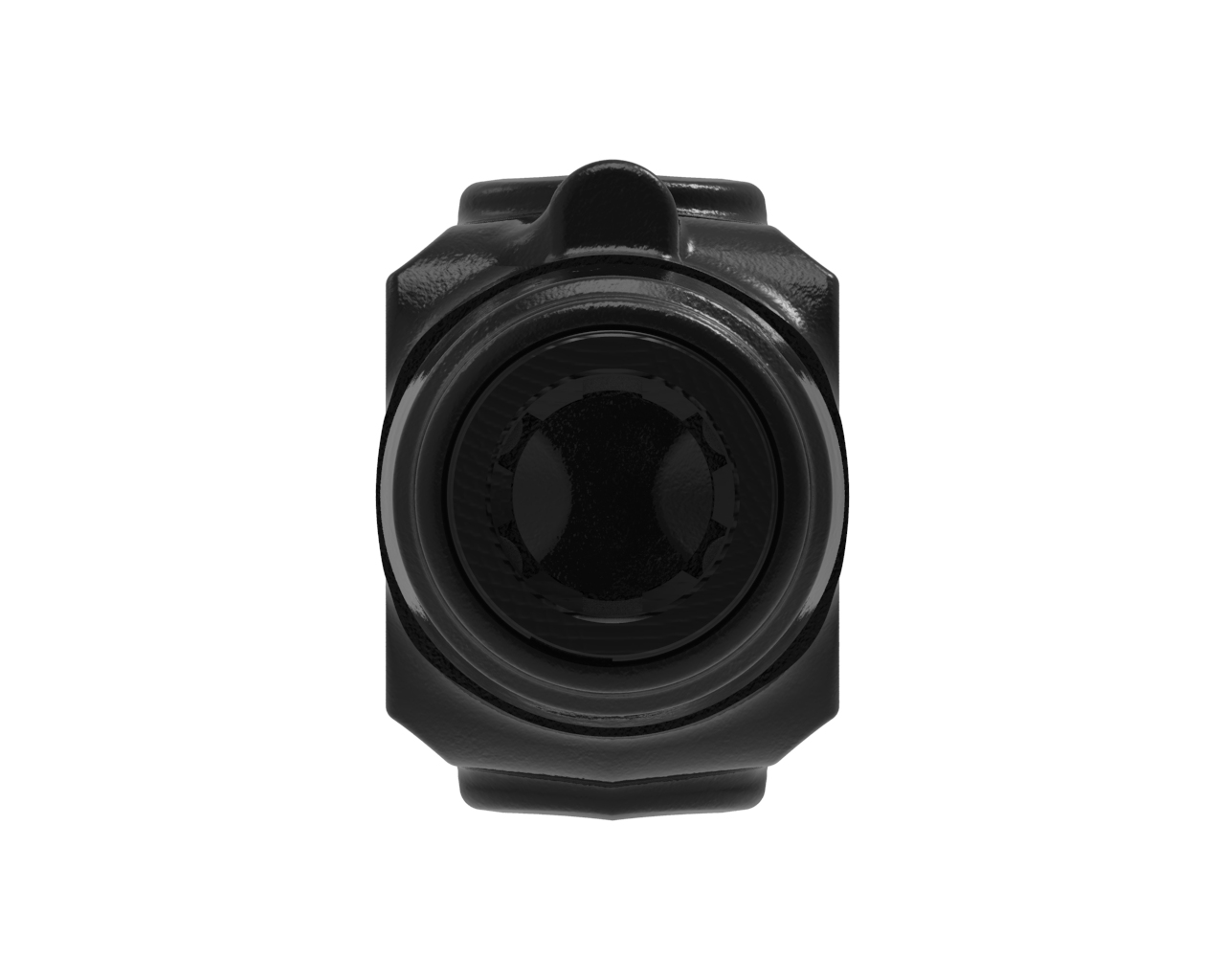

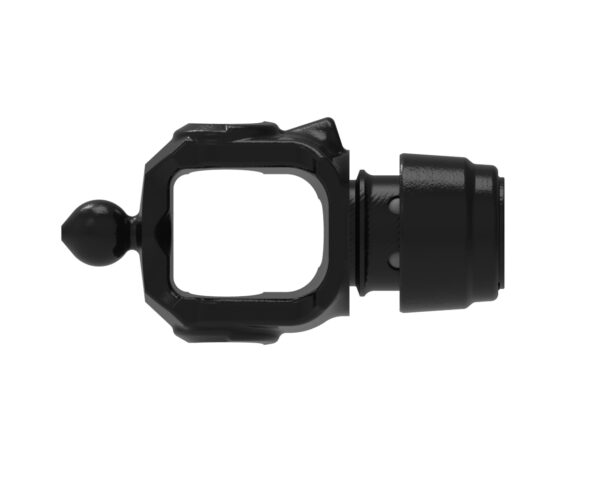

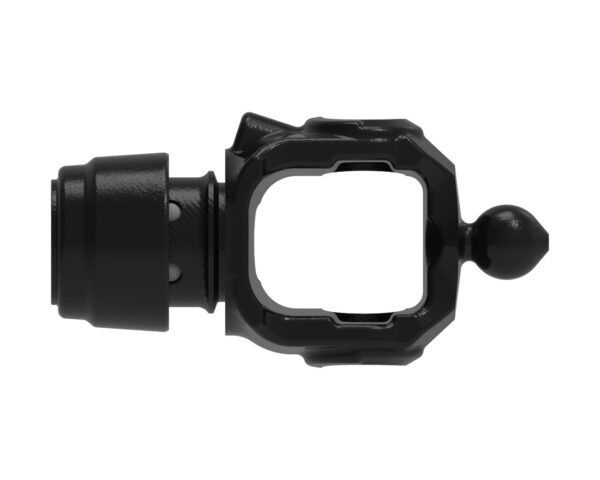

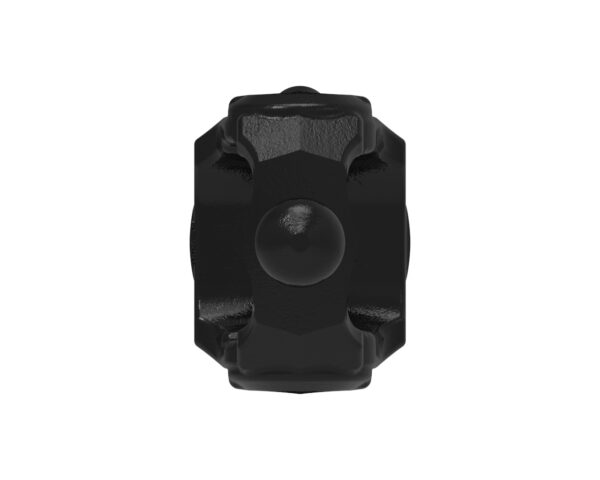

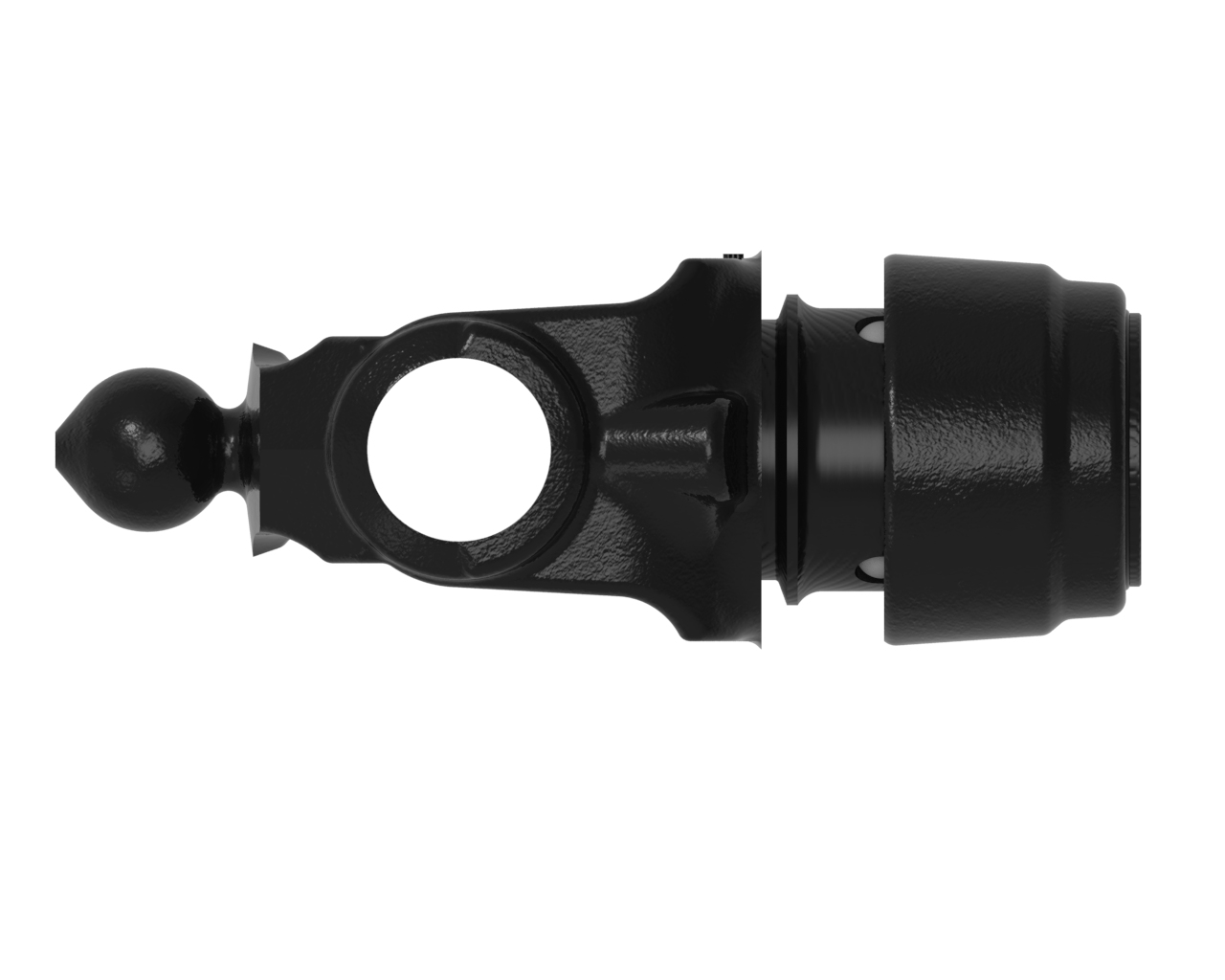

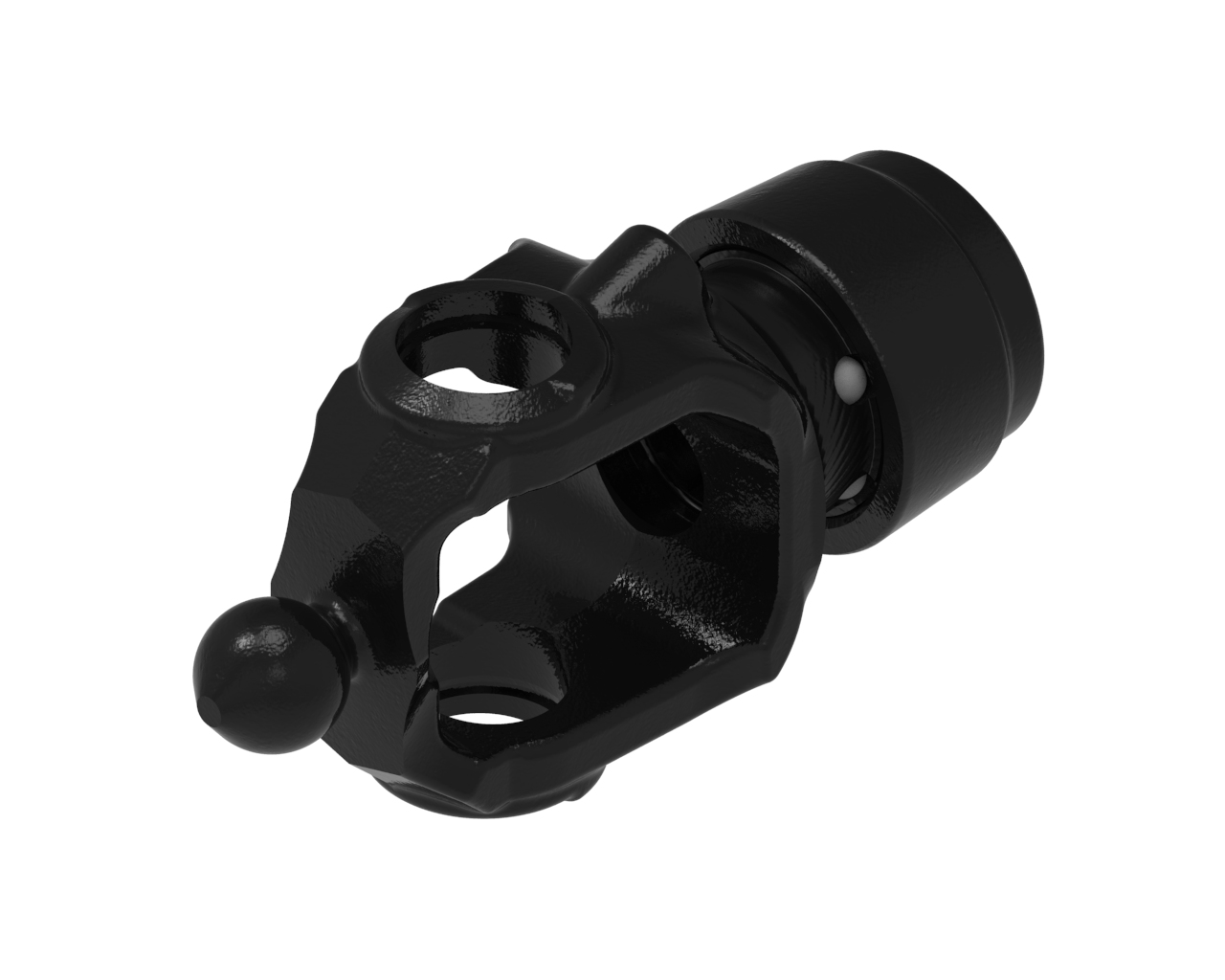

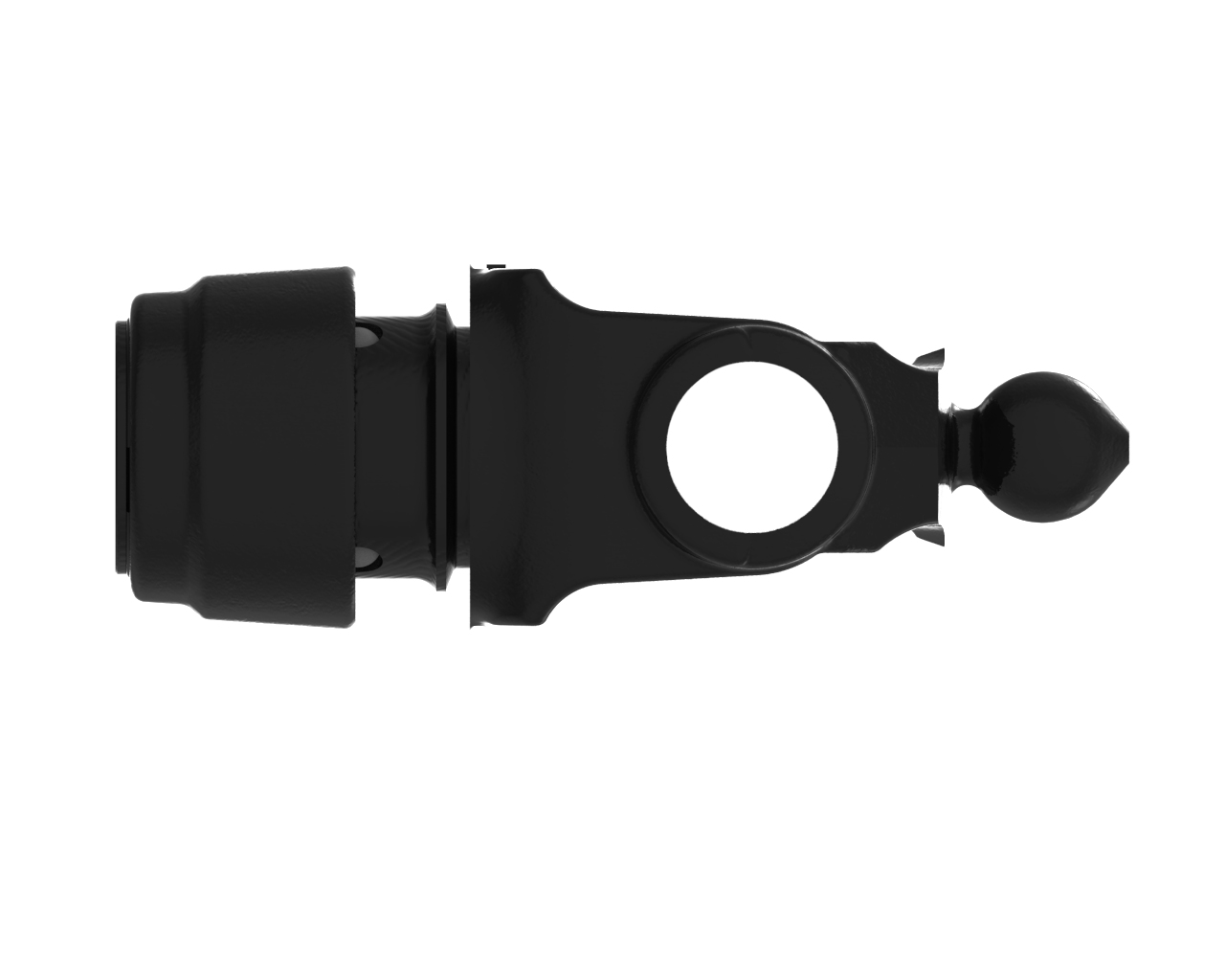

4-50 Series Safety Slide Lock Yoke
4-50 series yoke with 1 3/8-6 spline bore and safety slide lock connection
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
Product Series: 4-50
Spec. | Imperial | Metric |
---|---|---|
Bearing Diameter (Ear Hole) | 1.25 (1 1/4) in | 32 mm |
Bearing Cap to Cap Span | 3.20 (3 13/64) in | 81 mm |
Bore | 1.37 (1 3/8) in | 35 mm |
Bore Description | 1 3/8-6 SPLINE | |
Centerline to End Dim. | 4.57 (4 9/16) in | 116 mm |
Weight | 5.00 pounds | 2 kilograms |
Width | 2.75 (2 3/4) in | 70 mm |
Related Products
Product | Part Number |
---|---|
Cross & Bearing Kit | 200-3500 |
Downloads
Document Name | Type | Language |
---|---|---|
Service-Instructions-Lubricating-50-Deg-CV | Maintenance Document | English |
Service-Instructions-CV-Joint | Service Document | English |
Service-Instructions-Universal-Joint | Service Document | English |
Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
Lack-of-Grease-50-deg-Ball-Socket | Troubleshooting Document | English |
50-deg-CV-Joint-Over-Angle | Troubleshooting Document | English |
WE0101001_0118_USL_50DegConstantVelocityJoint | Performance Benefits Document | English |
