515-8600

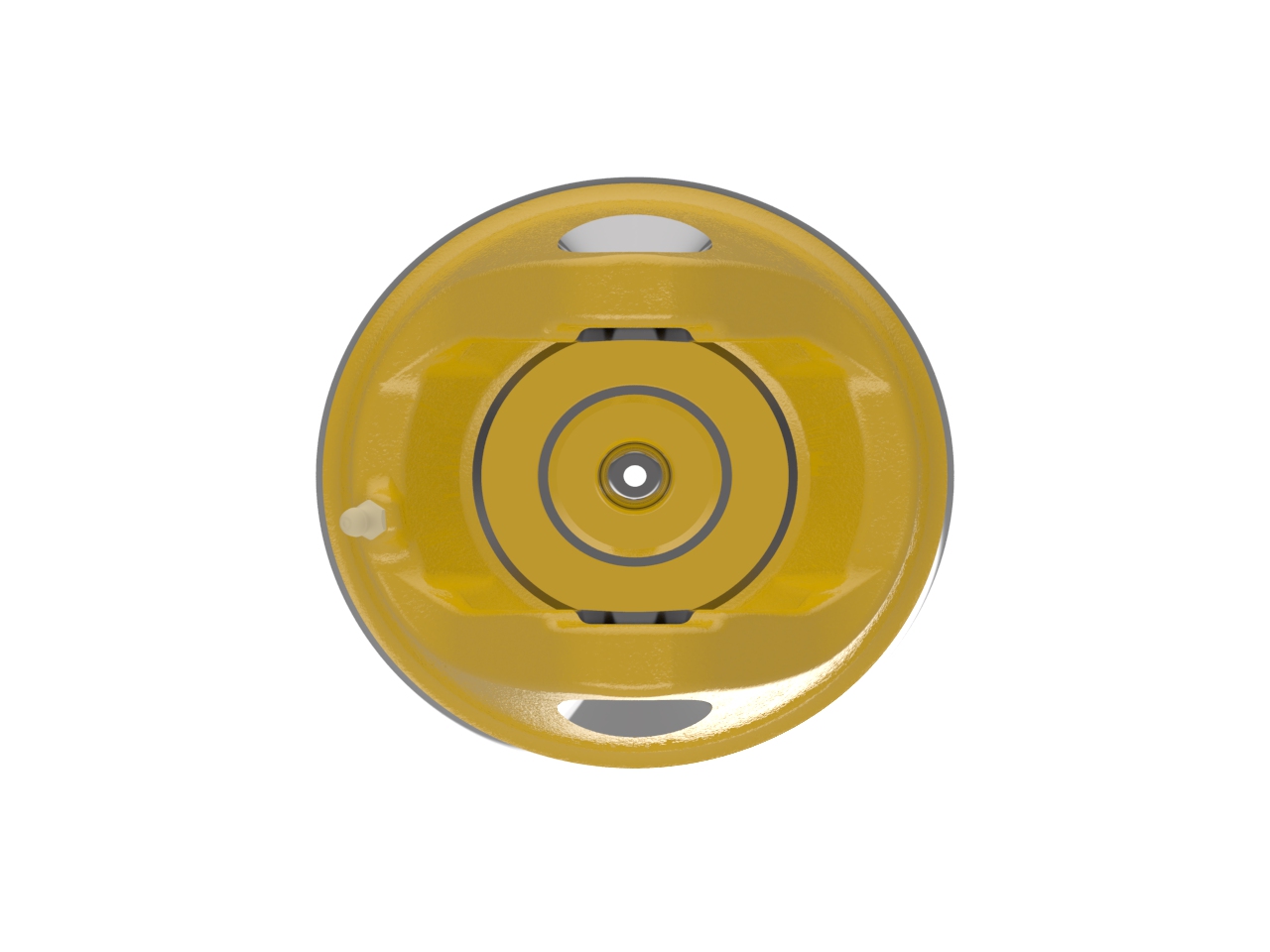

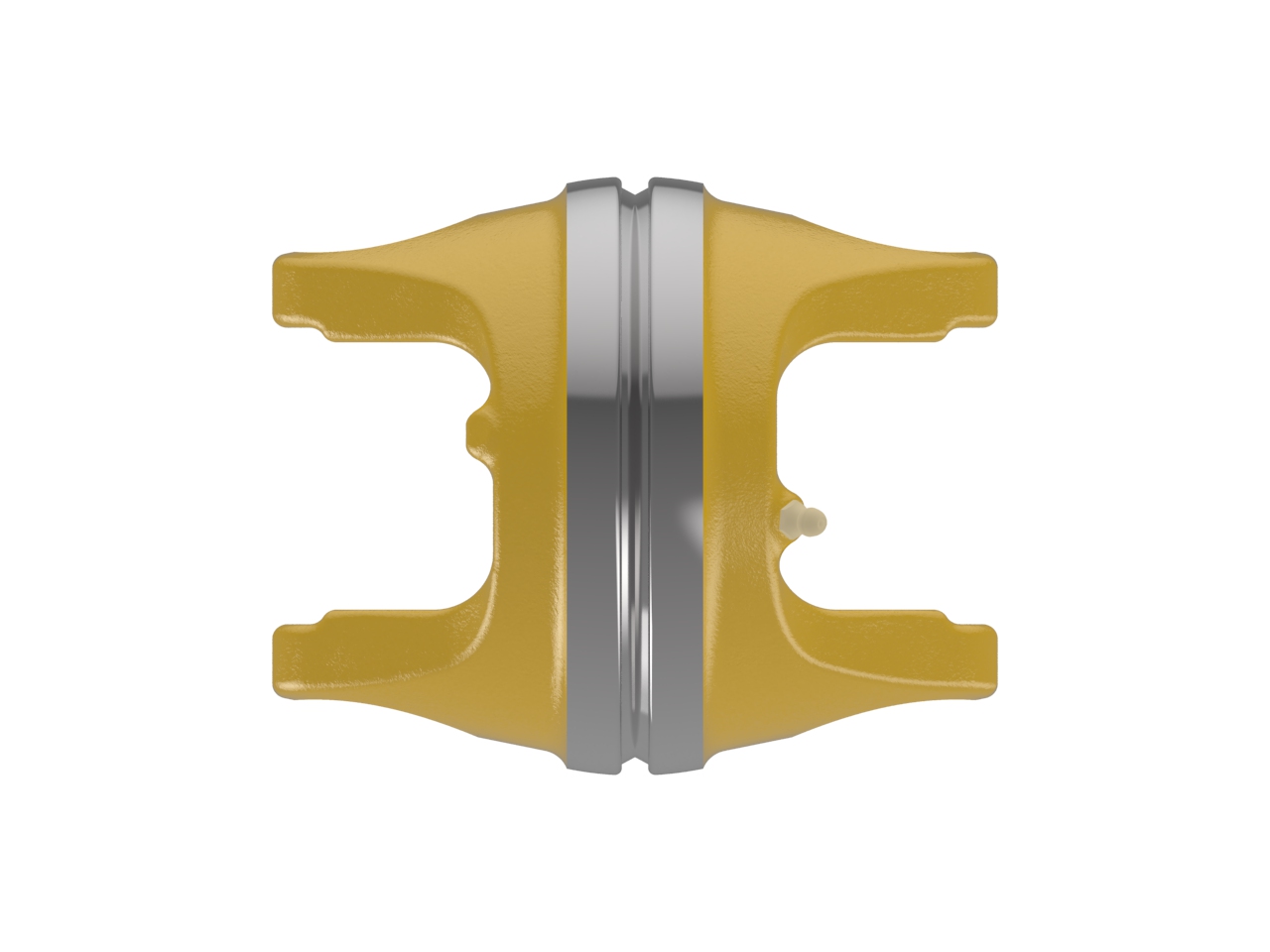

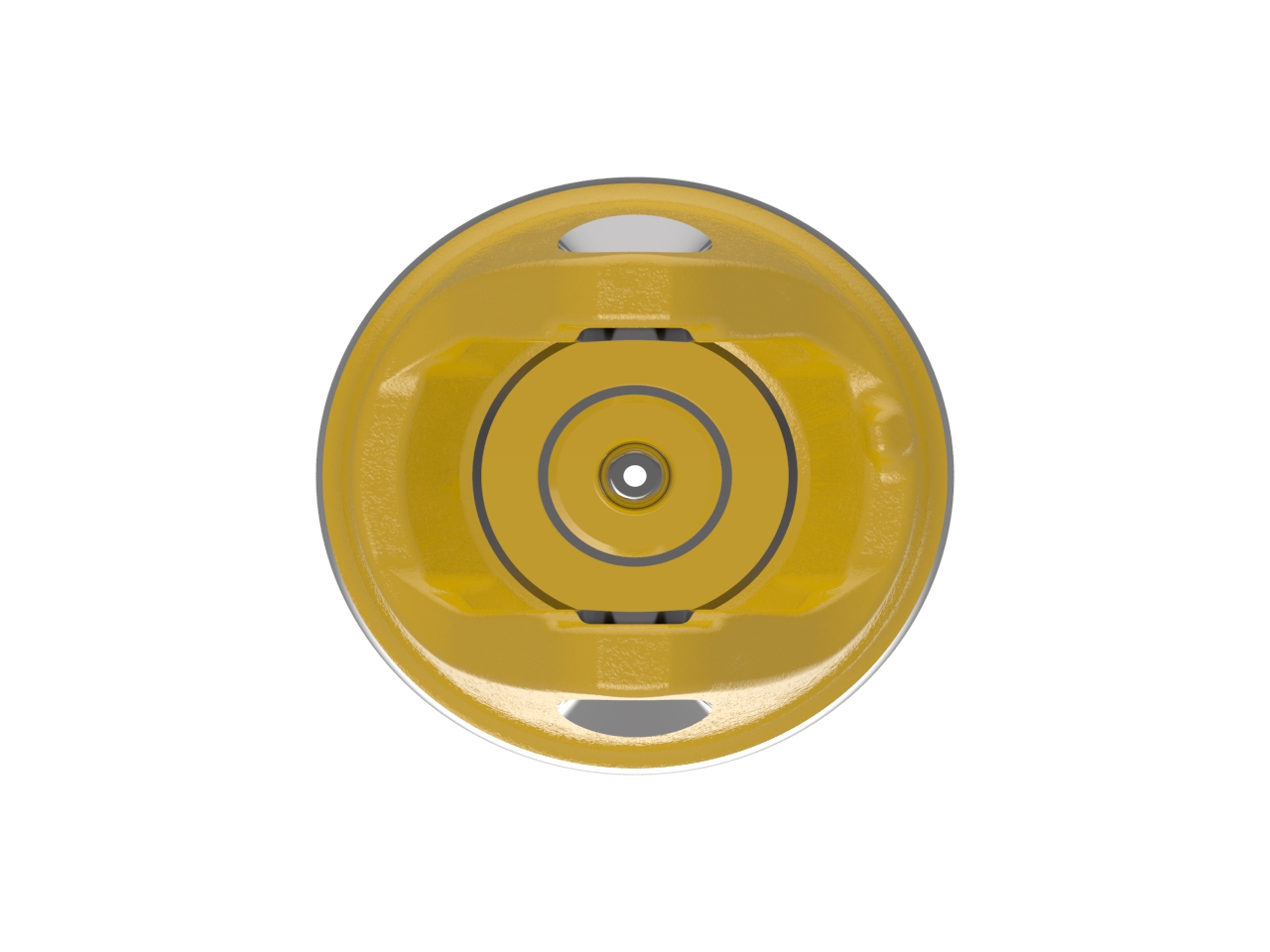

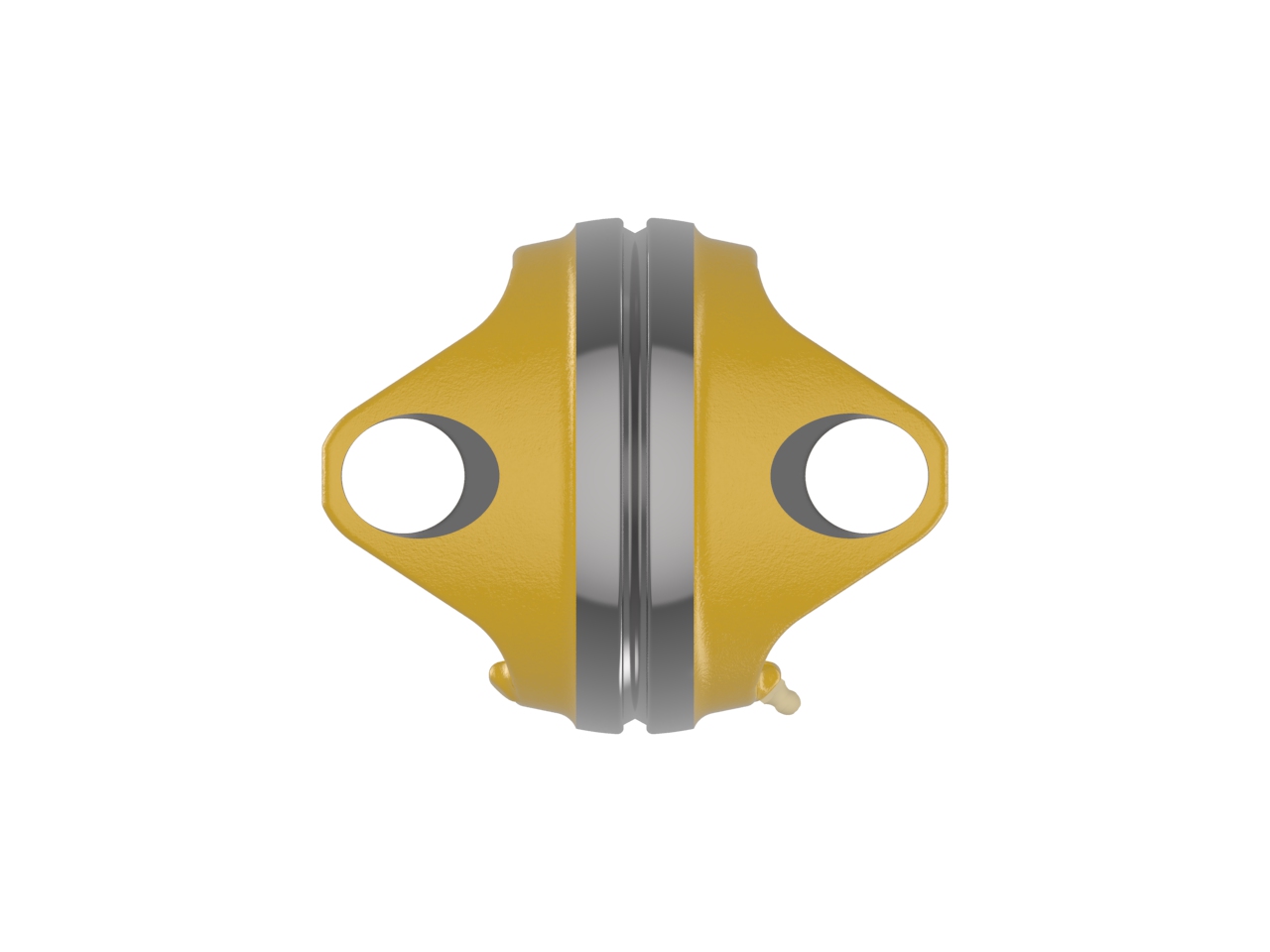

CV WIDE ANGLE CENTER YOKE4-80 Series CV Wide Angle Center Yoke
4-80 series CV wide angle center yoke with centering plate bore and yoke arms connection
Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The center yoke connects the two outboard yokes to transmit power while maintaining constant angle to minimize vibration.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 0.50 inches | 13 mm |
| Bore 1 | CENTERING PLATE | |
| Connection 1 | YOKE ARMS | |
| HP@1000RPM | 122 HP | 91 kilowatts |
| HP@540RPM | 79 HP | 59 kilowatts |
| Length | 4.50 inches | 114 mm |
| Outside Diameter | 5.50 inches | 140 mm |
| Shipping Dimensions | 6.15" L × 5.5" H × 5.5" W | 16cm L × 14cm H × 14cm W |
| Shipping Volume | 186.04 in3 | 3049 cm3 |
| Shipping Weight | 9.35 pounds | 4 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
