CV WIDE ANGLE UNIVERSAL JOINT4-80 Series CV Wide Angle Universal Joint

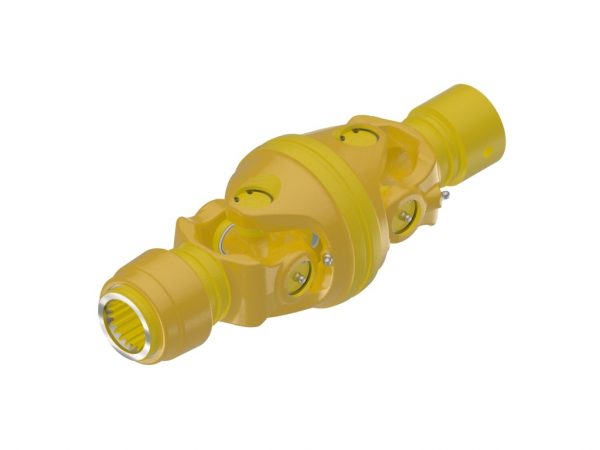

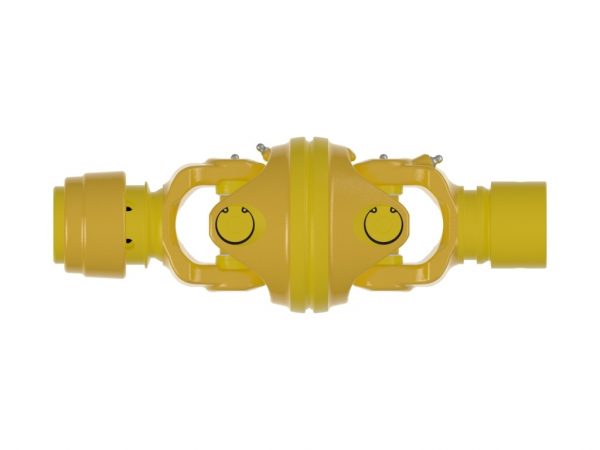

4-80 series CV wide angle universal joint with 1 3/4-20 spline, auto-lok connection and 39 mm lemon, roll pin connection
The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
PERFORMANCE BENEFITS
DESIGN FEATURES
Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.79 inches | 45 mm |
Bore 1 | 1 3/4-20 SPLINE | |
Bore 2 | 1.59 inches | 40 mm |
Bore 2 | 39 MM LEMON | |
Compressed (Closed) Length | 4.50 inches | 114 mm |
Compressed Overall Length | 14.56 inches | 370 mm |
Connection 1 | AUTO-LOK | |
Connection 2 | ROLL PIN | |
Extended Length | 4.50 inches | 114 mm |
HP@1000RPM | 99 HP | 74 kilowatts |
HP@540RPM | 64 HP | 48 kilowatts |
Length | 14.56 inches | 370 mm |
Outside Diameter | 5.50 inches | 140 mm |
Shipping Dimensions | 10" L × 5.5" H × 5.5" W | 25cm L × 14cm H × 14cm W |
Shipping Volume | 453.75 in3 | 7436 cm3 |
