112-3521

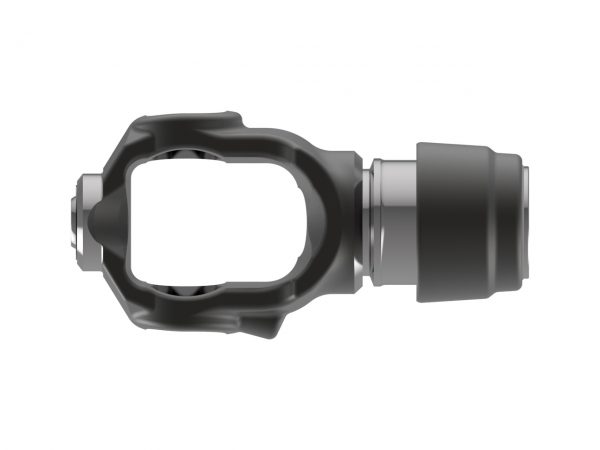

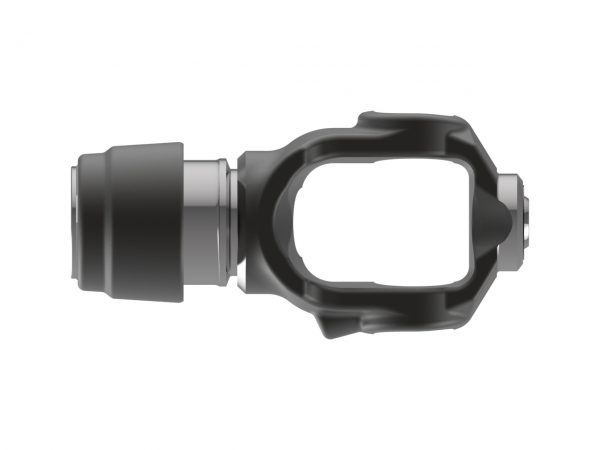

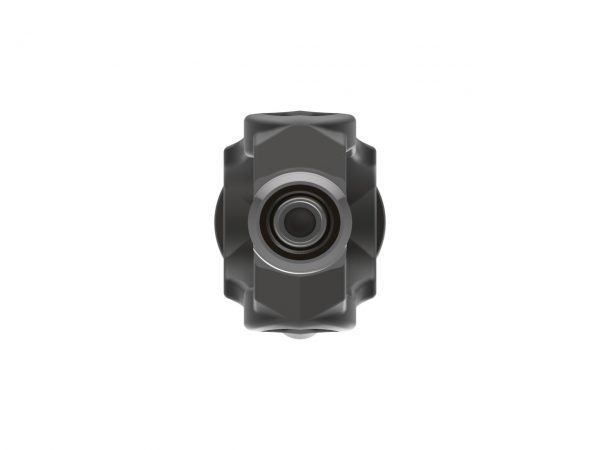

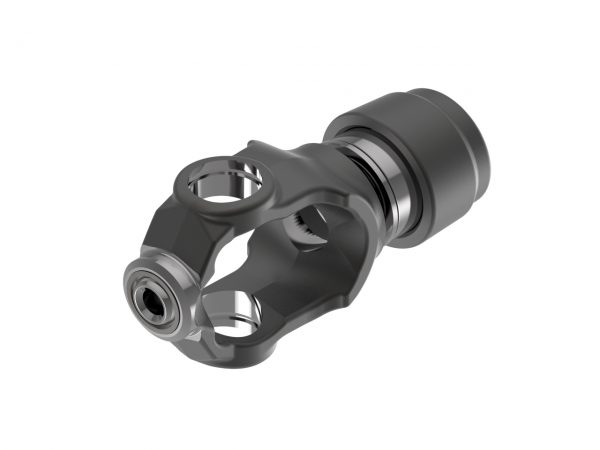

CV WIDE ANGLE TRACTOR YOKE4-80 Series Safety Slide Lock Yoke
4-80 series yoke with 1 3/8-21 spline bore and safety slide lock connection
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-21 SPLINE | |
| Connection 1 | SAFETY SLIDE LOCK | |
| Height | 3.92 inches | 100 mm |
| HP@1000RPM | 122 HP | 91 kilowatts |
| HP@540RPM | 79 HP | 59 kilowatts |
| Length | 5.34 inches | 136 mm |
| Shipping Dimensions | 7.263" L × 3.92" H × 2.38" W | 18cm L × 10cm H × 6cm W |
| Shipping Volume | 67.76 in3 | 1110 cm3 |
| Shipping Weight | 4.44 pounds | 2 kilograms |
| Weight | 4.44 pounds | 2 kilograms |
| Width | 2.38 inches | 60 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating 80 Deg CV.pdf | Maintenance Document | English |
| Service Instructions - CV Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| 80 deg CV Joint - Over Angle Operating.pdf | Troubleshooting Document | English |
| 80 deg CV Joint - Over Angle NonOperating.pdf | Troubleshooting Document | English |
| WE0101003_1019_USL_80DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
