807-4427

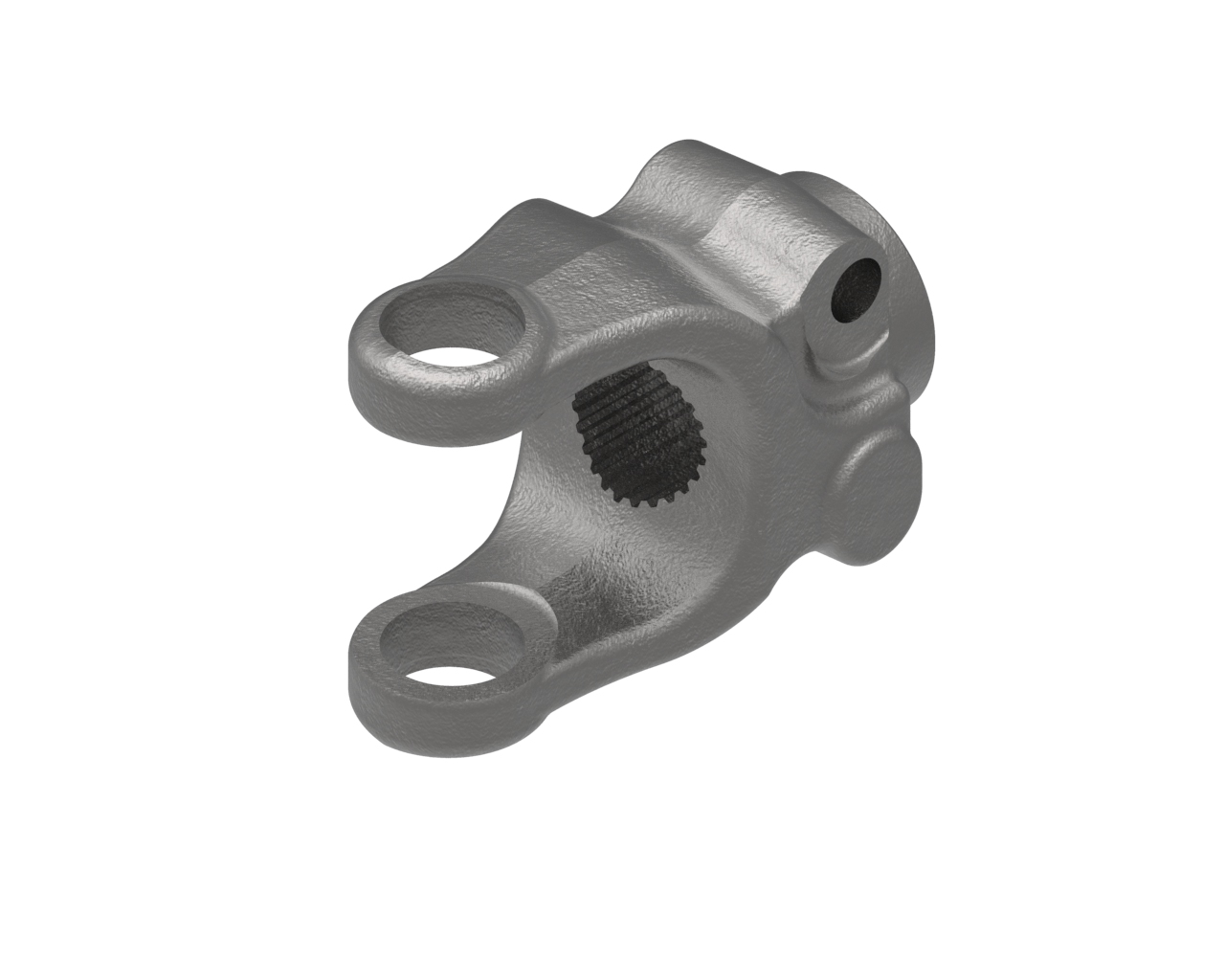

CLAMP YOKE44 Series Clamp Yoke

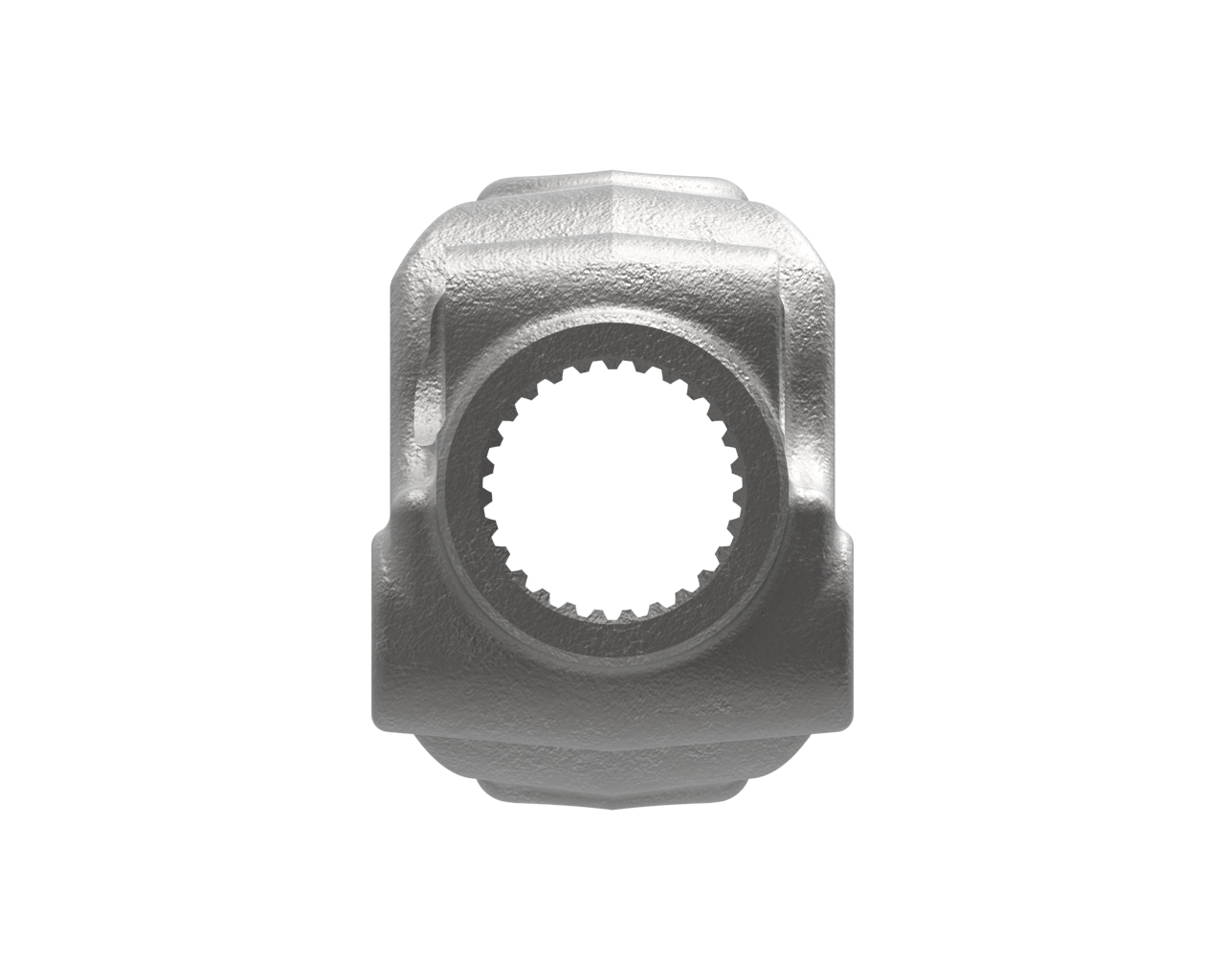

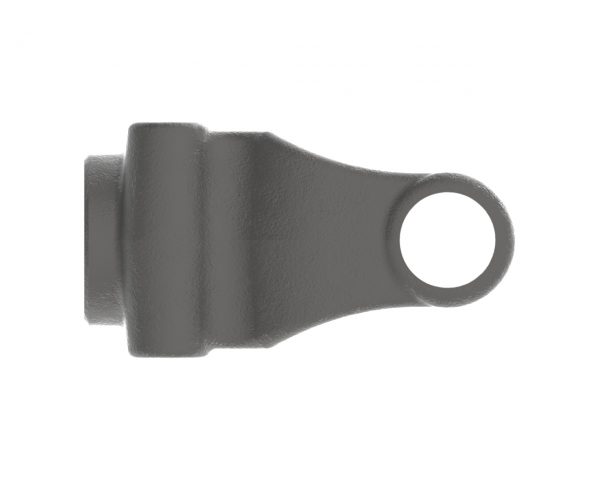

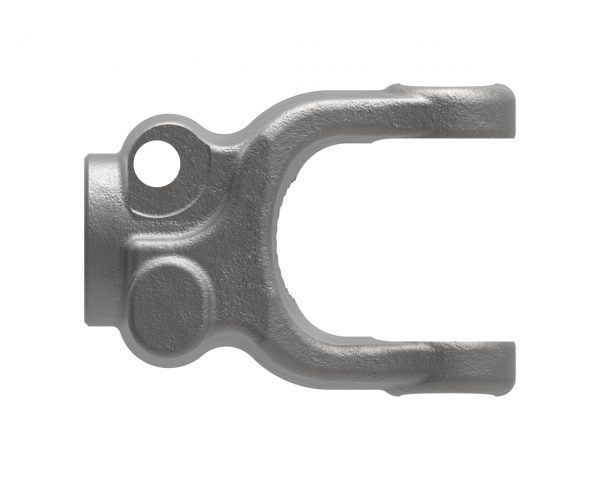

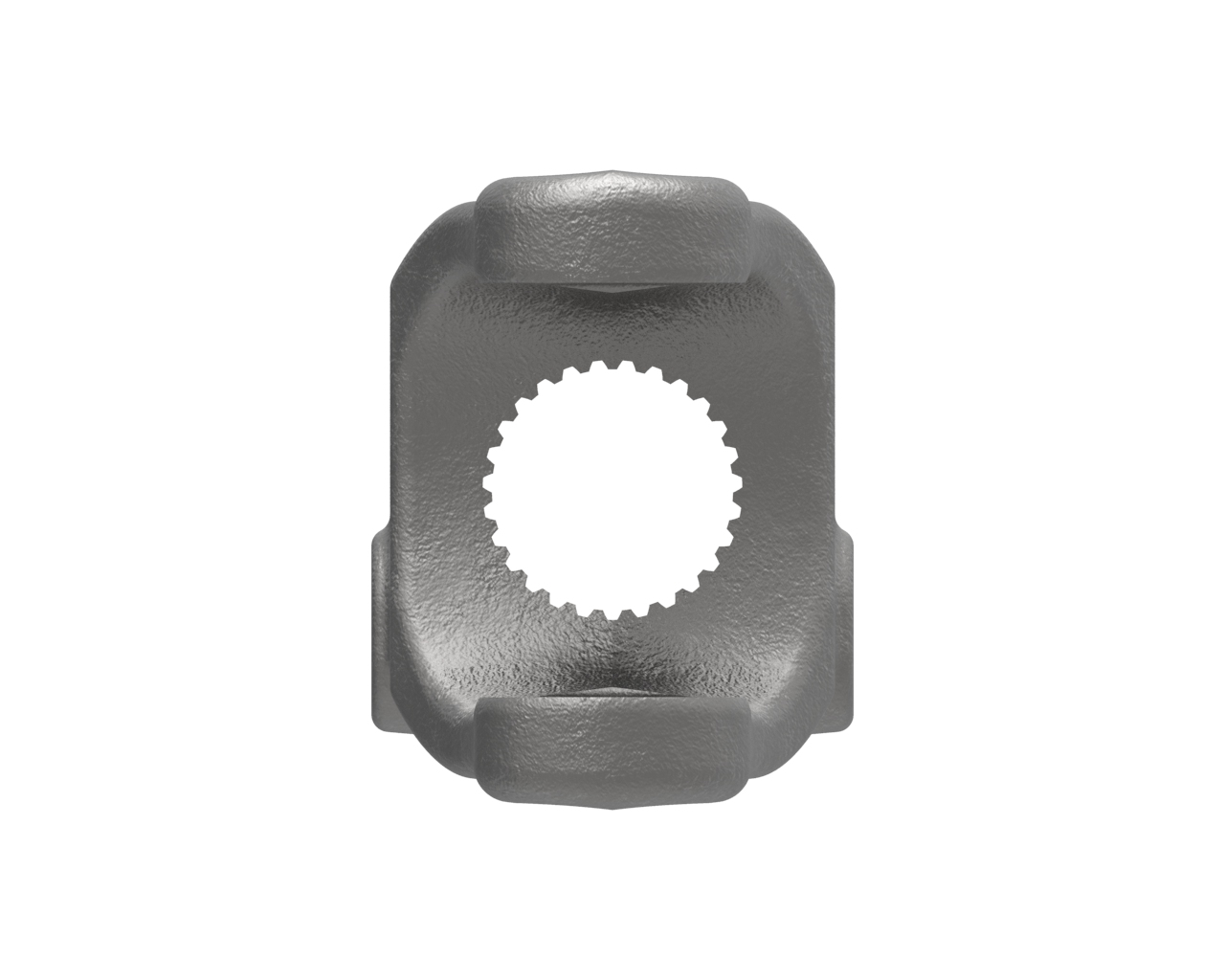

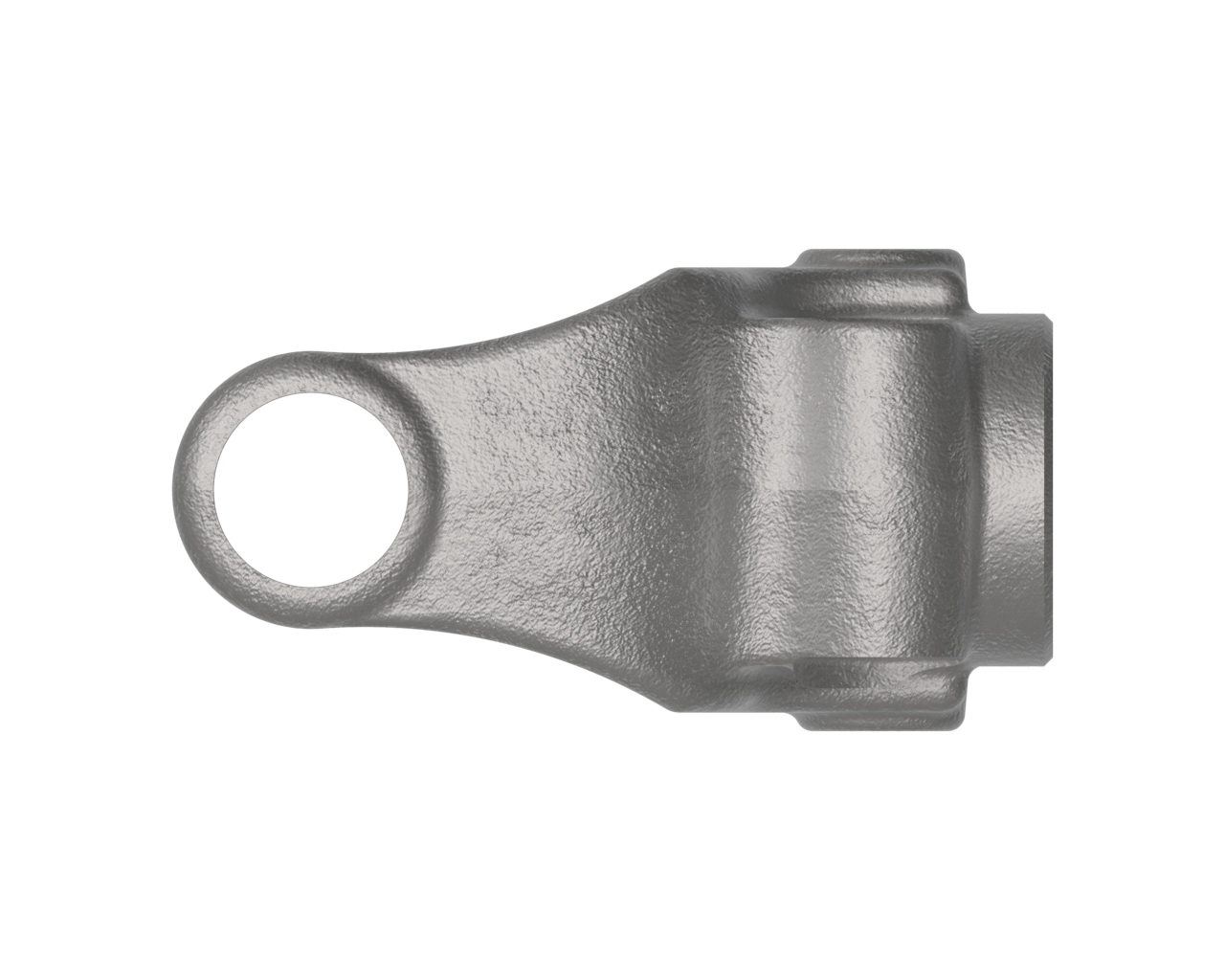

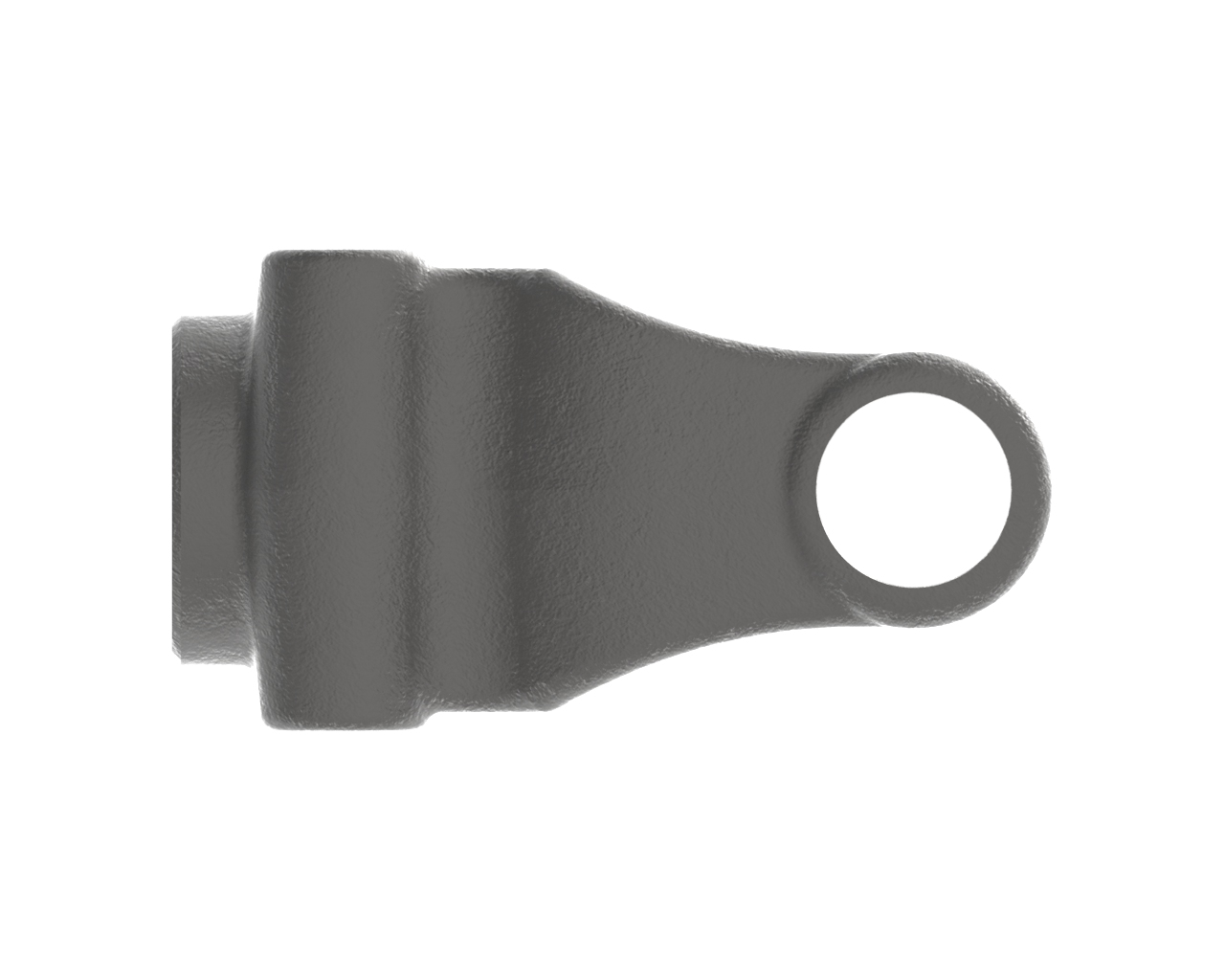

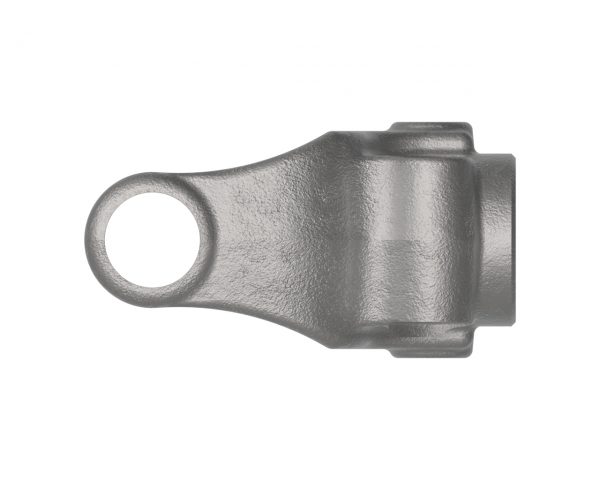

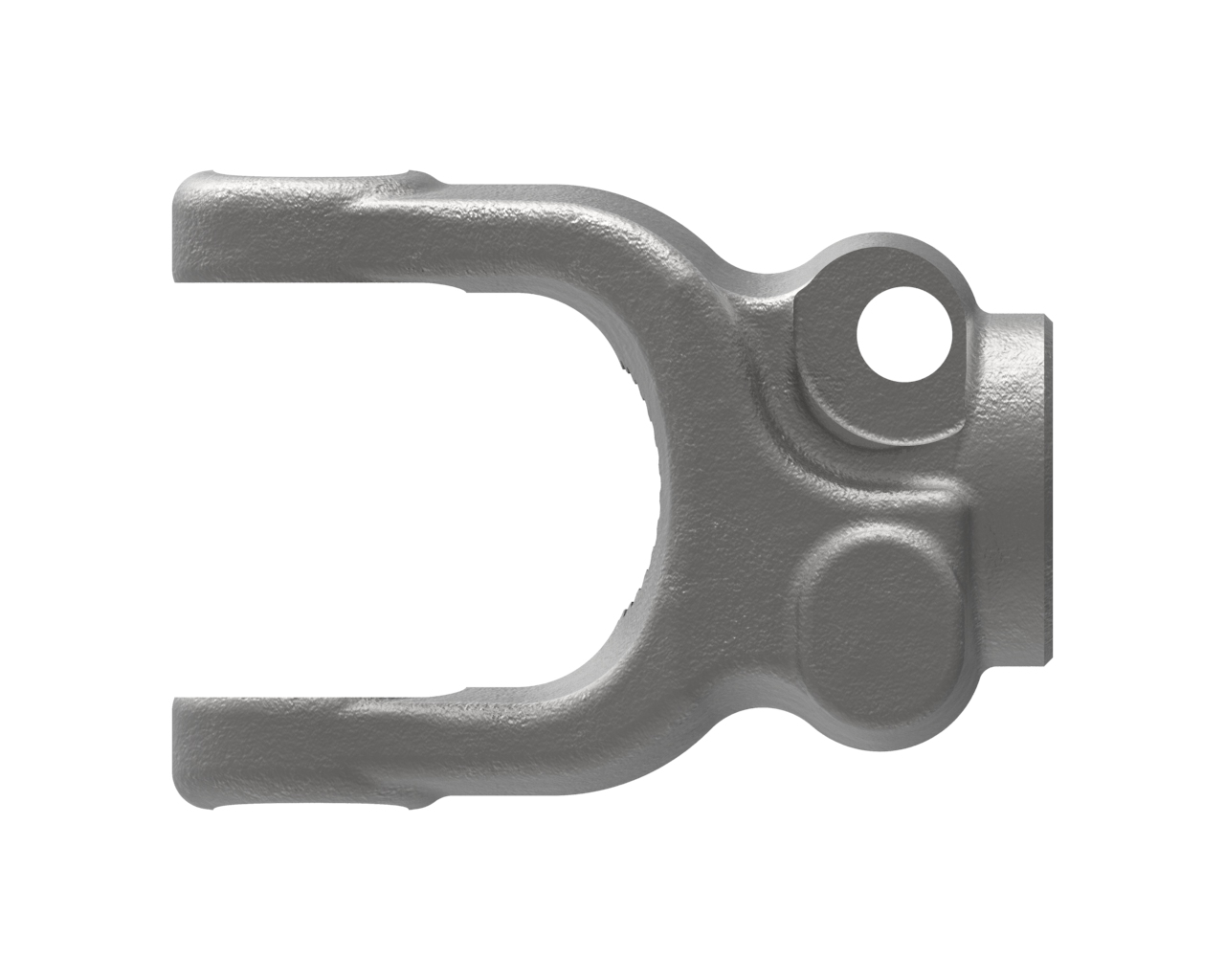

44 series yoke with 1 3/4-27 spline bore and clamp connection
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.75 inches | 44 mm |
| Bore 1 | 1 3/4-27 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 4.50 inches | 114 mm |
| HP@1000RPM | 158 HP | 118 kilowatts |
| HP@540RPM | 103 HP | 77 kilowatts |
| Length | 5.00 inches | 127 mm |
| Shipping Dimensions | 5.94" L × 4.5" H × 2.5" W | 15cm L × 11cm H × 6cm W |
| Shipping Volume | 66.82 in3 | 1095 cm3 |
| Shipping Weight | 6.10 pounds | 3 kilograms |
| Weight | 6.10 pounds | 3 kilograms |
| Width | 2.50 inches | 64 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
