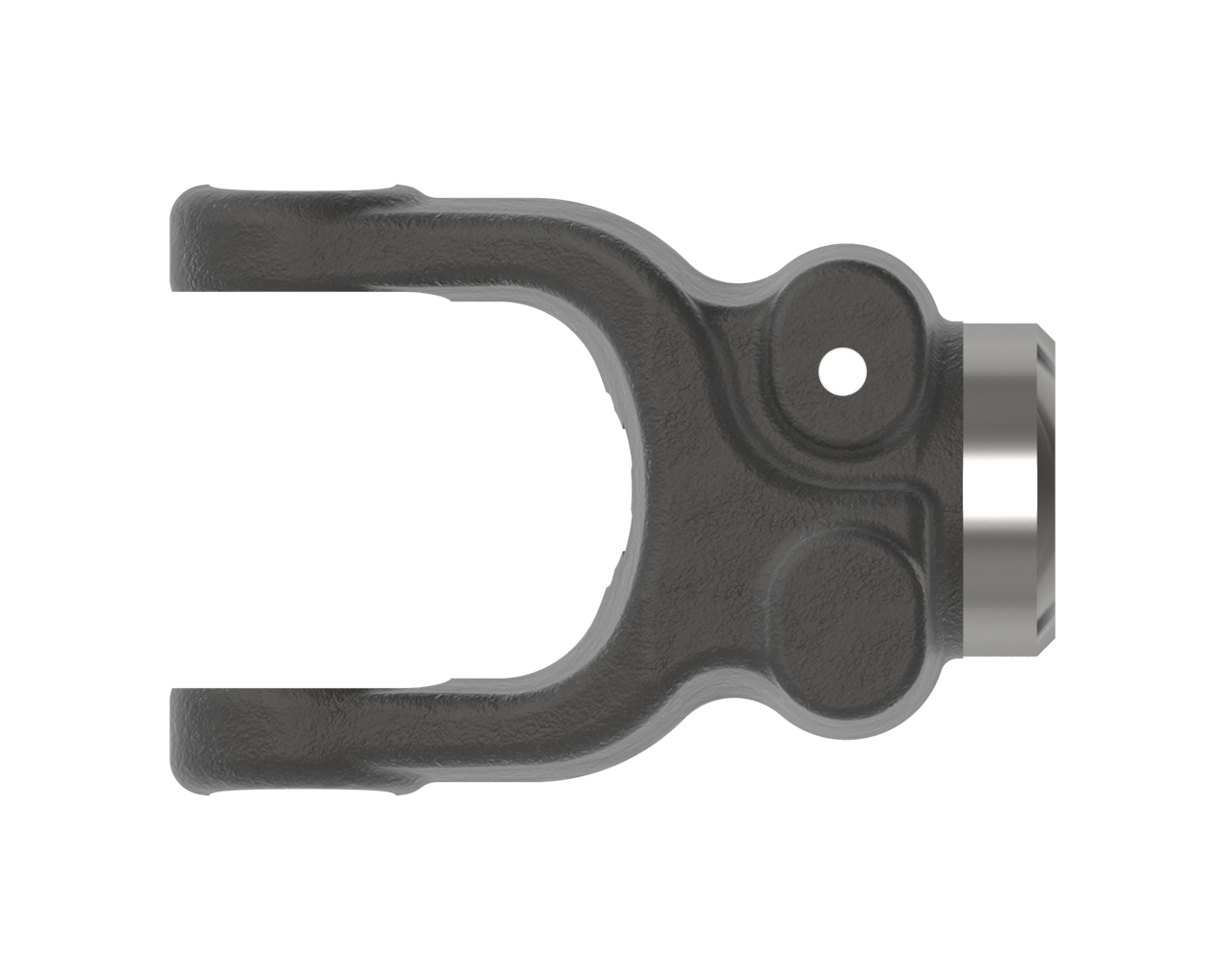

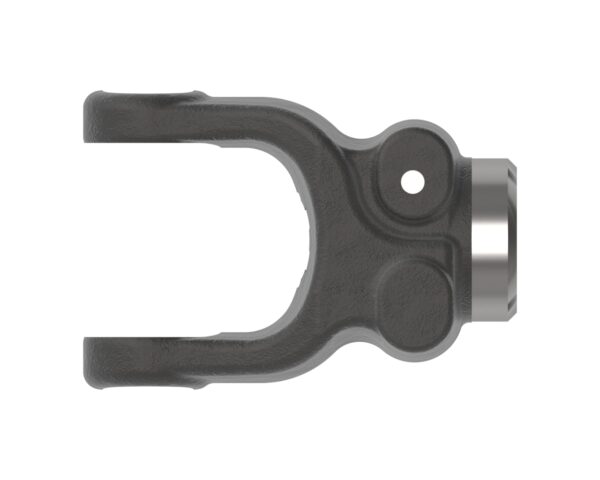

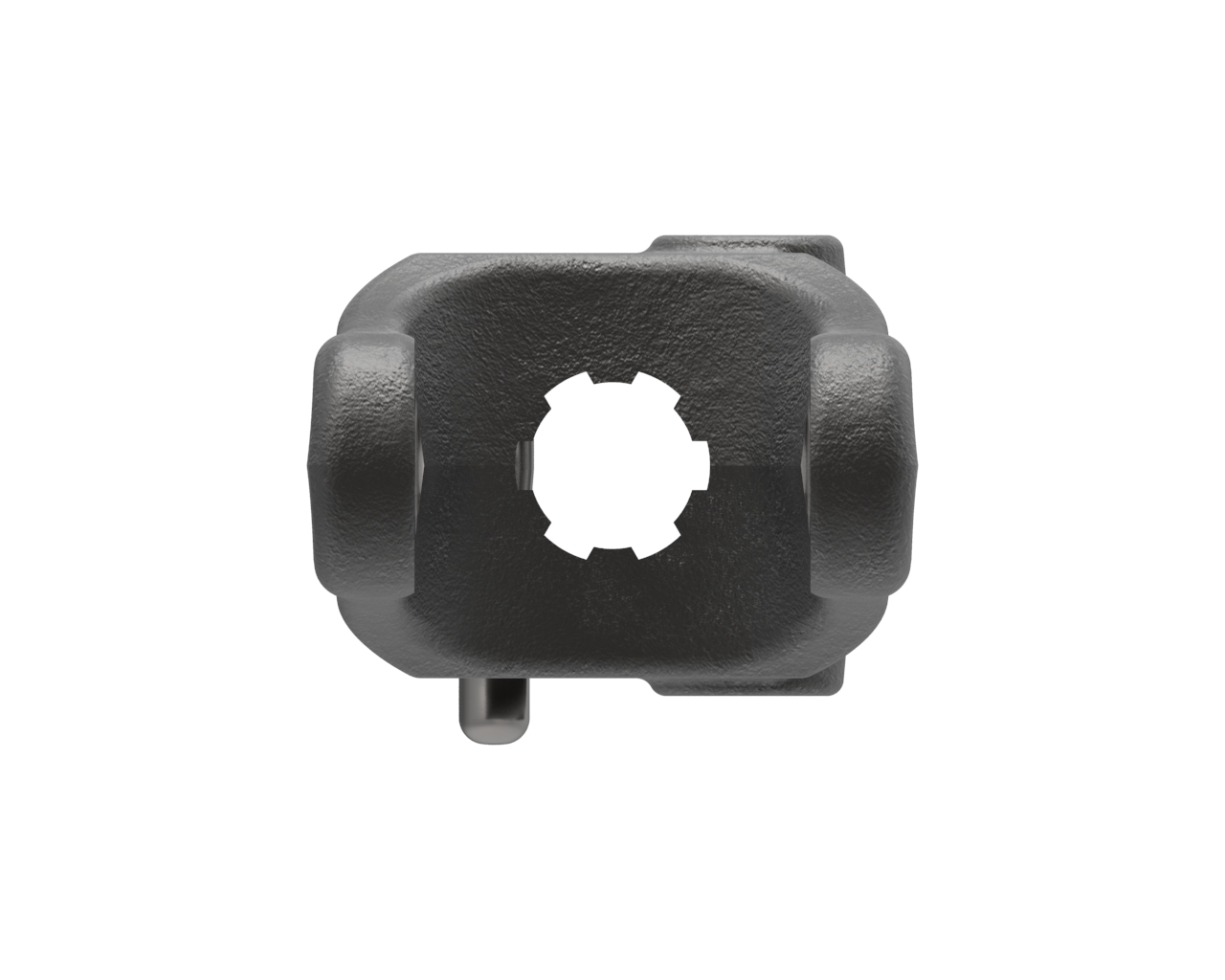

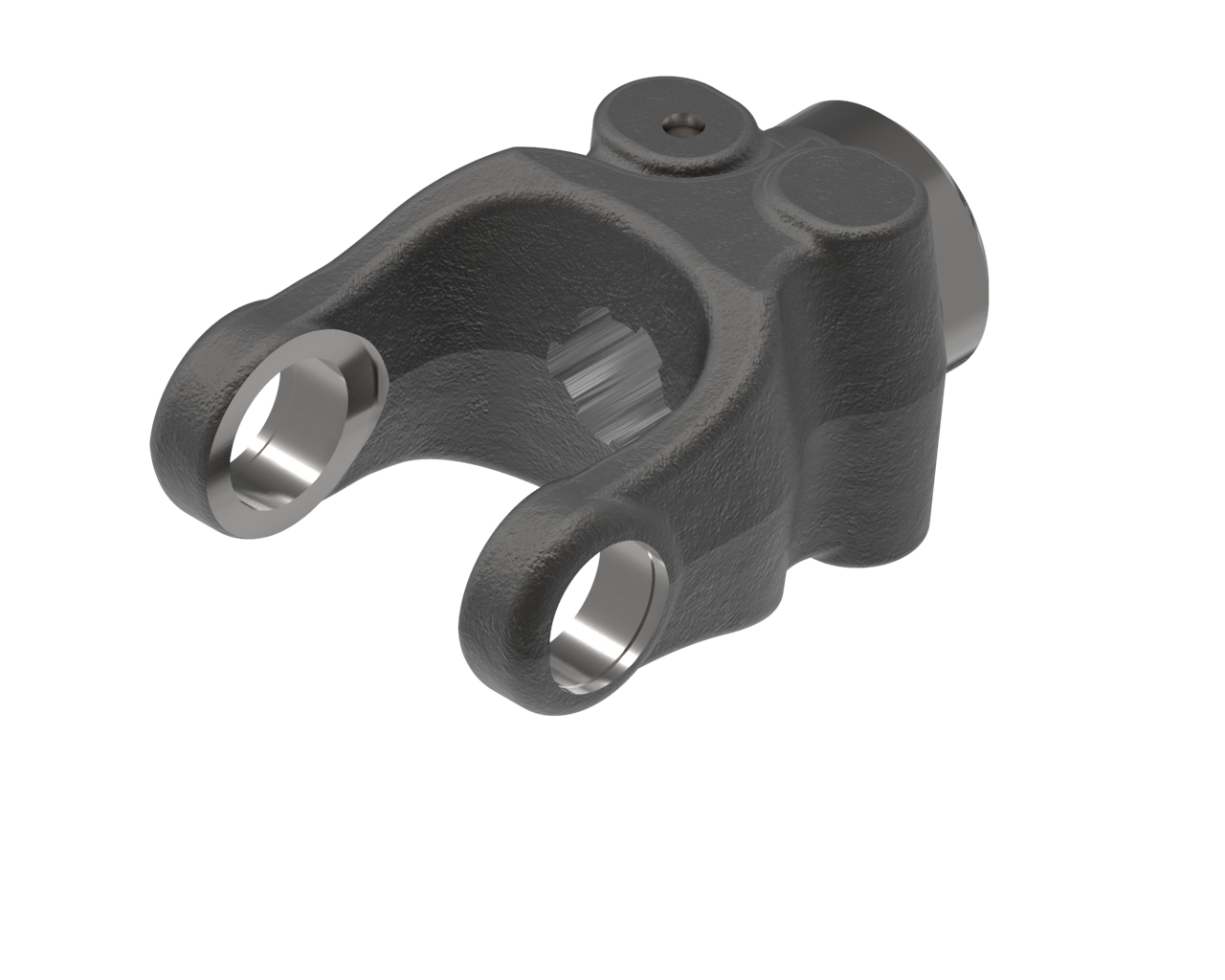

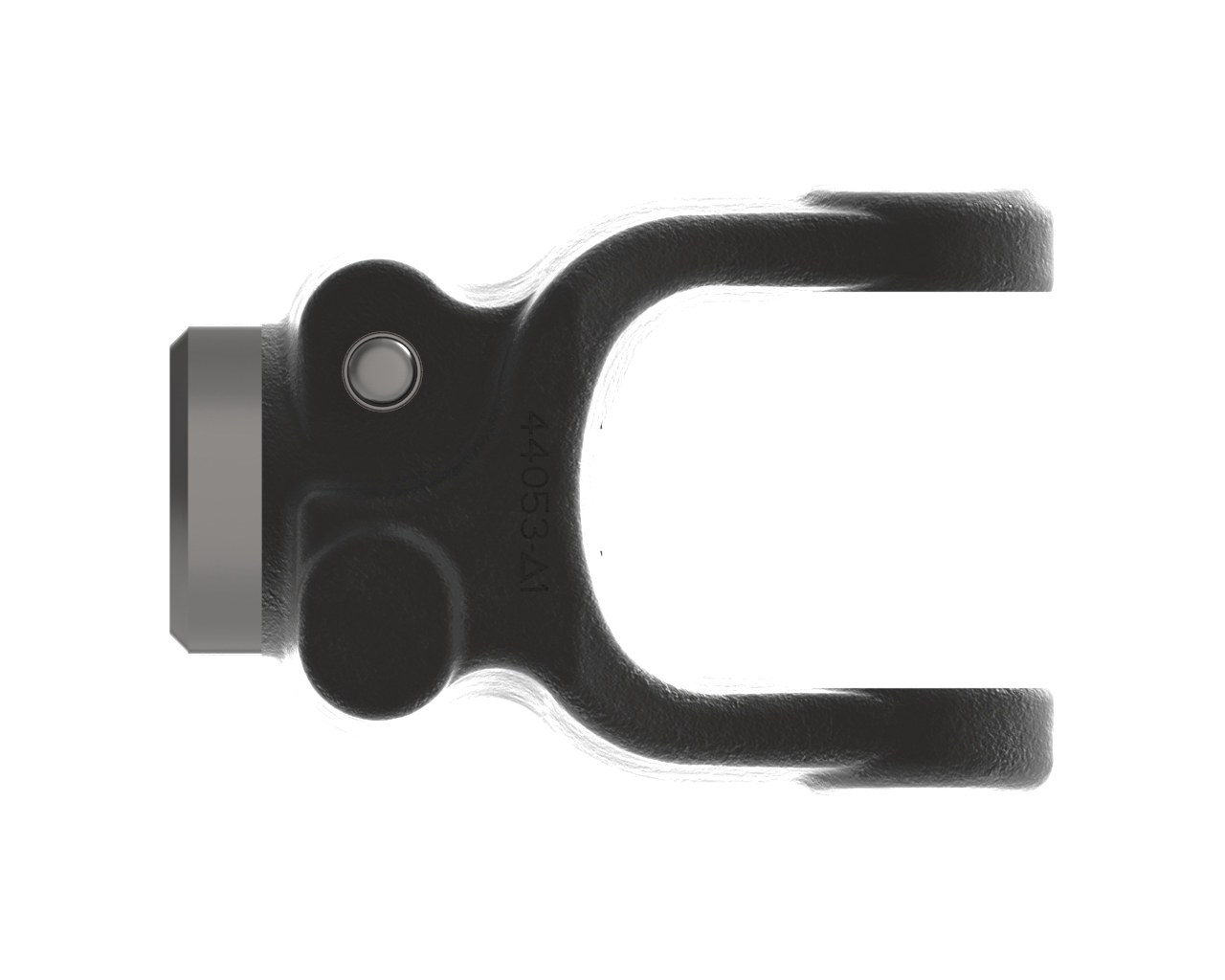

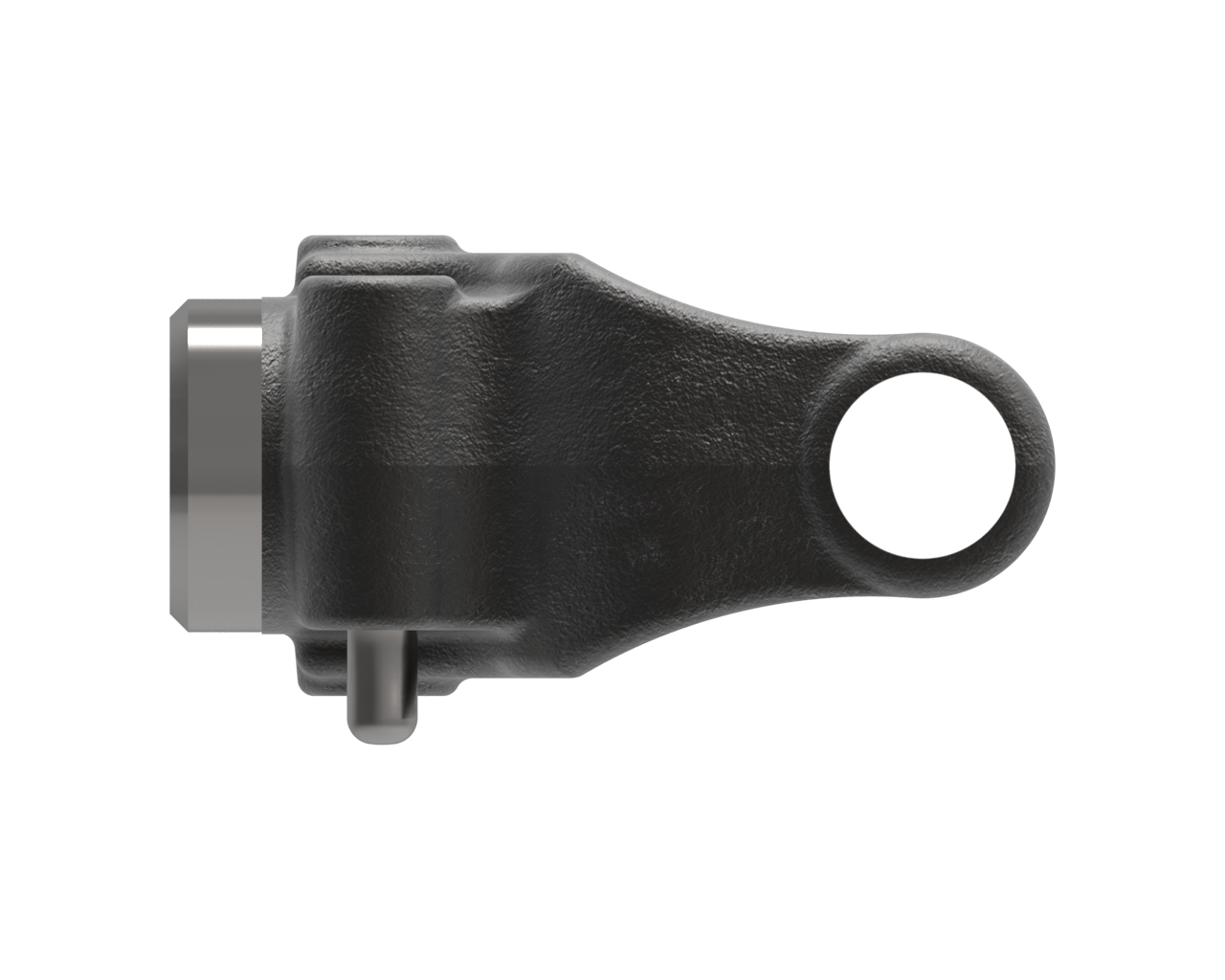

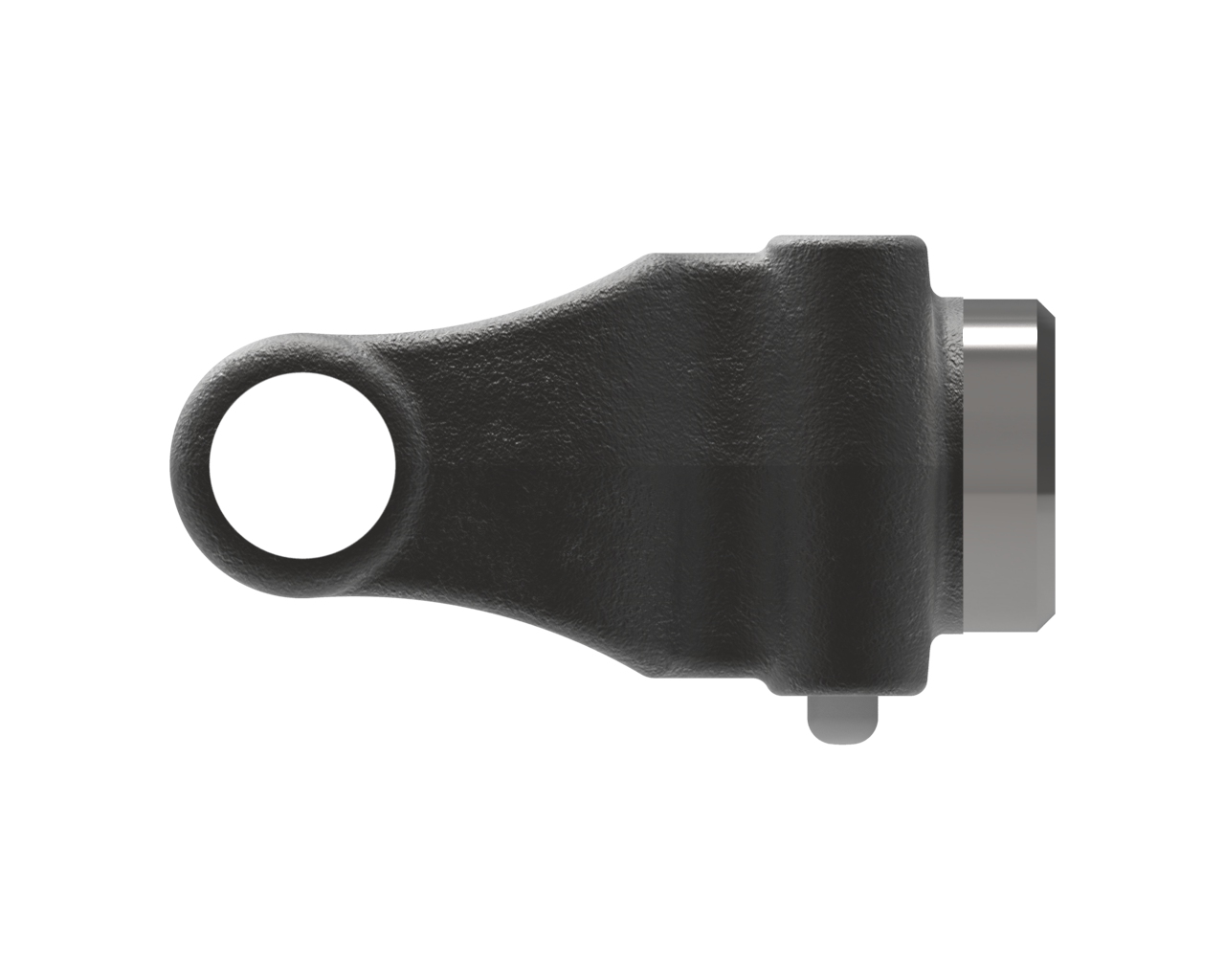

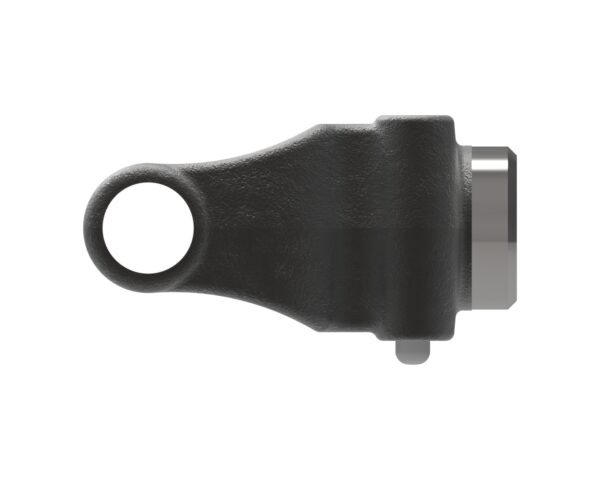

44 Series Quick Disconnect Yoke
44 series yoke with 1 3/8-6 spline bore and quick disconnect connection
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
Product Series: 44
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.31 (1 5/16) in | 33 mm |
| Bearing Cap to Cap Span | 4.01 (4 1/64) in | 102 mm |
| Yoke Bore | 1 3/8-6 SPLINE | |
| Connection 1 Type | QUICK DISCONNECT | |
| HP@1000RPM | 158 HP | 118 kilowatts |
| HP@540RPM | 103 HP | 77 kilowatts |
| Centerline to End Dim | 5.31 (5 5/16) in | 135 mm |
| Weight | 7.12 pounds | 3 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| WE0101004_0817_USL_AutoLokYoke | Performance Benefits Document | English |
