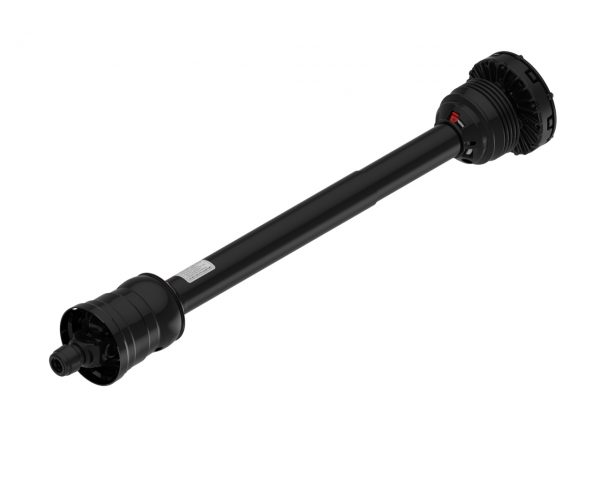

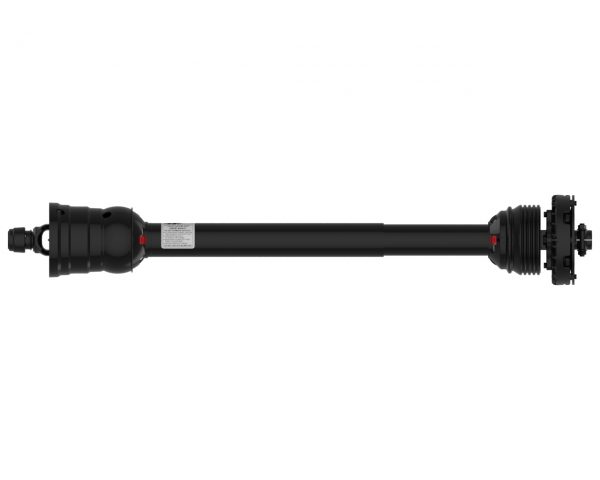

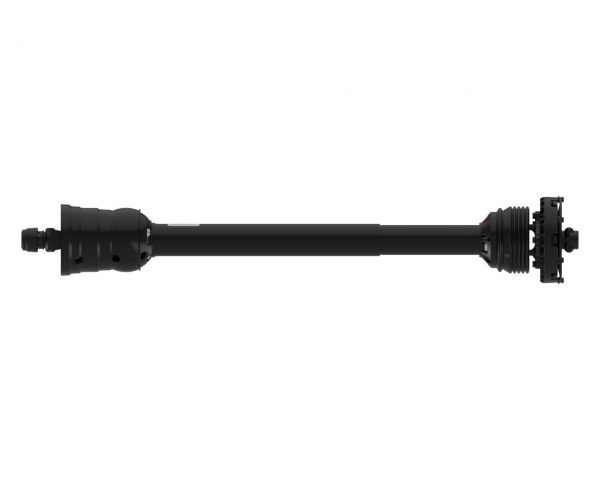

CV WIDE ANGLE PTO DRIVE SHAFT5-80 Series CV Wide Angle PTO Drive Shaft With Torqmaster Free Motion Clutch Yoke
5-80 Series CV Wide Angle PTO Drive Shaft With A 1 3/8-6 Spline Auto-lok Tractor Connection And 15000 Inch-pound Torqmaster Free Motion Clutch Yoke With 1 3/8-6 Spline Clamp Implement Connection
The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
PERFORMANCE BENEFITS
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
DESIGN FEATURES
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Bore 2 | 1.37 inches | 35 mm |
Bore 2 | 1 3/8-6 SPLINE | |
Compressed (Closed) Length | 48.38 inches | 1229 mm |
Compressed Overall Length | 60.30 inches | 1532 mm |
Connection 1 | AUTO-LOK | |
Connection 2 | CLAMP | |
Extended Length | 69.13 inches | 1756 mm |
Extended Overall Length | 81.05 inches | 2059 mm |
HP@1000RPM | 118 HP | 88 kilowatts |
HP@540RPM | 77 HP | 57 kilowatts |
Length | 60.30 inches | 1532 mm |
Outside Diameter | 7.75 inches | 197 mm |
Shipping Dimensions | 48.38" L × 7.75" H × 7.75" W | 123cm L × 20cm H × 20cm W |
Shipping Volume | 2905.82 in3 | 47618 cm3 |
