102-5521
TRACTOR YOKE55 Series Quick Disconnect Yoke

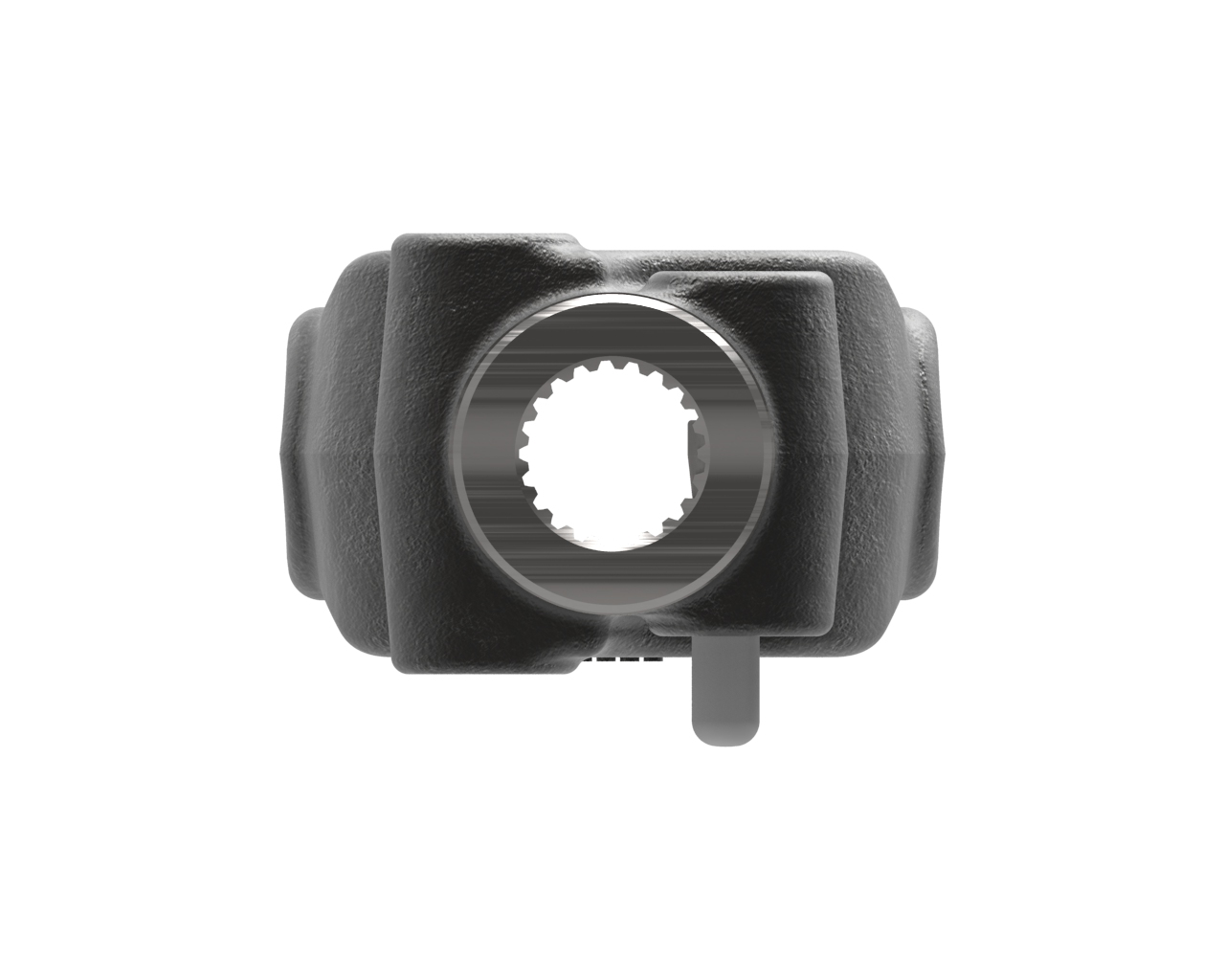

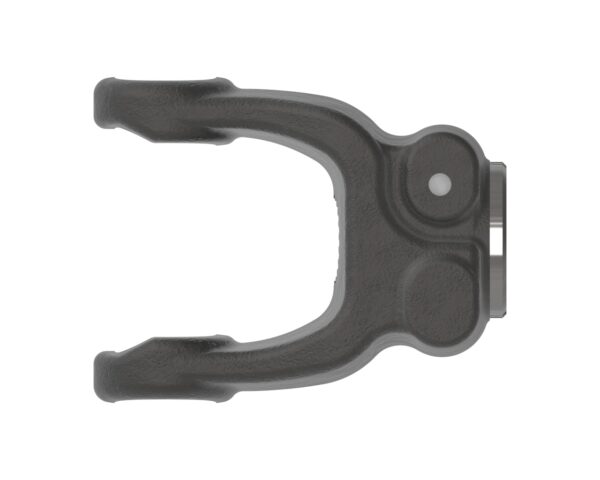

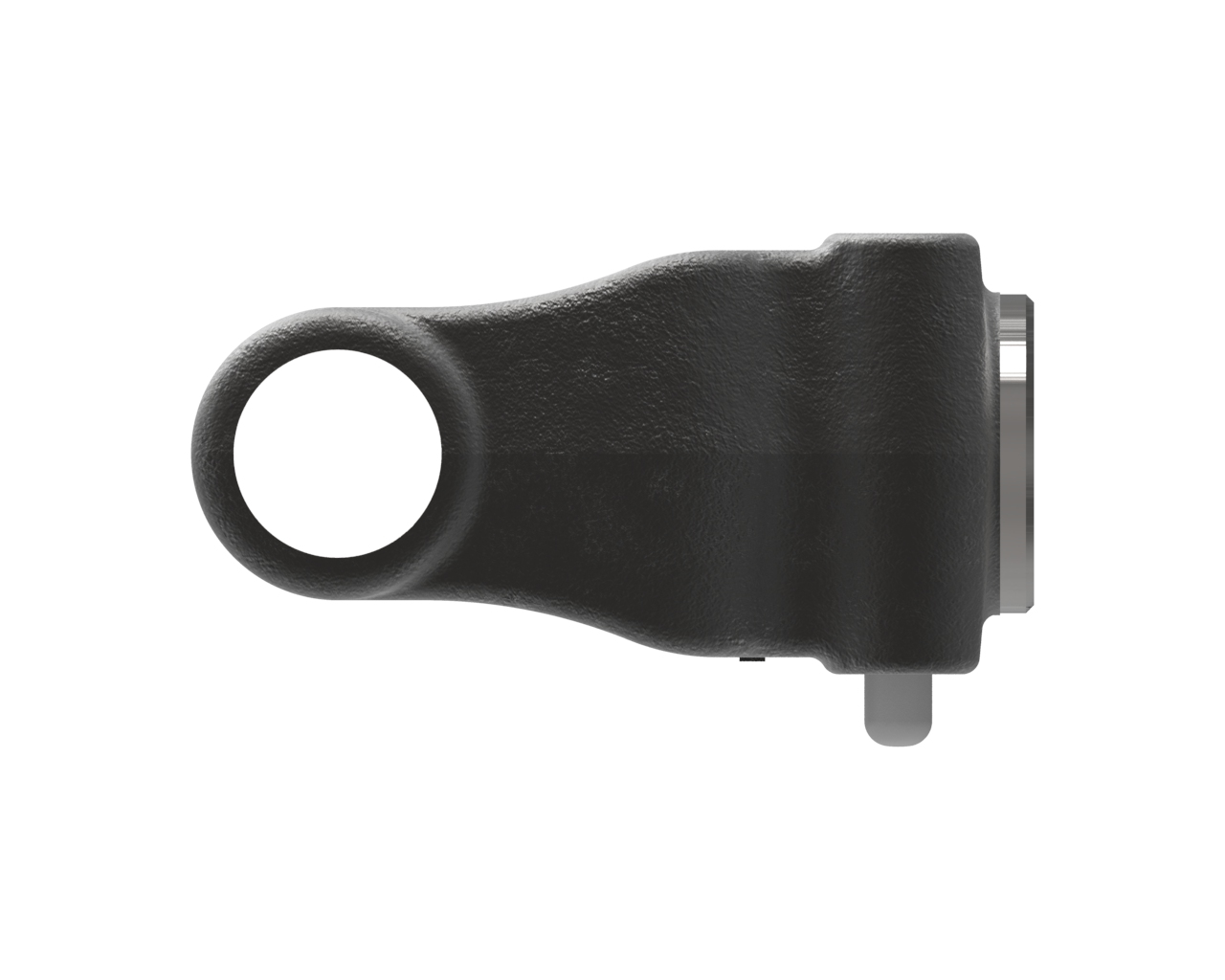

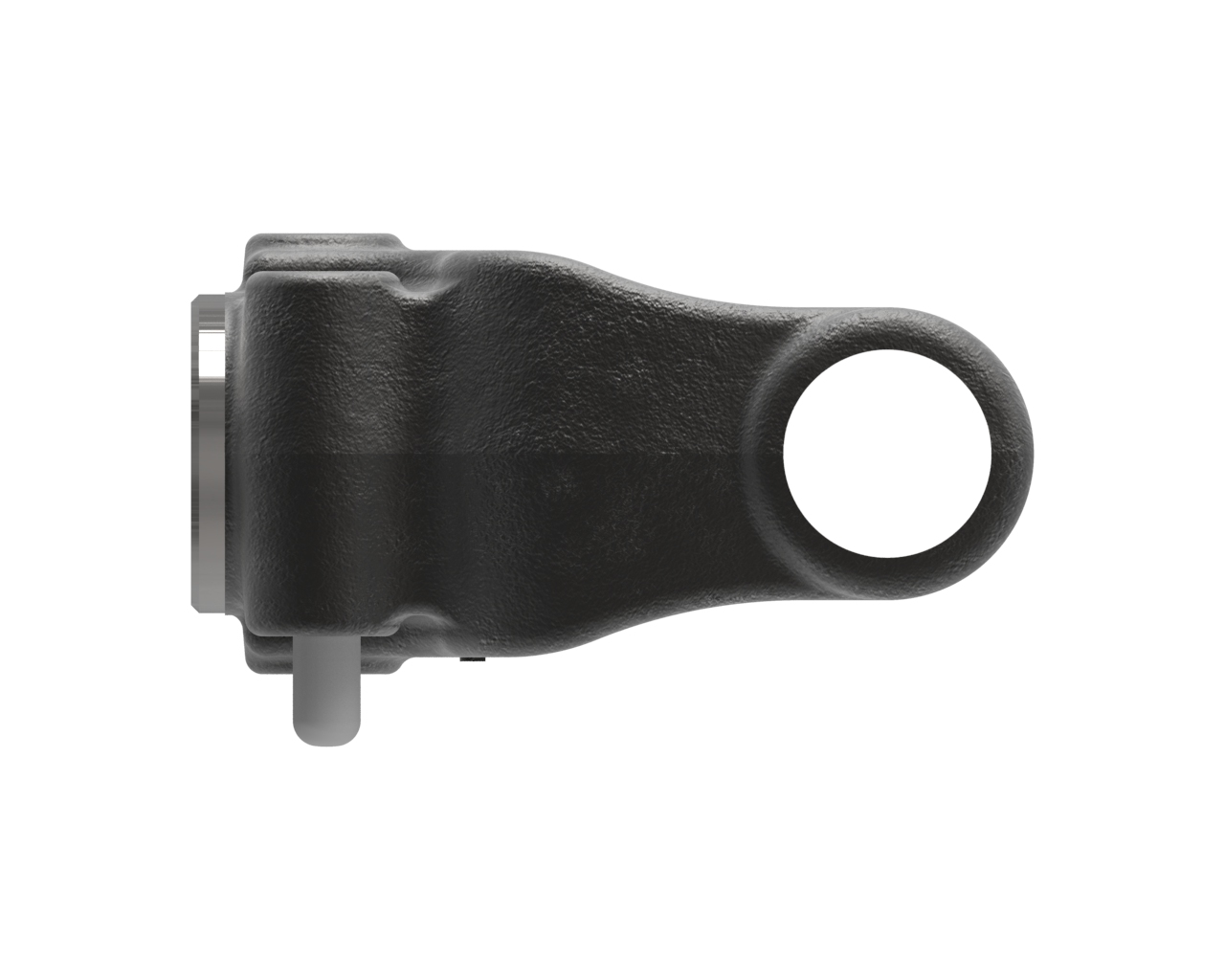

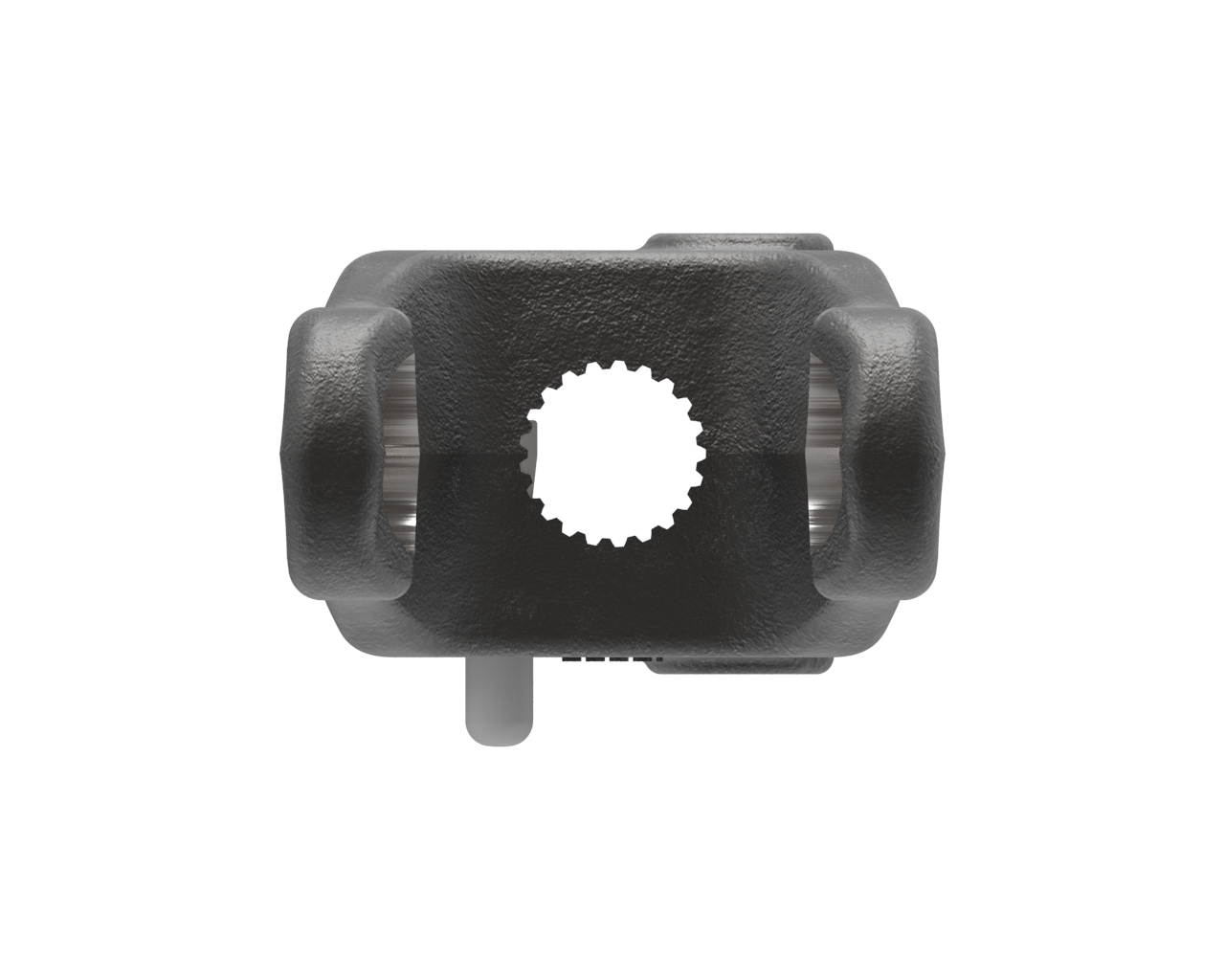

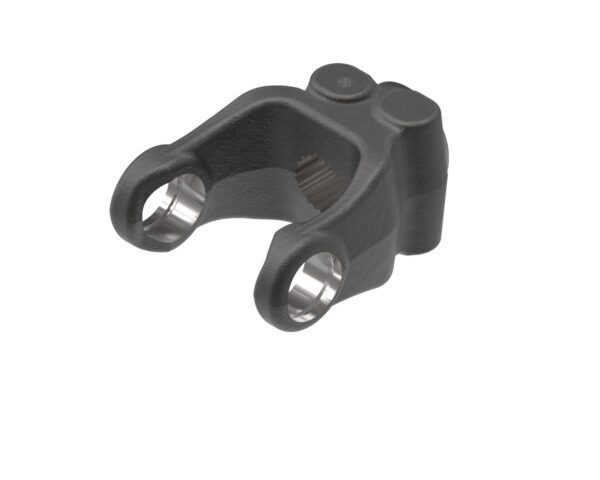

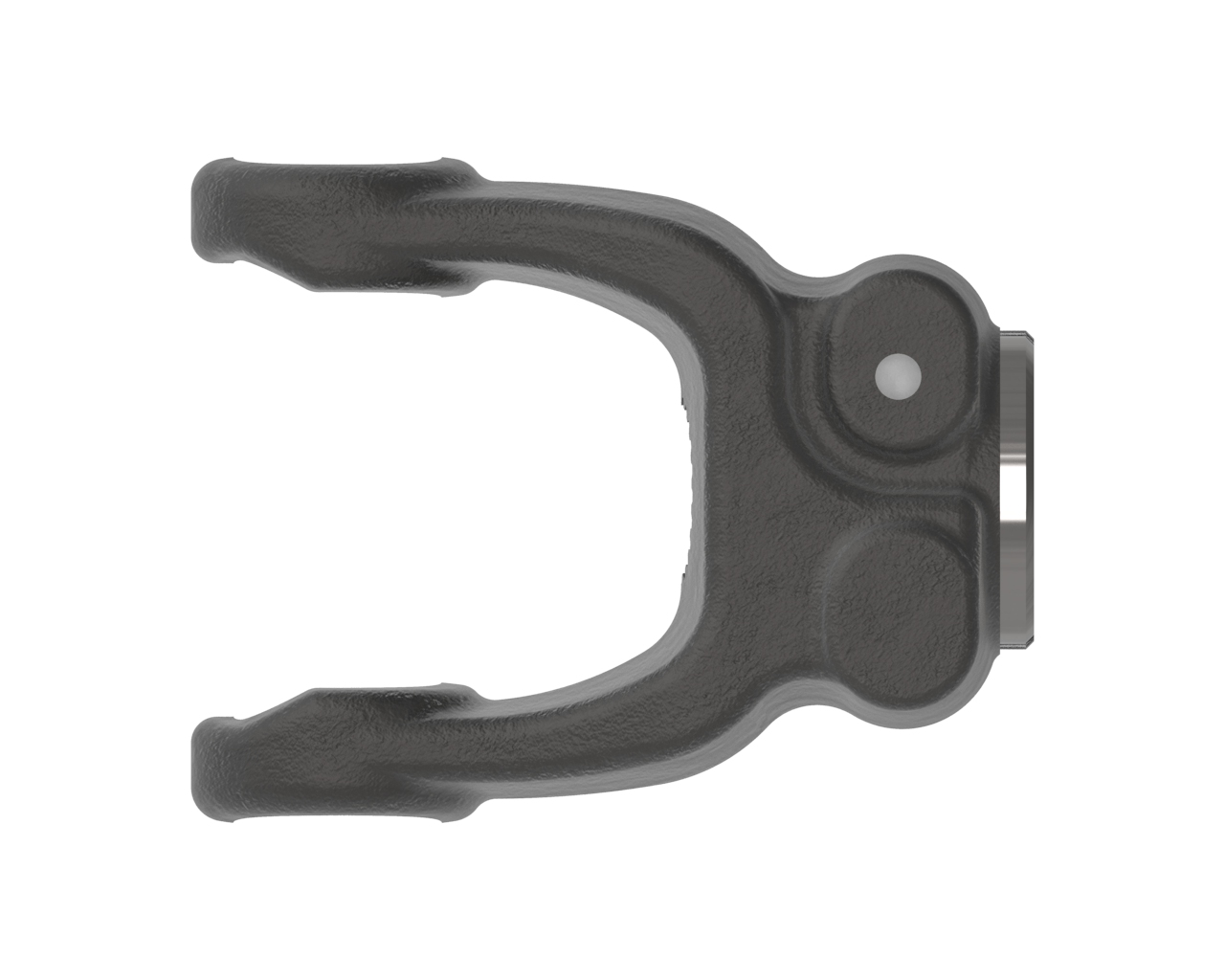

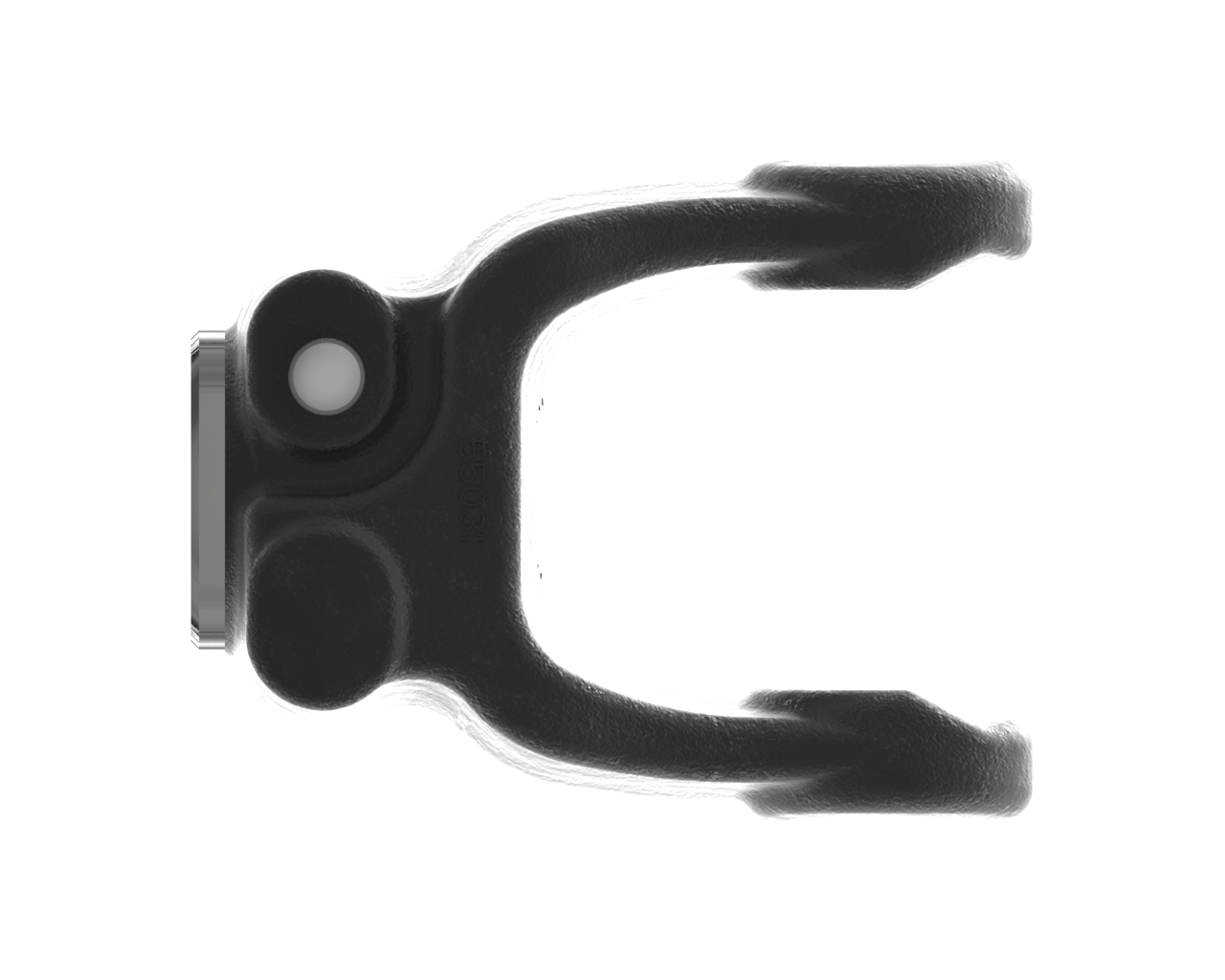

55 series yoke with 1 3/8-21 spline bore and quick disconnect connection
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-21 SPLINE | |
| Connection 1 | QUICK DISCONNECT | |
| Height | 5.12 inches | 130 mm |
| HP@1000RPM | 211 HP | 157 kilowatts |
| HP@540RPM | 137 HP | 102 kilowatts |
| Length | 5.13 inches | 130 mm |
| Shipping Dimensions | 6.71" L × 5.125" H × 2.63" W | 17cm L × 13cm H × 7cm W |
| Shipping Volume | 90.44 in3 | 1482 cm3 |
| Shipping Weight | 7.60 pounds | 3 kilograms |
| Weight | 7.60 pounds | 3 kilograms |
| Width | 2.63 inches | 67 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| WE0101004_0817_USL_AutoLokYoke.pdf | Performance Benefits Document | English |
