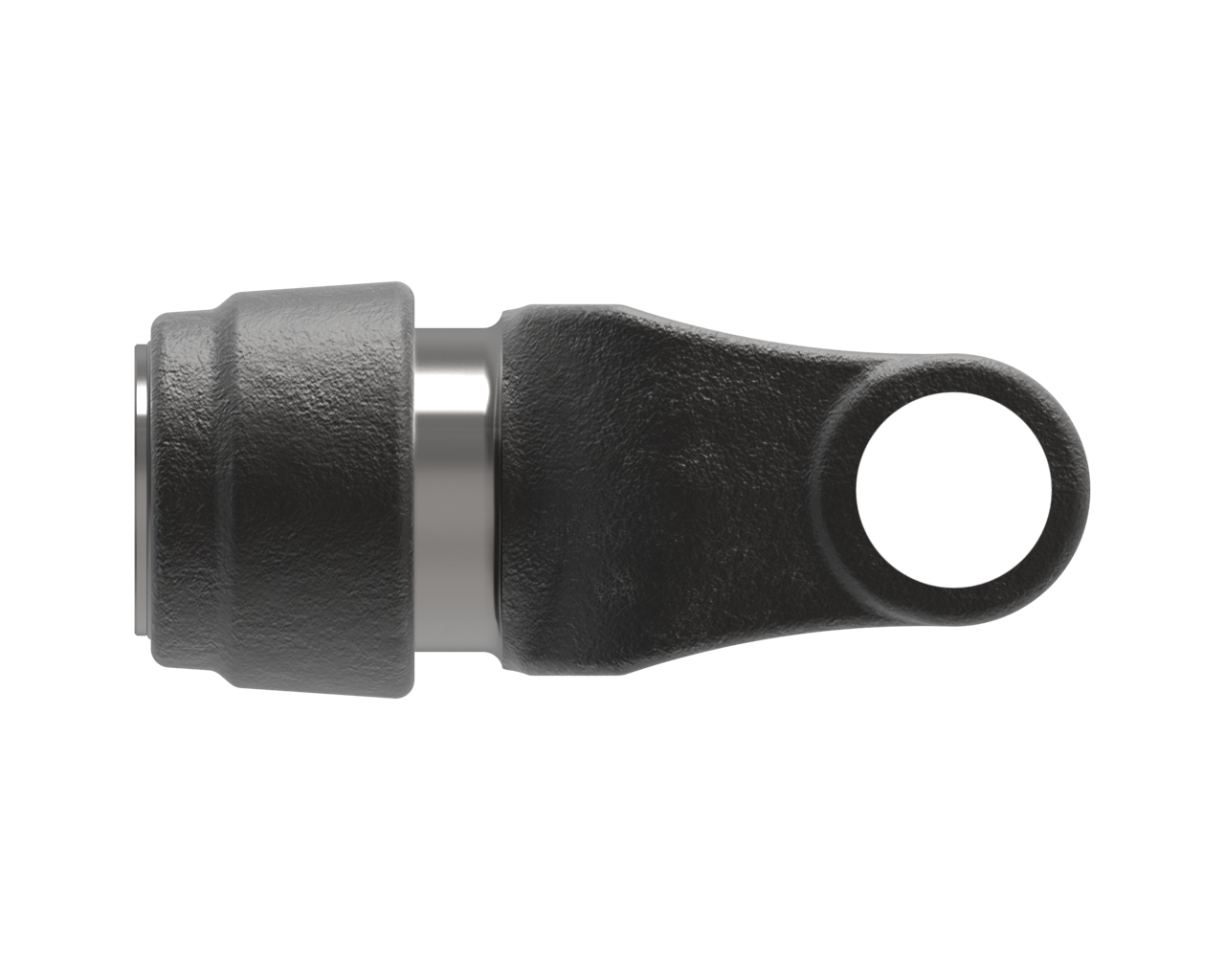

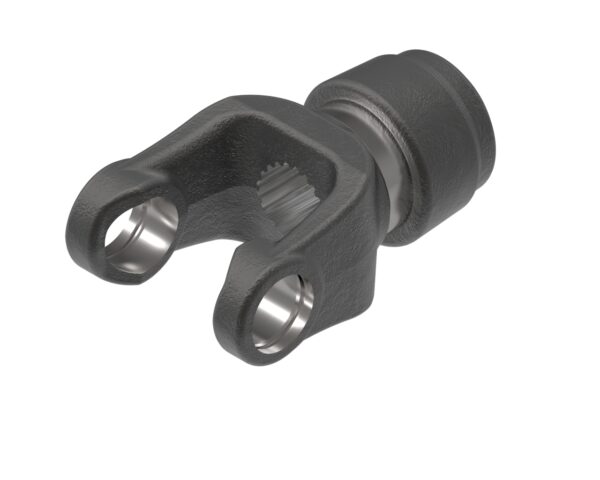

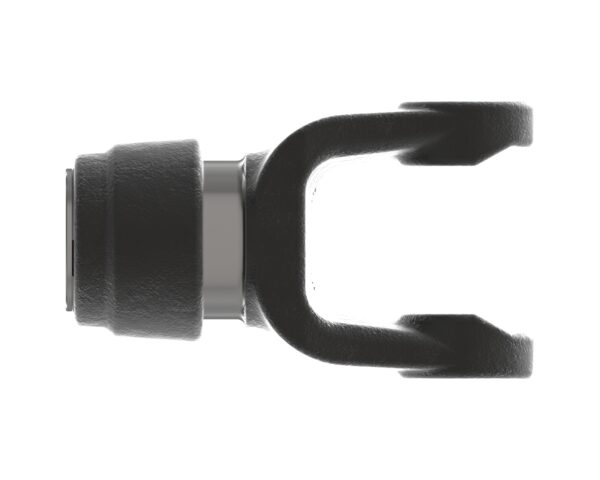

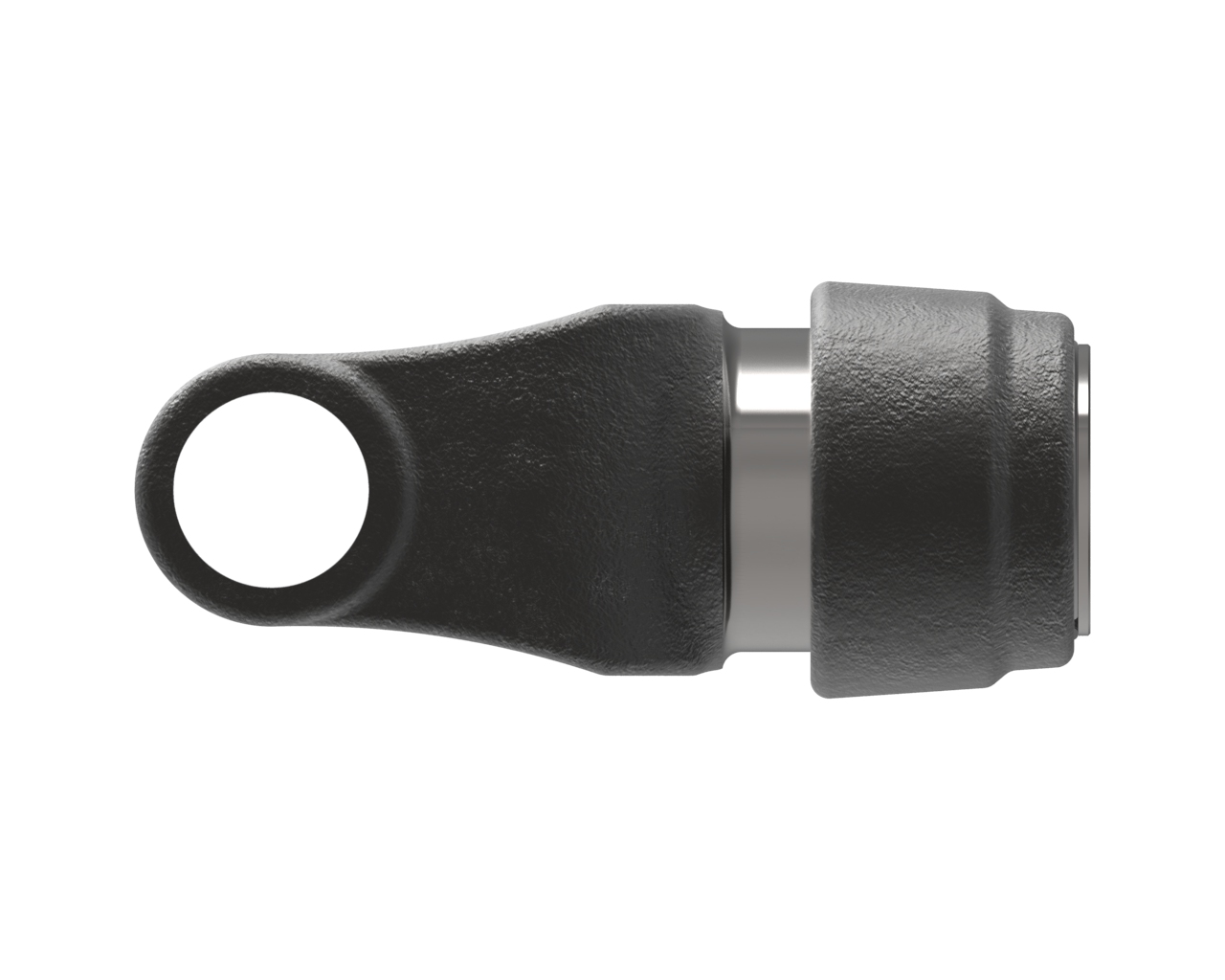

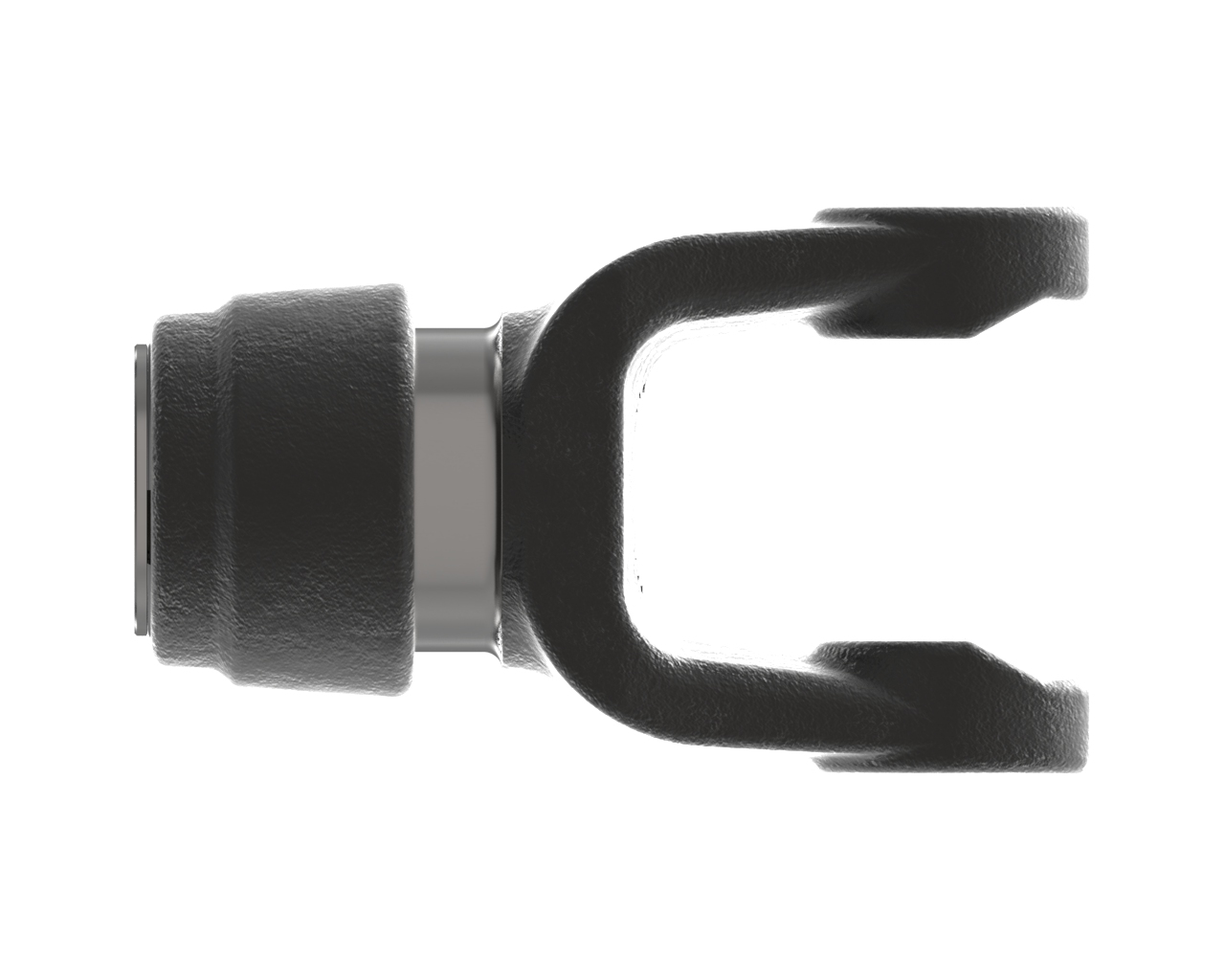

55 Series Safety Slide Lock Yoke
55 series yoke with 1 3/8-21 spline bore and safety slide lock connection
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
Part Number: 101-5521
Product Series: 55
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.53 (1 17/32) in | 39 mm |
| Bearing Cap to Cap Span | 4.31 (4 5/16) in | 109 mm |
| Yoke Bore | 1 3/8-21 SPLINE | |
| Connection 1 Type | SAFETY SLIDE LOCK | |
| HP@1000RPM | 211 HP | 157 kilowatts |
| HP@540RPM | 137 HP | 102 kilowatts |
| Centerline to End Dim | 5.80 (5 51/64) in | 147 mm |
| Weight | 5.84 pounds | 3 kilograms |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 200-5500 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
| WE0101004_0817_USL_AutoLokYoke | Performance Benefits Document | English |
