804-5520

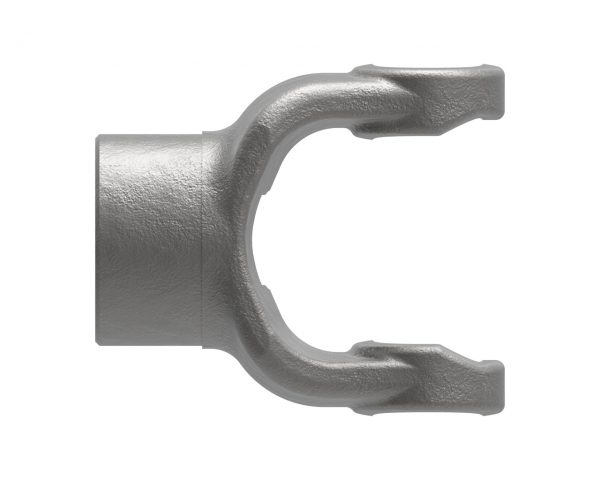

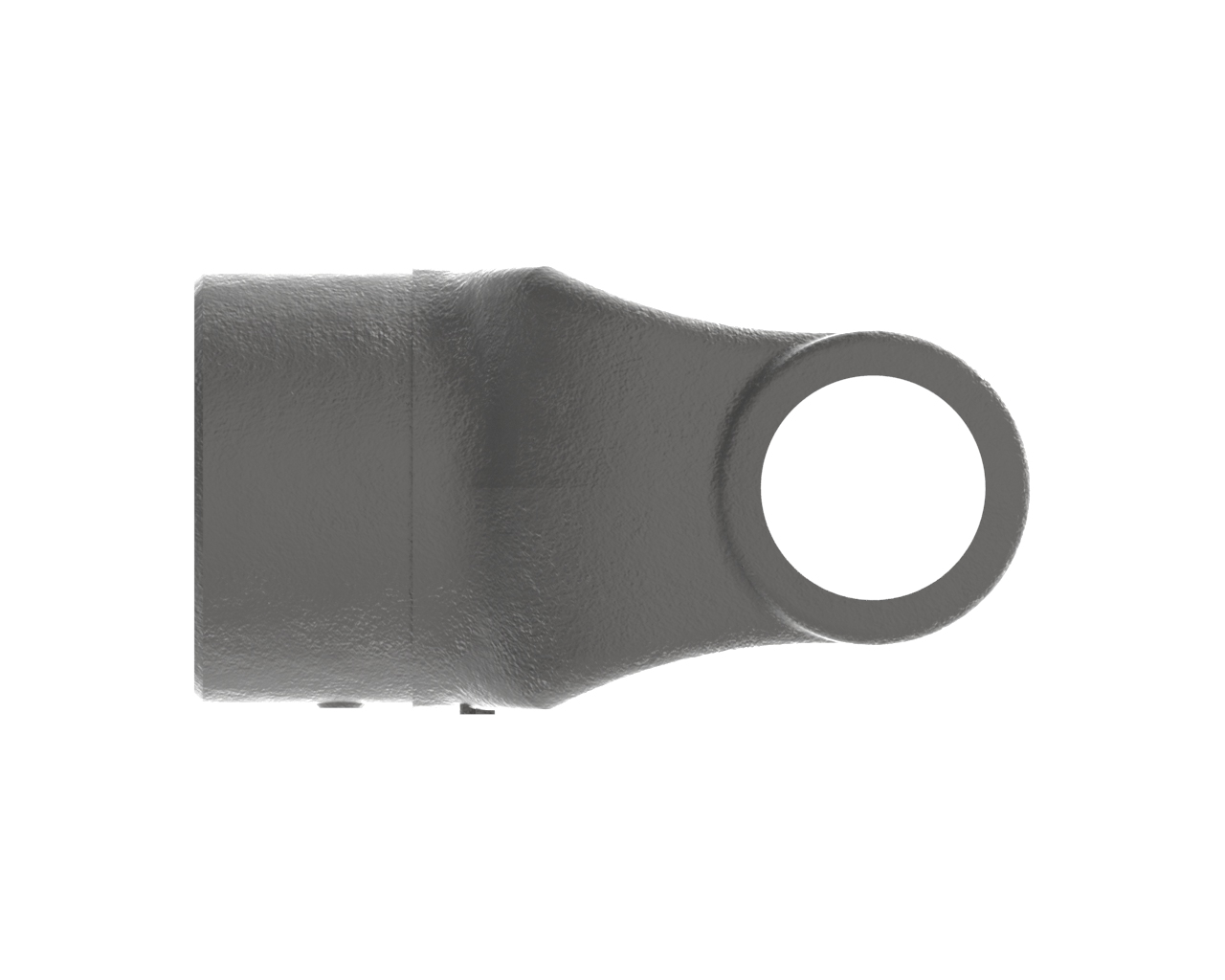

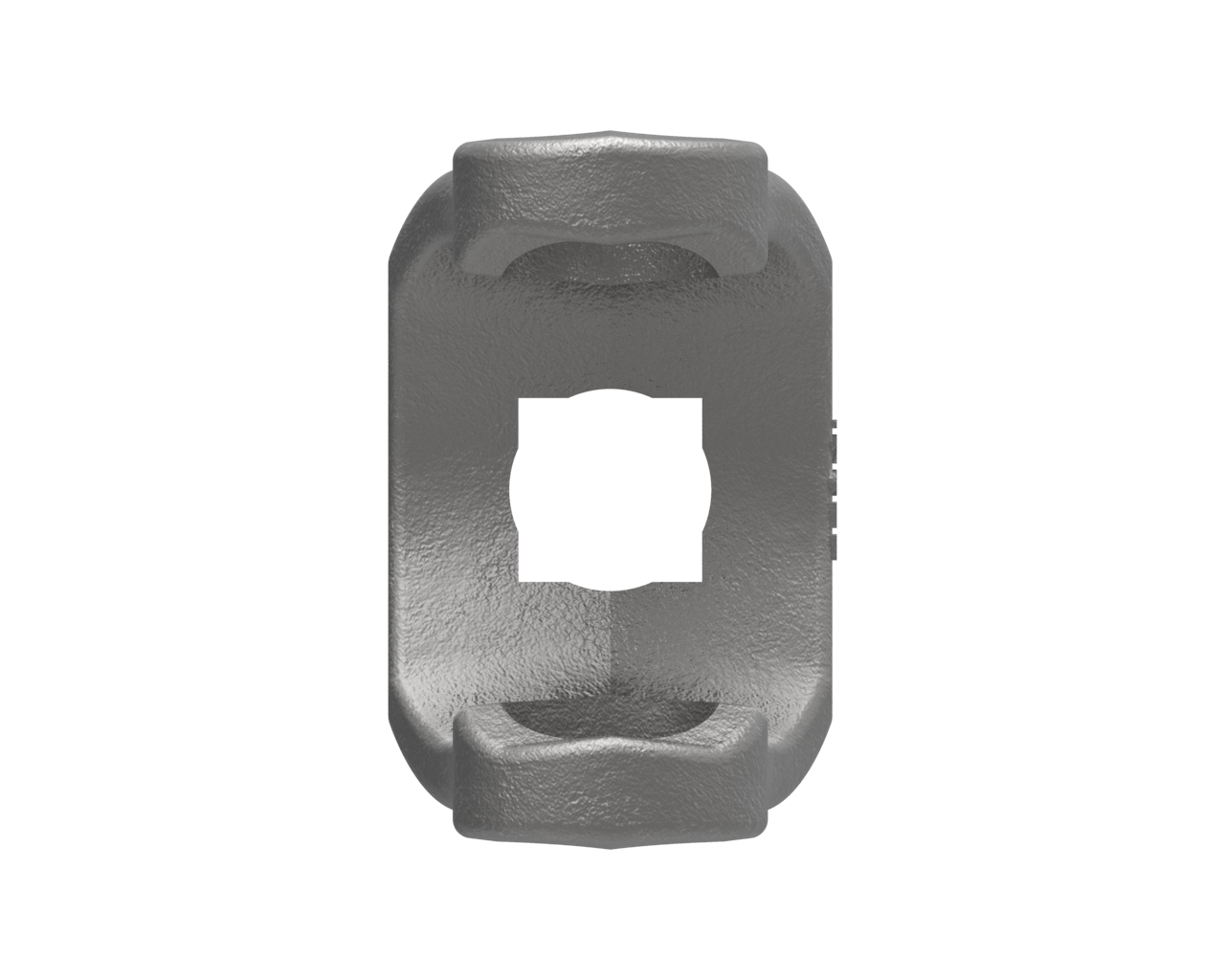

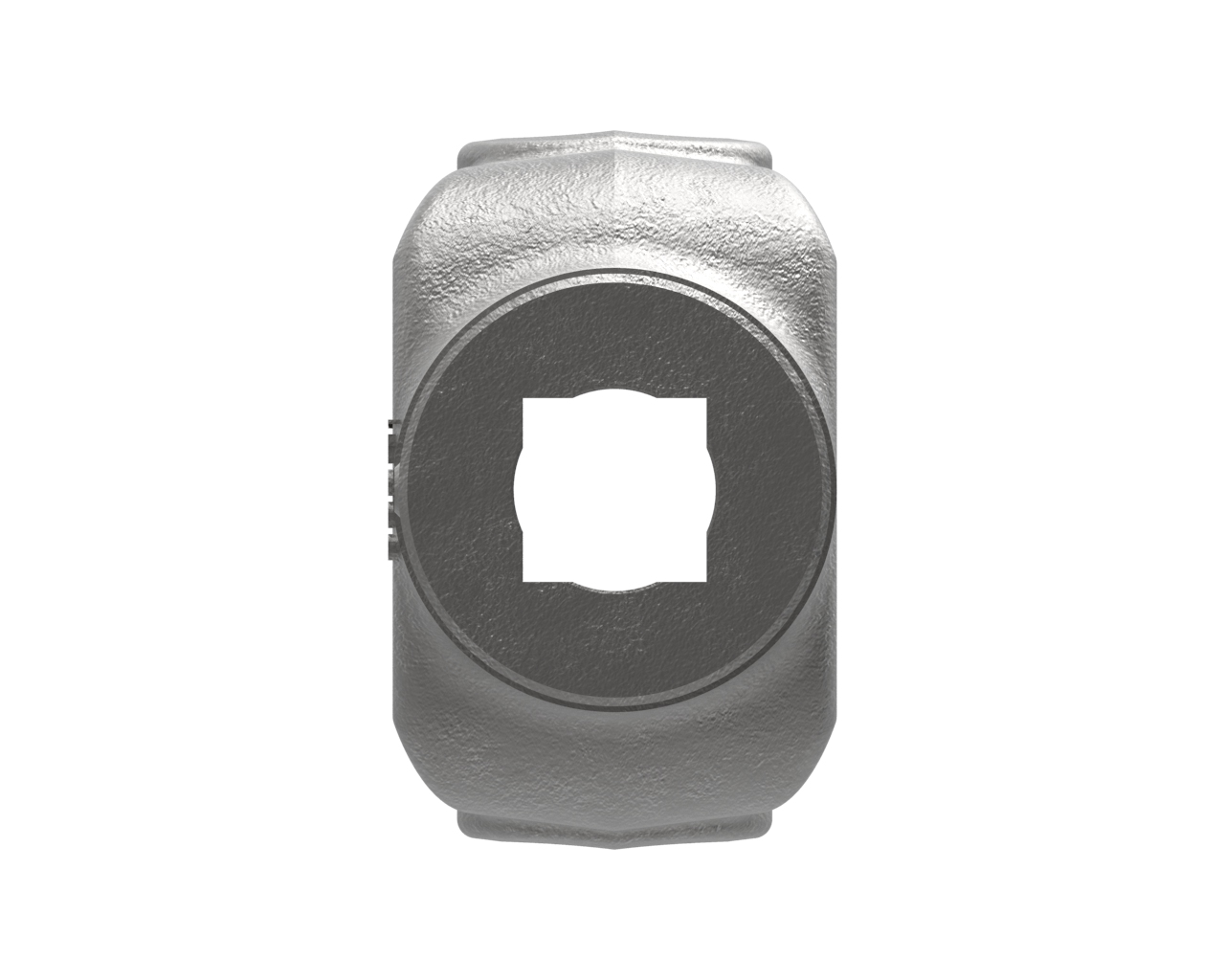

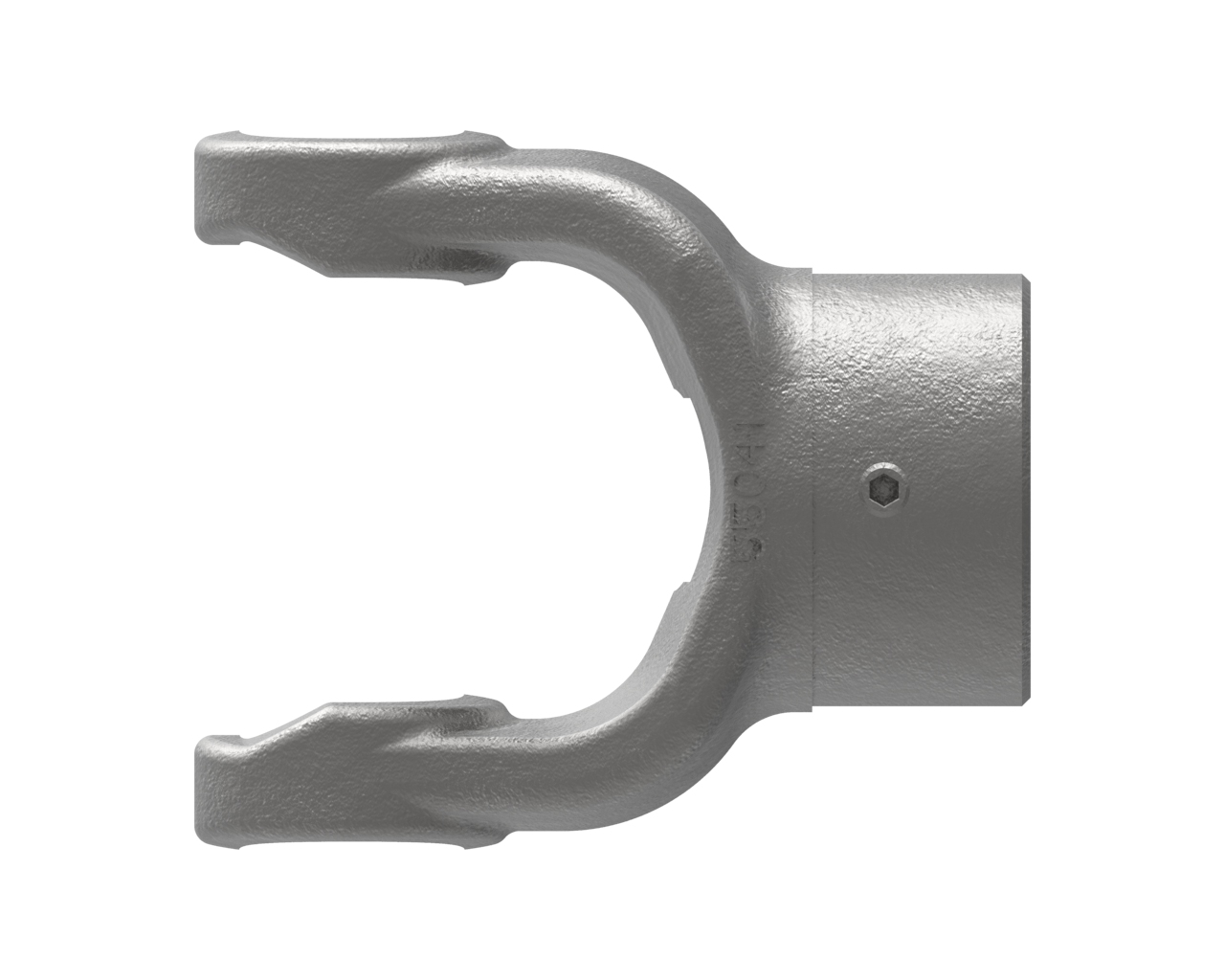

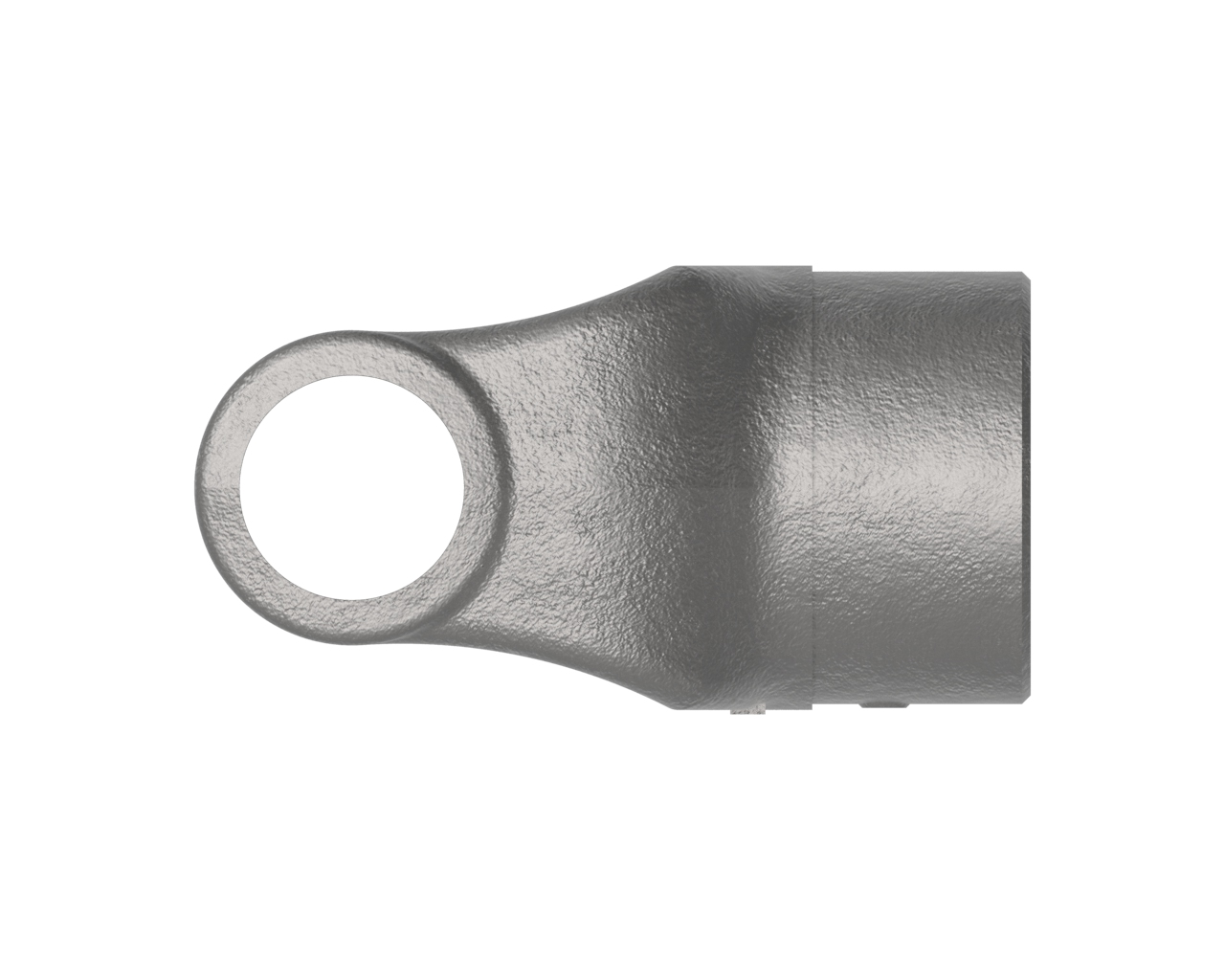

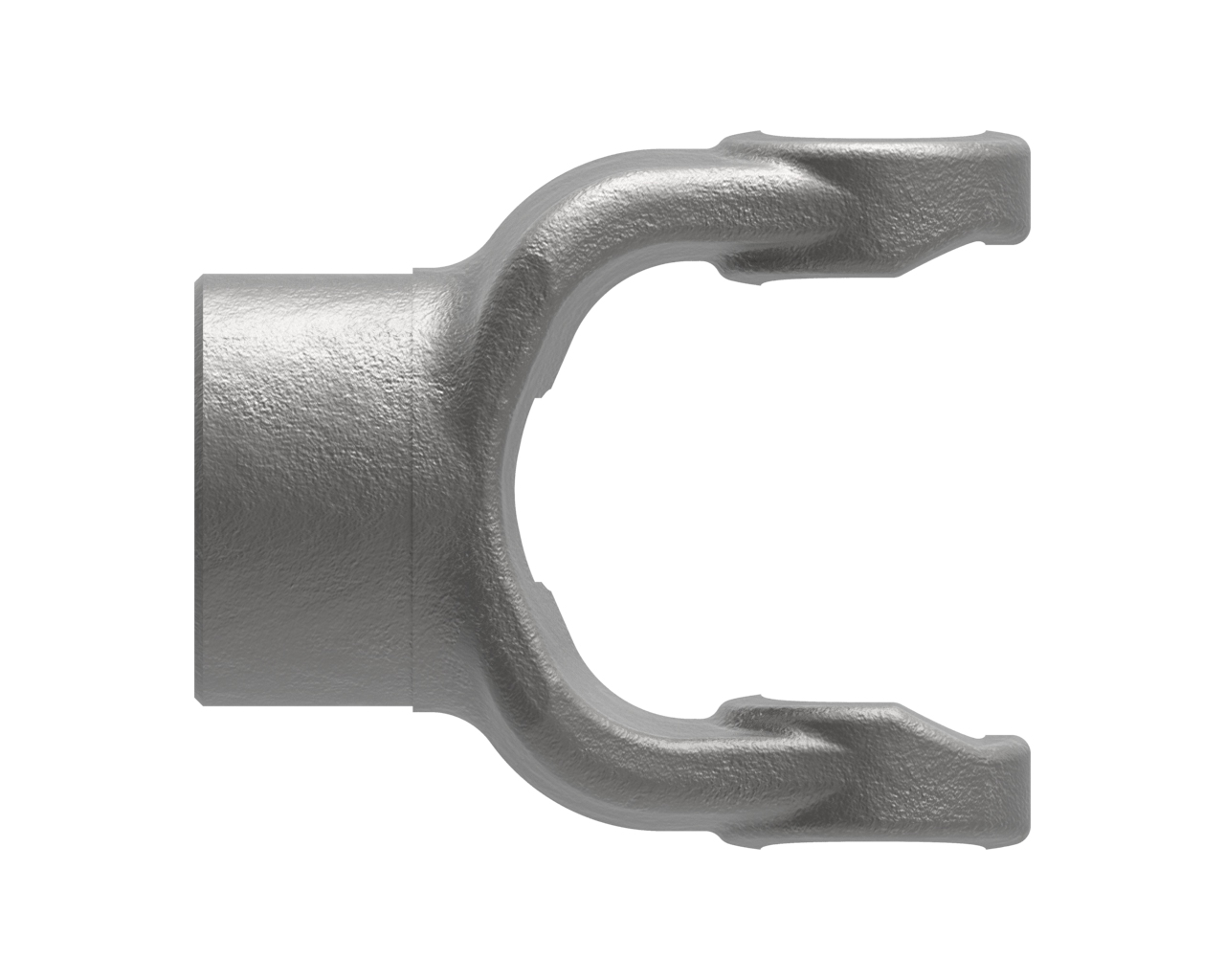

IMPLEMENT YOKE55 Series Setscrew Yoke
55 series yoke with 1 1/4 square bore and setscrew connection
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.25 inches | 32 mm |
| Bore 1 | 1 1/4 SQUARE | |
| Connection 1 | SETSCREW | |
| Height | 5.13 inches | 130 mm |
| HP@1000RPM | 211 HP | 157 kilowatts |
| HP@540RPM | 137 HP | 102 kilowatts |
| Length | 4.63 inches | 118 mm |
| Setscrew | 3/8-16 | |
| Shipping Dimensions | 5.71" L × 5.13" H × 2.63" W | 15cm L × 13cm H × 7cm W |
| Shipping Volume | 77.04 in3 | 1262 cm3 |
| Shipping Weight | 5.90 pounds | 3 kilograms |
| Weight | 5.90 pounds | 3 kilograms |
| Width | 2.63 inches | 67 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
