701-5500

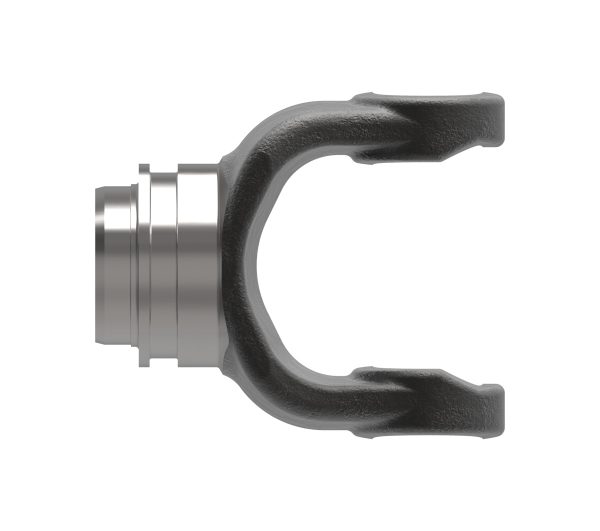

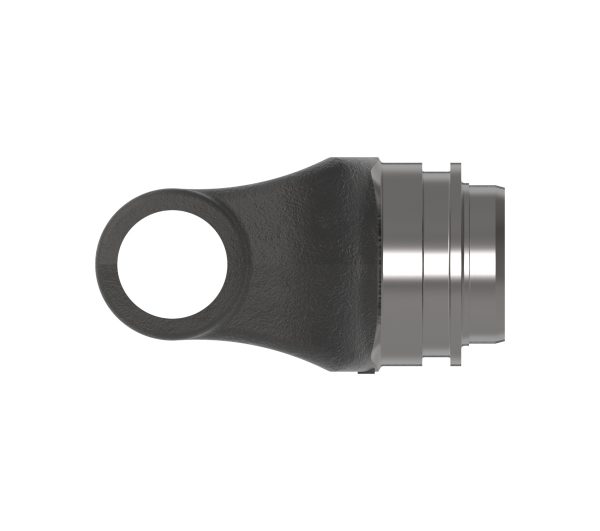

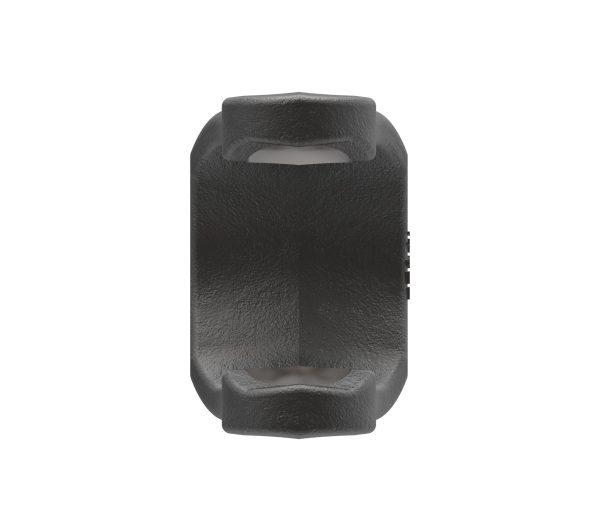

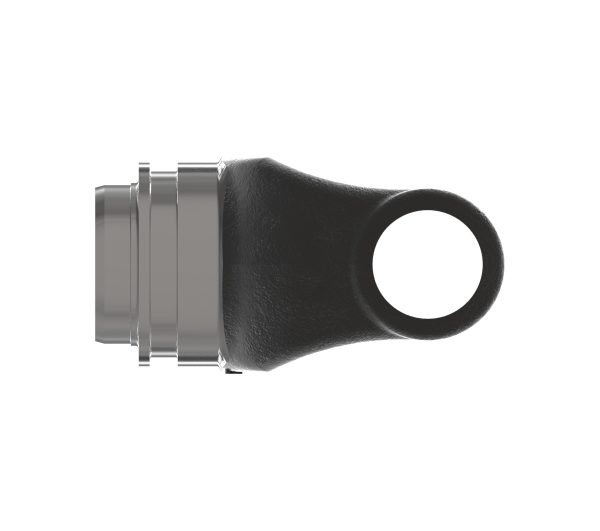

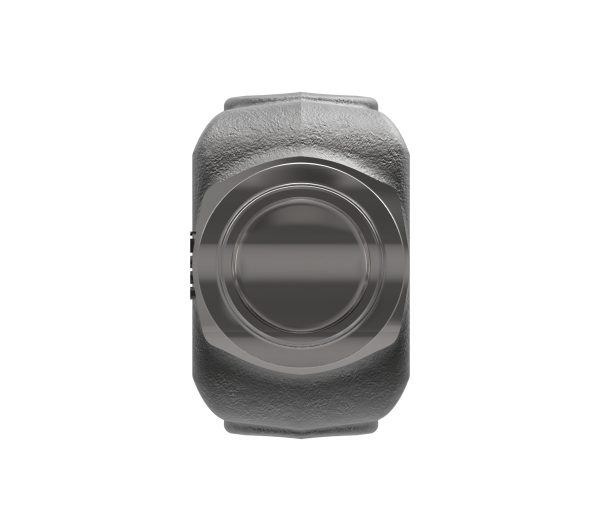

TUBE WELD YOKE55 Series Weld Yoke
55 series yoke with solid bore and weld connection
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube profiles.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 0.00 inches | 0 mm |
| Bore 1 | SOLID | |
| Connection 1 | WELD | |
| Height | 5.13 inches | 130 mm |
| HP@1000RPM | 211 HP | 157 kilowatts |
| HP@540RPM | 137 HP | 102 kilowatts |
| Length | 4.62 inches | 117 mm |
| Outside Diameter | 2.87 inches | 73 mm |
| Shipping Dimensions | 5.71" L × 5.13" H × 2.63" W | 15cm L × 13cm H × 7cm W |
| Shipping Volume | 77.04 in3 | 1262 cm3 |
| Shipping Weight | 4.78 pounds | 2 kilograms |
| Weight | 4.78 pounds | 2 kilograms |
| Width | 2.63 inches | 67 mm |
