111-5520

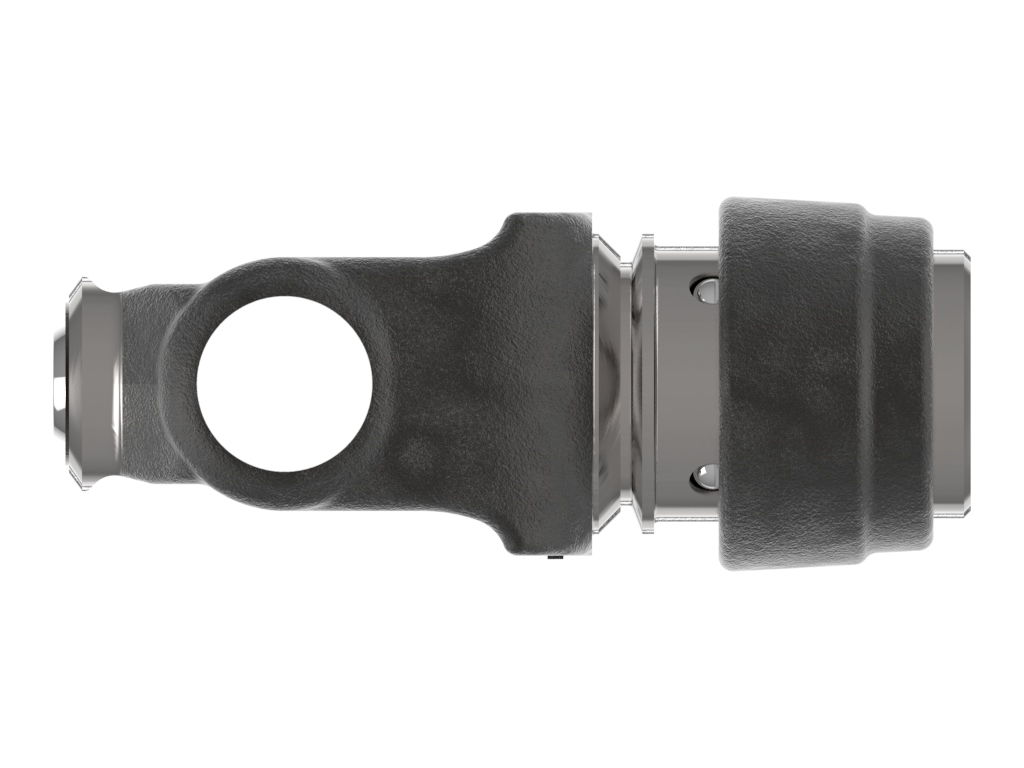

CV WIDE ANGLE TRACTOR YOKE6-80 Series Auto-lok Yoke
6-80 series yoke with 1 3/4-20 spline bore and auto-lok connection
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.75 inches | 44 mm |
| Bore 1 | 1 3/4-20 SPLINE | |
| Connection 1 | AUTO-LOK | |
| Height | 5.12 inches | 130 mm |
| HP@1000RPM | 232 HP | 173 kilowatts |
| HP@540RPM | 151 HP | 113 kilowatts |
| Length | 6.00 inches | 152 mm |
| Shipping Dimensions | 8.132" L × 5.125" H × 3.3" W | 21cm L × 13cm H × 8cm W |
| Shipping Volume | 137.53 in3 | 2254 cm3 |
| Shipping Weight | 7.30 pounds | 3 kilograms |
| Weight | 7.30 pounds | 3 kilograms |
| Width | 3.30 inches | 84 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating 80 Deg CV.pdf | Maintenance Document | English |
| Service Instructions - CV Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| 80 deg CV Joint - Over Angle Operating.pdf | Troubleshooting Document | English |
| 80 deg CV Joint - Over Angle NonOperating.pdf | Troubleshooting Document | English |
| WE0101003_1019_USL_80DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
