807-0616

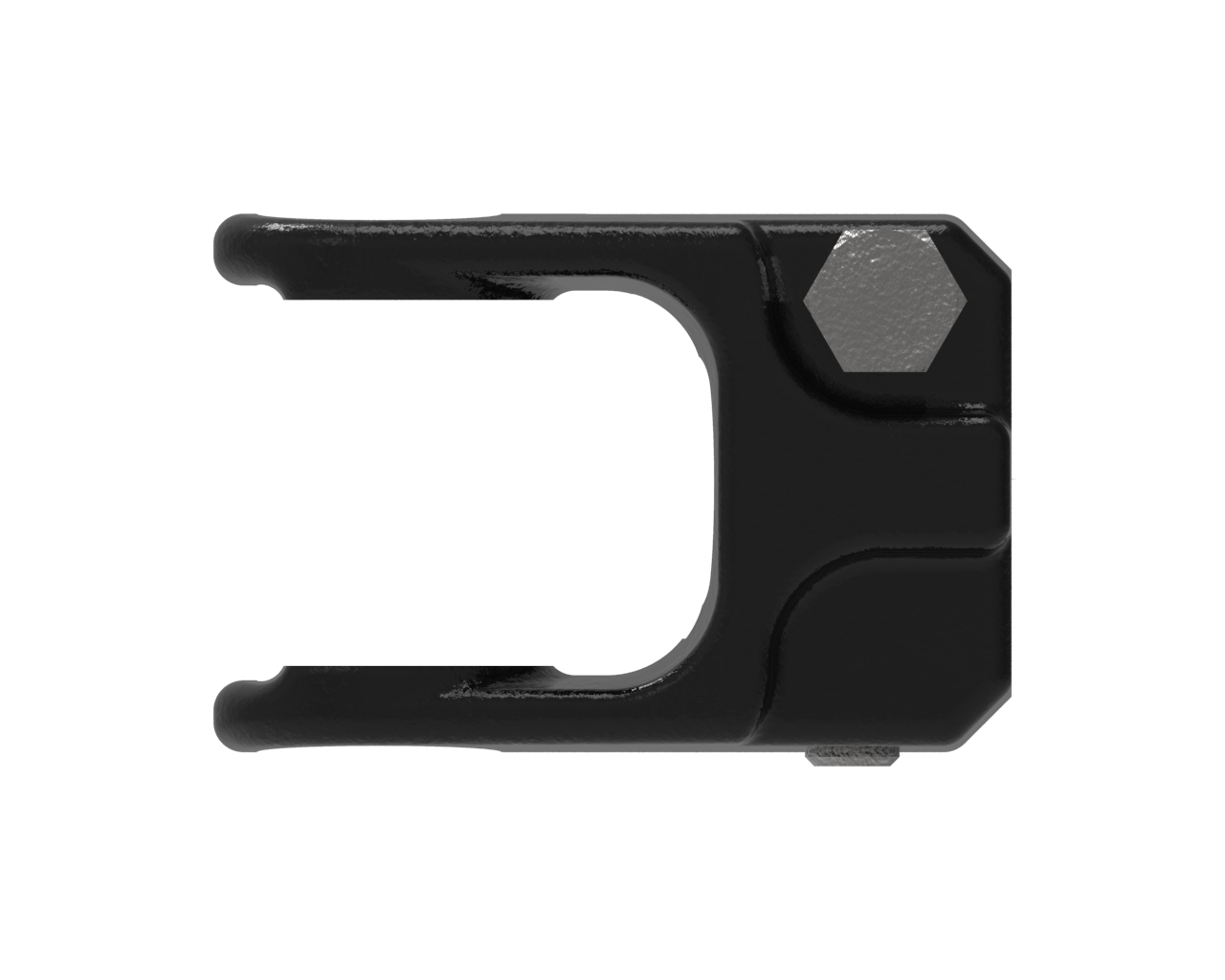

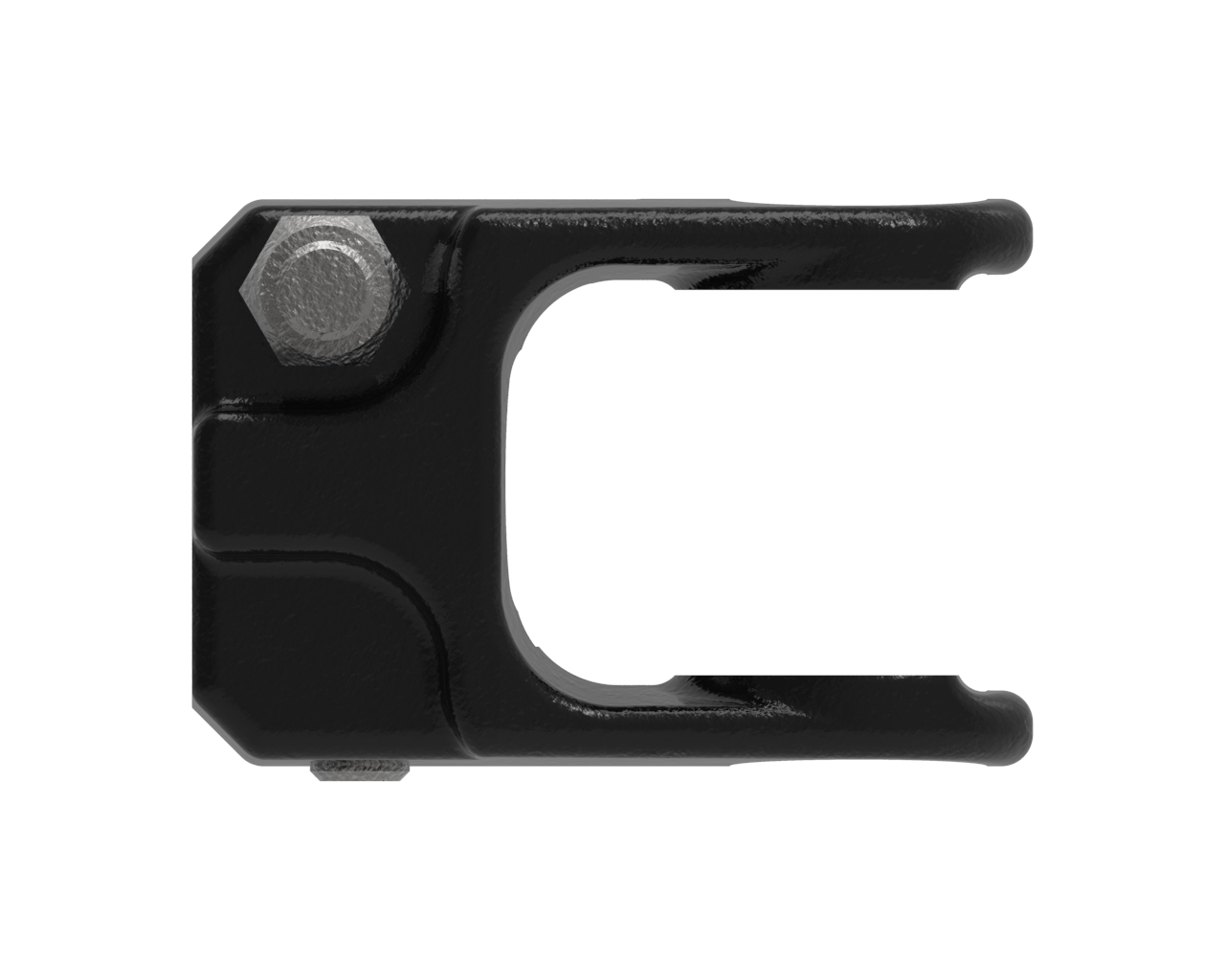

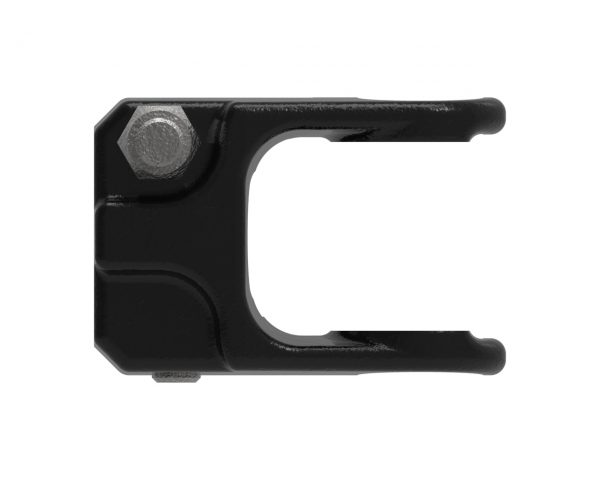

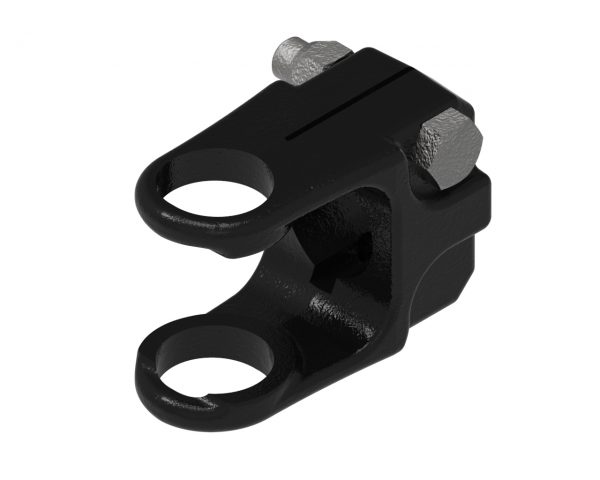

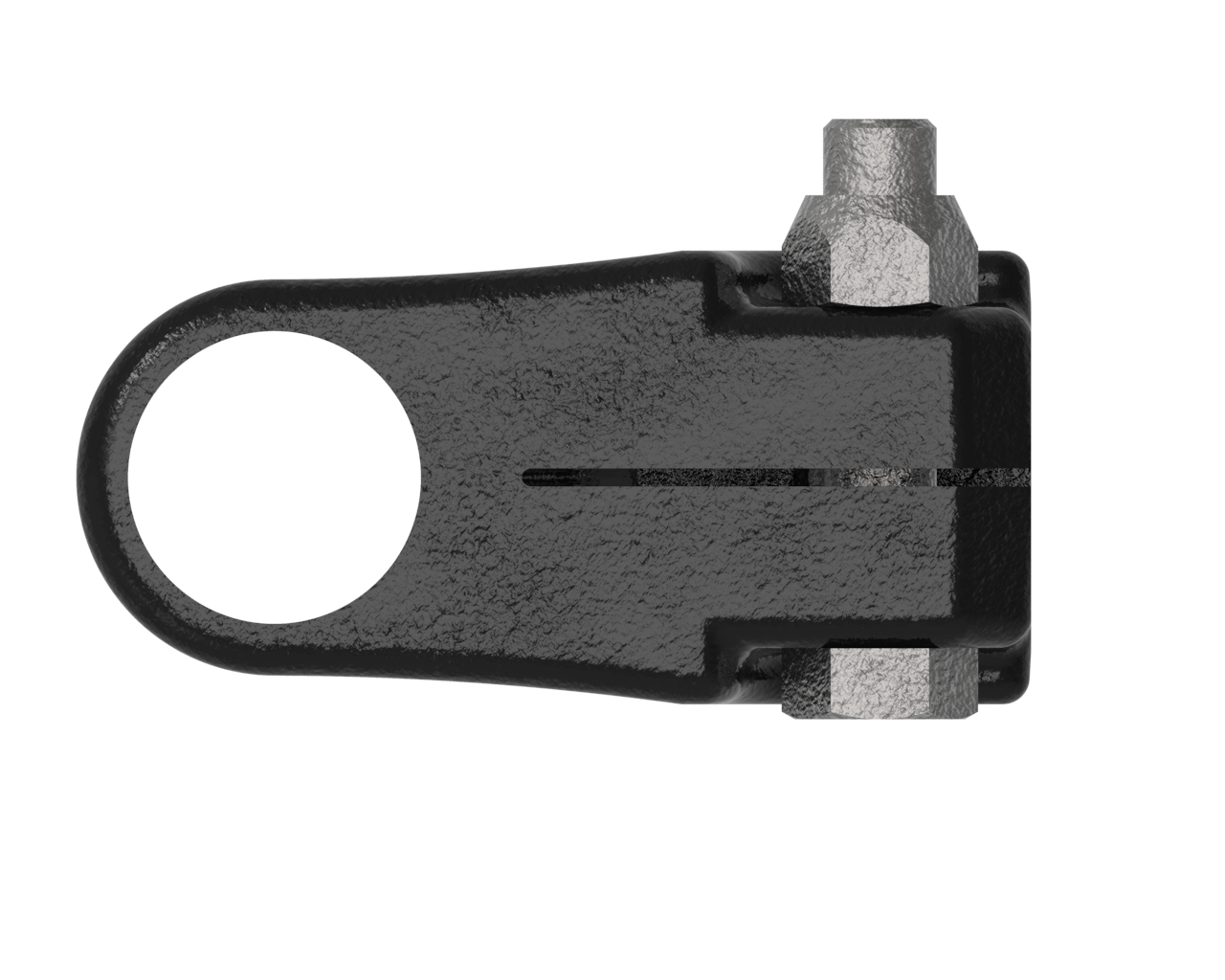

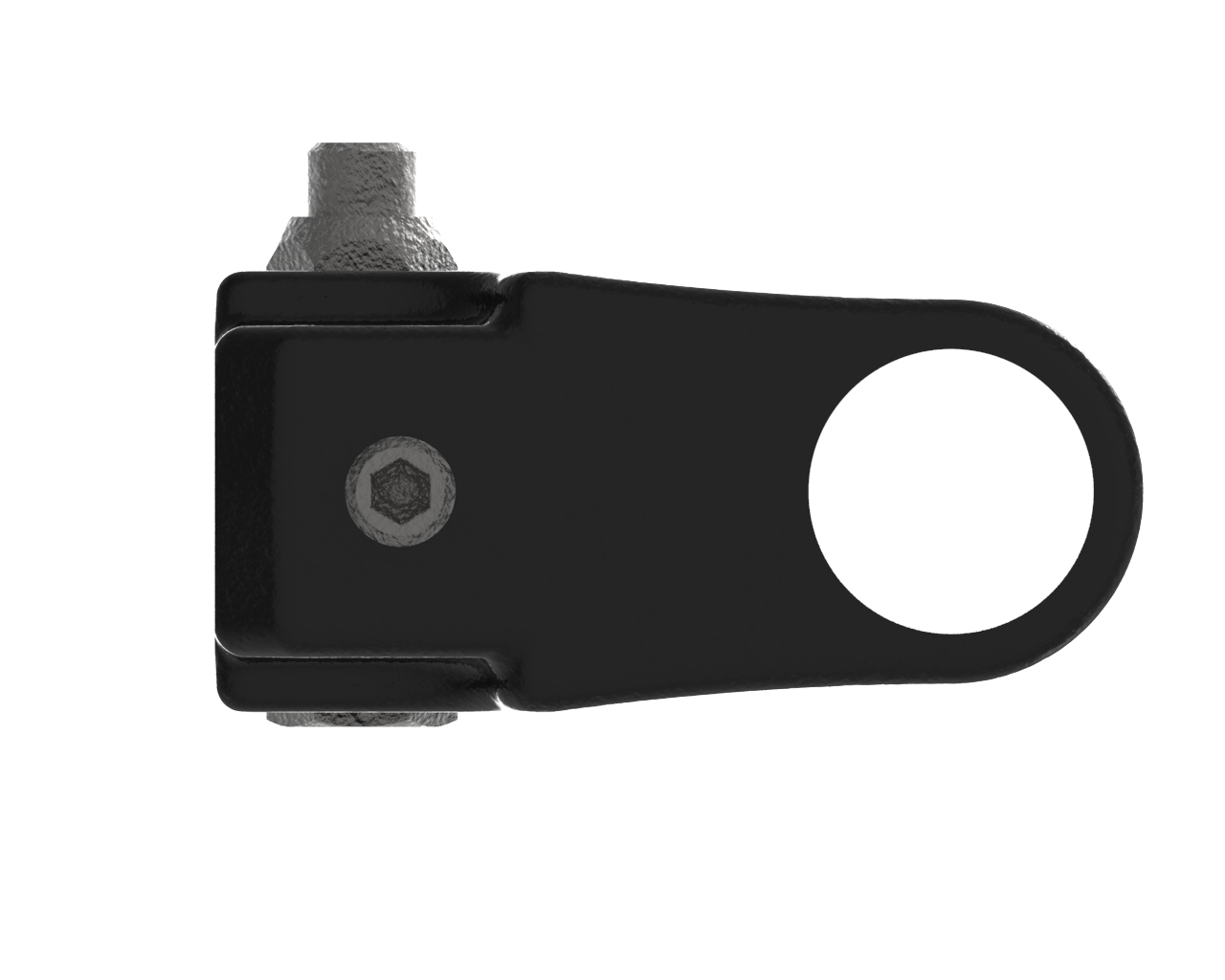

CLAMP YOKE6 Series Clamp Yoke

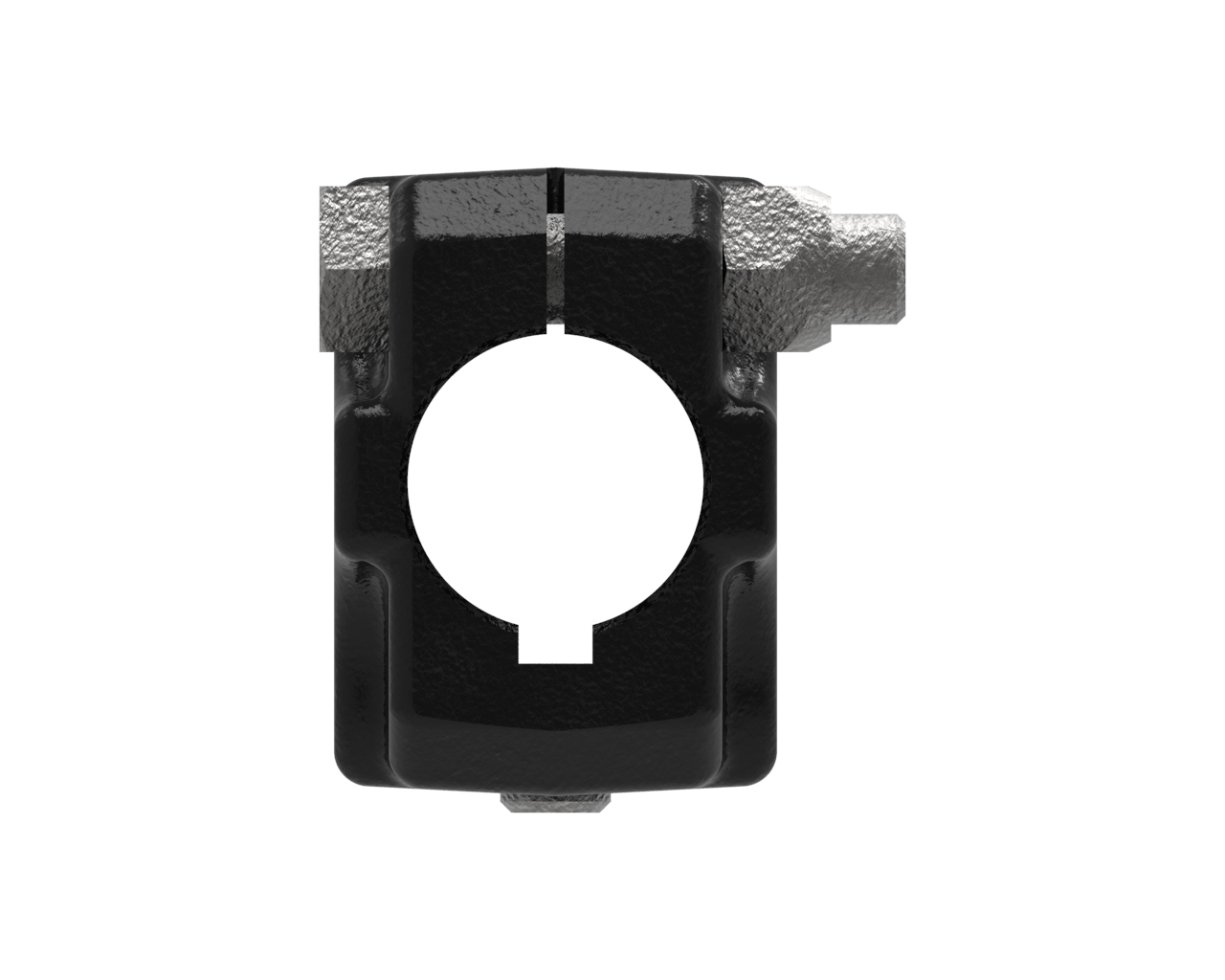

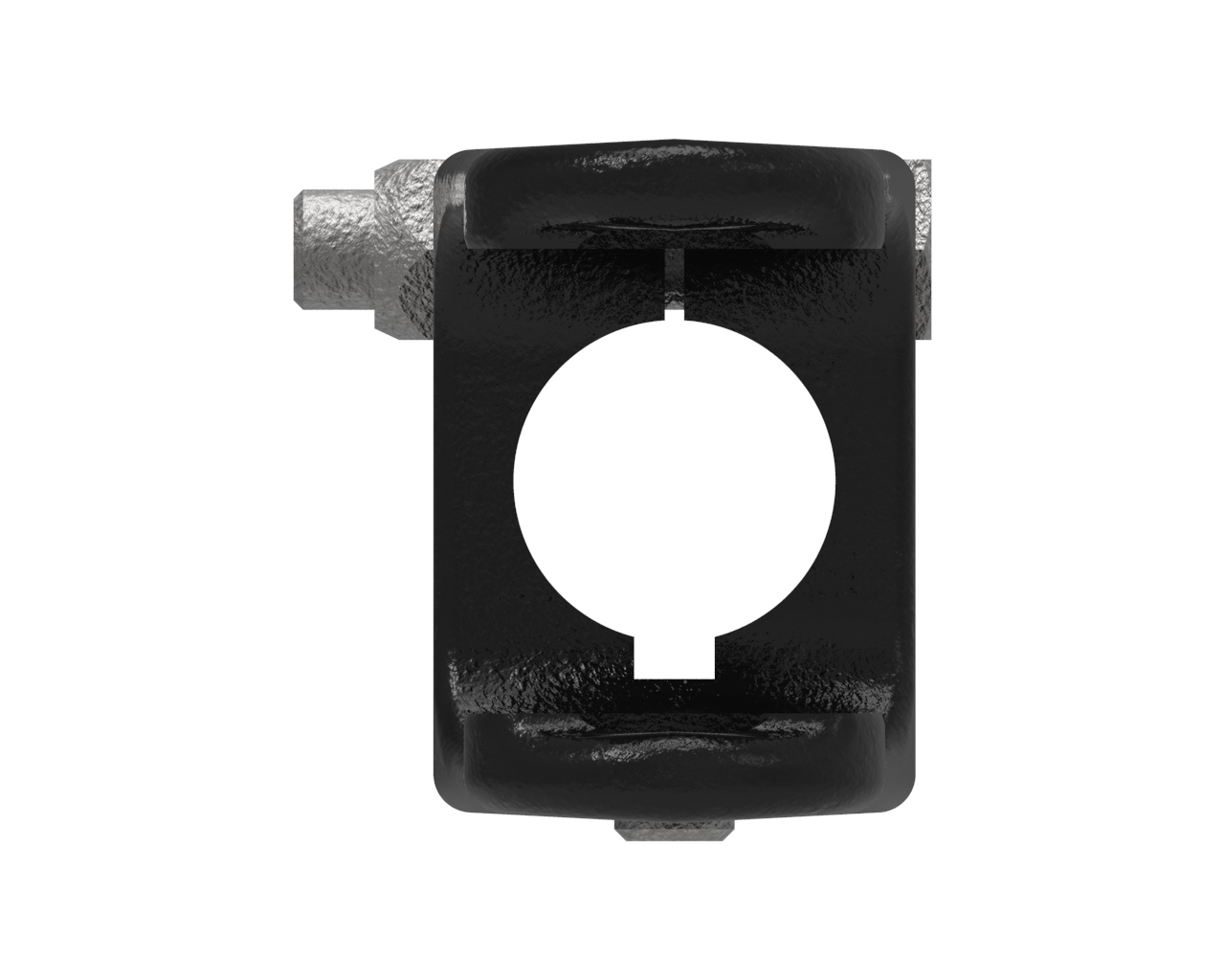

6 series yoke with round with keyway bore and clamp connection
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.00 inches | 25 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | CLAMP | |
| Height | 2.50 inches | 64 mm |
| HP@1000RPM | 29 HP | 22 kilowatts |
| HP@540RPM | 19 HP | 14 kilowatts |
| Keyway 1 | 0.25 inches | 6 mm |
| Length | 2.50 inches | 64 mm |
| Shipping Dimensions | 3.17" L × 2.5" H × 1.56" W | 8cm L × 6cm H × 4cm W |
| Shipping Volume | 12.36 in3 | 203 cm3 |
| Shipping Weight | 0.96 pounds | 0 kilograms |
| Weight | 0.96 pounds | 0 kilograms |
| Width | 1.56 inches | 40 mm |
