812-0615
TELESCOPING YOKE6 Series Telescoping Yoke

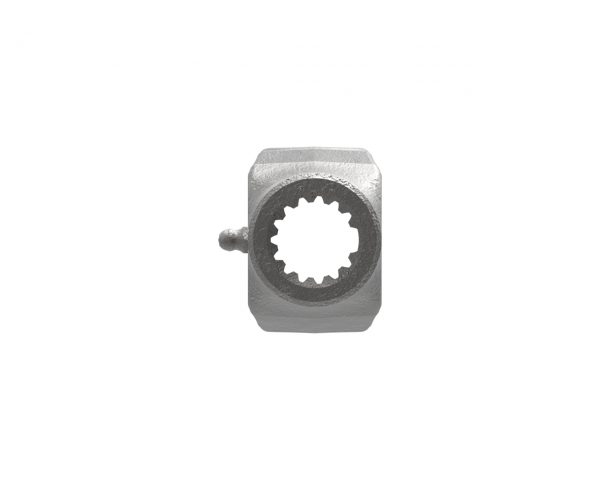

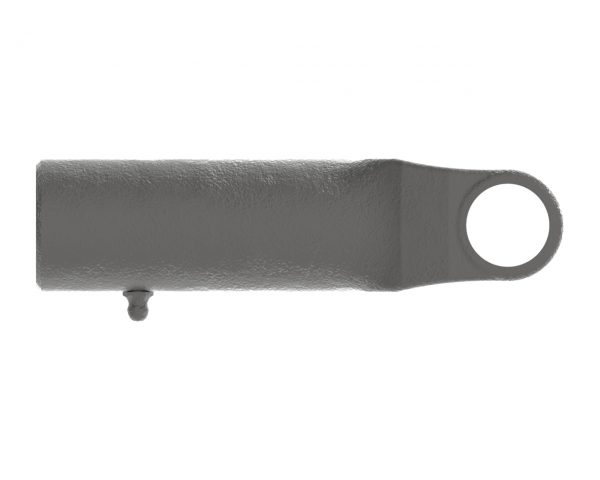

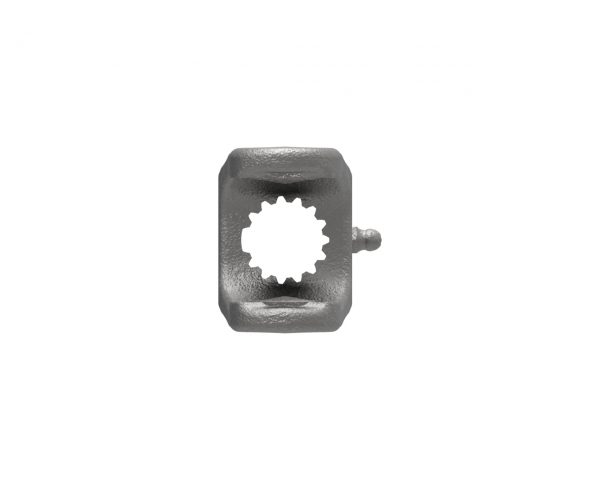

6 series yoke with 1-15 spline bore and telescoping connection
Telescoping yokes combine tube yoke and slip sleeve where length restrictions are present.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.00 inches | 25 mm |
| Bore 1 | 1-15 SPLINE | |
| Connection 1 | TELESCOPING | |
| Height | 2.50 inches | 64 mm |
| HP@1000RPM | 29 HP | 22 kilowatts |
| HP@540RPM | 19 HP | 14 kilowatts |
| Length | 5.50 inches | 140 mm |
| Shipping Dimensions | 6.17" L × 2.5" H × 1.62" W | 16cm L × 6cm H × 4cm W |
| Shipping Volume | 24.99 in3 | 410 cm3 |
| Shipping Weight | 2.00 pounds | 1 kilograms |
| Weight | 2.00 pounds | 1 kilograms |
| Width | 1.62 inches | 41 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
