700-0600

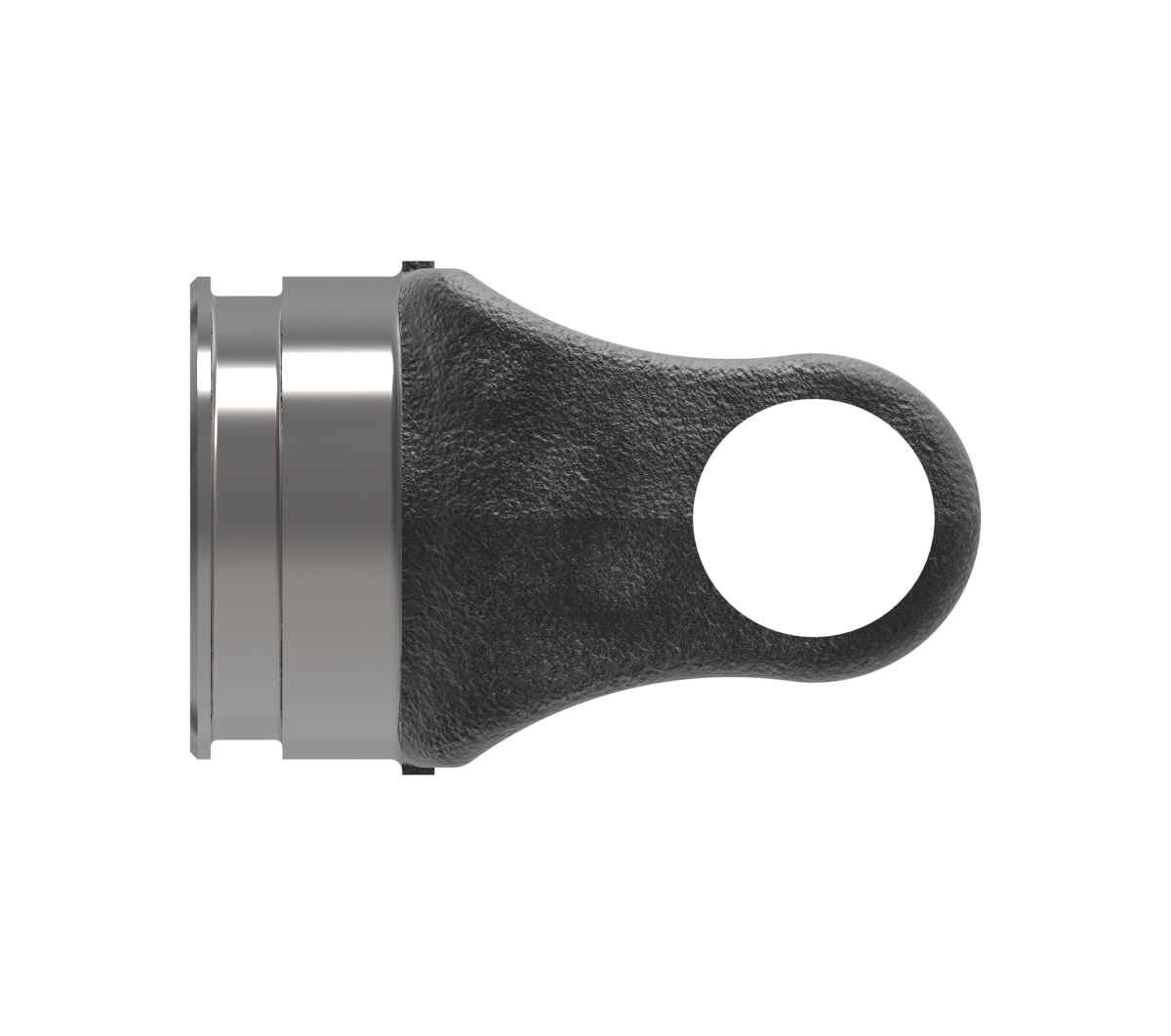

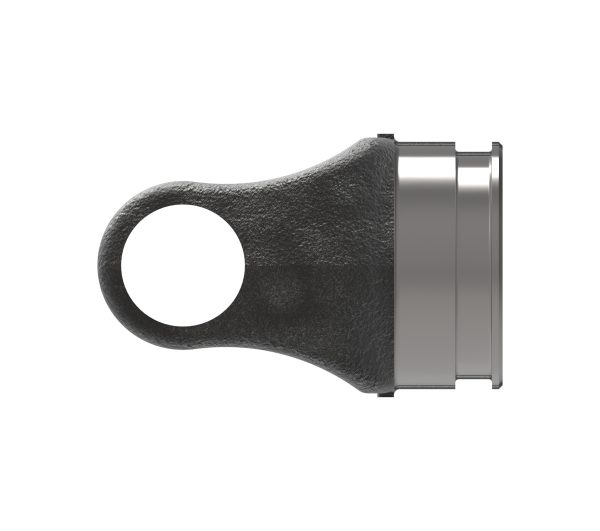

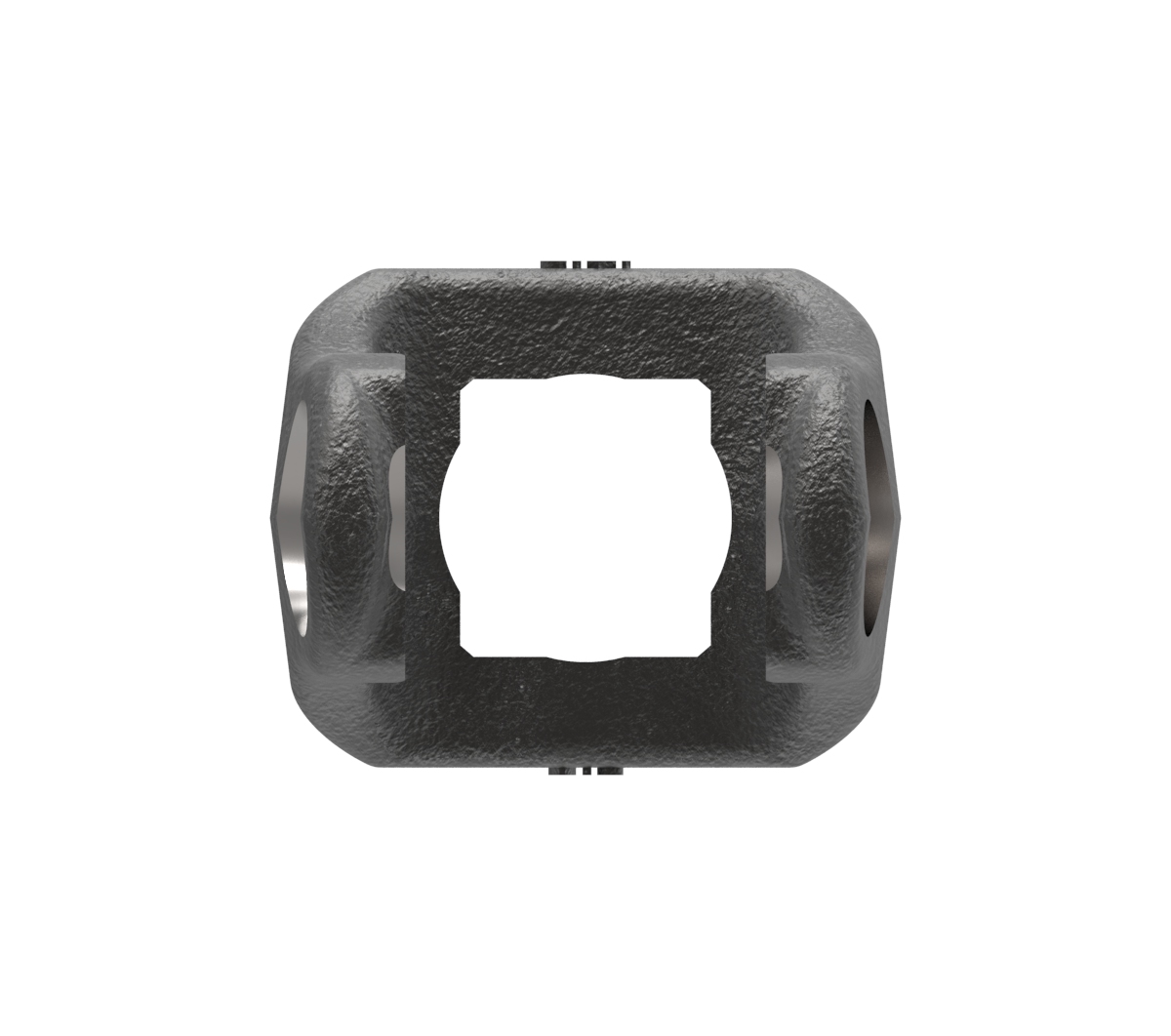

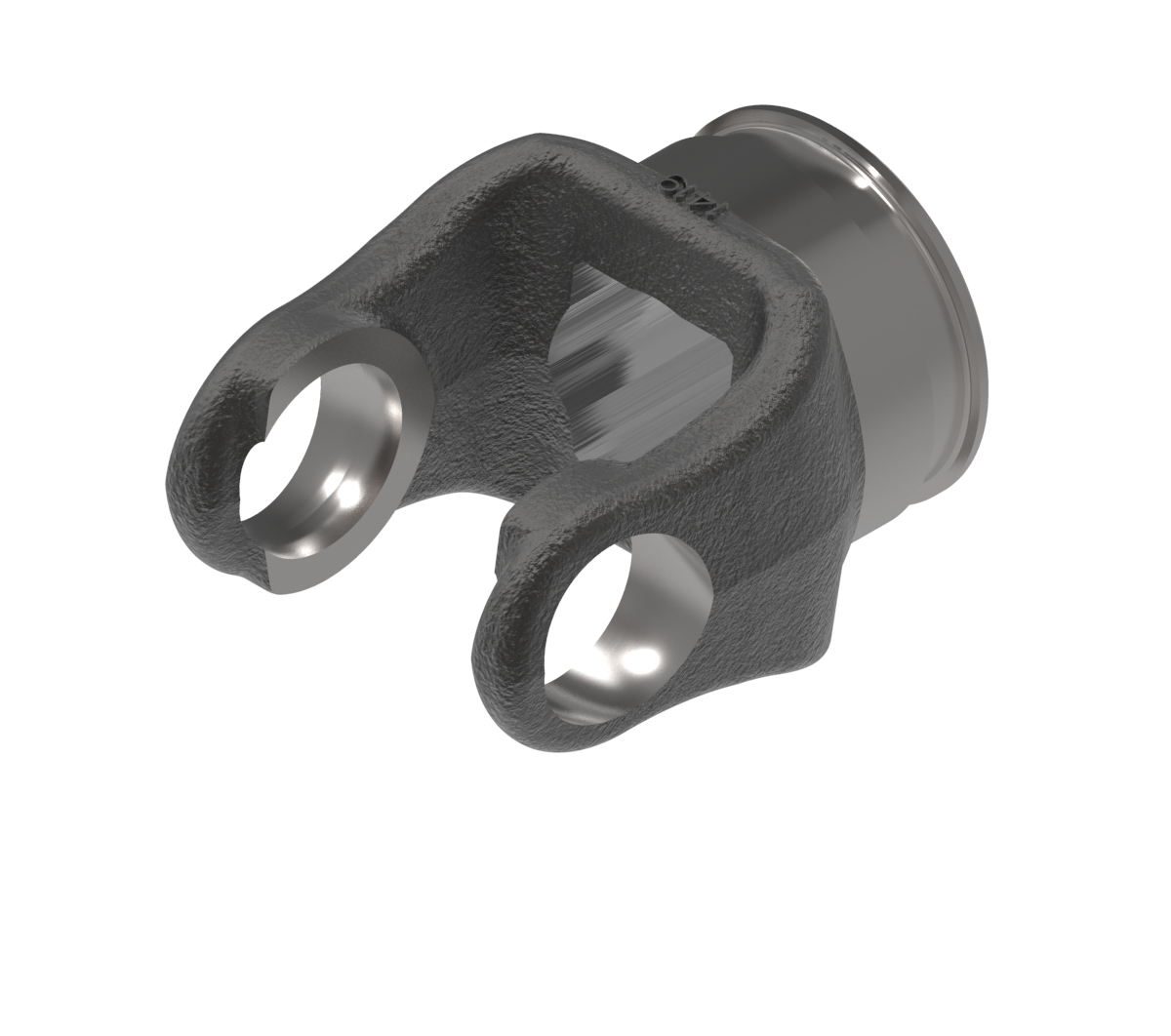

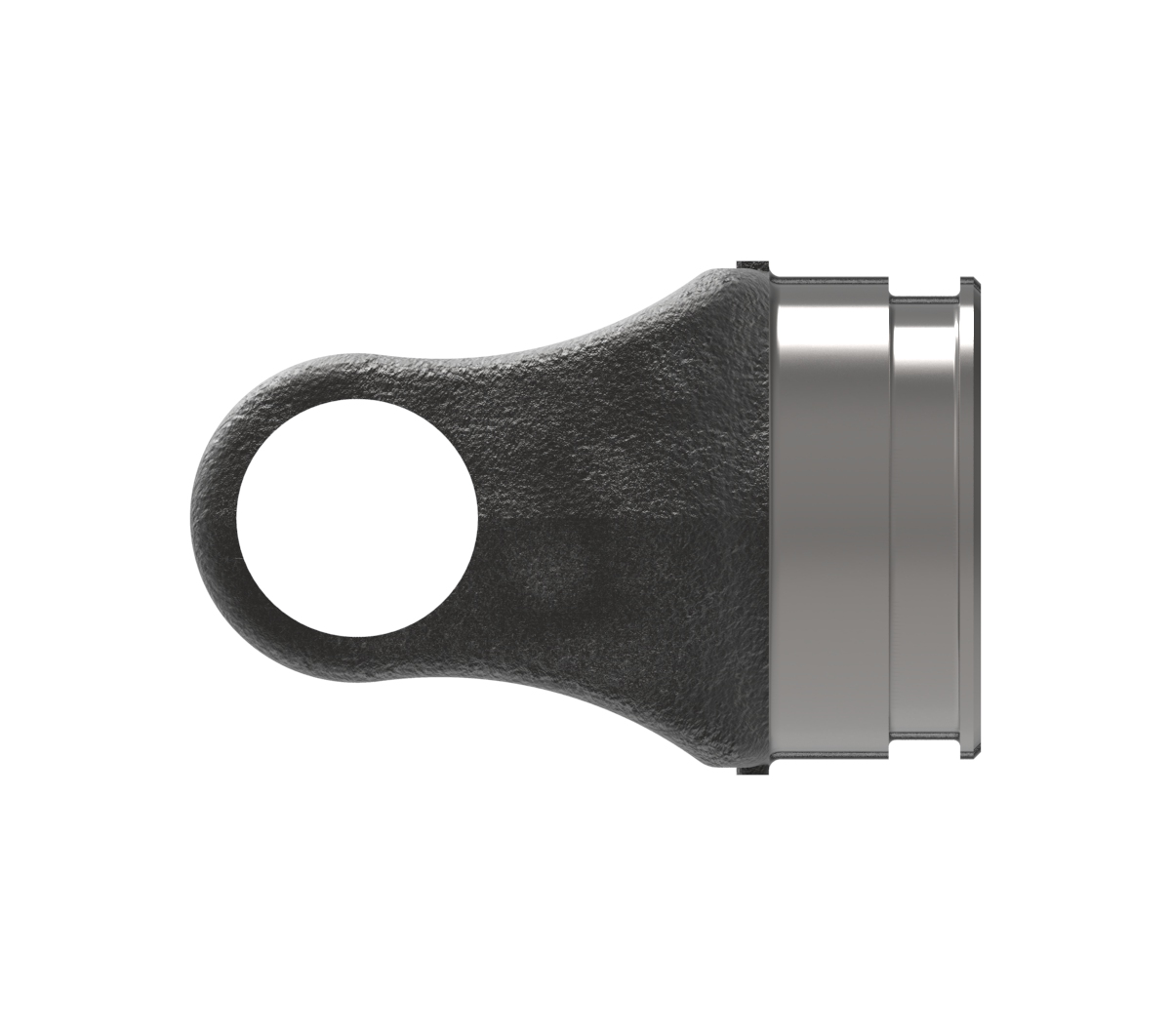

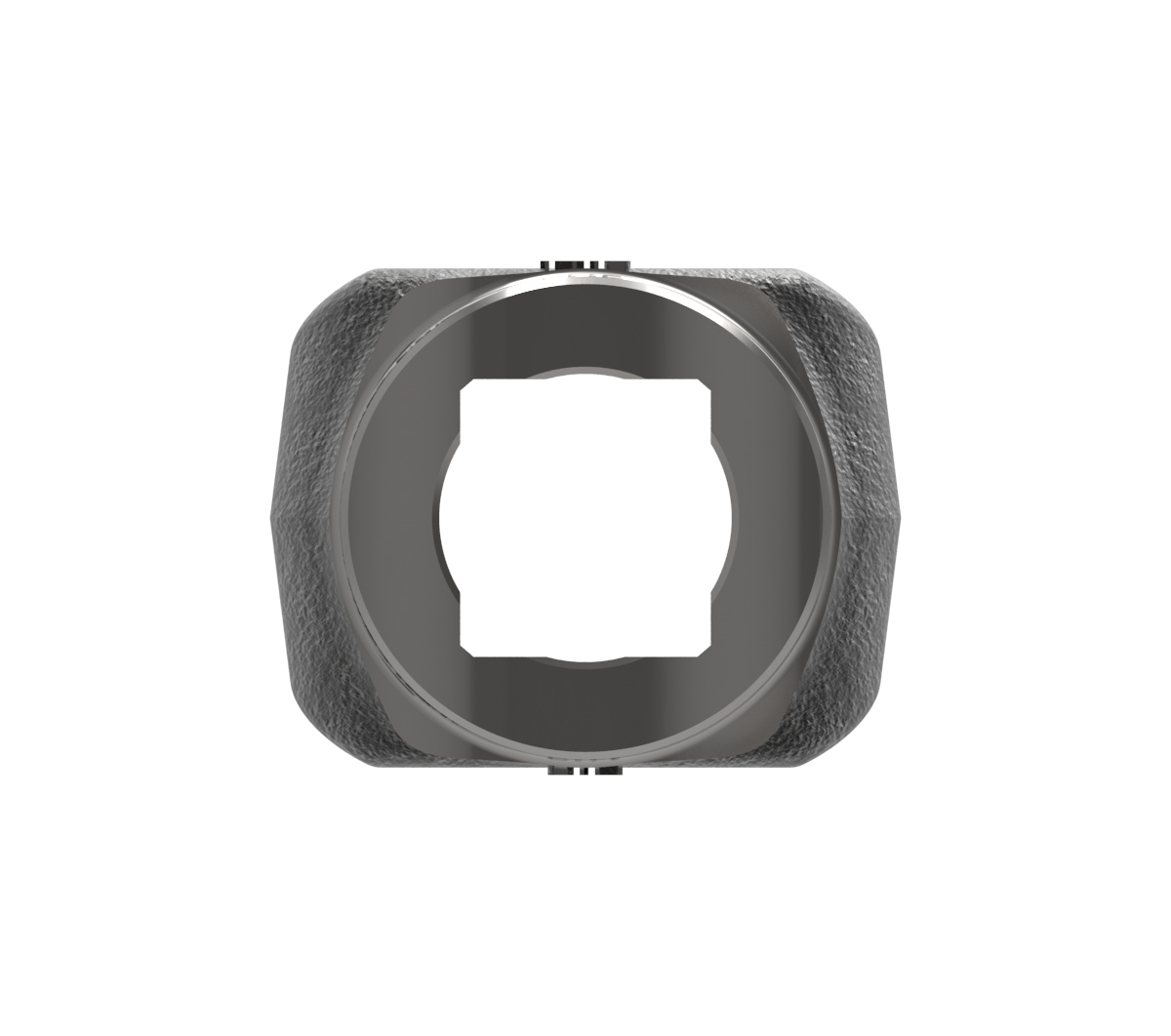

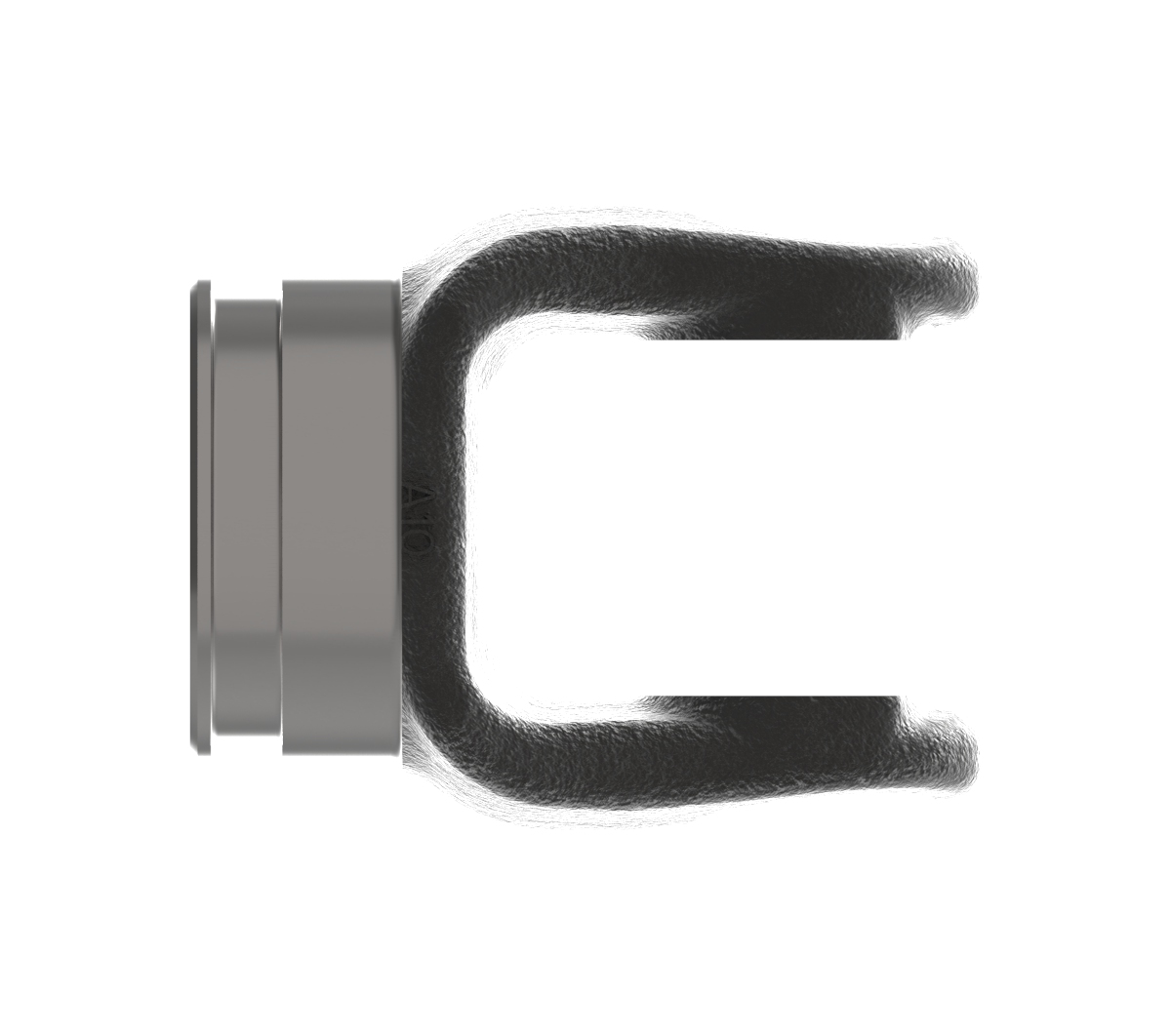

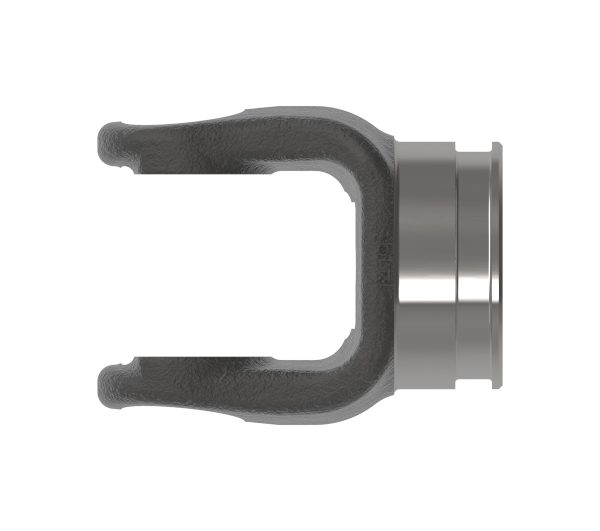

TUBE WELD YOKE6 Series Weld Yoke
6 series yoke with 1 x 1 1/8 rectangle bore and weld connection
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube profiles.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.12 inches | 28 mm |
| Bore 1 | 1 X 1 1/8 RECTANGLE | |
| Connection 1 | WELD | |
| Height | 2.50 inches | 64 mm |
| HP@1000RPM | 29 HP | 22 kilowatts |
| HP@540RPM | 19 HP | 14 kilowatts |
| Length | 2.50 inches | 64 mm |
| Outside Diameter | 2.00 inches | 51 mm |
| Shipping Dimensions | 3.17" L × 2.5" H × 2.06" W | 8cm L × 6cm H × 5cm W |
| Shipping Volume | 16.33 in3 | 268 cm3 |
| Shipping Weight | 1.10 pounds | 0 kilograms |
| Weight | 1.10 pounds | 0 kilograms |
| Width | 2.06 inches | 52 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
