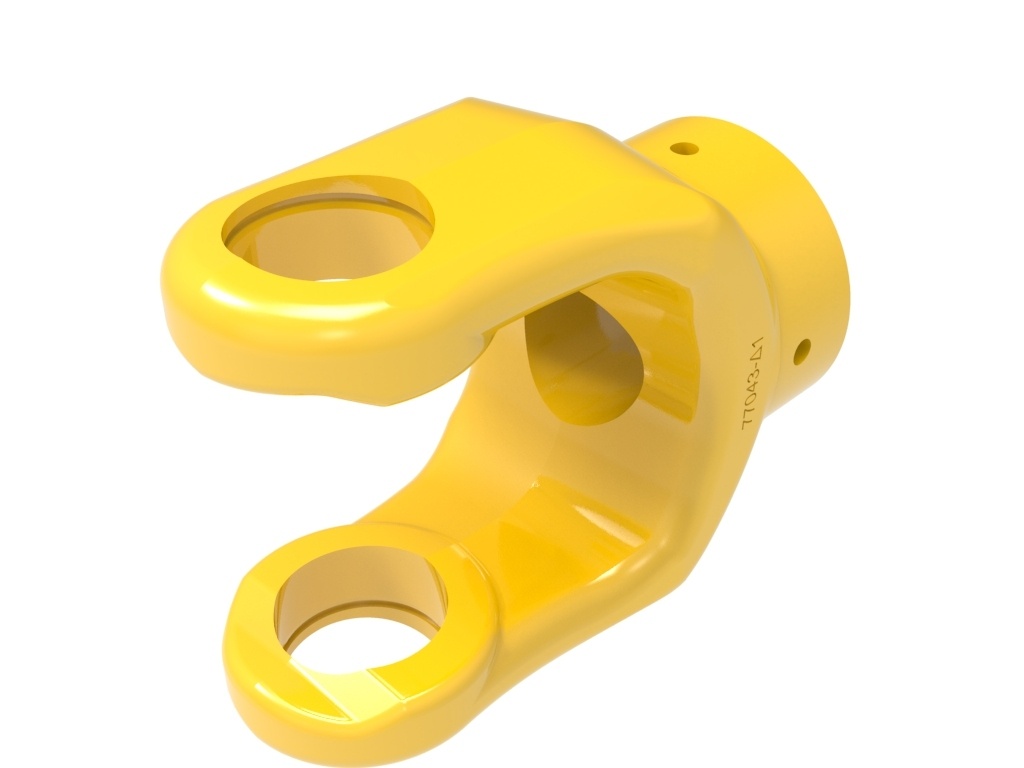

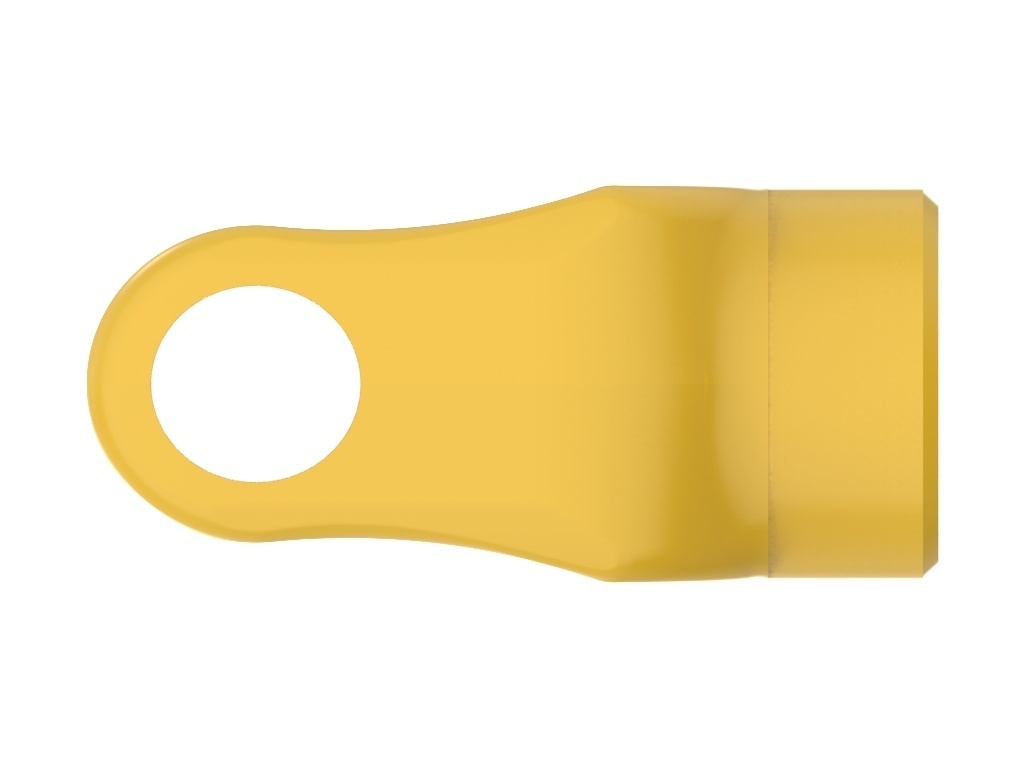

77 Series Setscrew Yoke
77 series yoke with round with keyway bore and setscrew connection
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
Product Series: 77
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.78 (1 25/32) in | 45 mm |
| Bearing Cap to Cap Span | 4.96 (4 61/64) in | 126 mm |
| Bore | 1.75 (1 3/4) in | 44 mm |
| Bore Description | ROUND WITH KEYWAY | |
| Connection 1 Type | SETSCREW | |
| HP@1000RPM | 264 HP | 197 kilowatts |
| HP@540RPM | 172 HP | 128 kilowatts |
| Keyway 1 | 0.38 (3/8) in | 10 mm |
| Centerline to End Dim | 5.75 (5 3/4) in | 146 mm |
| Setscrew | 3/8-16 | |
Related Products
| Product | Part Number |
|---|---|
| Cross & Bearing Kit | 201-7700 |
| Setscrew | 3/8-16 |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft | Maintenance Document | English |
| Service-Instructions-Universal-Joint | Service Document | English |
| Lack-of-Grease-Cross-Brg-Kit | Troubleshooting Document | English |
