3002-6306-00
UNIVERSAL JOINTAB3 Series Universal Joint

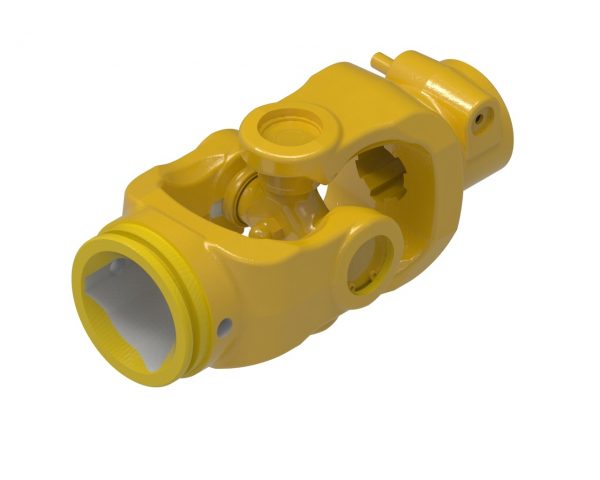

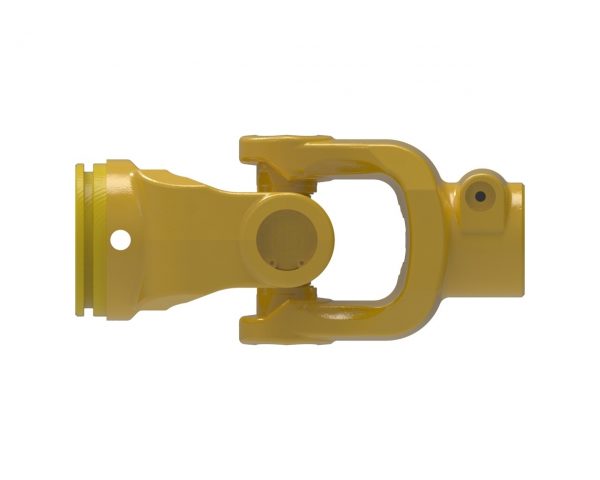

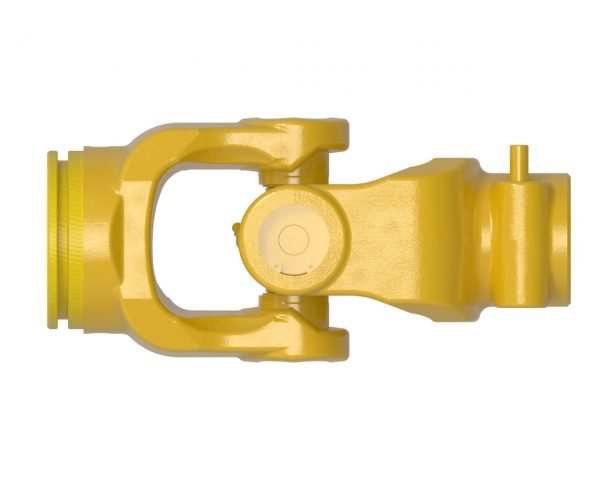

AB3 series universal joint with 1 3/8-6 spline, quick disconnect connection and 43 mm trilobe, telescoping connection. Note: Image color may not represent actual part.
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 1.75 inches | 44 mm |
| Bore 2 | 43 MM TRILOBE | |
| Connection 1 | QUICK DISCONNECT | |
| Connection 2 | TELESCOPING | |
| HP@1000RPM | 44 HP | 33 kilowatts |
| HP@540RPM | 29 HP | 22 kilowatts |
| Length | 7.42 inches | 188 mm |
| Shipping Dimensions | 7.429" L × 3.48" H × 3.48" W | 19cm L × 9cm H × 9cm W |
| Shipping Volume | 89.97 in3 | 1474 cm3 |
| Shipping Weight | 0.00 pounds | 0 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
