803-8406

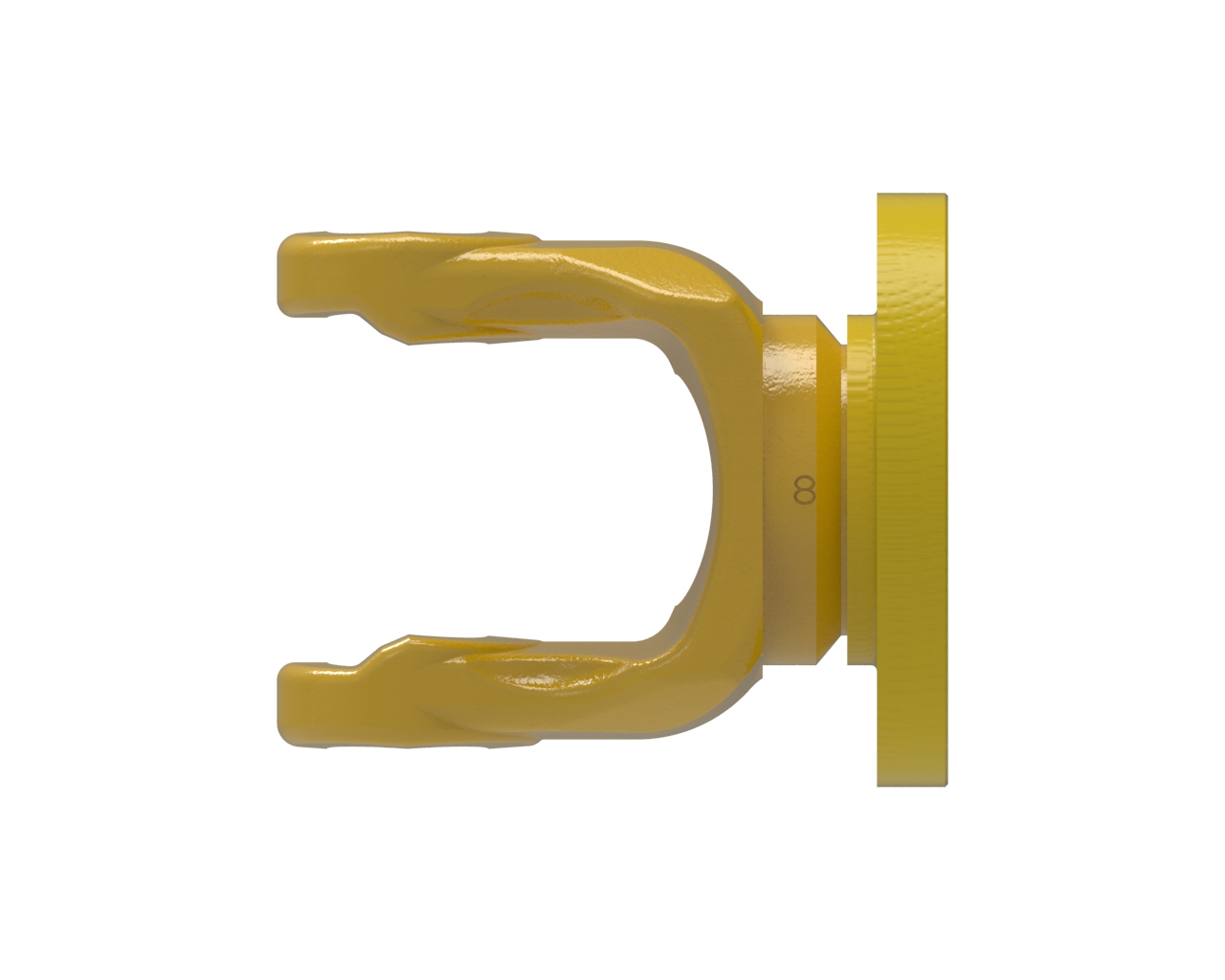

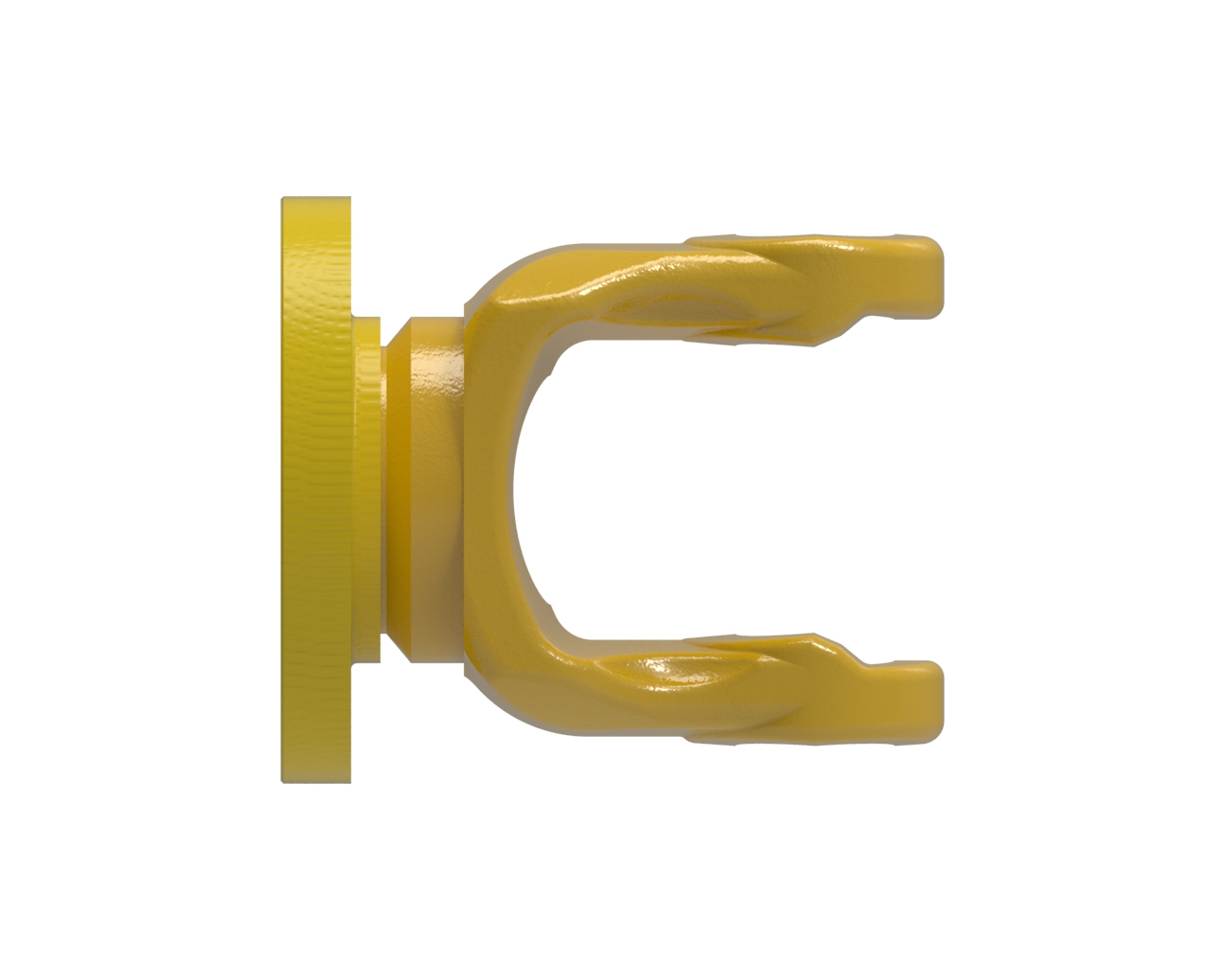

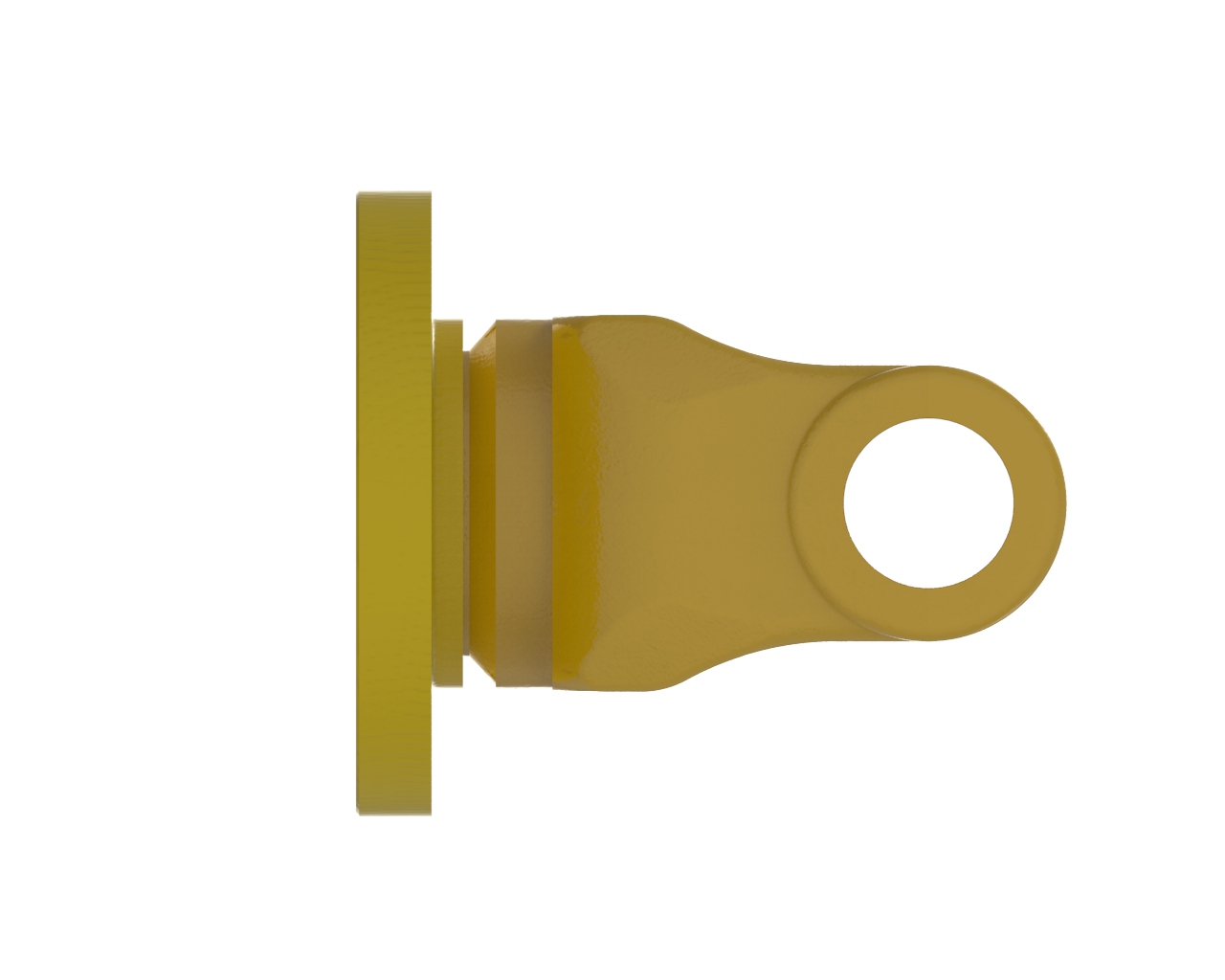

FLANGE YOKEAB4,AW21 Series Flange Yoke

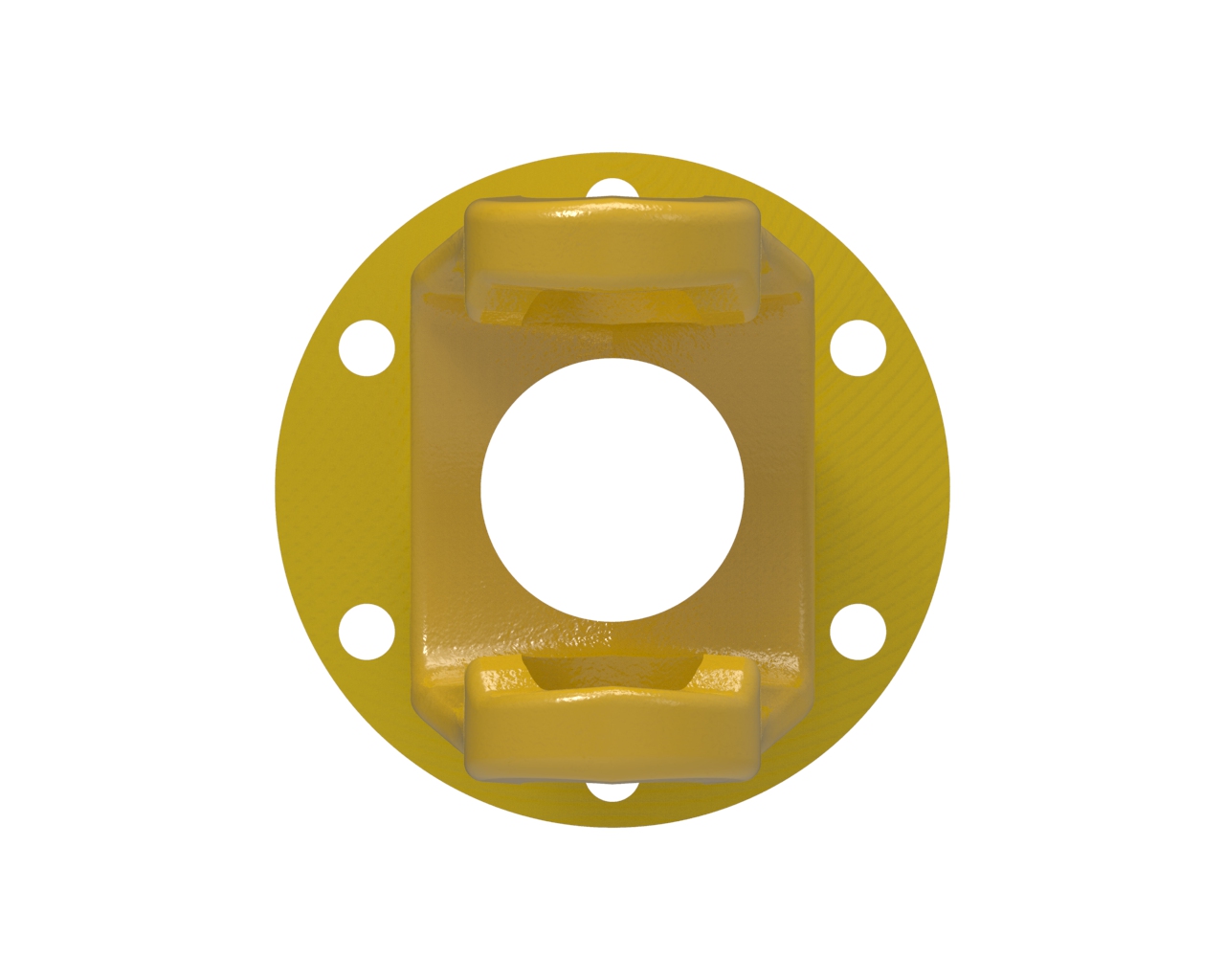

AB4,AW21 series yoke with 6 x 8 mm bolt circle bore and flange connection
The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 3.31 inches | 84 mm |
| Bore 1 | 6 X 8 MM BOLT CIRCLE | |
| Connection 1 | FLANGE | |
| HP@1000RPM | 70 HP | 52 kilowatts |
| HP@540RPM | 45 HP | 34 kilowatts |
| Length | 3.58 inches | 91 mm |
| Outside Diameter | 3.94 inches | 100 mm |
| Shipping Dimensions | 4.44" L × 3.94" H × 3.94" W | 11cm L × 10cm H × 10cm W |
| Shipping Volume | 68.92 in3 | 1129 cm3 |
| Shipping Weight | 2.58 pounds | 1 kilograms |
| Weight | 2.58 pounds | 1 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
