AB6-80,AW35-80 Series Quick Disconnect Yoke

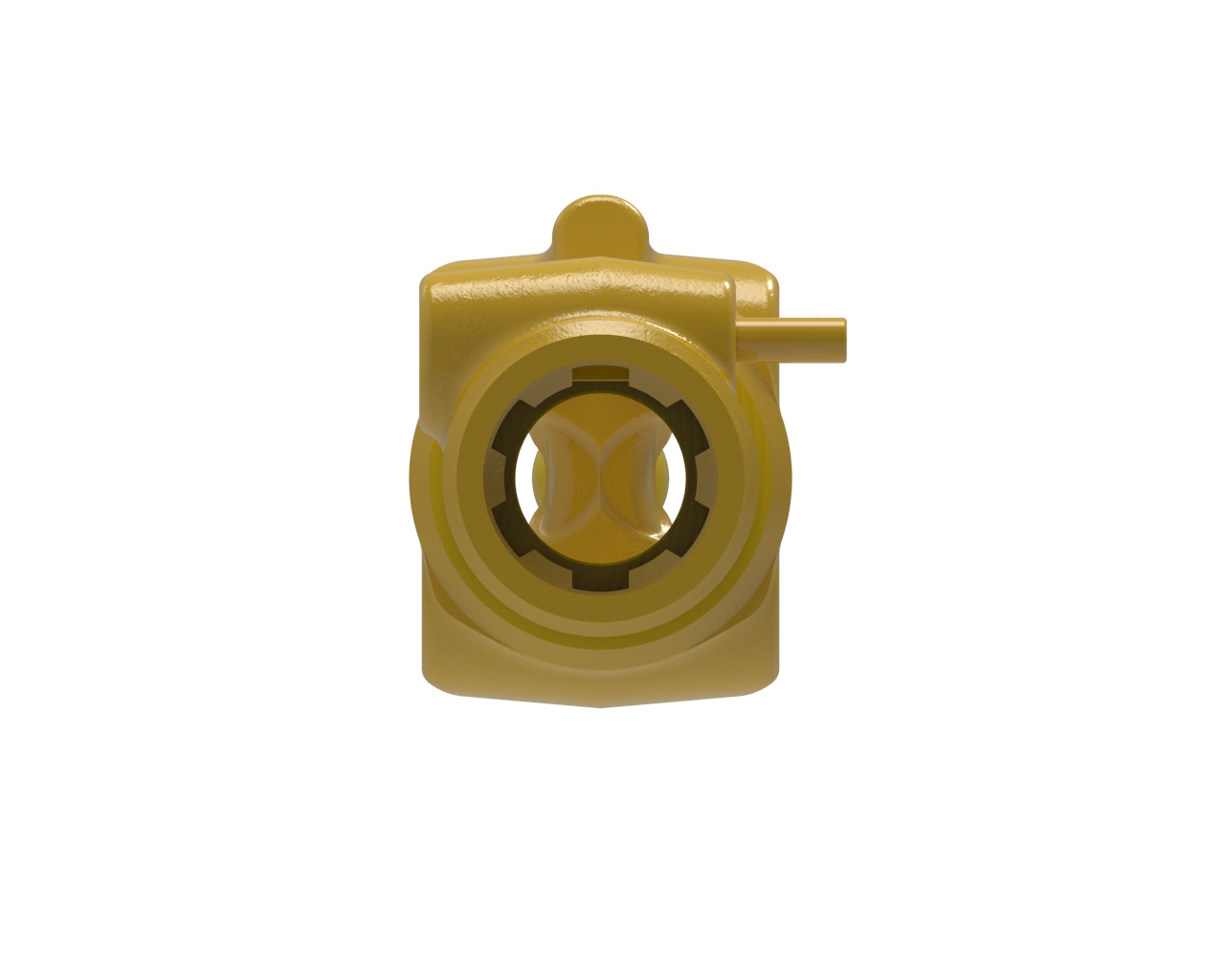

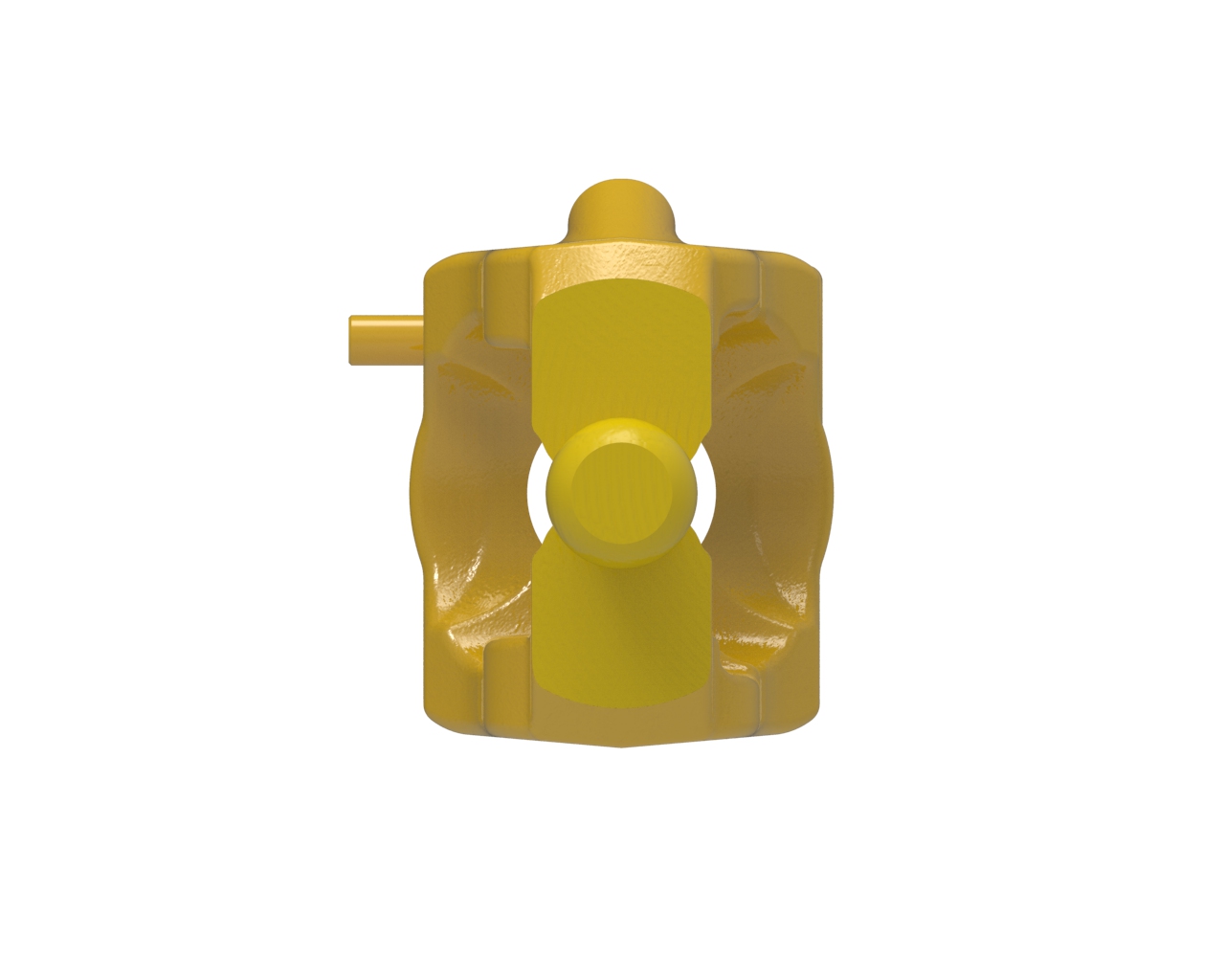

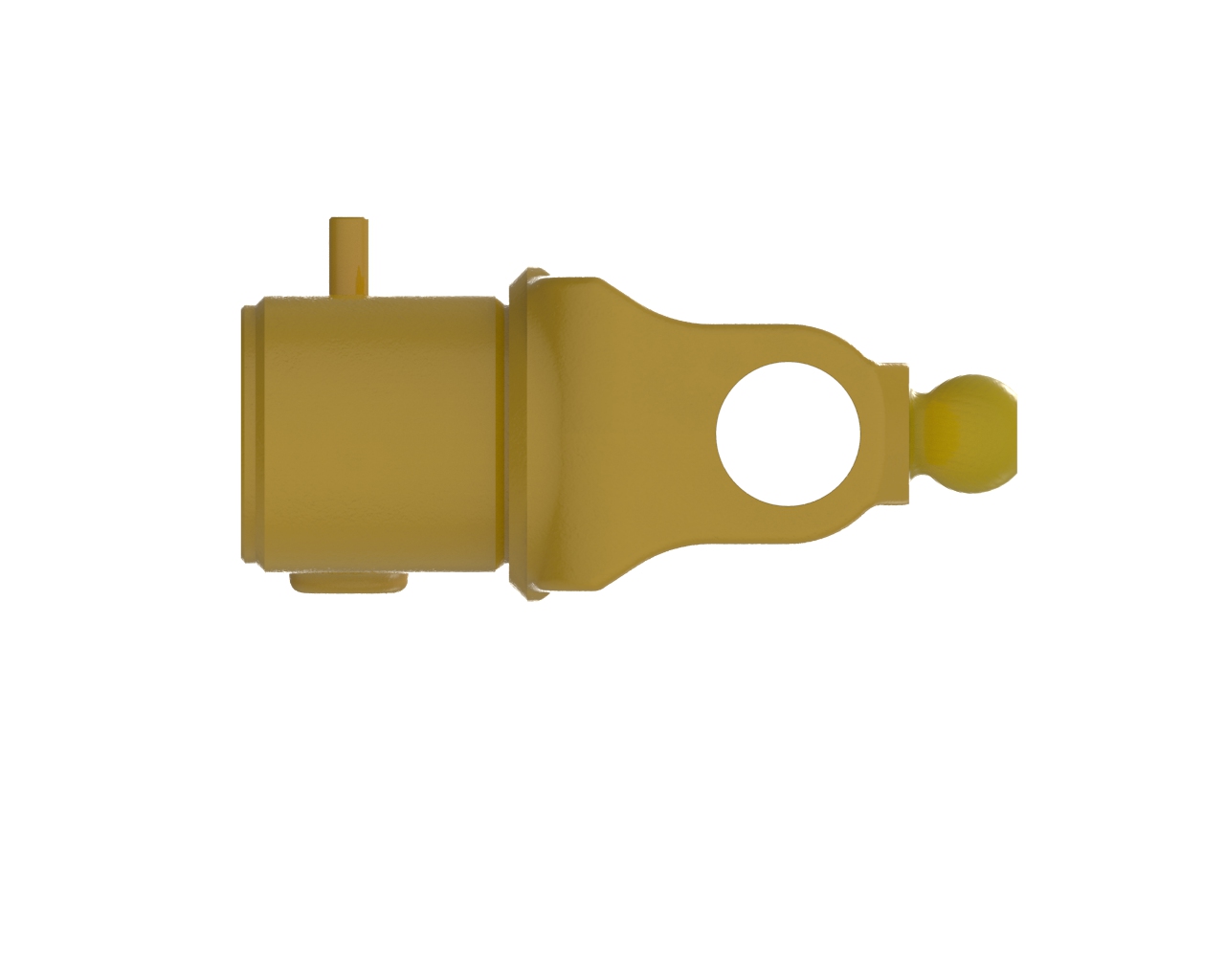

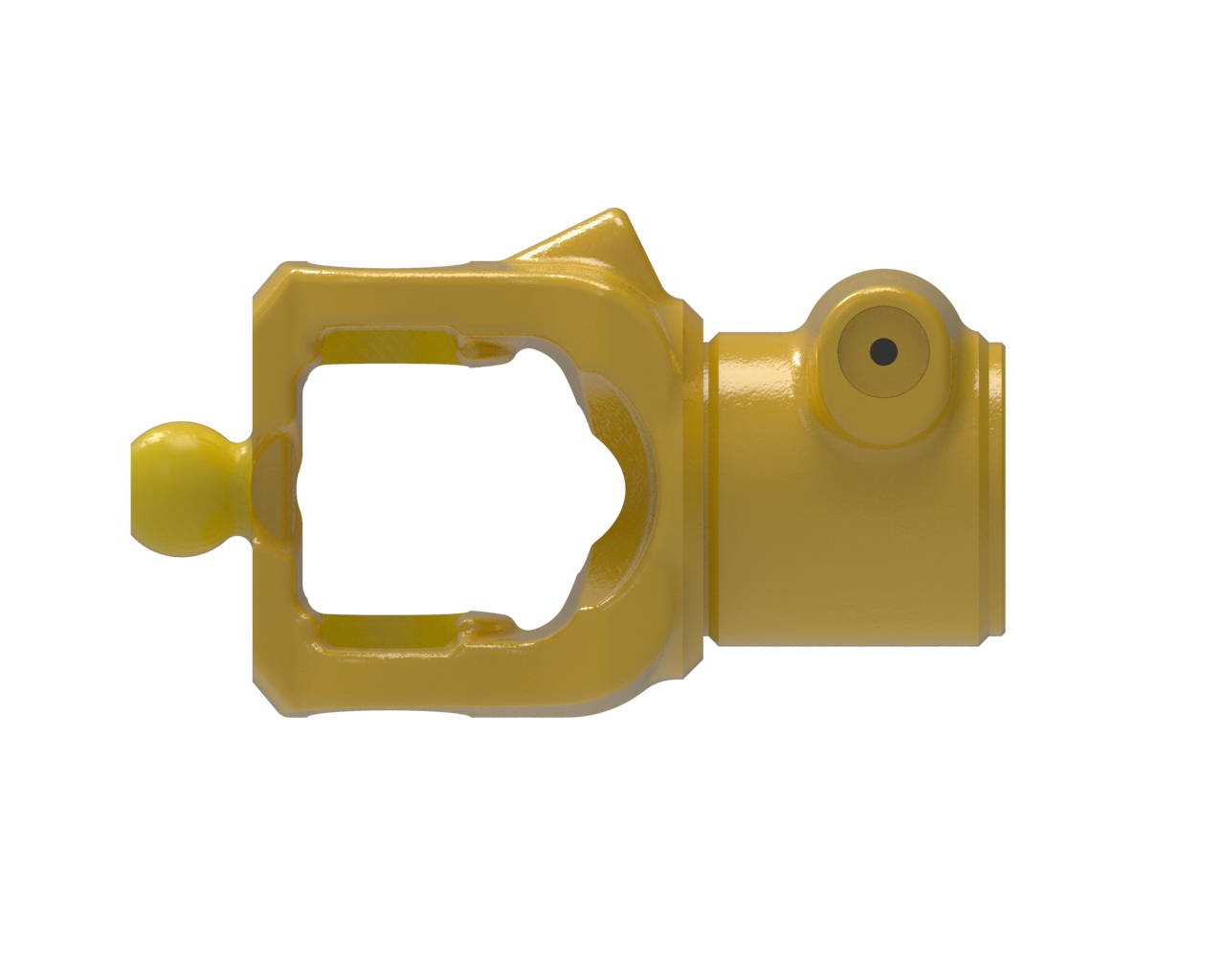

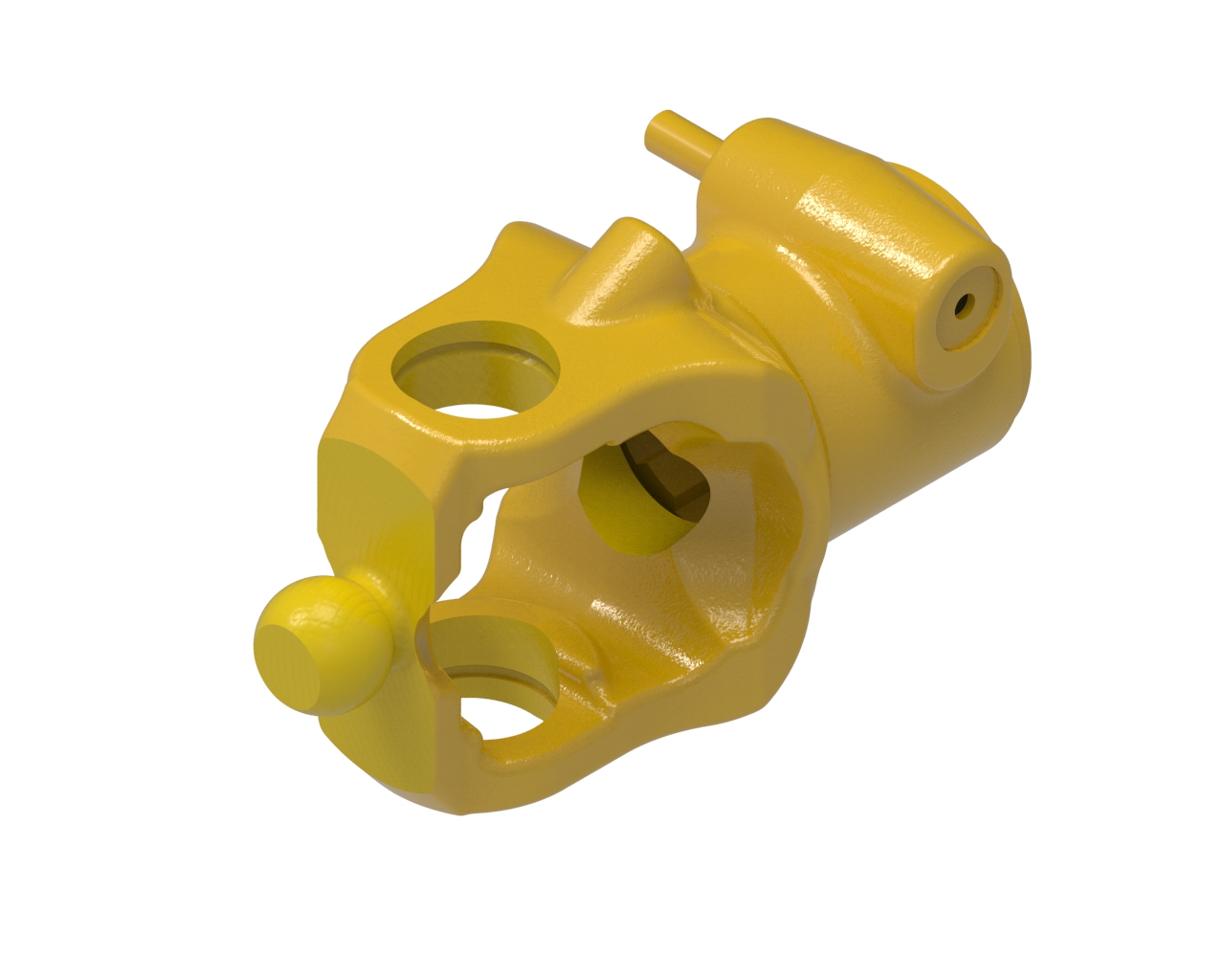

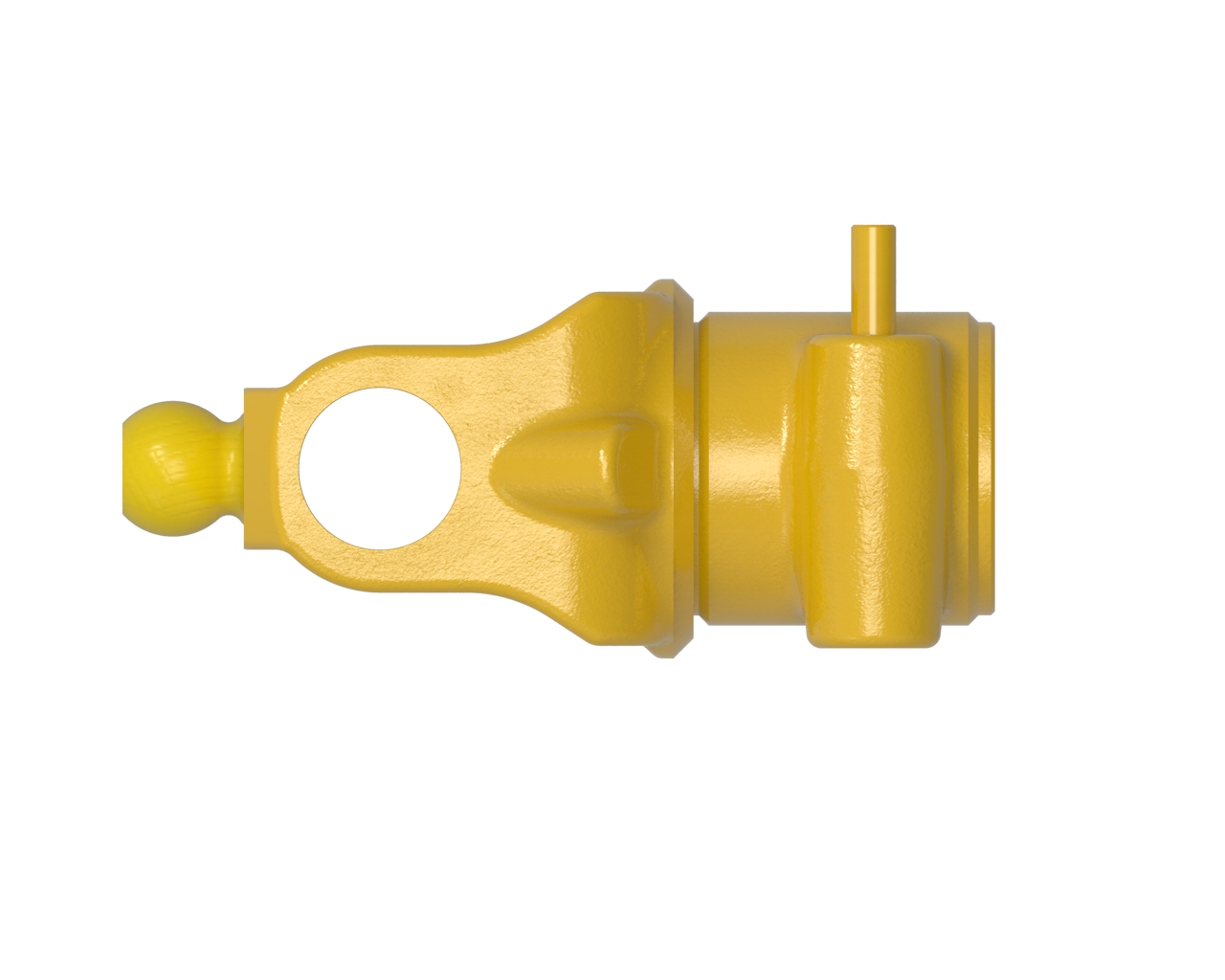

AB6-80,AW35-80 series yoke with 1 3/4-6 spline bore and quick disconnect connection. Note: Image color may not represent actual part.
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
Product Series: AB6-80, AW35-80
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter (Ear Hole) | 1.26 (1 17/64) in | 32 mm |
| Bearing Cap to Cap Span | 2.98 (2 63/64) in | 76 mm |
| Bore | 1.75 (1 3/4) in | 44 mm |
| Bore Description | 1 3/4-6 SPLINE | |
| Centerline to End Dim. | 4.78 (4 25/32) in | 121 mm |
| Weight | 5.12 pounds | 2 kilograms |
| Width | 3.30 (3 19/64) in | 84 mm |
