3002-6606-00
UNIVERSAL JOINTAB6 Series Universal Joint

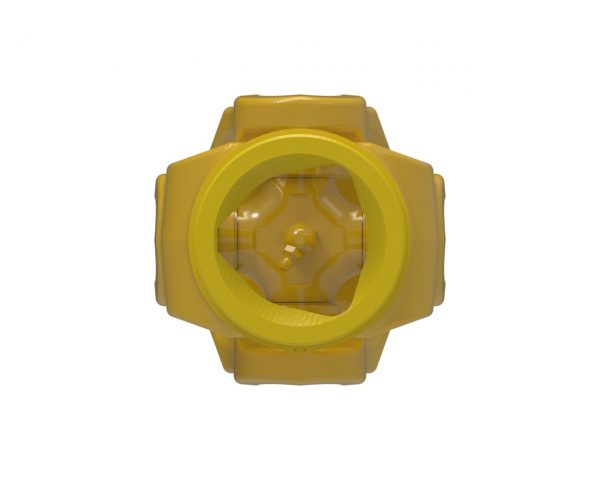

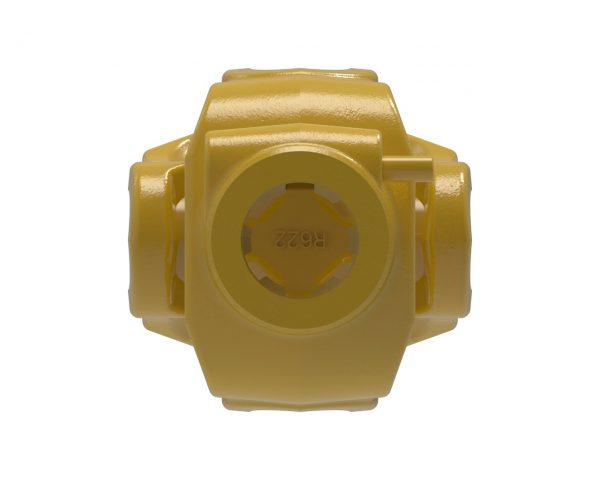

AB6 series universal joint with 1 3/8-6 spline, quick disconnect connection and 54 mm trilobe, telescoping connection. Note: Image color may not represent actual part.
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 2.20 inches | 56 mm |
| Bore 2 | 54 MM TRILOBE | |
| Connection 1 | QUICK DISCONNECT | |
| Connection 2 | TELESCOPING | |
| HP@1000RPM | 99 HP | 74 kilowatts |
| HP@540RPM | 64 HP | 48 kilowatts |
| Length | 9.10 inches | 231 mm |
| Shipping Dimensions | 9.102" L × 4.49" H × 4.49" W | 23cm L × 11cm H × 11cm W |
| Shipping Volume | 183.50 in3 | 3007 cm3 |
| Shipping Weight | 0.00 pounds | 0 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| WE0101011_0817_USL_EasyLockGuard.pdf | Performance Benefits Document | English |
