560-8620

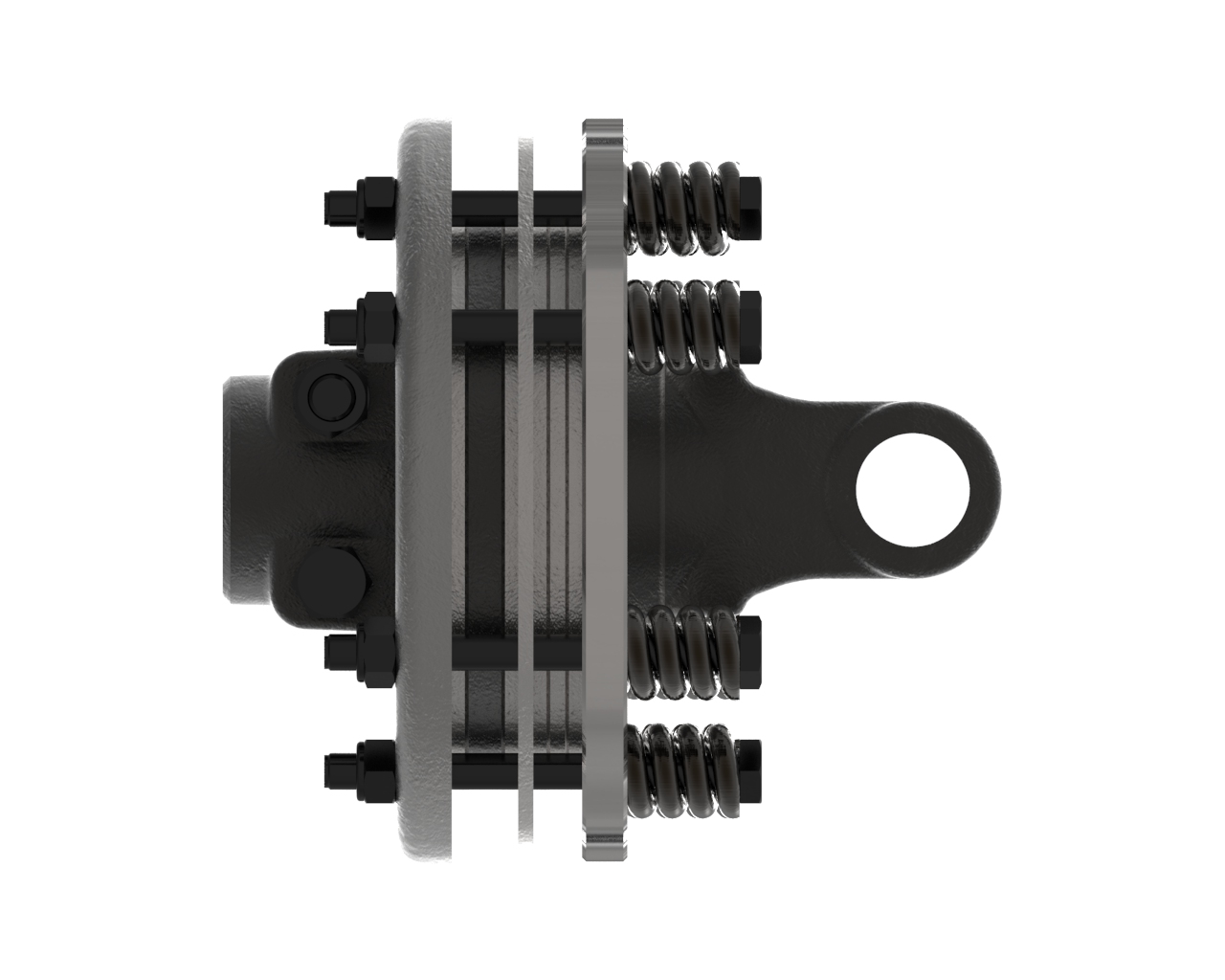

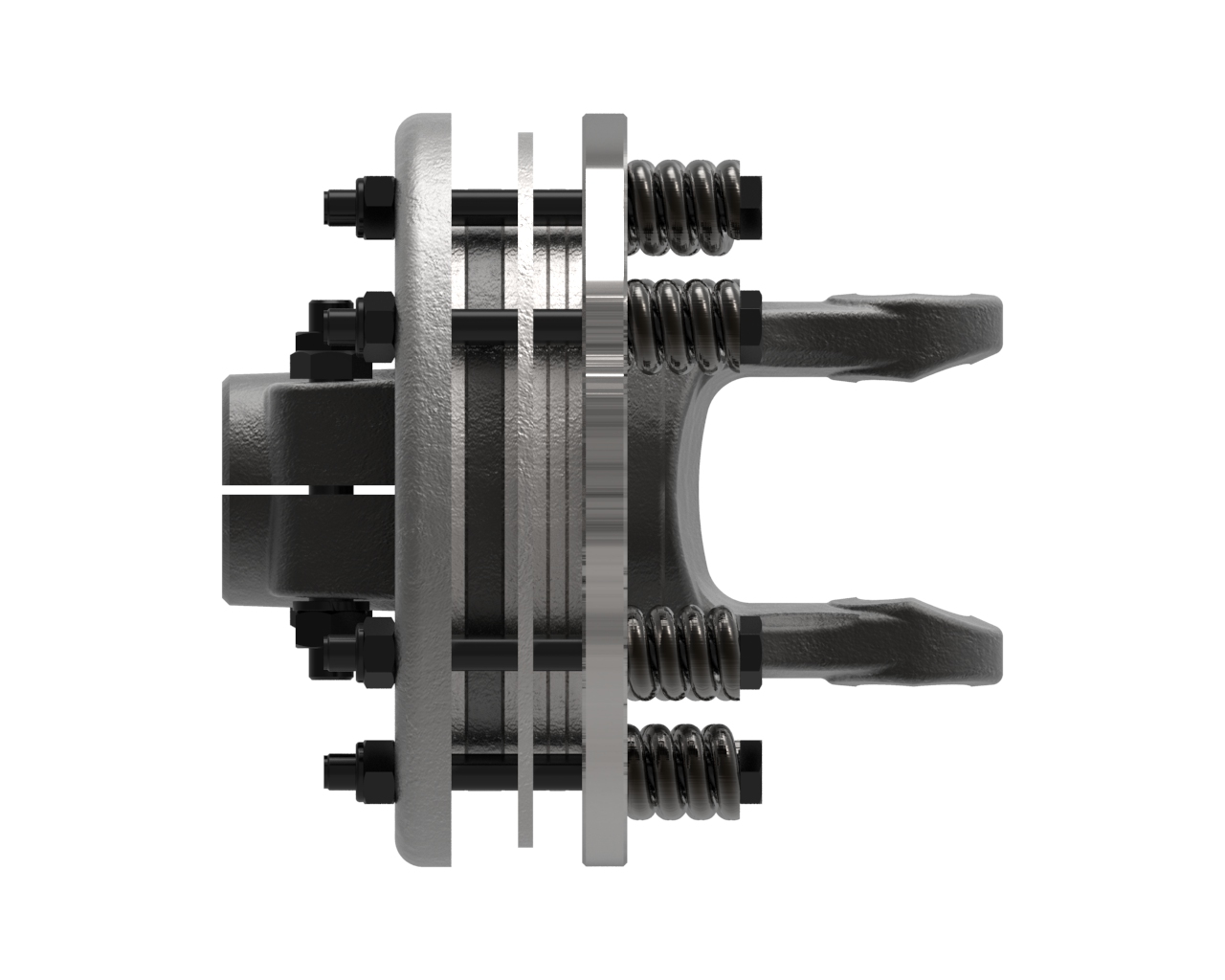

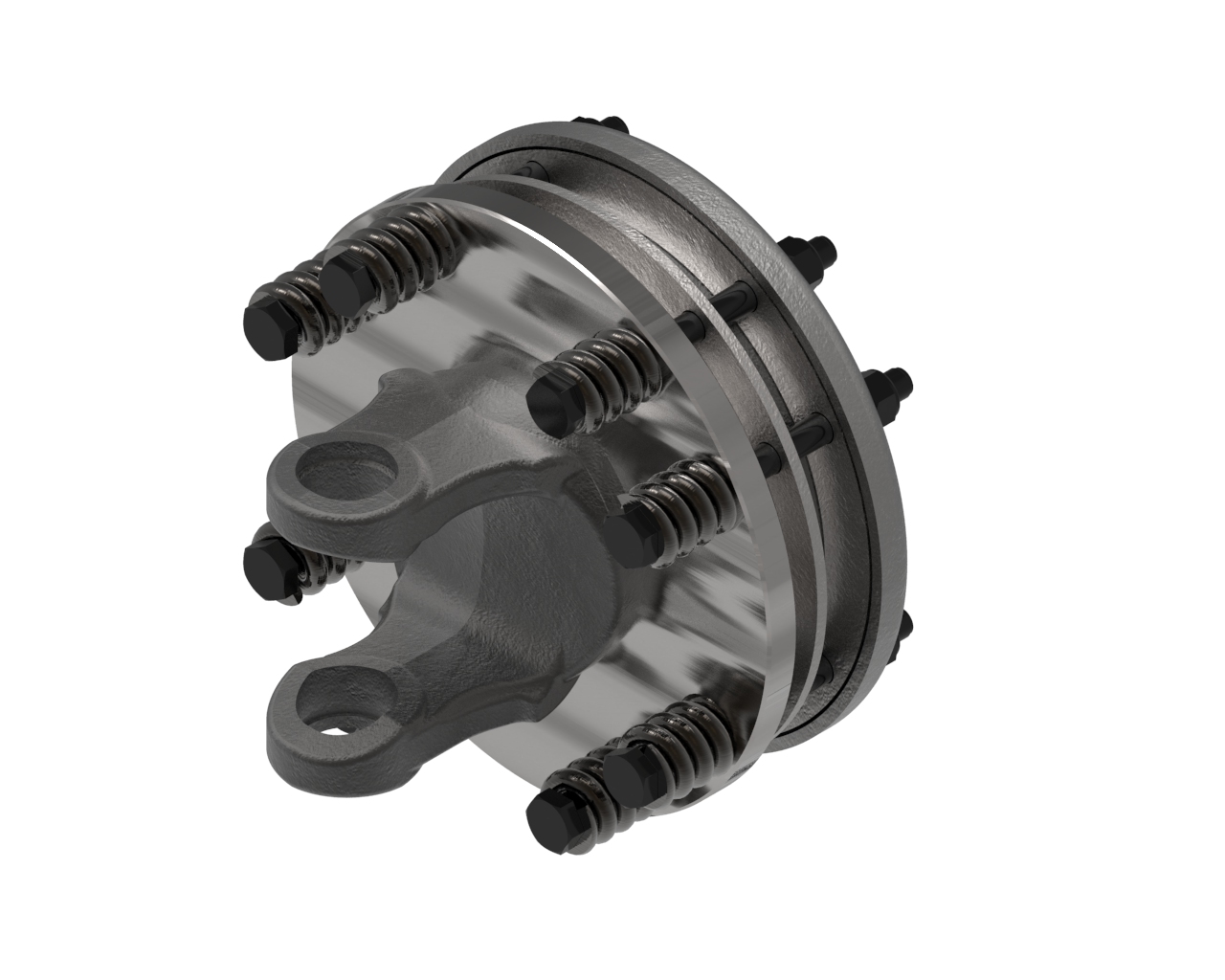

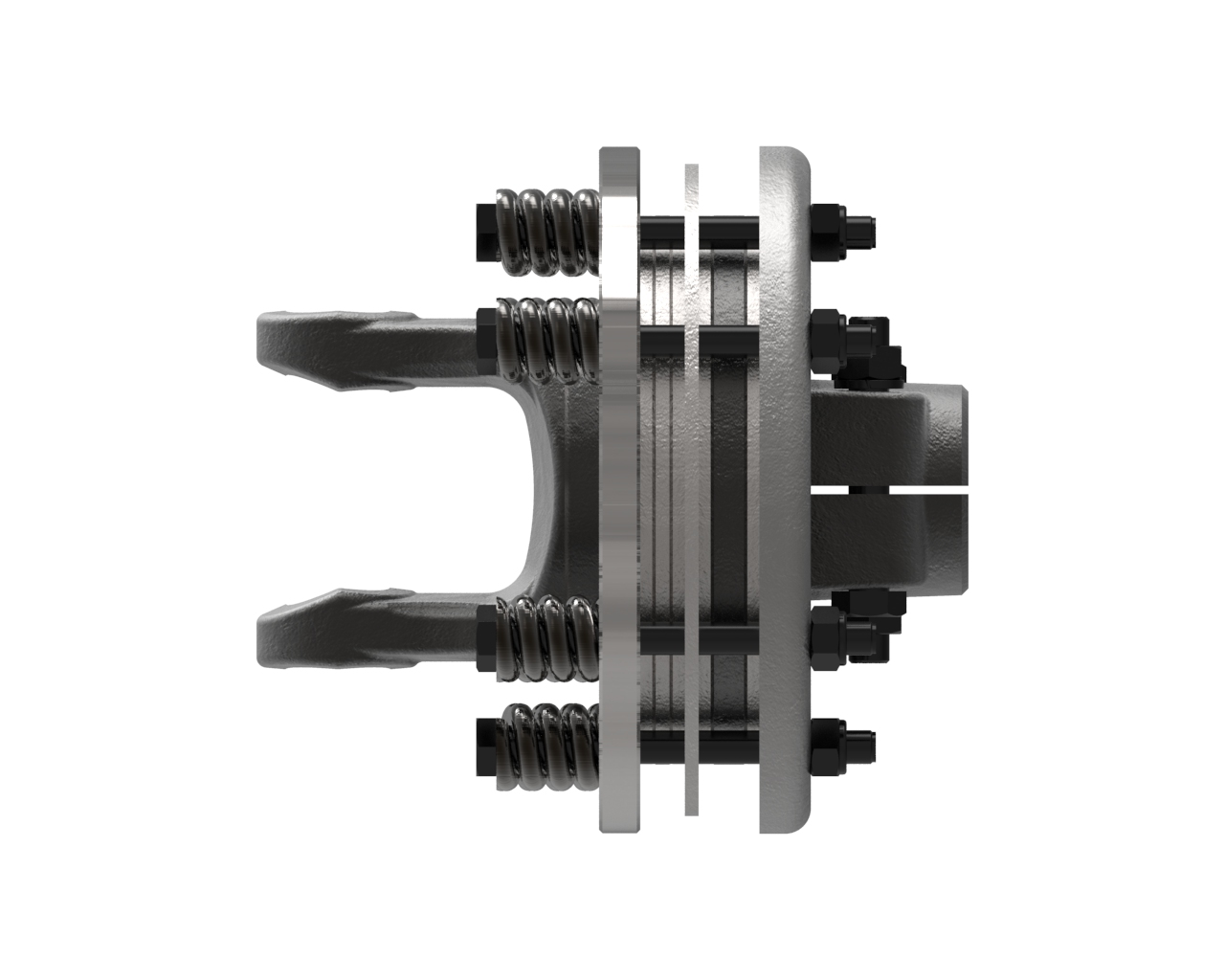

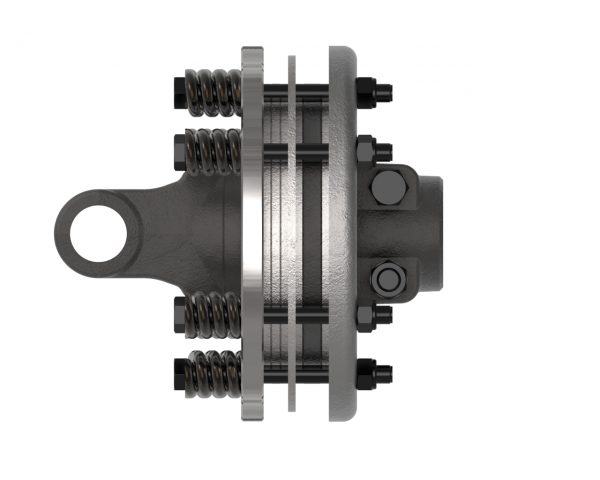

FRICTION CLUTCH YOKEAB6,AW22 Series Friction Clutch Clamp Yoke
AB6,AW22 series friction clutch yoke with 1 3/4-20 spline bore and clamp connection. Note: Image color may not represent actual part.
The Friction clutch is indispensable in certain agricultural implement applications. The friction clutch is the only torque limiter that has the ability to continuously transmit power (at a reduced level) while overloaded. This is valuable during startup of high inertia machines, as well as for leveling out torsional fluctuations due to high cyclic loads. The standard friction clutch with coil springs can be set in the field to the desired overload protection and must be readjusted after slipping.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter | 1.18 inches | 30 mm |
| Bearing Span | 3.61 inches | 92 mm |
| Bore 1 | 1.75 inches | 44 mm |
| Bore 1 | 1 3/4-20 SPLINE | |
| Connection 1 | CLAMP | |
| HP@1000RPM | 122 HP | 91 kilowatts |
| HP@540RPM | 79 HP | 59 kilowatts |
| Length | 7.22 inches | 183 mm |
| Outside Diameter | 7.87 inches | 200 mm |
| Shipping Dimensions | 8.153" L × 7.874" H × 7.874" W | 21cm L × 20cm H × 20cm W |
| Shipping Volume | 505.48 in3 | 8283 cm3 |
| Shipping Weight | 26.10 pounds | 12 kilograms |
| Torque | 13300 | 13300 |
| Weight | 26.10 pounds | 12 kilograms |
