107-7921
CV WIDE ANGLE TRACTOR YOKEAB7N-80,AW36-80 Series Safety Slide Lock Yoke

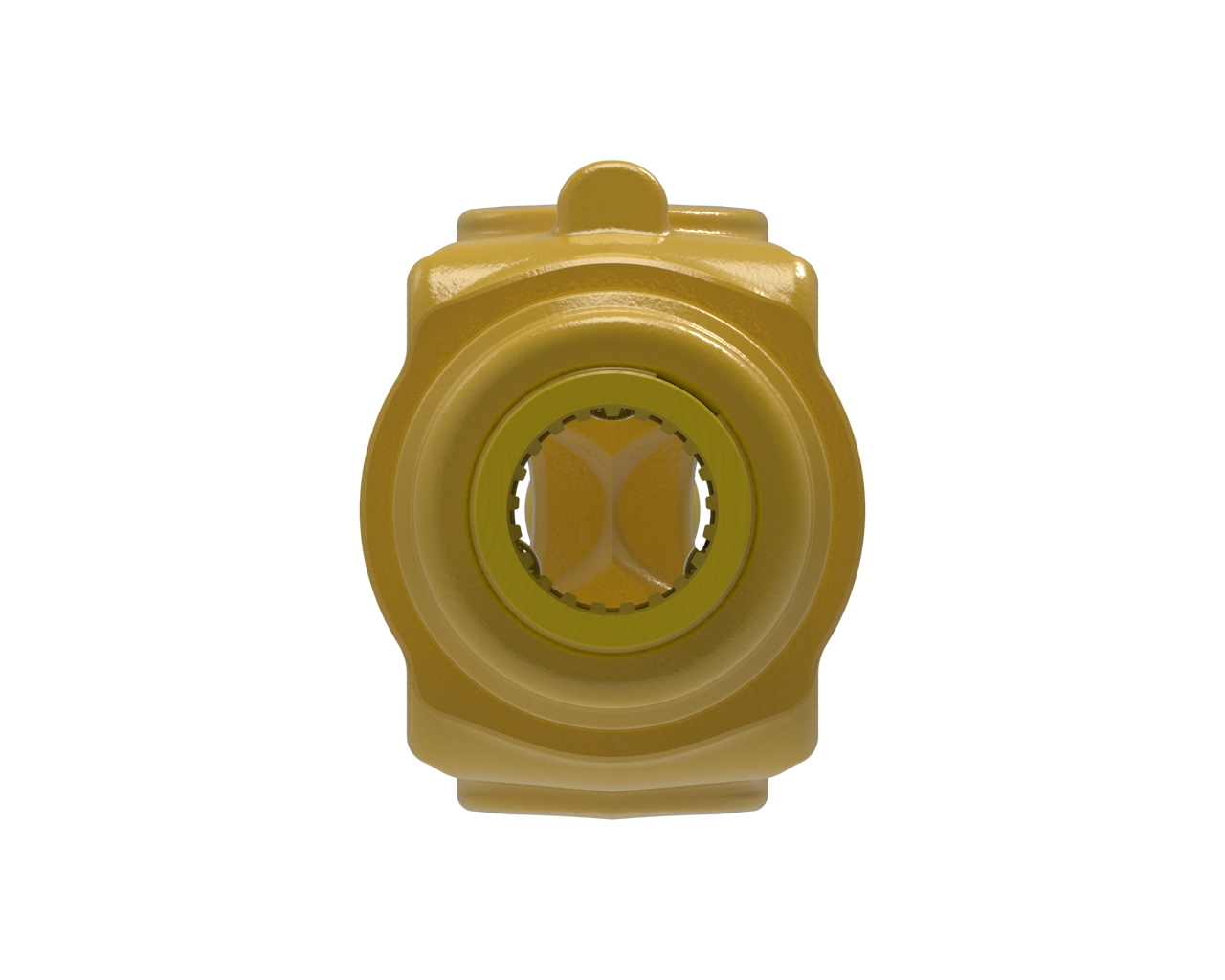

AB7N-80,AW36-80 series yoke with 1 3/8-21 spline bore and safety slide lock connection. Note: Image color may not represent actual part.
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-21 SPLINE | |
| Connection 1 | SAFETY SLIDE LOCK | |
| Height | 4.00 inches | 102 mm |
| HP@1000RPM | 145 HP | 108 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Length | 5.15 inches | 131 mm |
| Shipping Dimensions | 7.407" L × 4" H × 3" W | 19cm L × 10cm H × 8cm W |
| Shipping Volume | 88.88 in3 | 1456 cm3 |
| Shipping Weight | 5.84 pounds | 3 kilograms |
| Weight | 5.84 pounds | 3 kilograms |
| Width | 3.00 inches | 76 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating 80 Deg CV.pdf | Maintenance Document | English |
| Service Instructions - CV Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| 80 deg CV Joint - Over Angle Operating.pdf | Troubleshooting Document | English |
| 80 deg CV Joint - Over Angle NonOperating.pdf | Troubleshooting Document | English |
| WE0101003_1019_USL_80DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
