807-6806

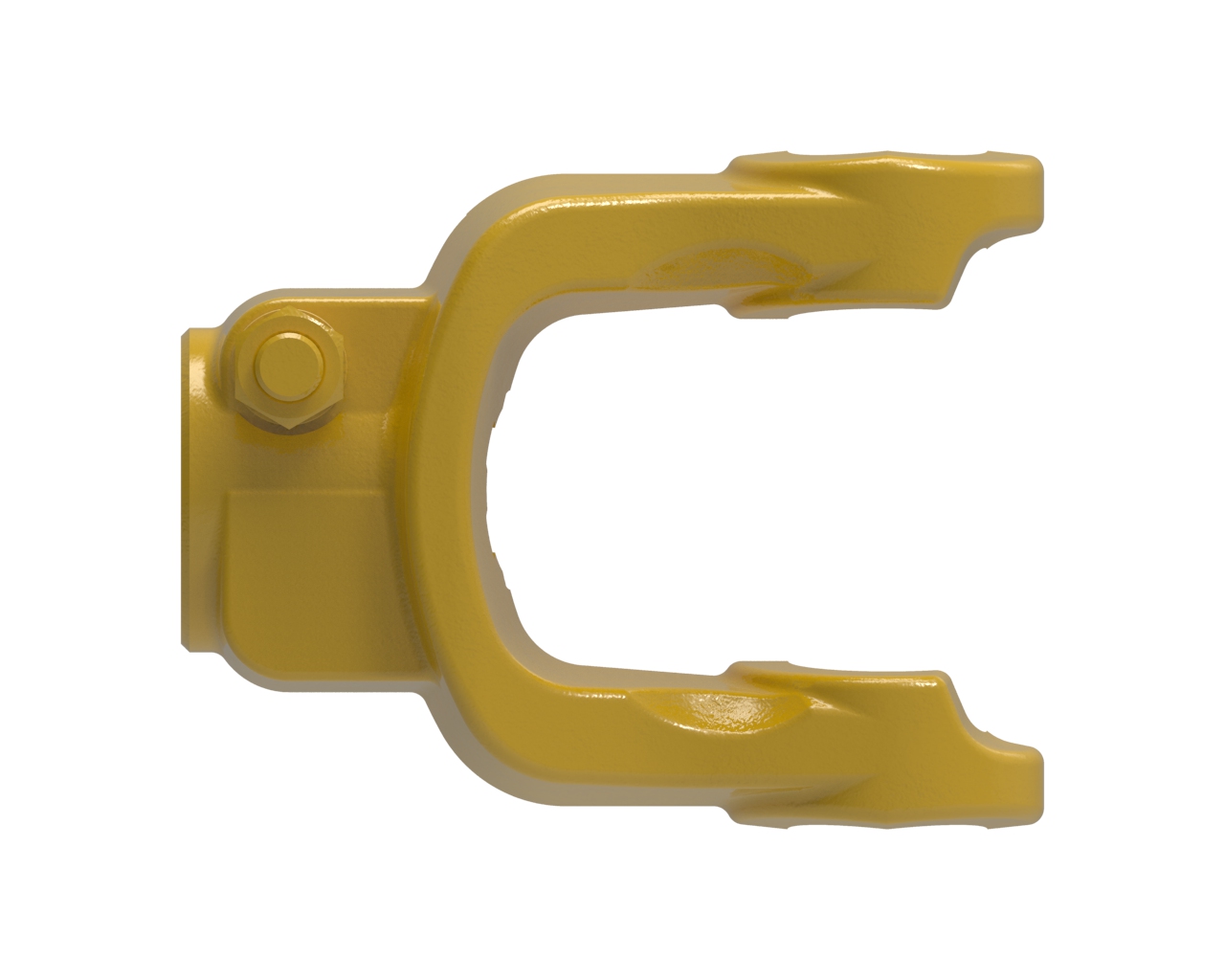

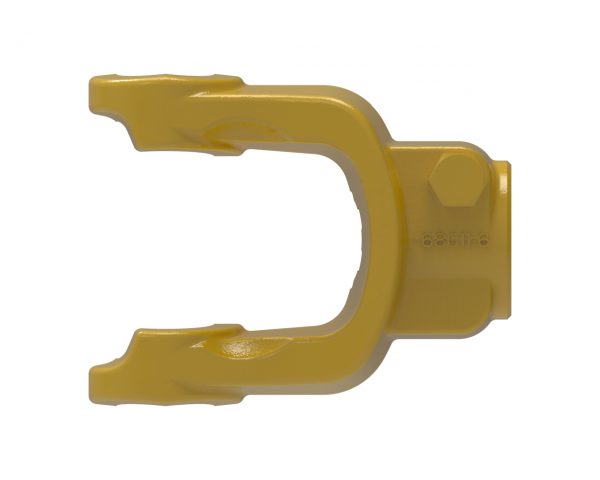

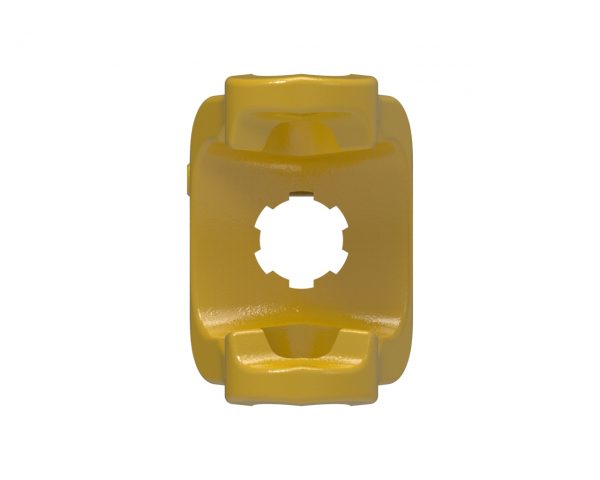

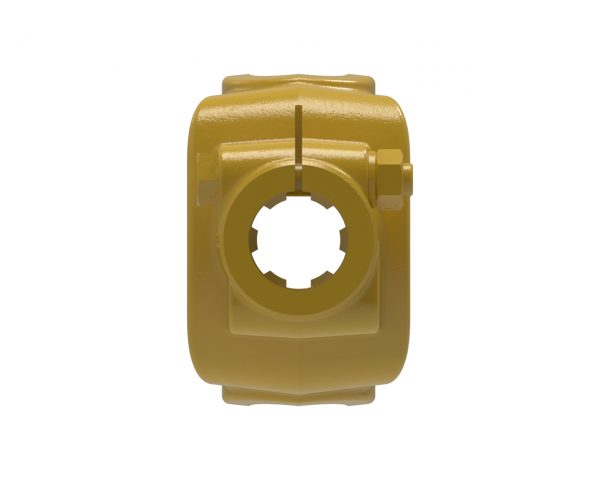

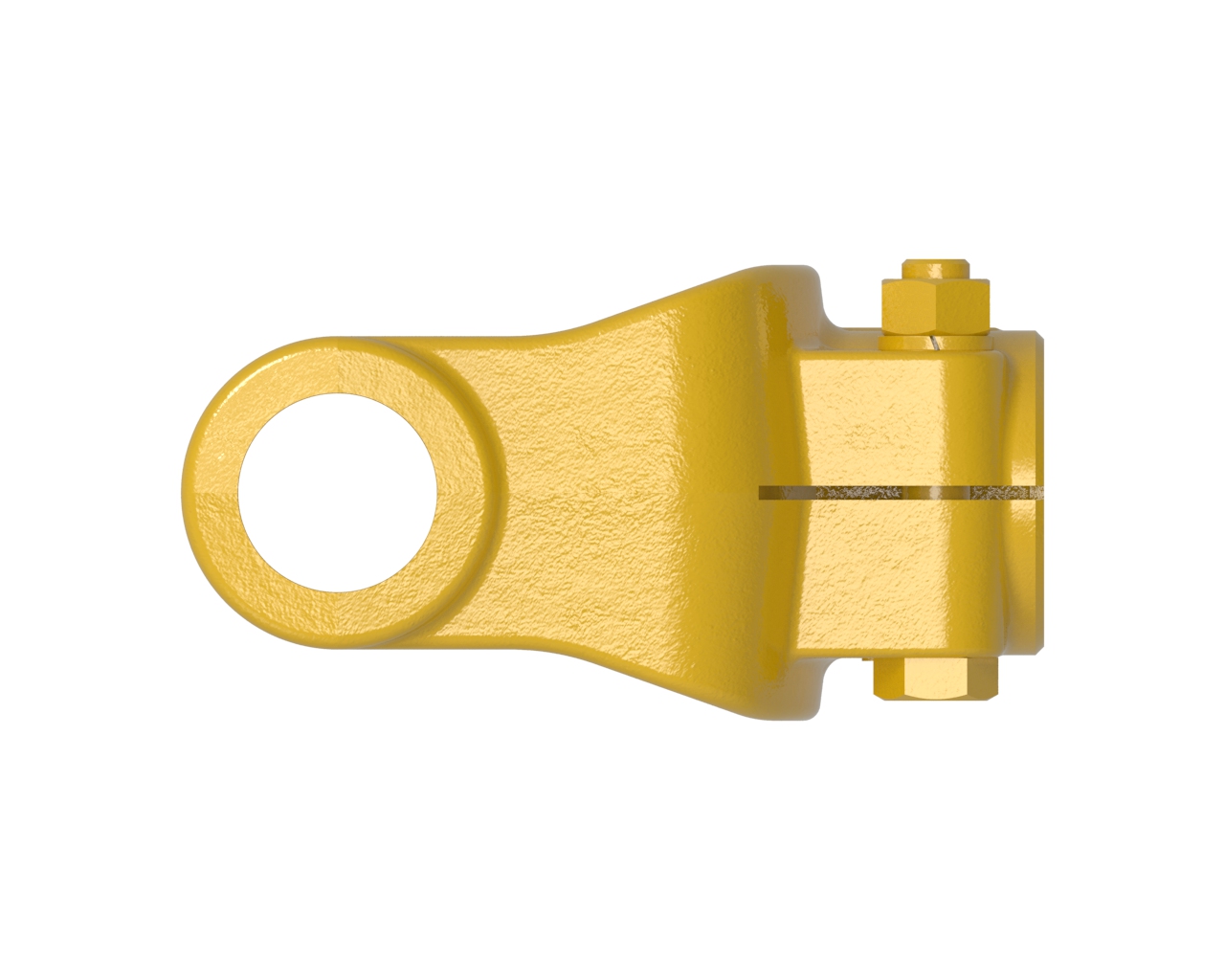

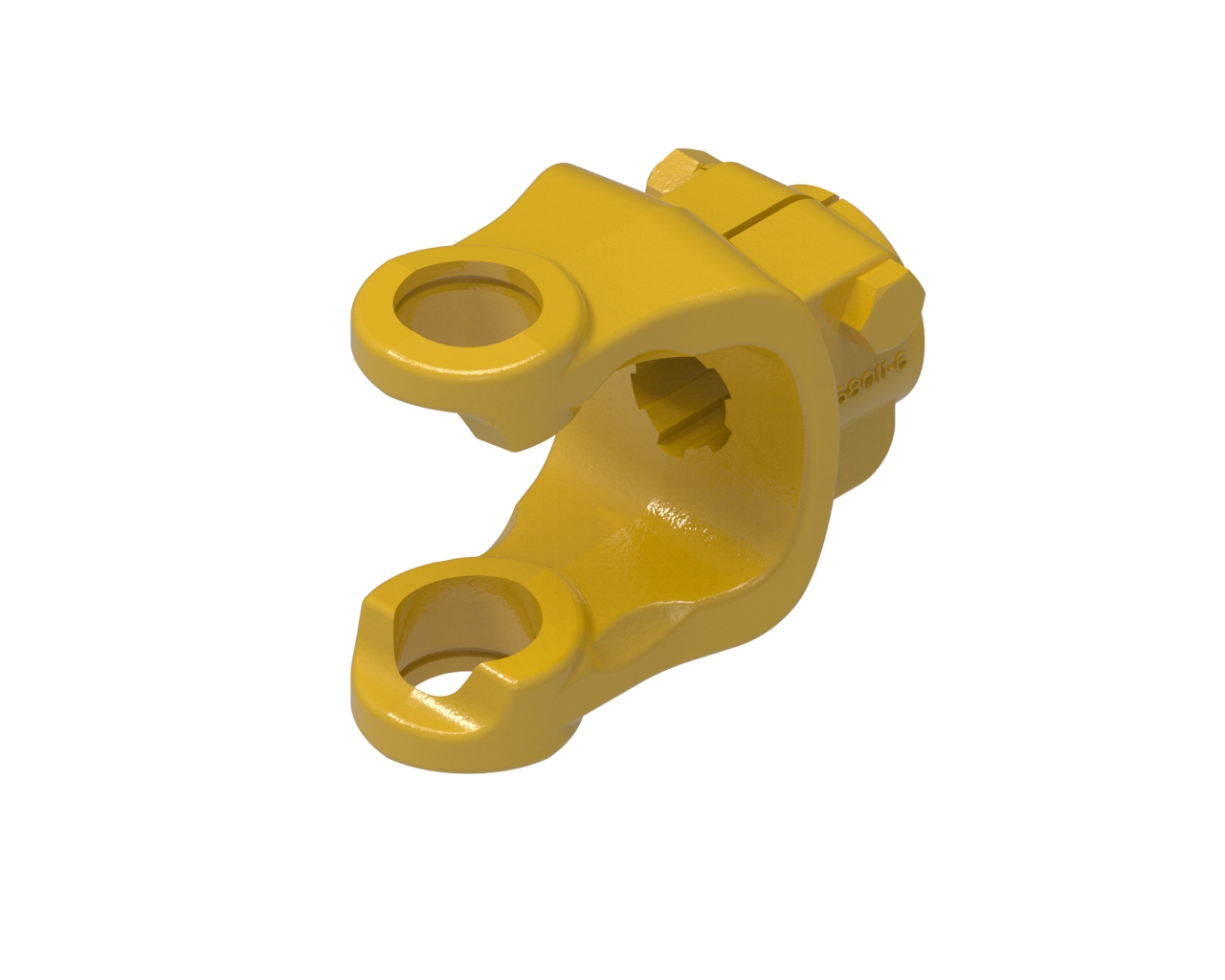

CLAMP YOKEAB8,AW24 Series Clamp Yoke
AB8,AW24 series yoke with 1 3/8-6 spline bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 5.12 inches | 130 mm |
| HP@1000RPM | 185 HP | 138 kilowatts |
| HP@540RPM | 120 HP | 89 kilowatts |
| Length | 4.88 inches | 124 mm |
| Shipping Dimensions | 5.96" L × 5.12" H × 3.15" W | 15cm L × 13cm H × 8cm W |
| Shipping Volume | 96.12 in3 | 1575 cm3 |
| Shipping Weight | 6.15 pounds | 3 kilograms |
| Weight | 6.15 pounds | 3 kilograms |
| Width | 3.15 inches | 80 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
