803-7106
FLANGE YOKEAW10 Series Flange Yoke

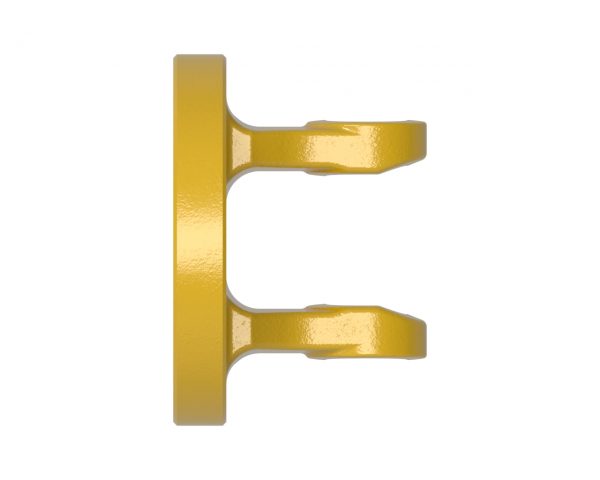

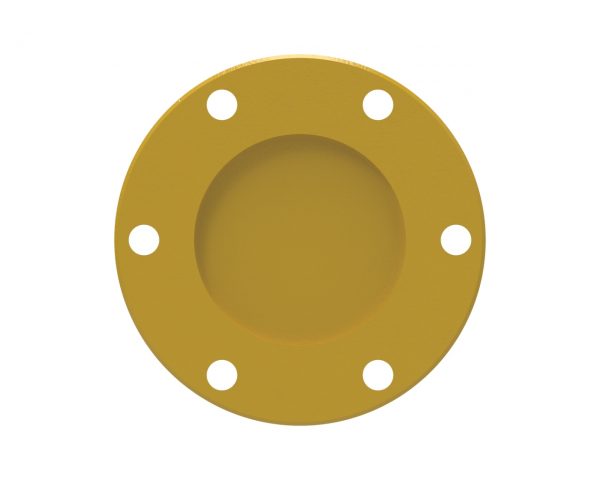

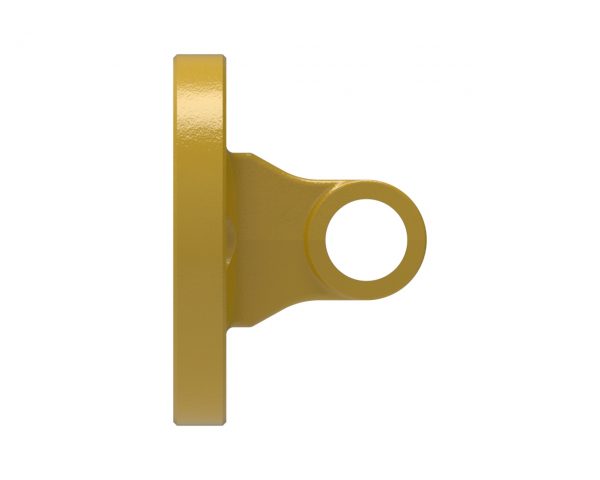

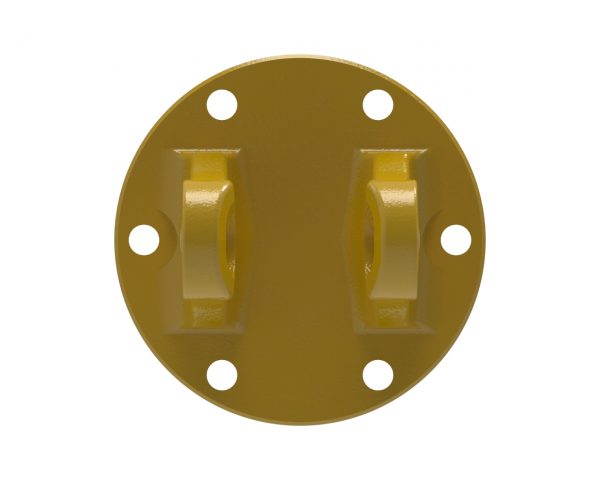

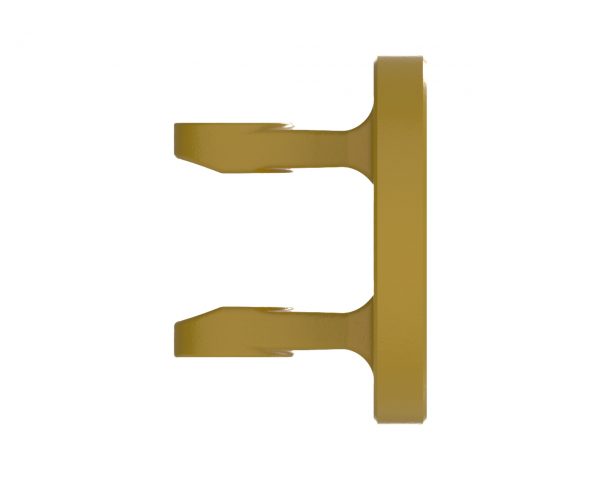

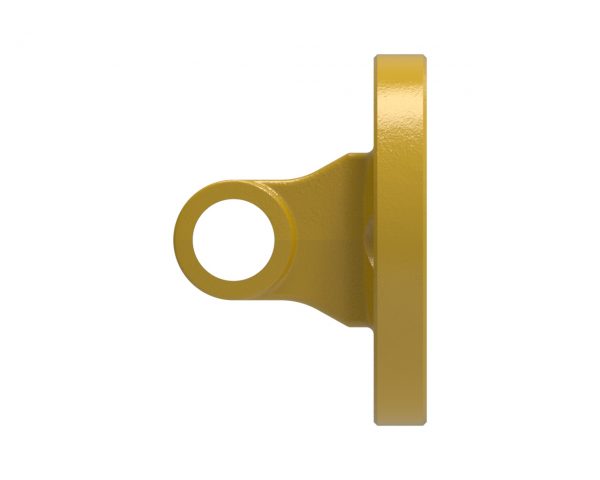

AW10 series yoke with 6 x 8 mm bolt circle bore and flange connection. Note: Image color may not represent actual part.
The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 3.31 inches | 84 mm |
| Bore 1 | 6 X 8 MM BOLT CIRCLE | |
| Connection 1 | FLANGE | |
| HP@1000RPM | 29 HP | 22 kilowatts |
| HP@540RPM | 19 HP | 14 kilowatts |
| Length | 2.05 inches | 52 mm |
| Outside Diameter | 3.94 inches | 100 mm |
| Shipping Dimensions | 2.68" L × 3.94" H × 3.94" W | 7cm L × 10cm H × 10cm W |
| Shipping Volume | 41.60 in3 | 682 cm3 |
| Shipping Weight | 2.32 pounds | 1 kilograms |
| Weight | 2.32 pounds | 1 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
