830-7120
IMPLEMENT YOKEAW10 Series Pin Yoke

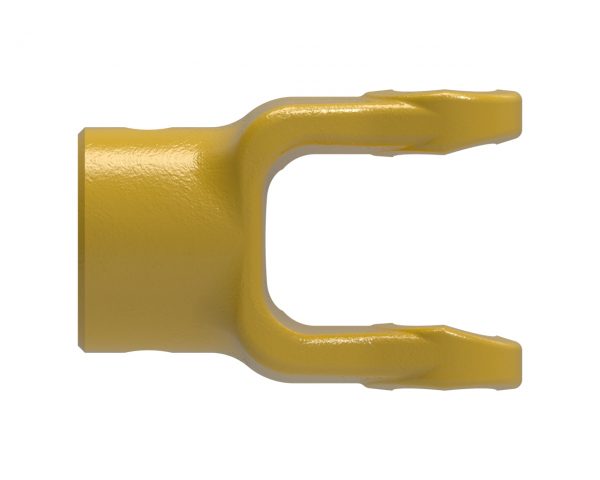

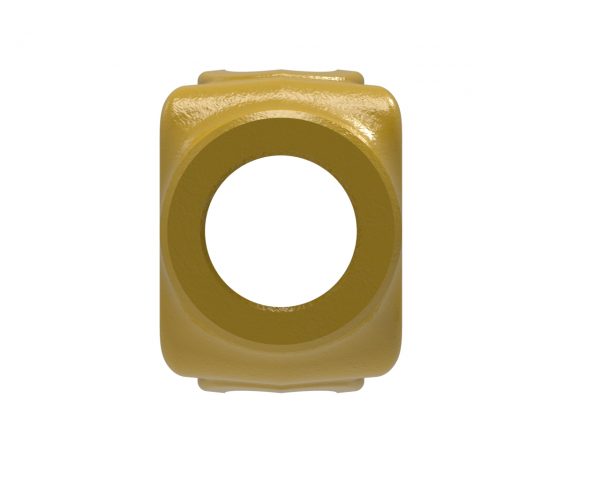

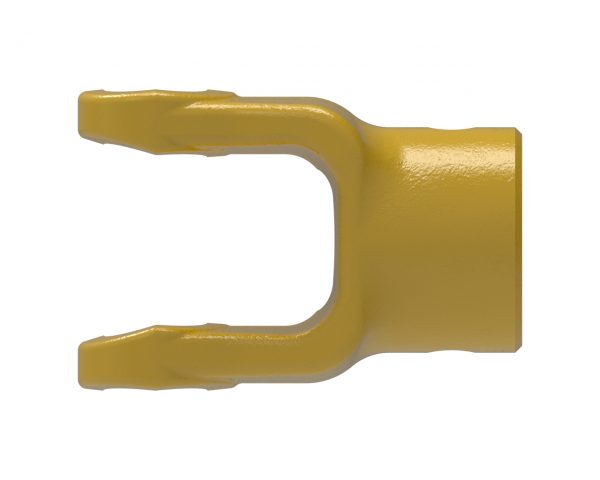

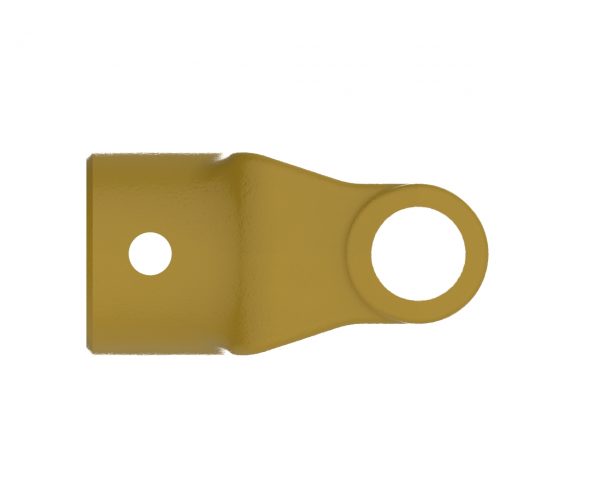

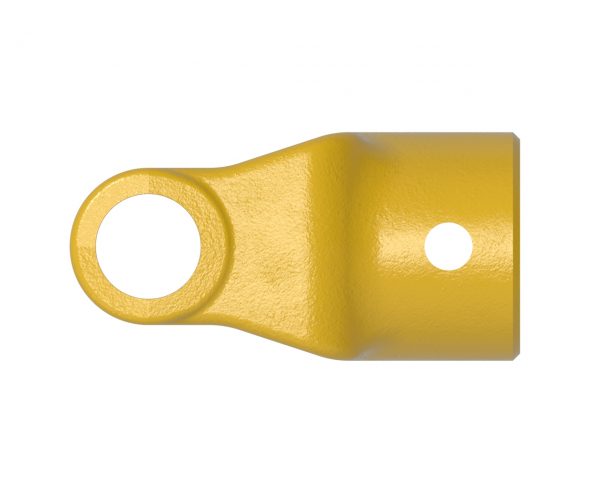

AW10 series yoke with round bore and pin connection. Note: Image color may not represent actual part.
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 0.79 inches | 20 mm |
| Bore 1 | ROUND | |
| Connection 1 | PIN | |
| Height | 2.80 inches | 71 mm |
| HP@1000RPM | 29 HP | 22 kilowatts |
| HP@540RPM | 19 HP | 14 kilowatts |
| Length | 3.07 inches | 78 mm |
| Pin Hole | 0.24 inches | 6 mm |
| Shipping Dimensions | 3.7" L × 2.8" H × 2.32" W | 9cm L × 7cm H × 6cm W |
| Shipping Volume | 24.04 in3 | 394 cm3 |
| Shipping Weight | 1.62 pounds | 1 kilograms |
| Weight | 1.62 pounds | 1 kilograms |
| Width | 2.32 inches | 59 mm |
