807-7614

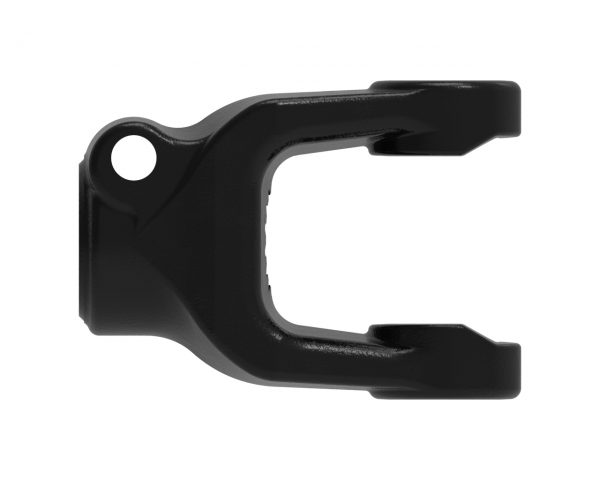

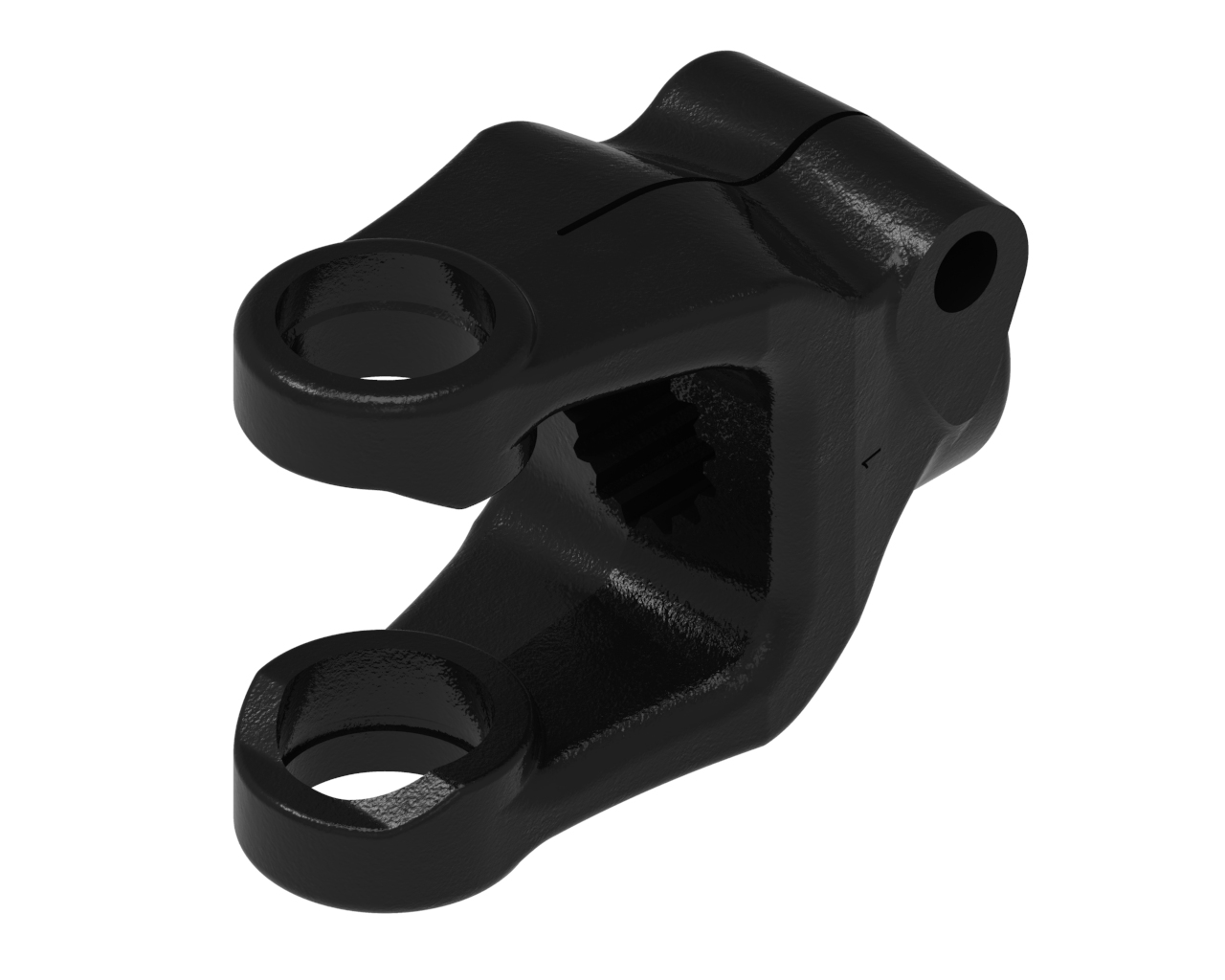

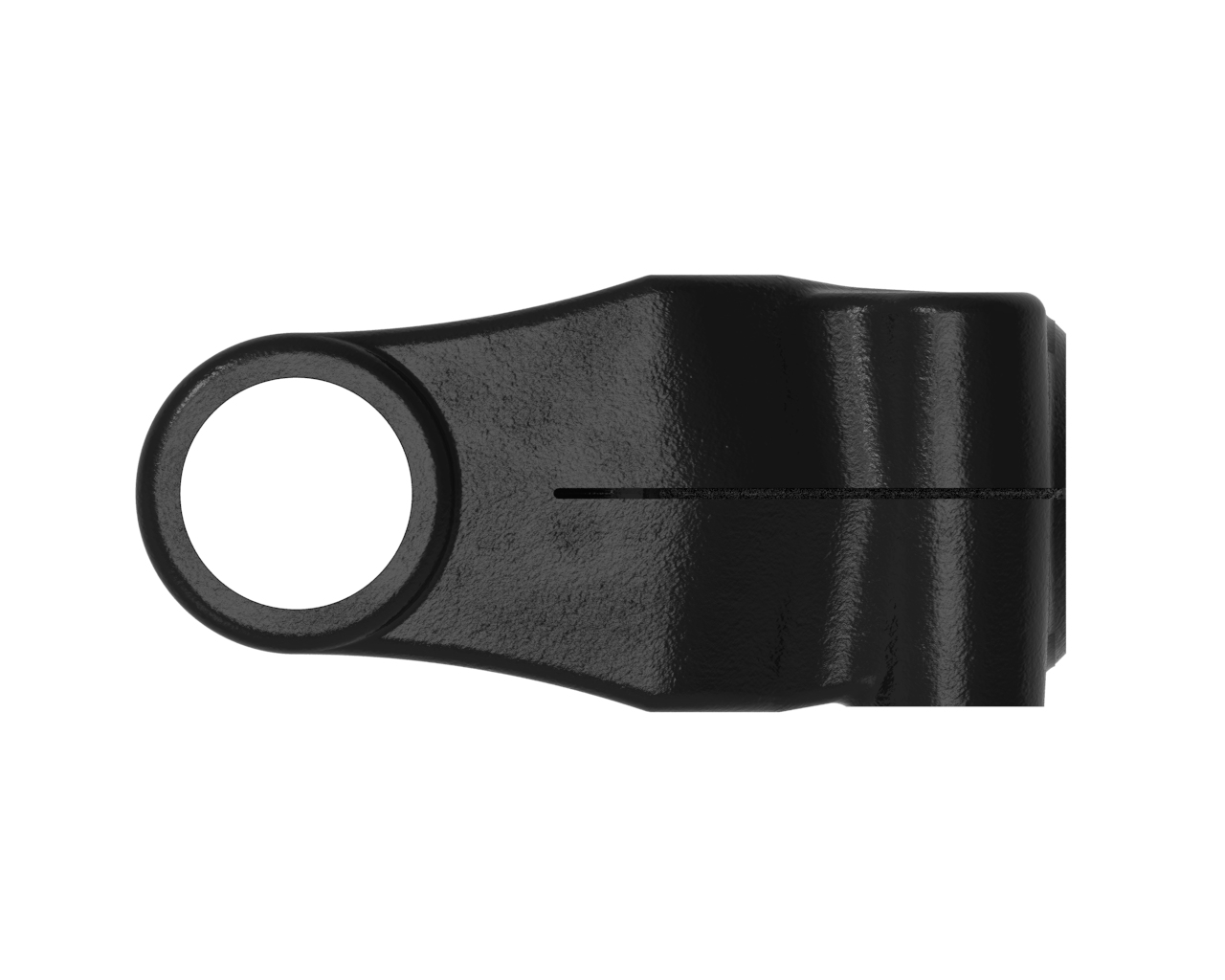

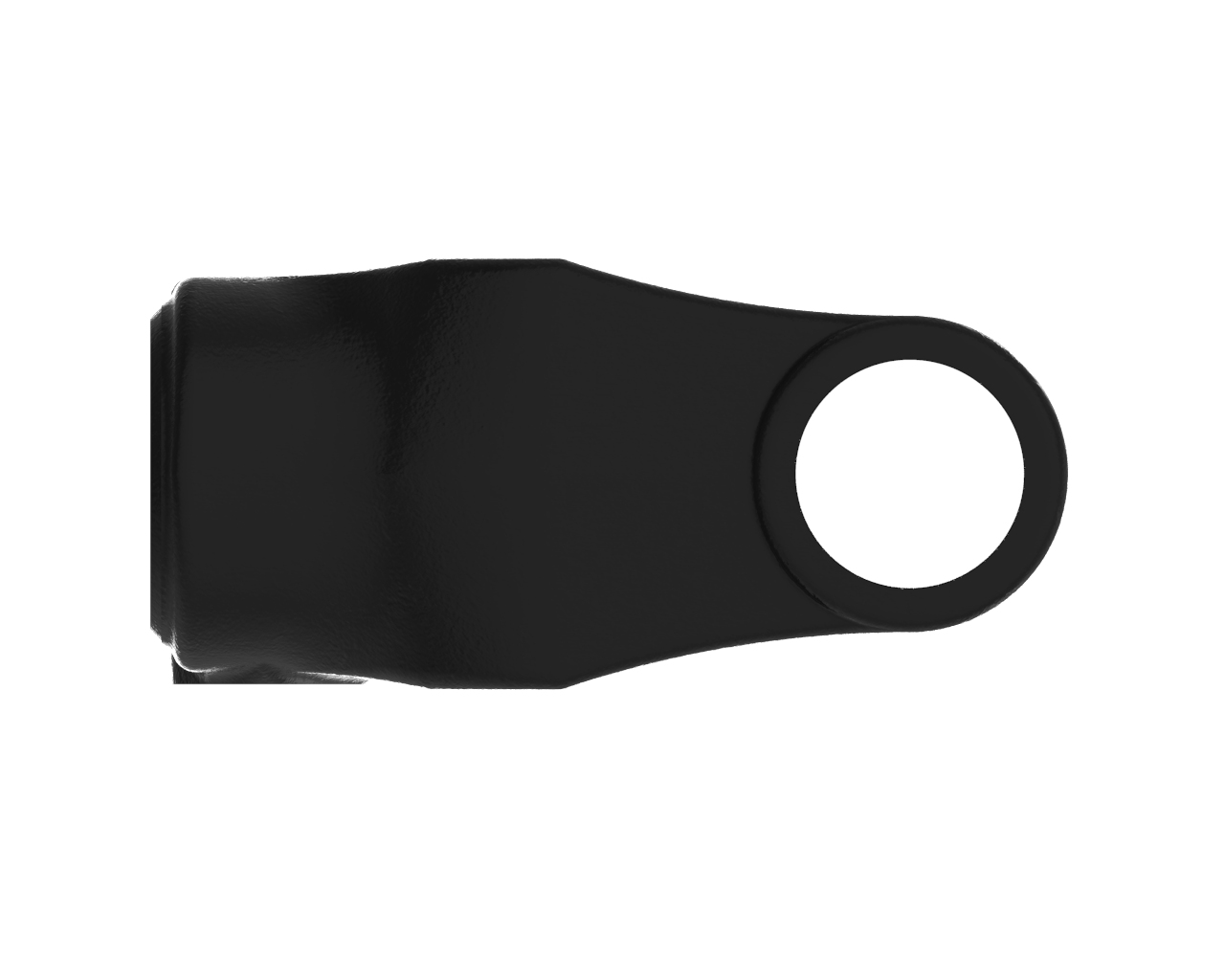

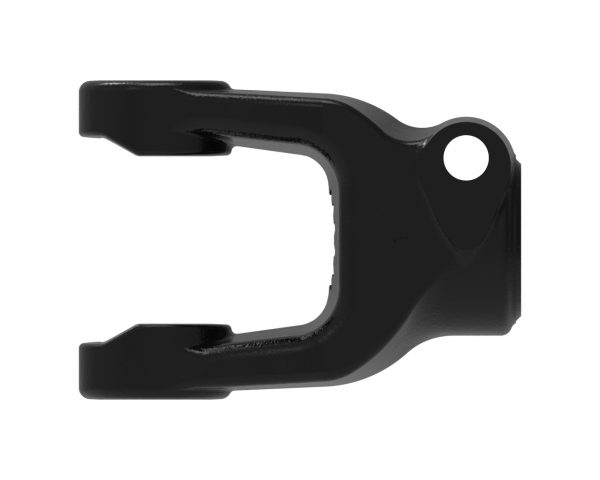

CLAMP YOKEAW35 Series Clamp Yoke

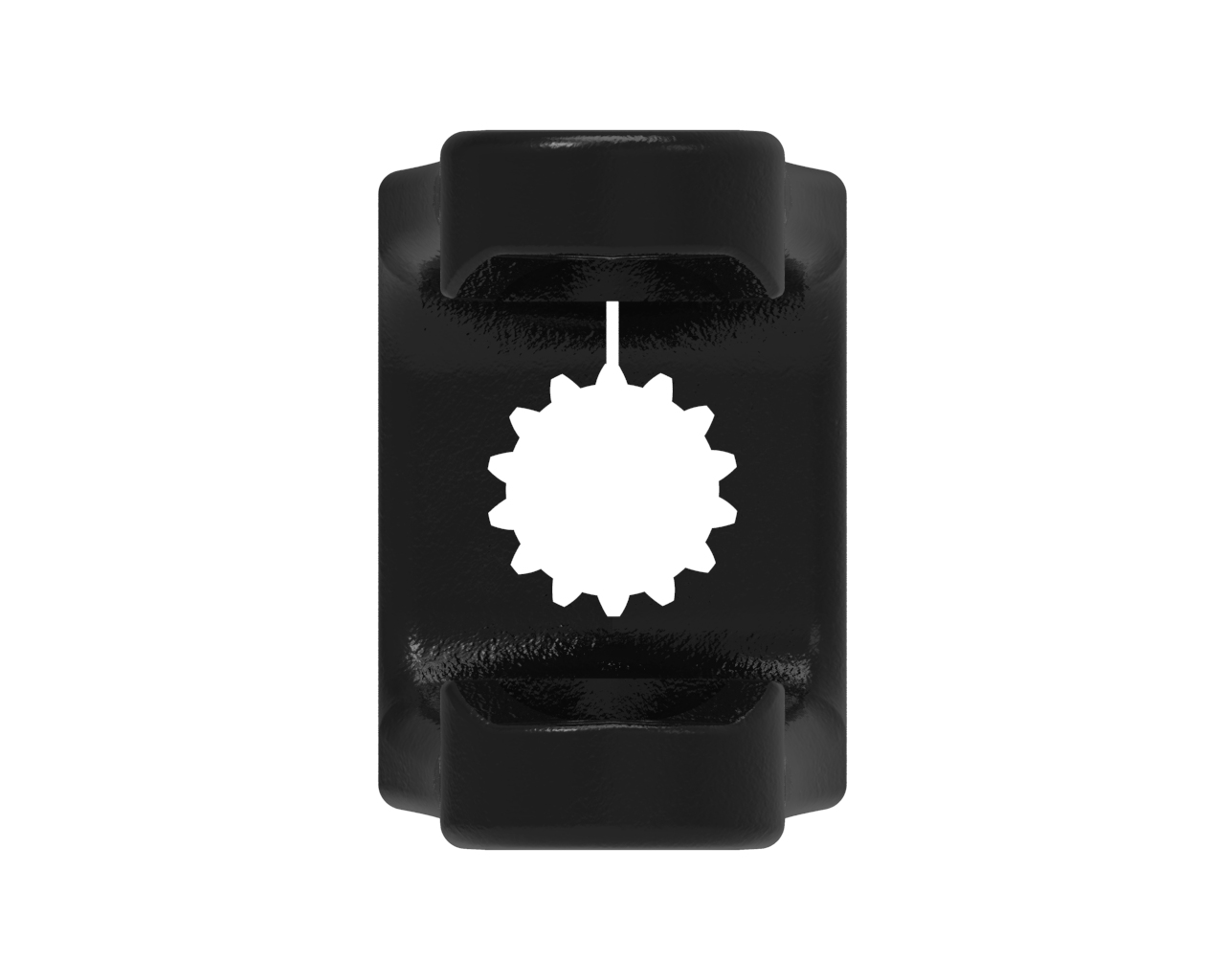

AW35 series yoke with 1 1/4-14 spline bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.25 inches | 32 mm |
| Bore 1 | 1 1/4-14 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 4.09 inches | 104 mm |
| HP@1000RPM | 102 HP | 76 kilowatts |
| HP@540RPM | 66 HP | 49 kilowatts |
| Length | 4.20 inches | 107 mm |
| Shipping Dimensions | 5.16" L × 4.09" H × 2.76" W | 13cm L × 10cm H × 7cm W |
| Shipping Volume | 58.25 in3 | 955 cm3 |
| Shipping Weight | 0.00 pounds | 0 kilograms |
| Weight | 0.00 pounds | 0 kilograms |
| Width | 2.76 inches | 70 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
