807-7620
CLAMP YOKEAW35 Series Clamp Yoke

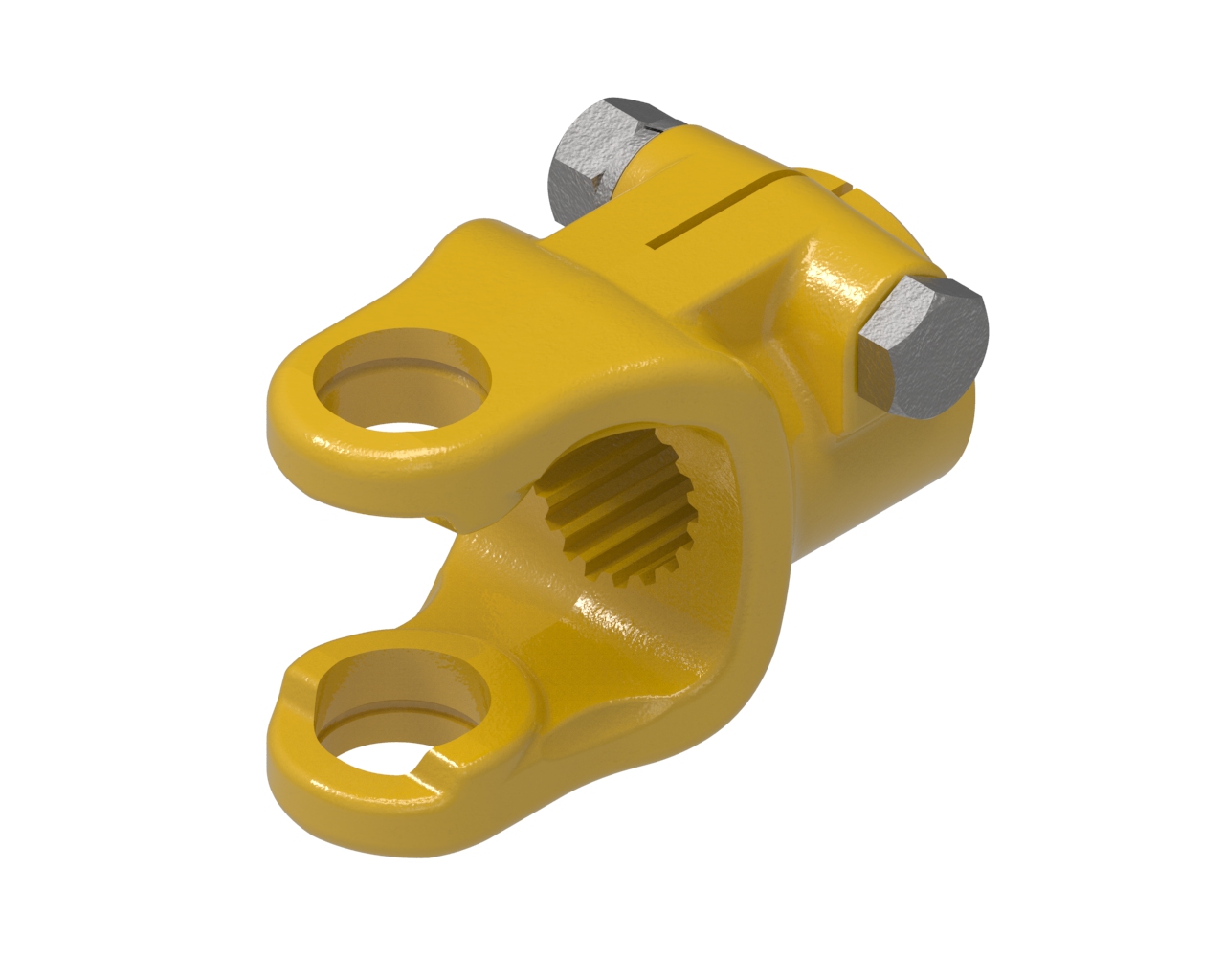

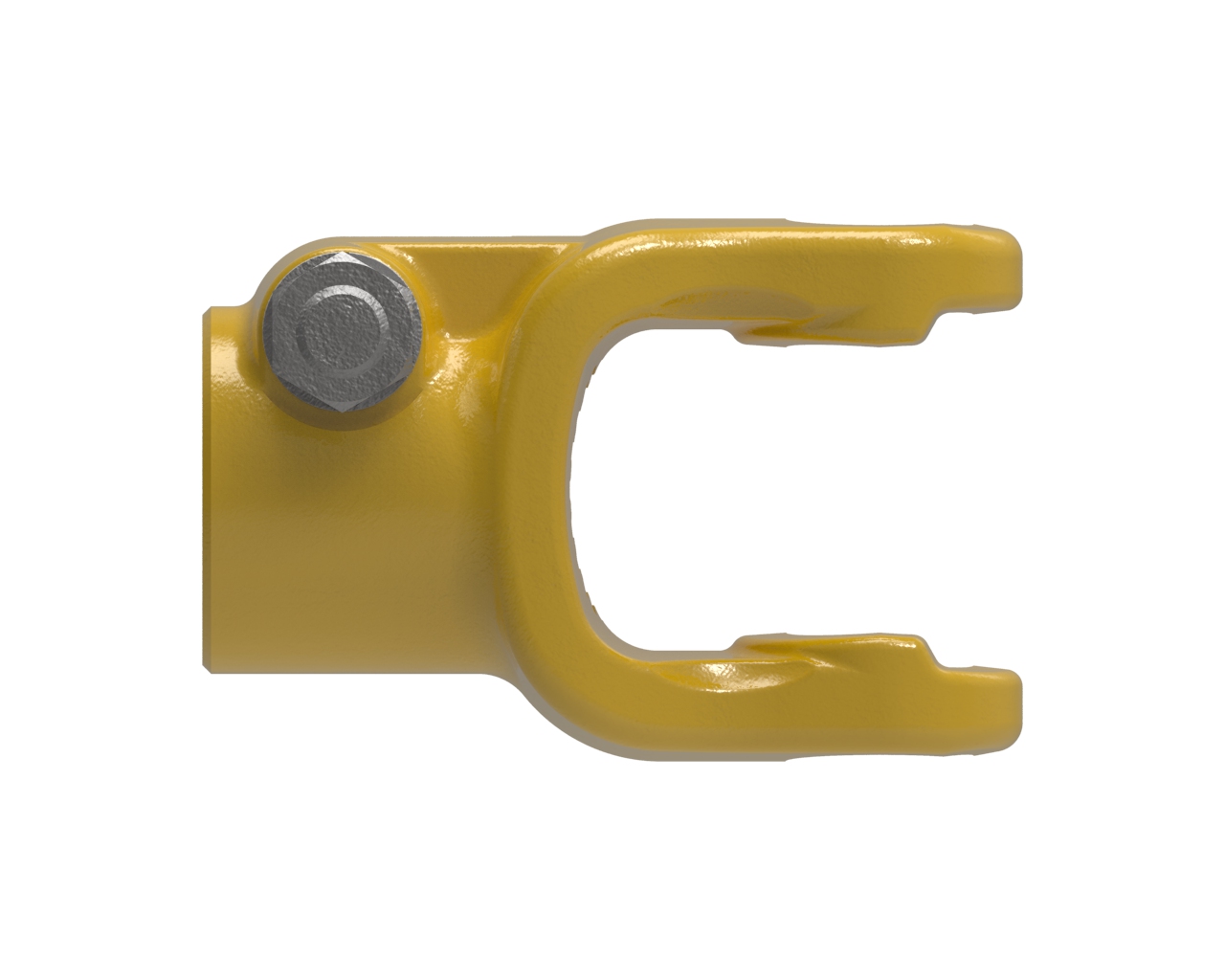

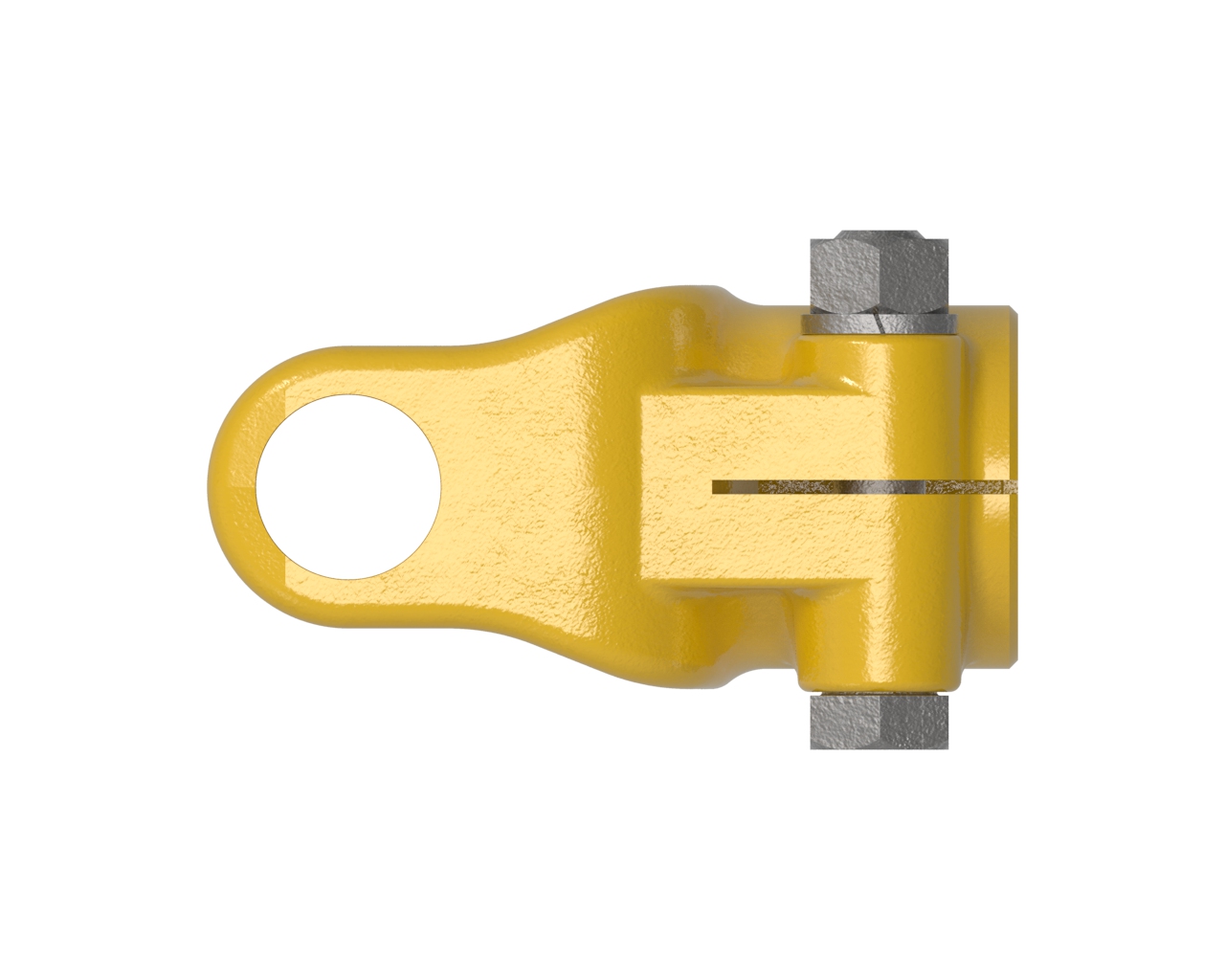

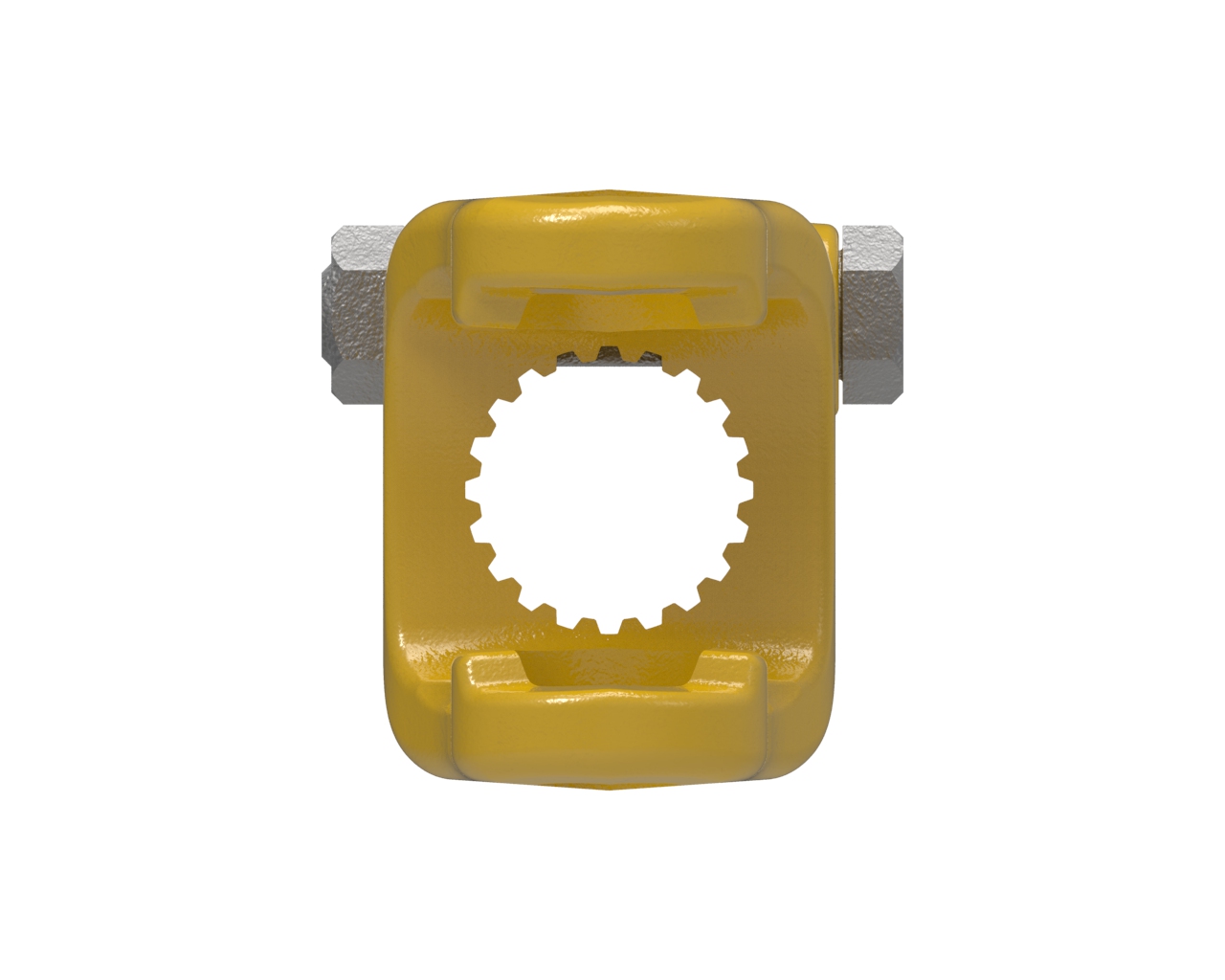

AW35 series yoke with 1 3/4-20 spline bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.75 inches | 44 mm |
| Bore 1 | 1 3/4-20 SPLINE | |
| Connection 1 | CLAMP | |
| Height | 4.09 inches | 104 mm |
| HP@1000RPM | 102 HP | 76 kilowatts |
| HP@540RPM | 66 HP | 49 kilowatts |
| Length | 4.56 inches | 116 mm |
| Shipping Dimensions | 5.53" L × 4.09" H × 2.76" W | 14cm L × 10cm H × 7cm W |
| Shipping Volume | 62.42 in3 | 1023 cm3 |
| Shipping Weight | 4.85 pounds | 2 kilograms |
| Weight | 4.85 pounds | 2 kilograms |
| Width | 2.76 inches | 70 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
