RATCHET CLUTCH YOKEAW35 Series Ratchet Clutch Spring-lok Yoke

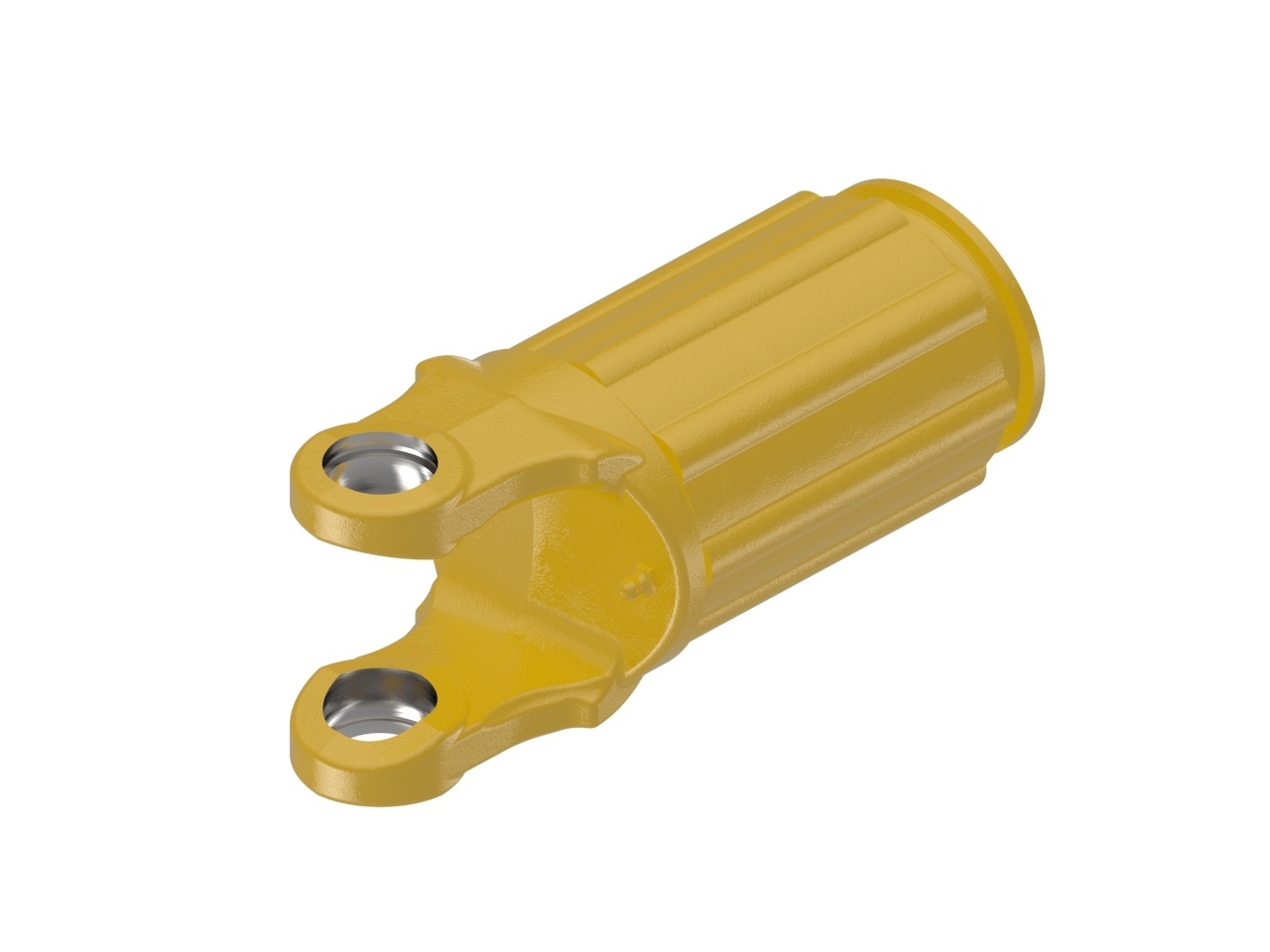

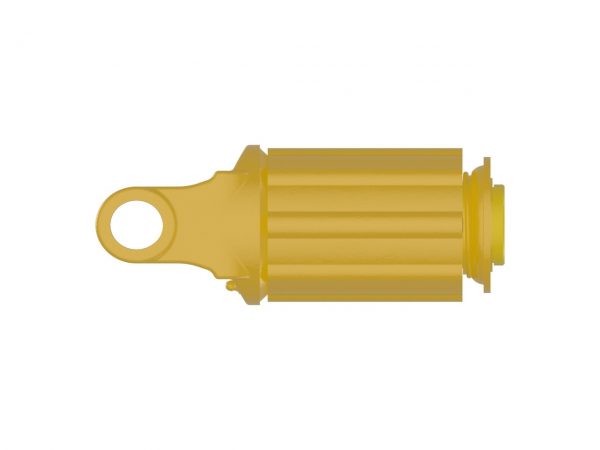

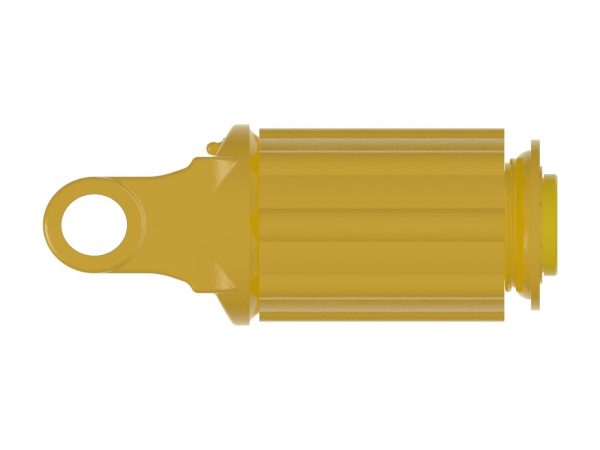

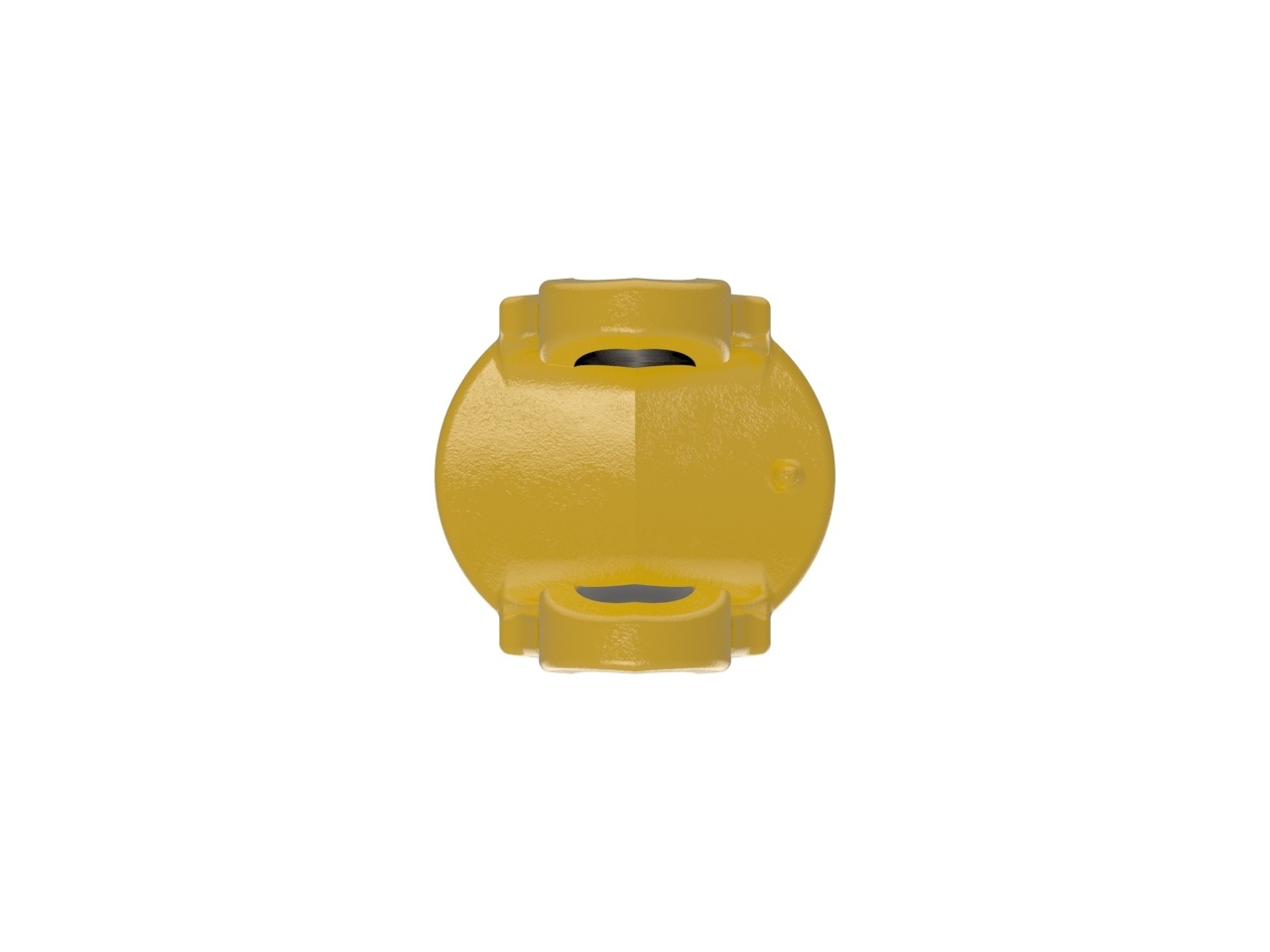

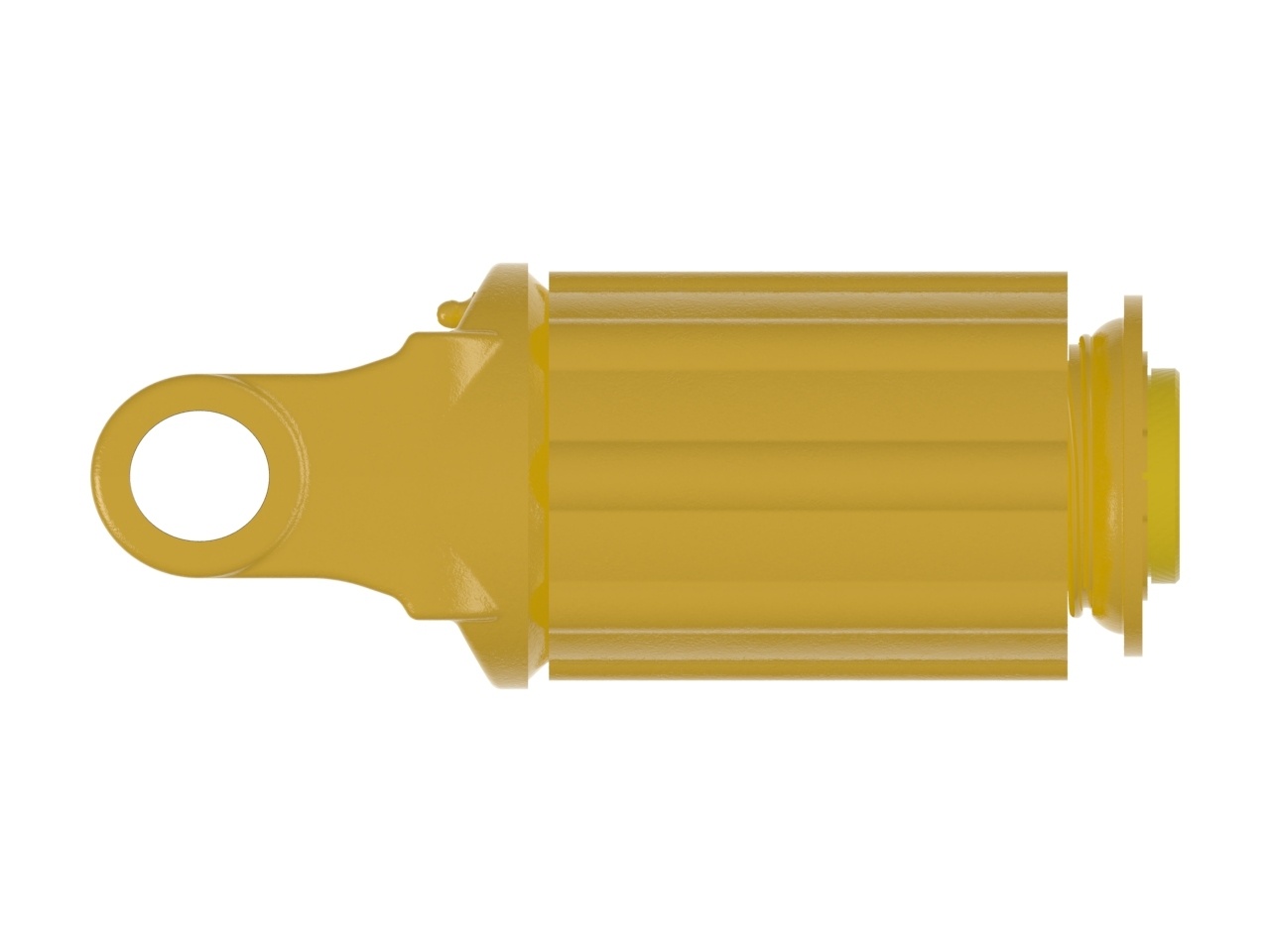

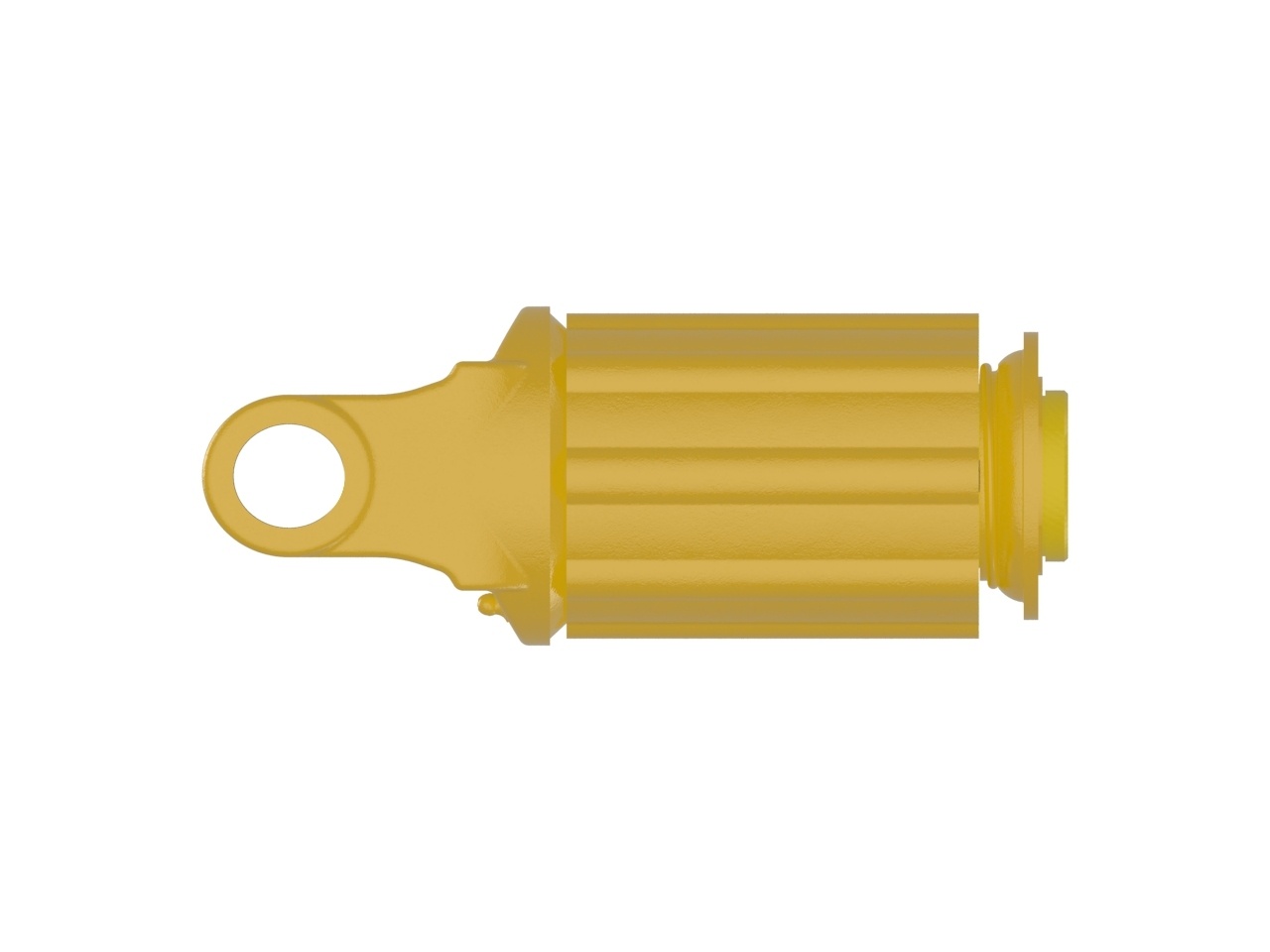

AW35 series ratchet clutch yoke with 1 3/8-6 spline bore and spring-lok connection. Note: Image color may not represent actual part.
The ratchet clutch allows implement overload protection with a unique pulsating torque while disengaged. When the overload occurs, the torque is transmitted in pulses accompanied by an audible sound. This pulsation aids in pushing clearing the blockage. Therefore, the operator may not need to leave the operator seat or even slow down to clear the blockage. The clutch will re-engage when the transmitted torque drops below the calibrated torque value.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter | 1.26 inches | 32 mm |
| Bearing Span | 2.98 inches | 76 mm |
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Connection 1 | SPRING-LOK | |
| HP@1000RPM | 102 HP | 76 kilowatts |
| HP@540RPM | 66 HP | 49 kilowatts |
| Length | 8.05 inches | 204 mm |
| Outside Diameter | 3.81 inches | 97 mm |
| Shipping Dimensions | 9.016" L × 4.09" H × 3.819" W | 23cm L × 10cm H × 10cm W |
| Shipping Volume | 140.83 in3 | 2308 cm3 |
| Shipping Weight | 13.19 pounds | 6 kilograms |
| Torque | 13300 | 13300 |
| Weight | 13.19 pounds | 6 kilograms |
