ROLL PINAW36,AW36-80 Series Roll Pin

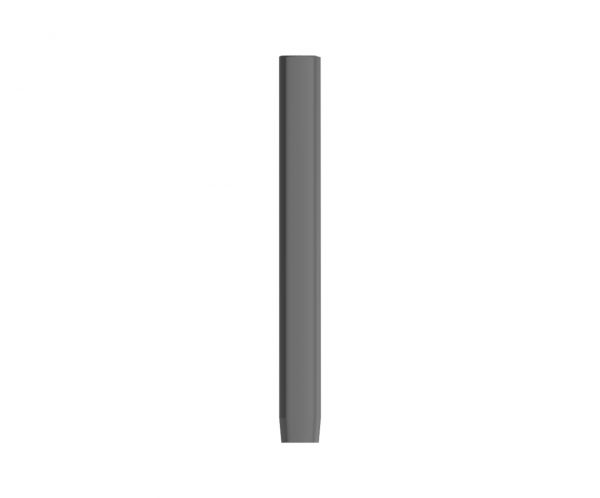

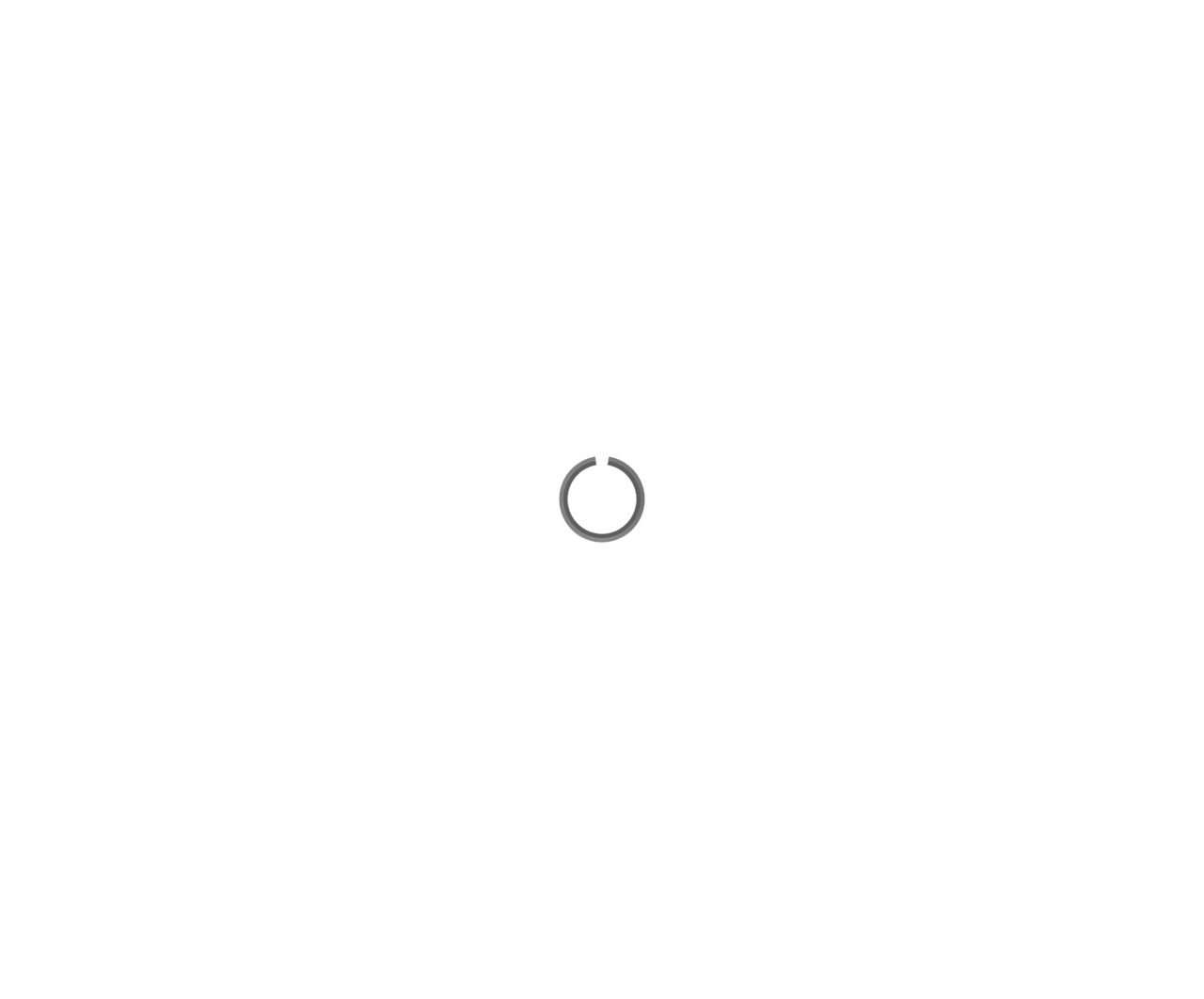

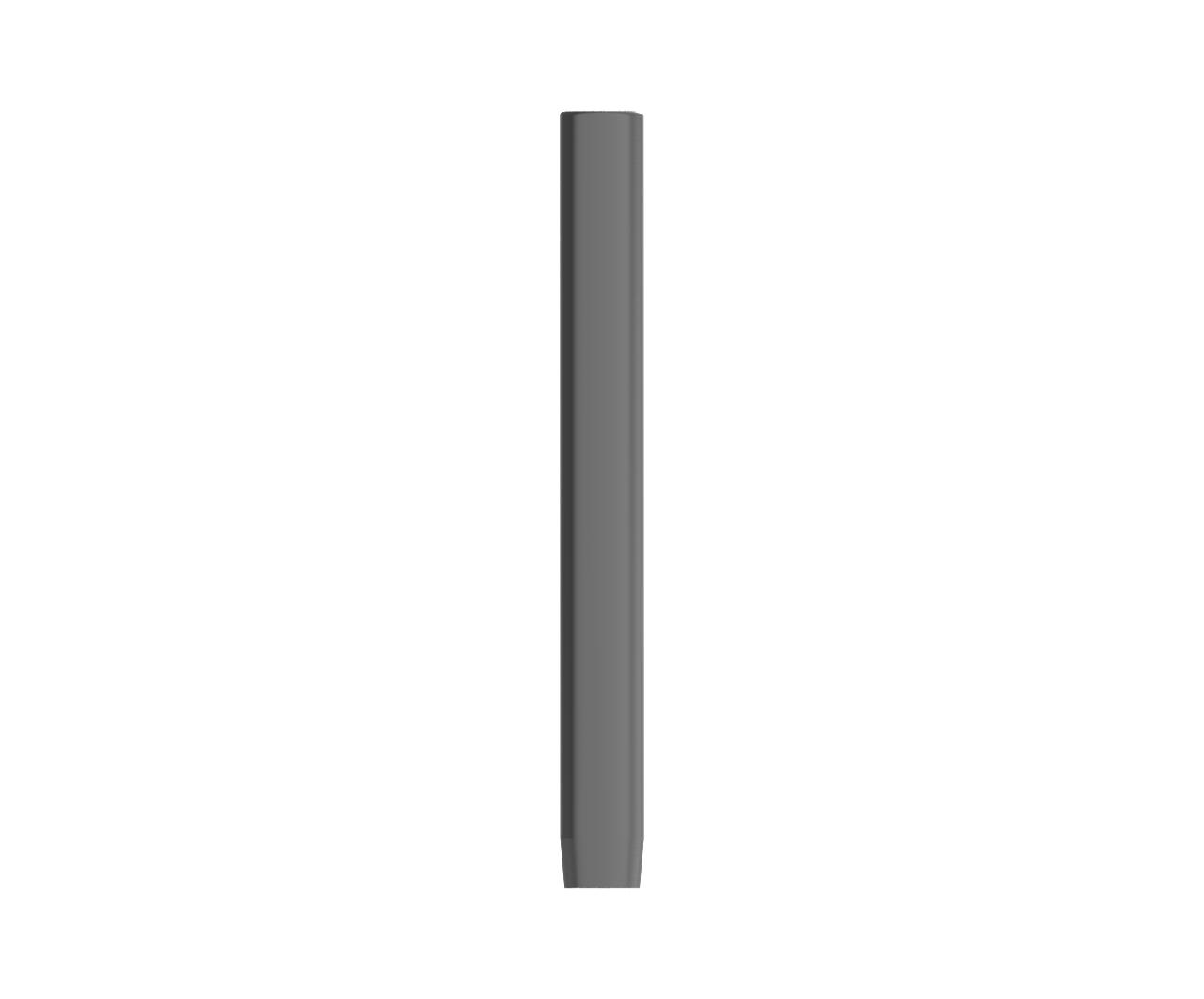

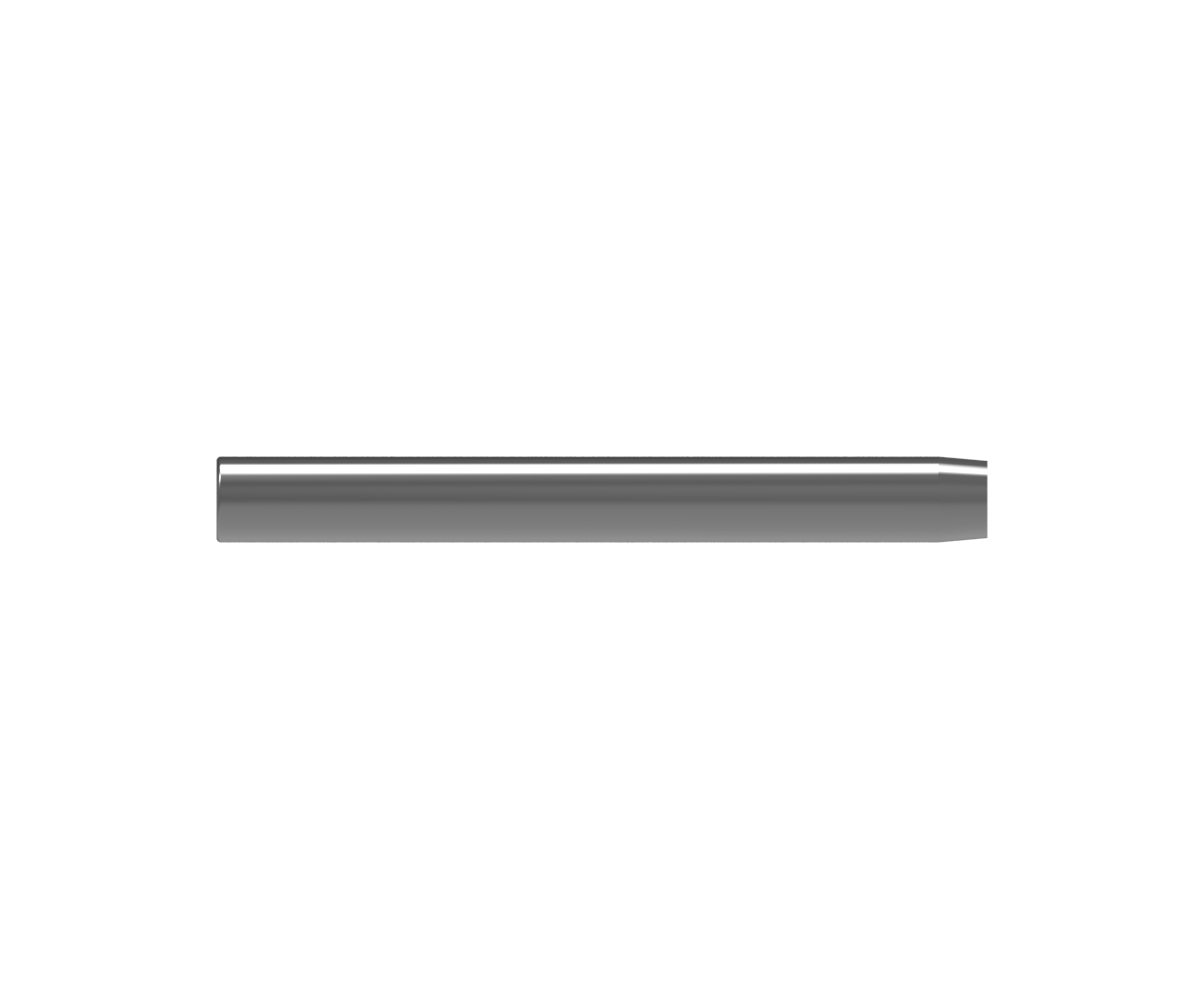

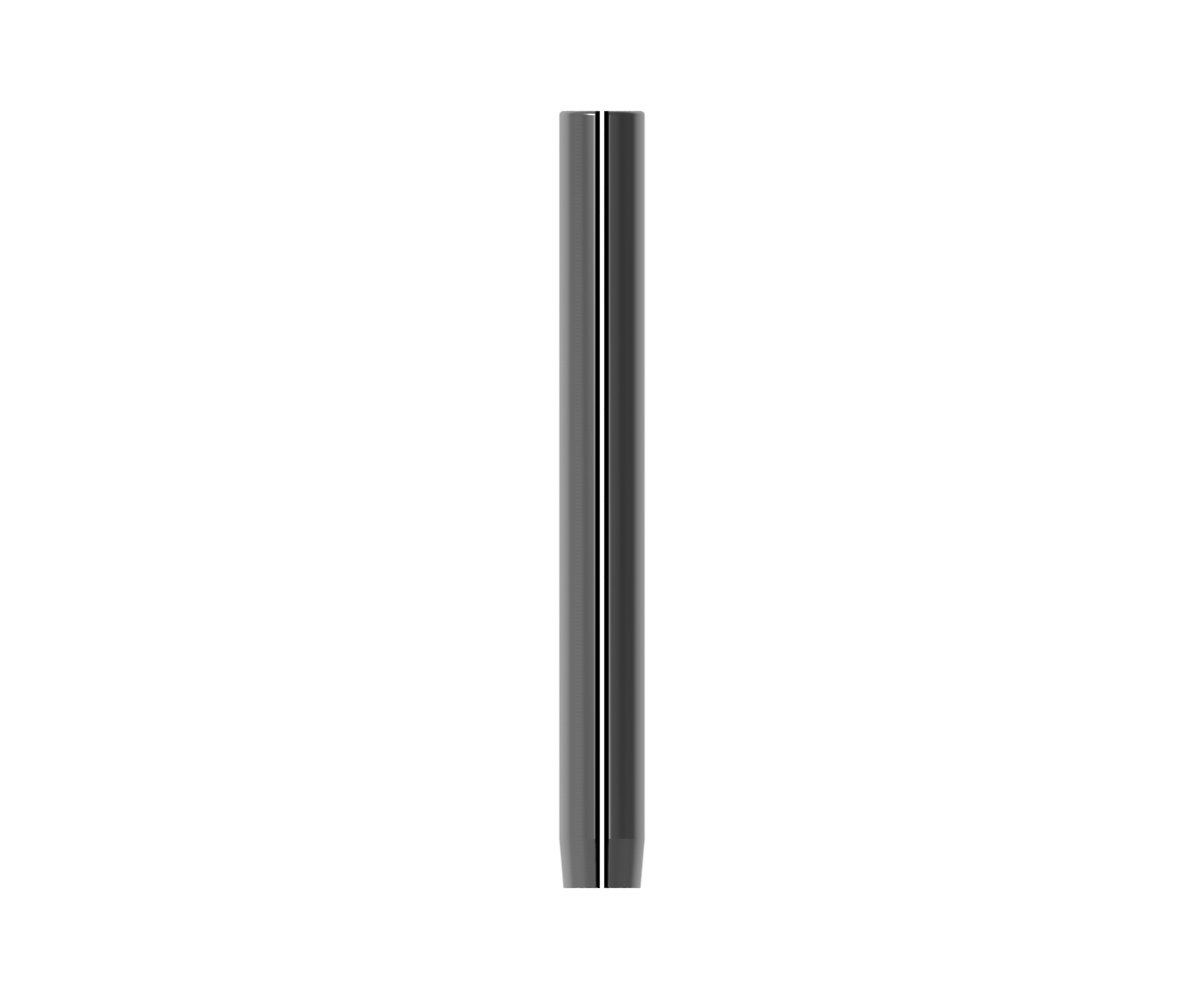

AW36,AW36-80 series roll pin with press connection
A roll pin is utilized to connect a shaft yoke (inner profile yoke) to the inner profile tube, and a second roll pin is utilized to connect the outer profile tube to a tube yoke (outer profile yoke).
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Length | 3.54 inches | 90 mm |
| Outside Diameter | 0.39 inches | 10 mm |
| Pin Hole | 0.39 inches | 10 mm |
| Shipping Dimensions | 3.543" L × 0.394" H × 0.394" W | 9cm L × 1cm H × 1cm W |
| Shipping Volume | 0.55 in3 | 9 cm3 |
| Shipping Weight | 0.05 pounds | 0 kilograms |
| Weight | 0.05 pounds | 0 kilograms |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
| WE0101003_1019_USL_80DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
