500-1400

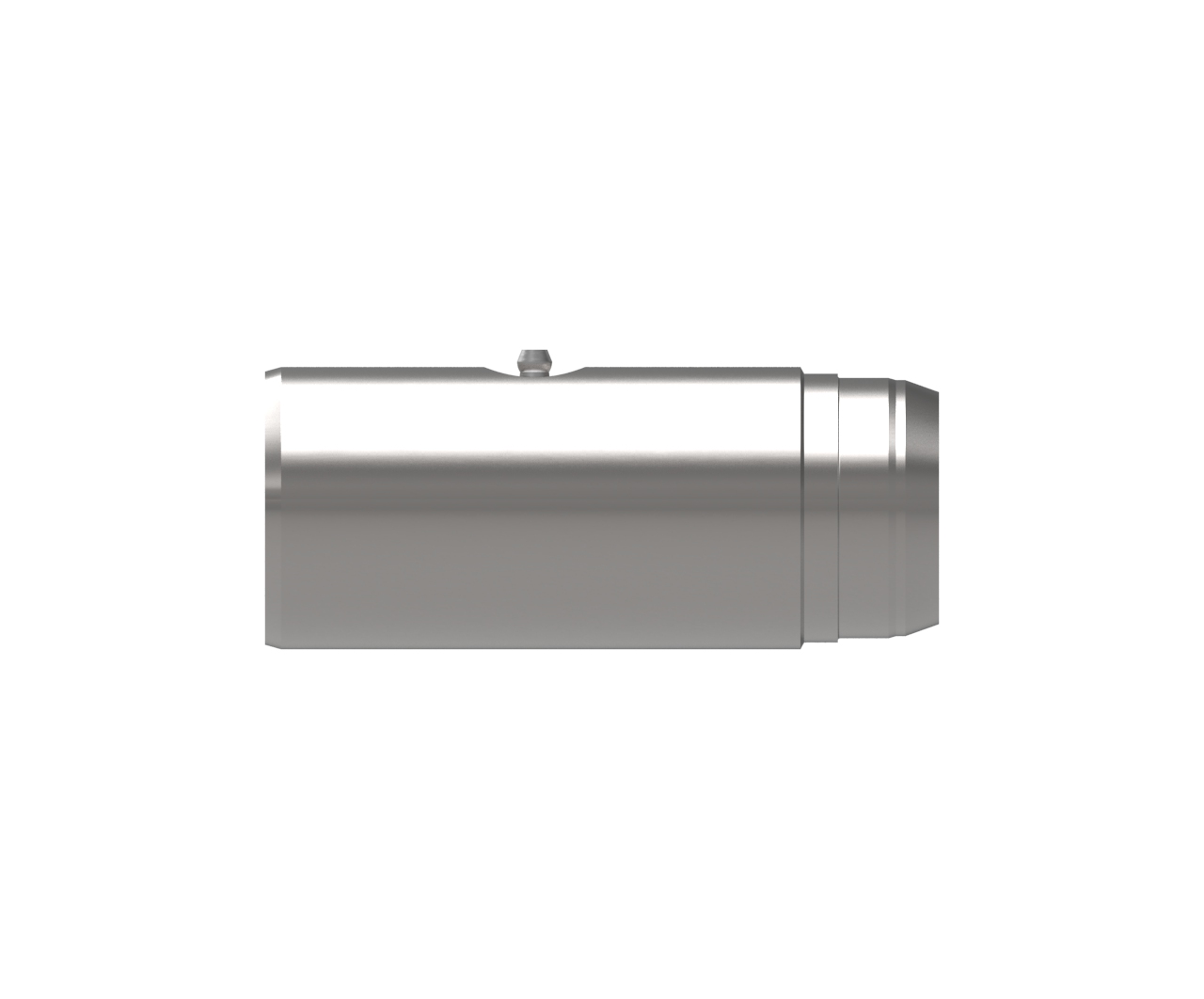

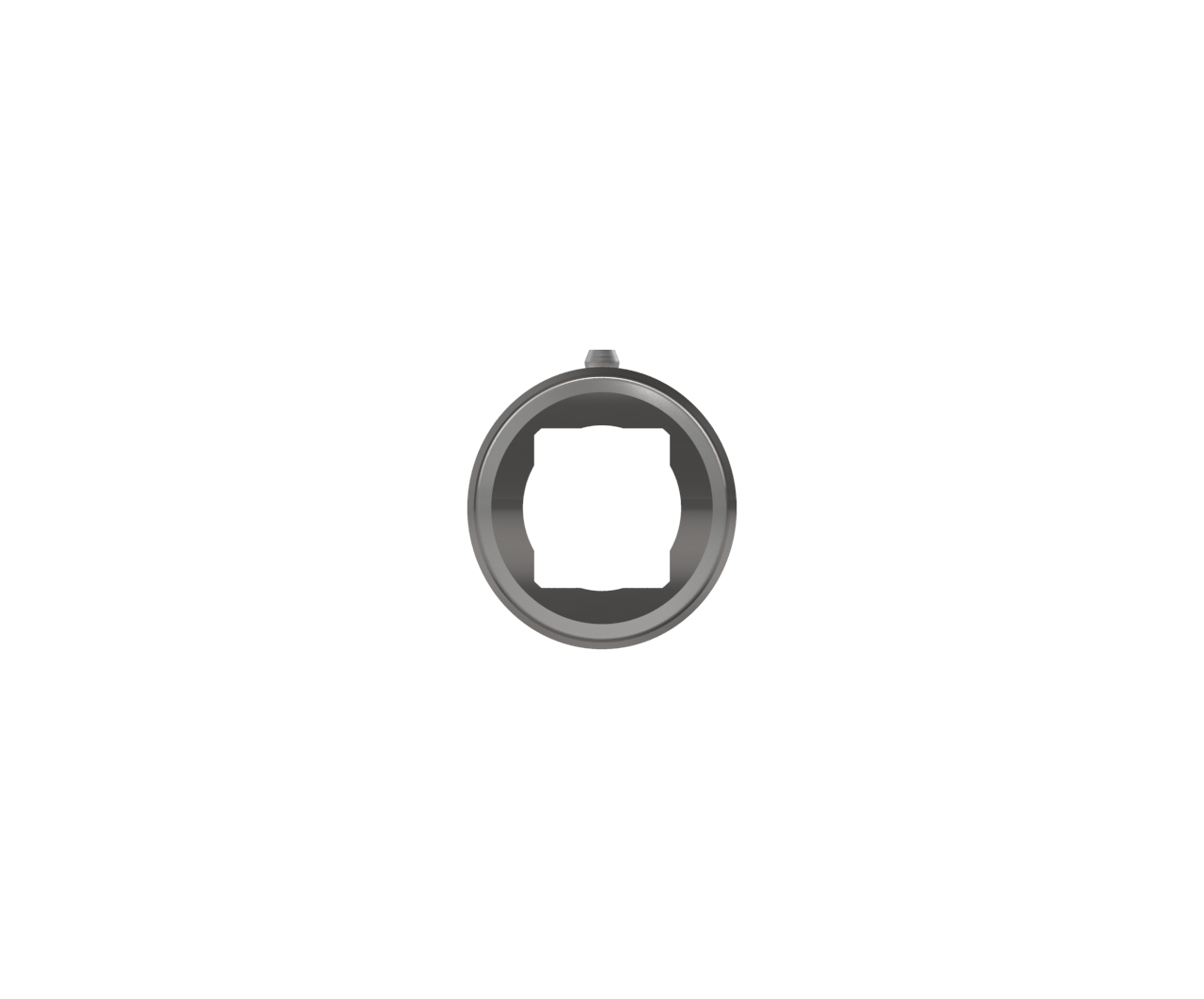

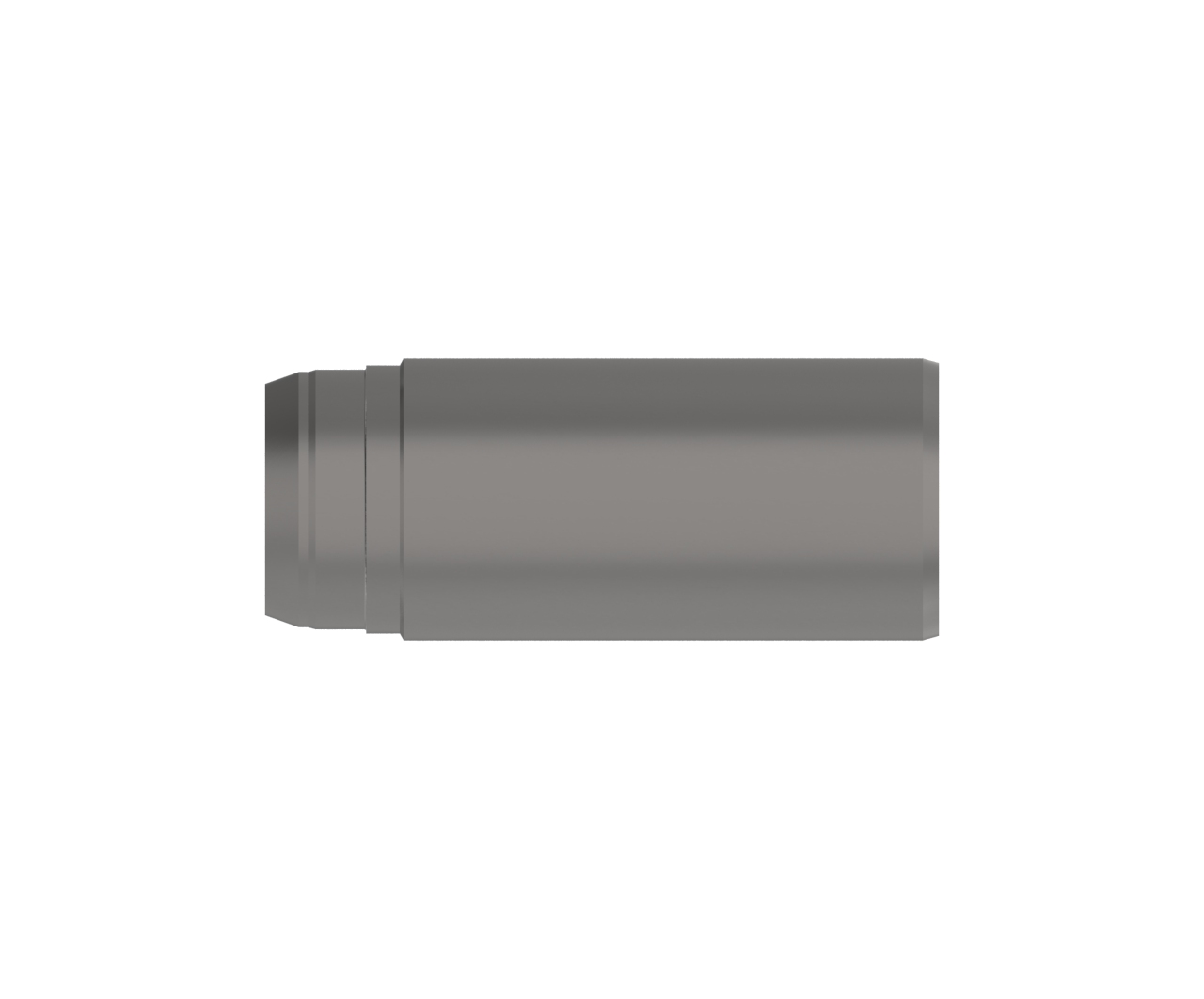

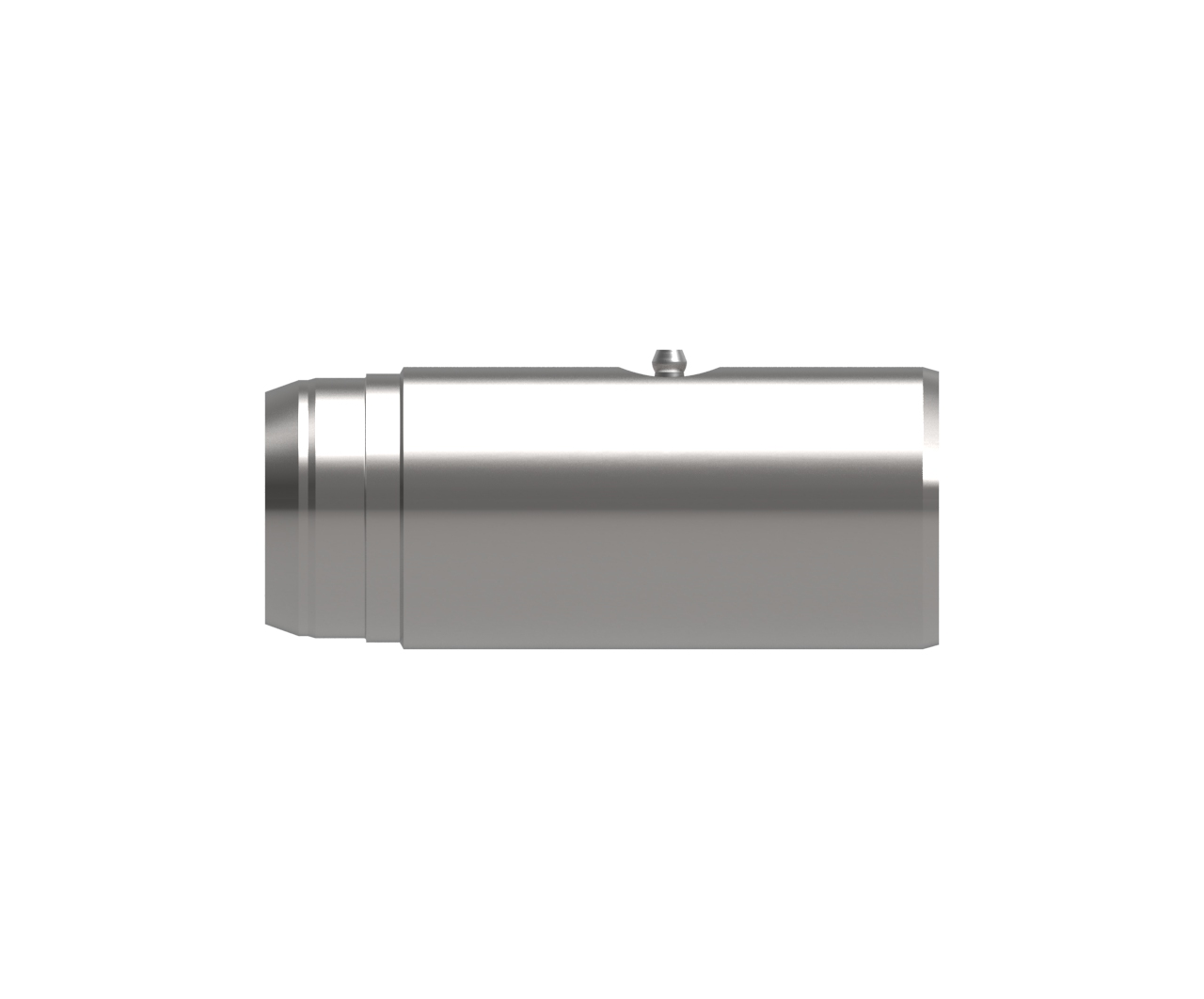

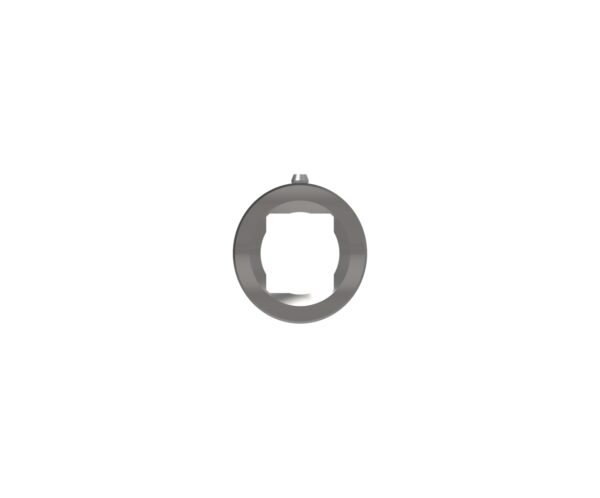

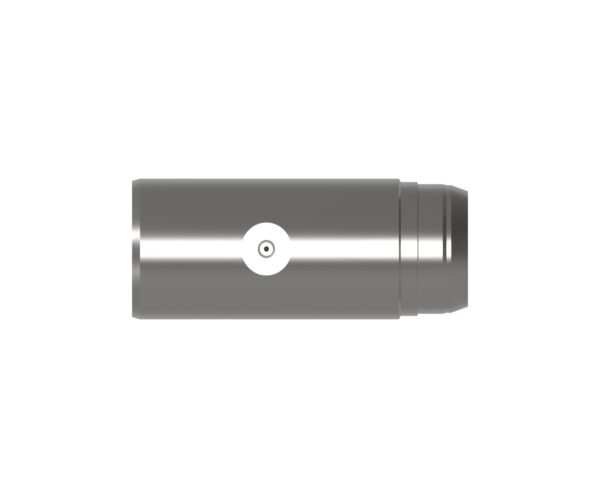

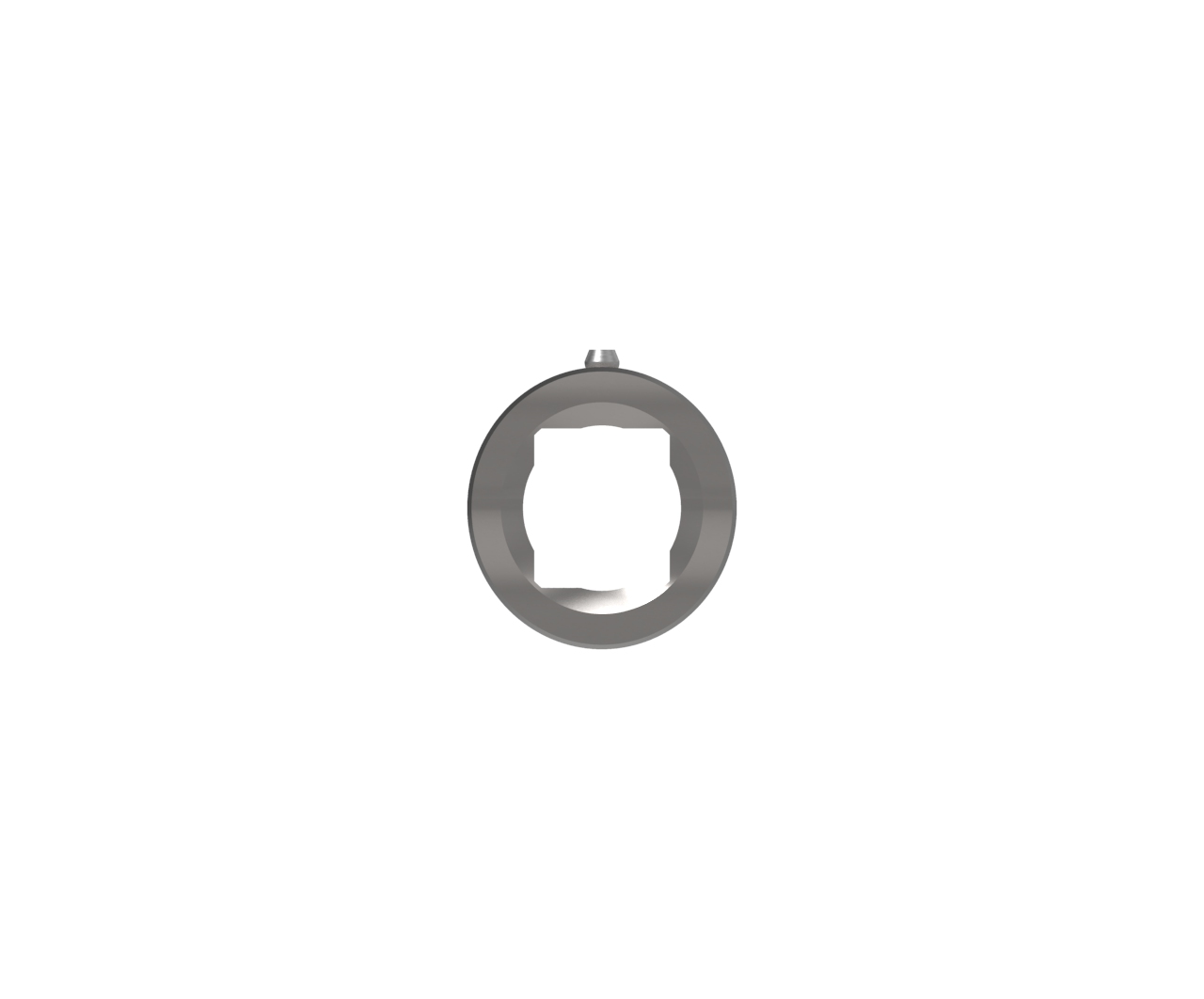

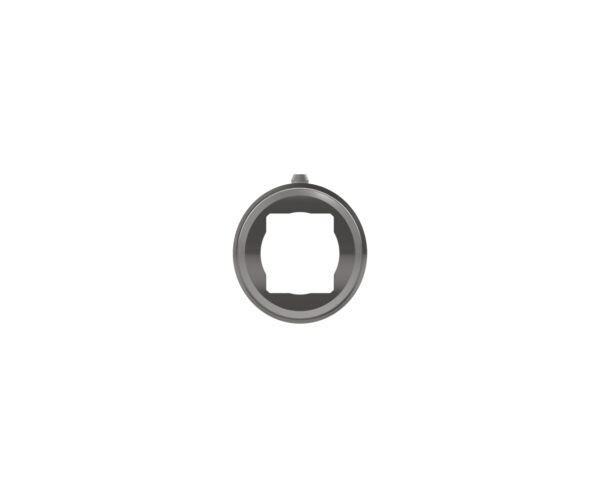

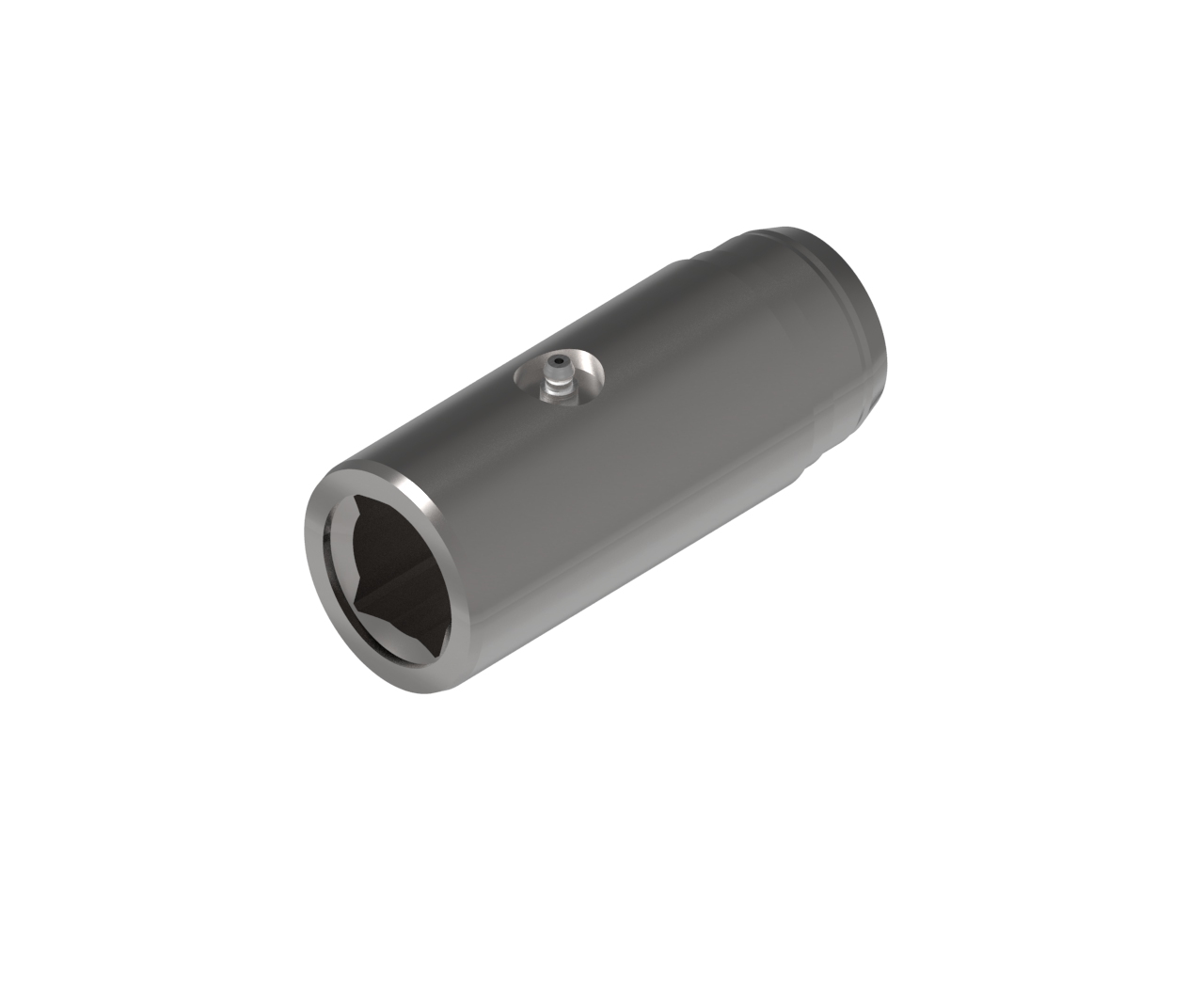

SQUARE SLIP SLEEVESquare Slip Sleeve
14 series square slip sleeve, 1 x 1 1/8 rectangle
Slip sleeves allow for PTO driveshafts to slip or flexibly move with a given application. Weasler slip sleeves are available in spline and square design.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.12 inches | 28 mm |
| Bore 1 | 1 X 1 1/8 RECTANGLE | |
| Connection 1 | SQUARE SHAFT | |
| Length | 5.00 inches | 127 mm |
| Outside Diameter | 2.00 inches | 51 mm |
| Shaft Size | 1.12 inches | 28 mm |
| Shipping Dimensions | 5" L × 2" H × 2" W | 13cm L × 5cm H × 5cm W |
| Shipping Volume | 20.00 in3 | 328 cm3 |
| Shipping Weight | 2.48 pounds | 1 kilograms |
| Tube Bore Diameter | 1.84 inches | 47 mm |
| Weight | 2.48 pounds | 1 kilograms |
| Weld Diameter | 1.84 inches | 47 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
