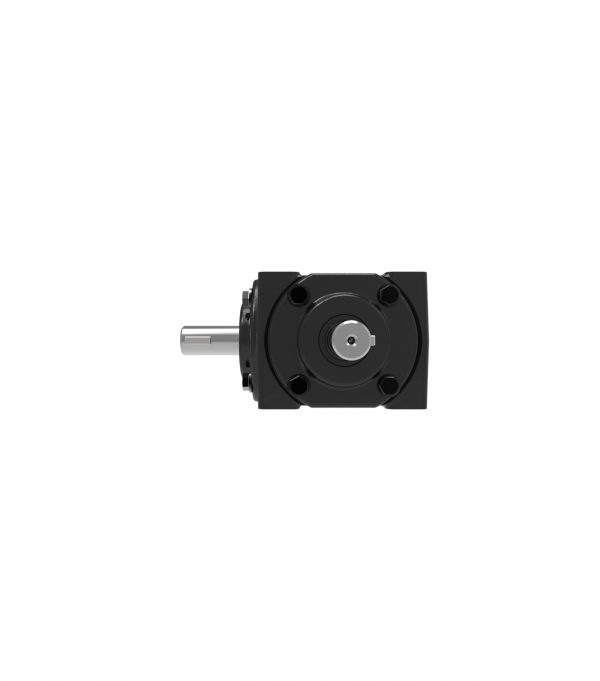

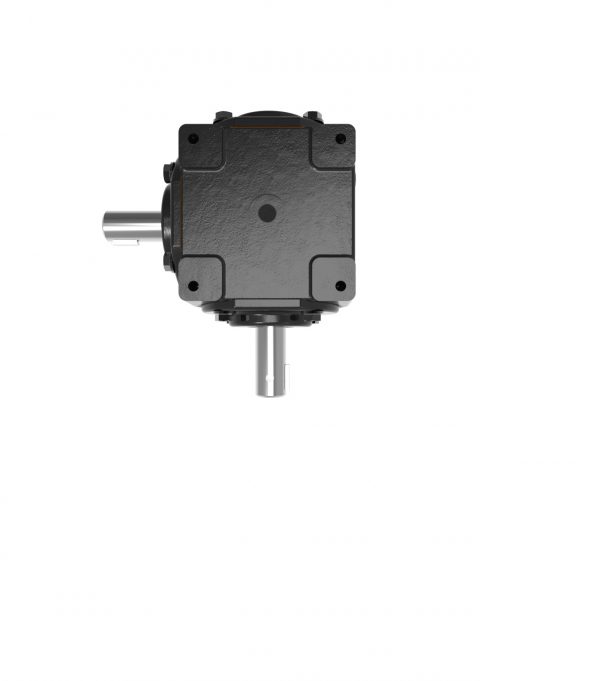

STANDARD BEVEL GEARBOX – 2390 SERIES
2390 series low ratio cast iron bevel gearbox with 1 max shaft diameter. Available in ratios up to 2:1
Weasler Engineerings bevel gearboxes come in a wide range of HP capacities. Choose from existing ratios and shaft configurations or customize them to meet your application needs. Our Application Engineers will work with you to understand your application requirements and size the appropriate gearbox for your application. If your application requires a custom drive solution, our engineers will work you to design a bevel gearbox that meets your exact application to minimize stress and wear on your equipment and extend service life.
DESIGN FEATURES:
Customizable shaft configurations up to 1 [25 mm] diameters
Available ratios (other ratios available upon request)
Straight bevel 1:1, 1.05:1, 1.3:1, 1.5:1
Spiral bevel 1:1, 1.05:1, 1.3:1, 1.5:1
Max HP rating
540 rpm = 18 HP
1000 rpm = 32 HP
Rugged cast iron design
Tapered roller bearings
Double lip spring loaded seals
Available Options:
Left/Right/T shaft configurations
Double gearbox arrangements
Internal shifting (forward neutral)
Low profile nose cone
Viton seals
Dust/trash shield
Pressure relief
Application examples:
Grain Bin Sweeps
Grain Dryers
Fertilizer Spreaders
Mower Decks
Mower Attachments
