600-6343

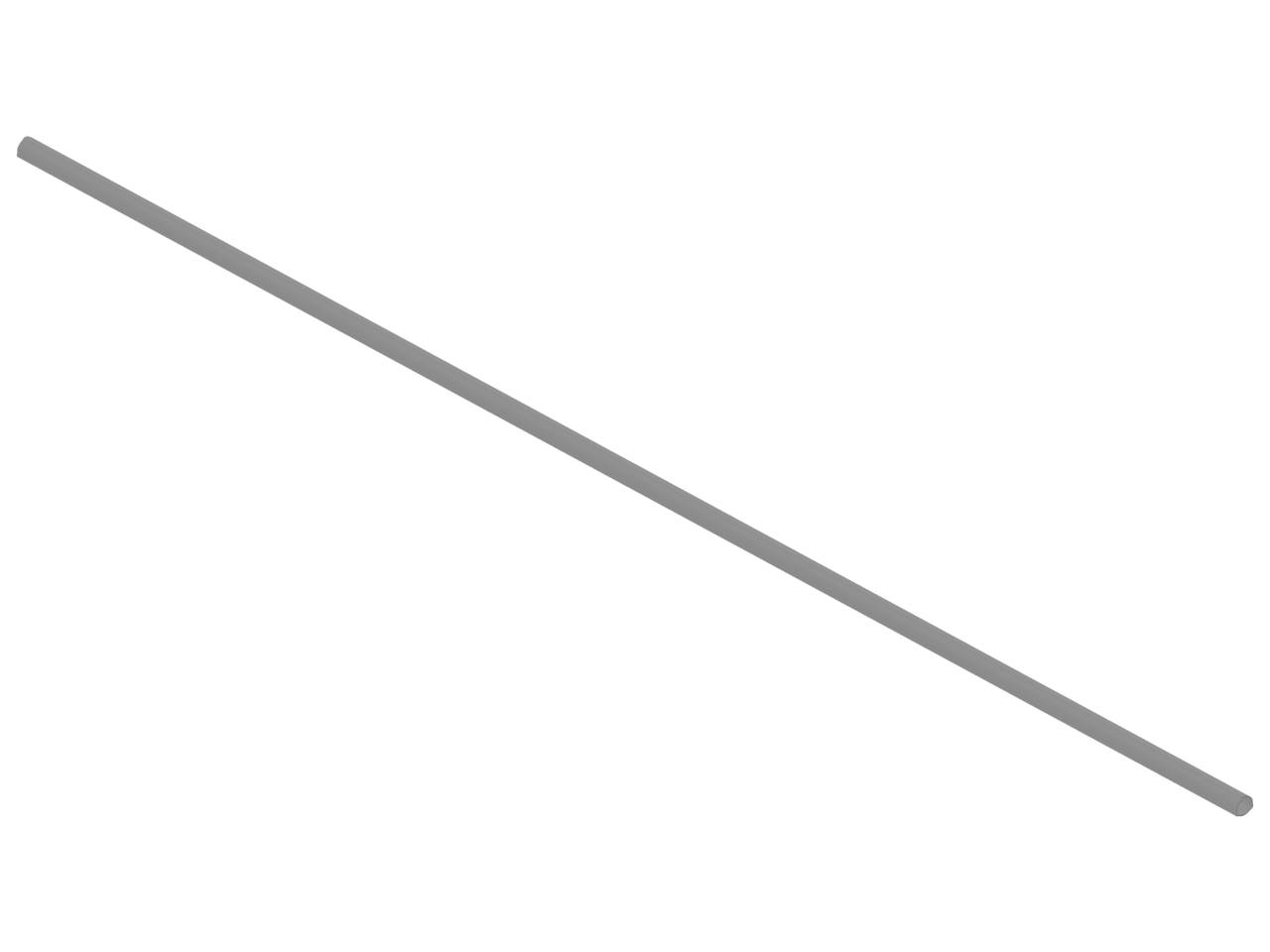

TRILOBE PROFILE TUBETrilobe Profile Tube

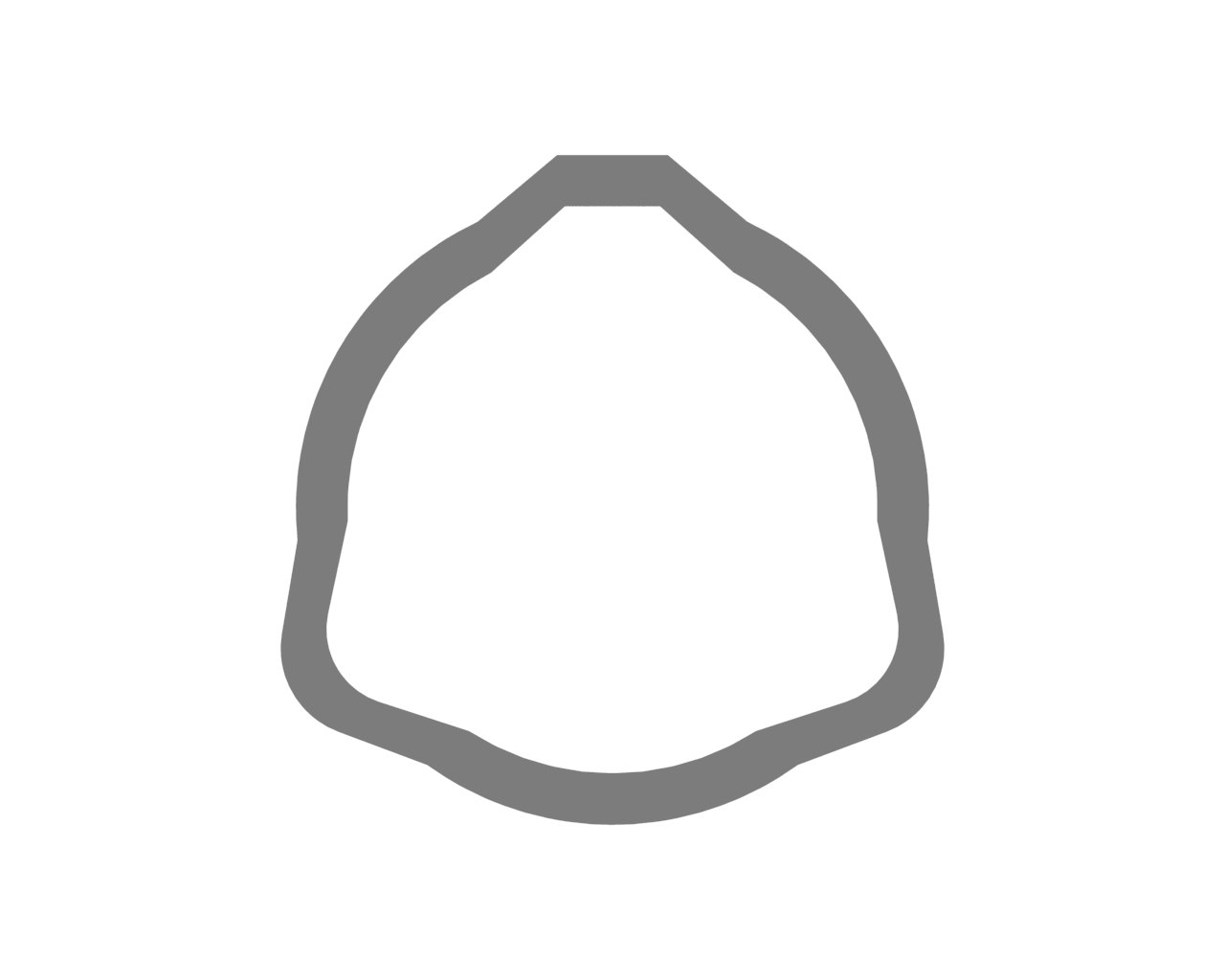

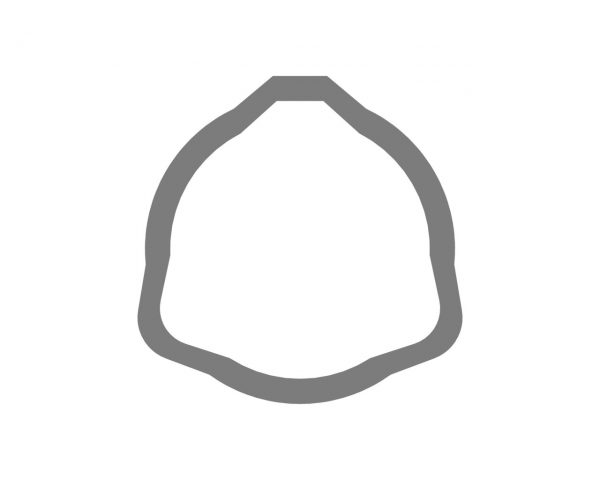

AB3,AB4 series trilobe profile tube, clearance for uncoated tube
Tubes serve as a metal cylindrical encasement for a shaft within a given PTO drive shaft, and provides supplemental reinfocement to the drive shaft. Tubing is available in both domestic (North American) and metric profile shapes. Domestic tubing is provided as square, rectangle, or round. The Weasler Profile product line includes metric and tubing available in both German and Italian styling: German style provided as lemon or star in shape and Italian as trilobed in shape.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.45 inches | 37 mm |
| Bore 1 | CLEARANCE FOR UNCOATED TUBE | |
| Connection 1 | ROLL PIN | |
| Height | 1.71 inches | 43 mm |
| Length | 59.05 inches | 1500 mm |
| Outside Diameter | 1.71 inches | 43 mm |
| Shipping Dimensions | 59.05" L × 1.713" H × 1.713" W | 150cm L × 4cm H × 4cm W |
| Shipping Volume | 173.27 in3 | 2839 cm3 |
| Shipping Weight | 10.22 pounds | 5 kilograms |
| Tube Size | 1.71 inches | 43 mm |
| Weight | 10.22 pounds | 5 kilograms |
| Width | 1.62 inches | 41 mm |
