200-0700

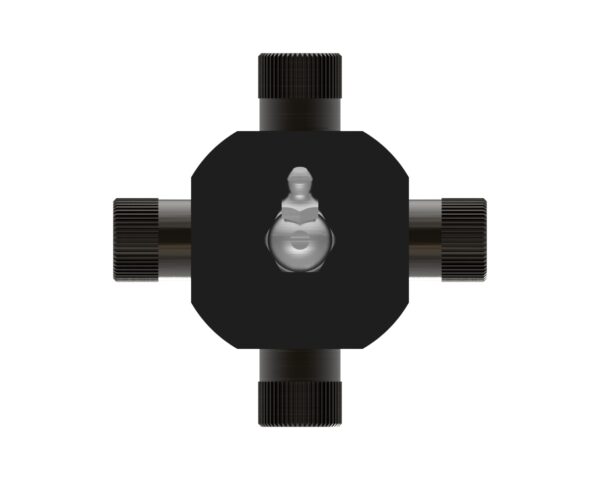

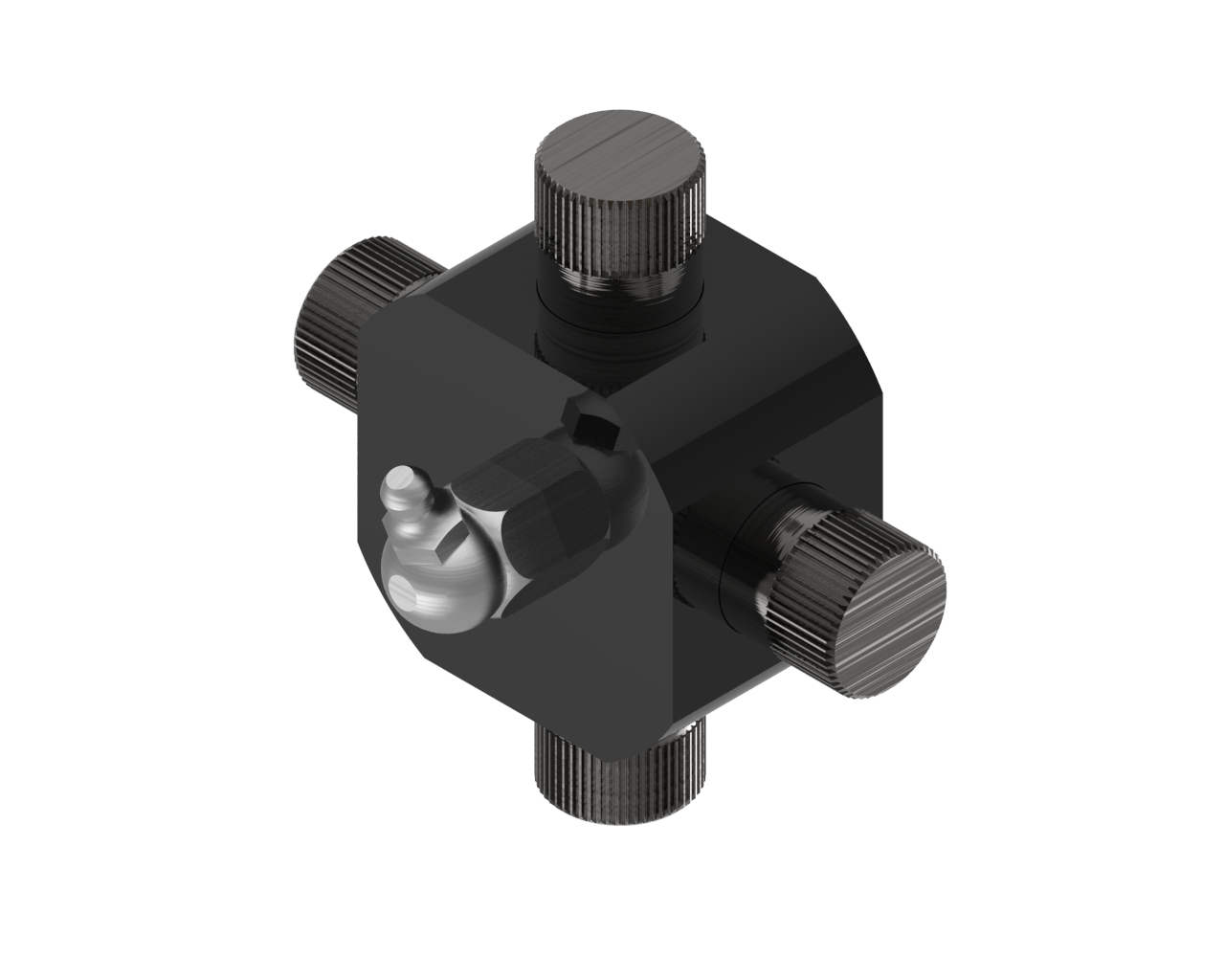

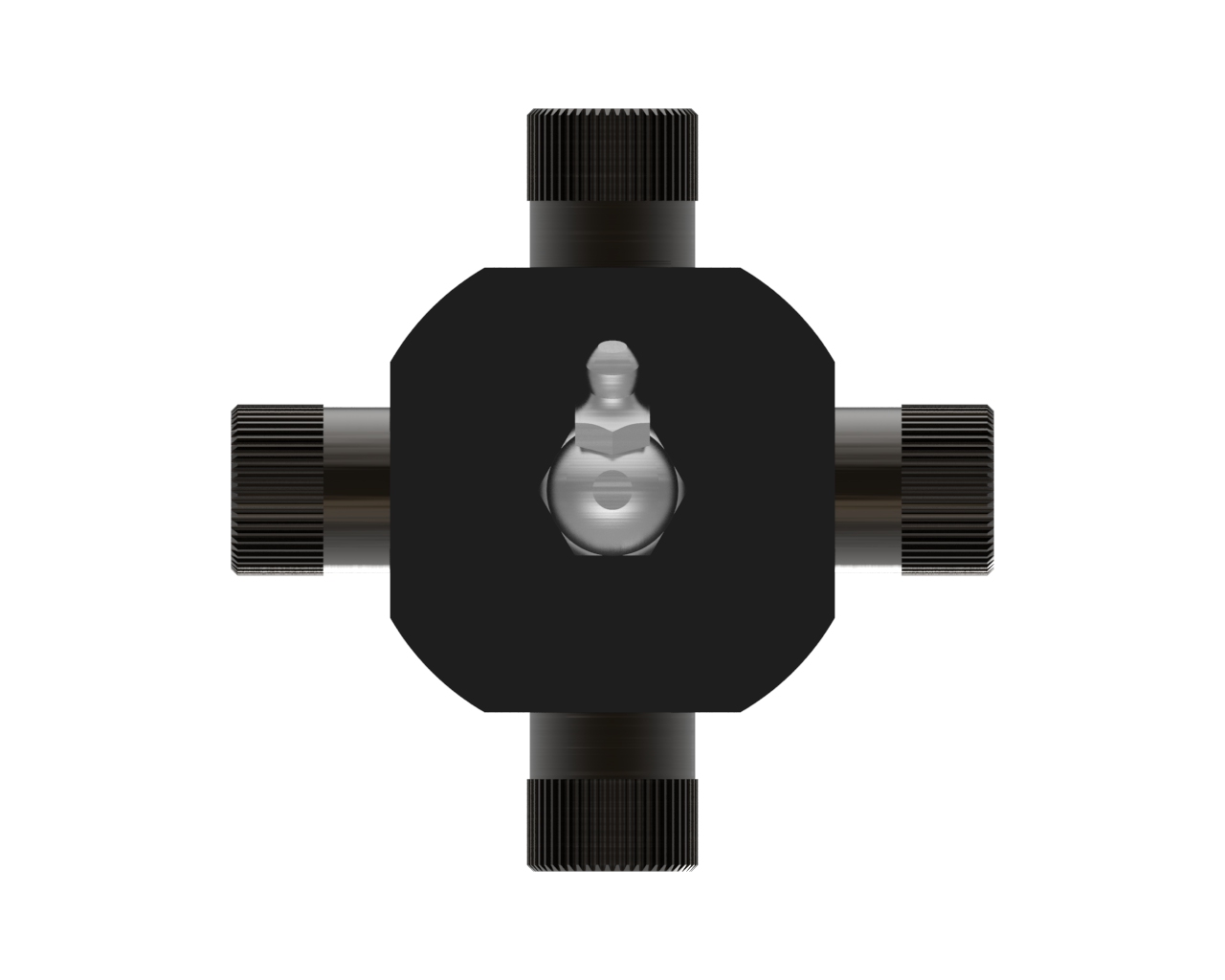

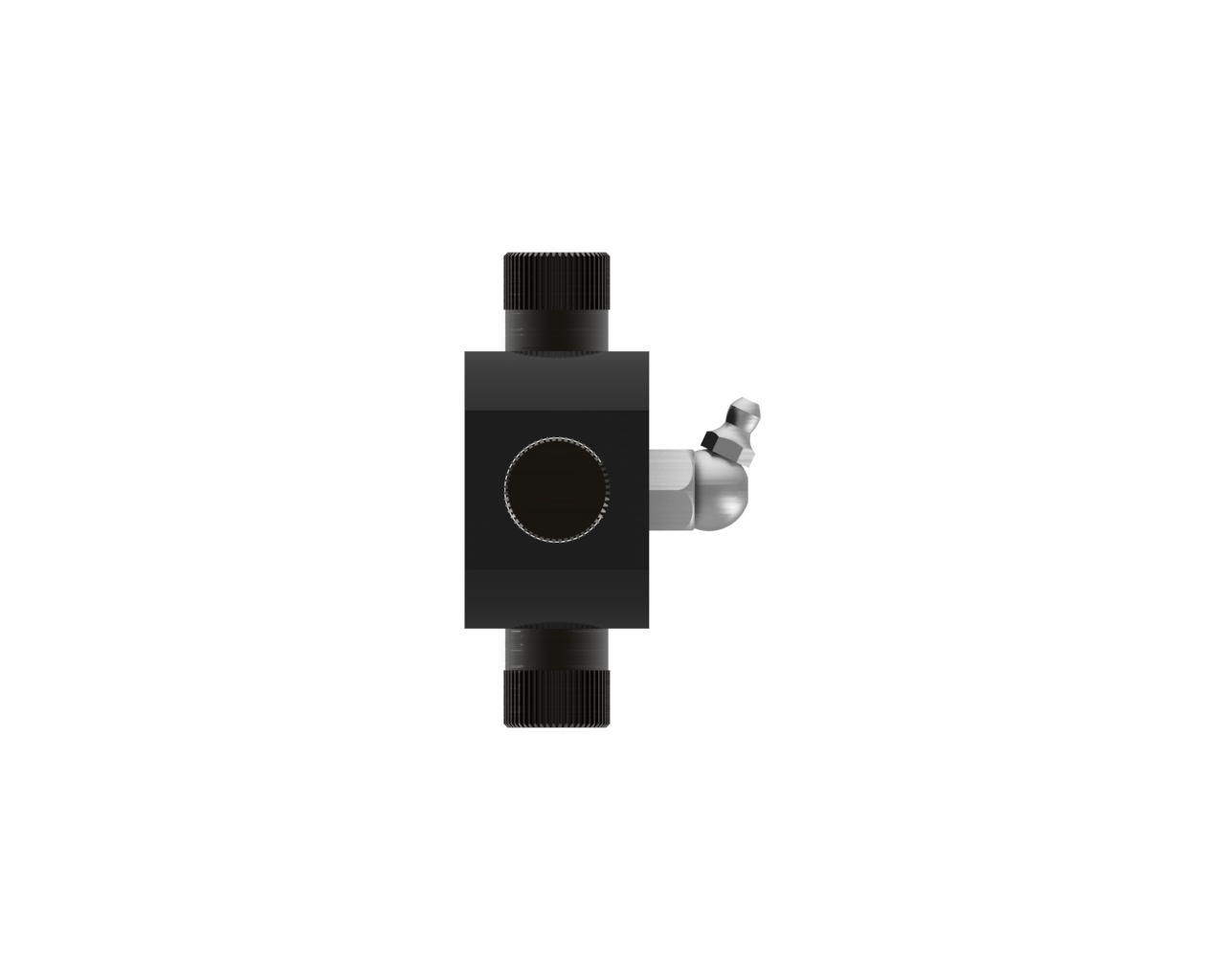

BLOCK AND PIN PLANE BEARING, CENTER GREASE FITTINGW Series Cross And Bearing Kit
W series cross and bearing kit, block and pin plane bearing, center grease fitting
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bearing Diameter | 0.56 inches | 14 mm |
| Bearing Span | 1.50 inches | 38 mm |
| Bearing Diameter | 0.56 inches | 14 mm |
| Bearing Span | 1.50 inches | 38 mm |
| Height | 0.56 inches | 14 mm |
| Length | 1.50 inches | 38 mm |
| Shipping Dimensions | 1.5" L × 0.56" H × 1.5" W | 4cm L × 1cm H × 4cm W |
| Shipping Volume | 1.26 in3 | 21 cm3 |
| Shipping Weight | 0.76 pounds | 0 kilograms |
| Snap Ring Location | None | |
| Weight | 0.76 pounds | 0 kilograms |
| Width | 1.50 inches | 38 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| WE0101007_0118_USL_EKit.pdf | Performance Benefits Document | English |
Support Videos
Performance Benefits Video
