20030022

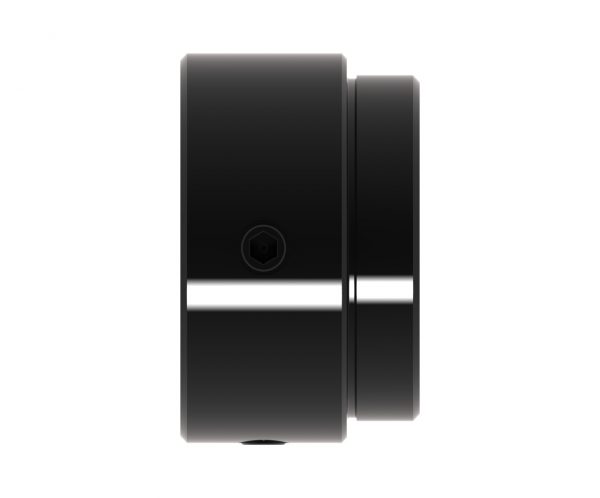

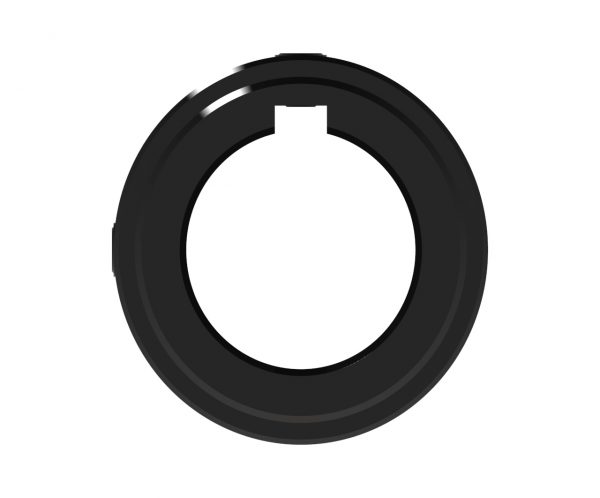

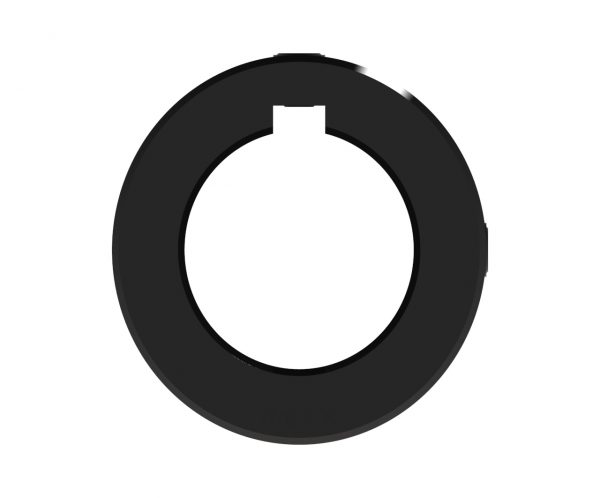

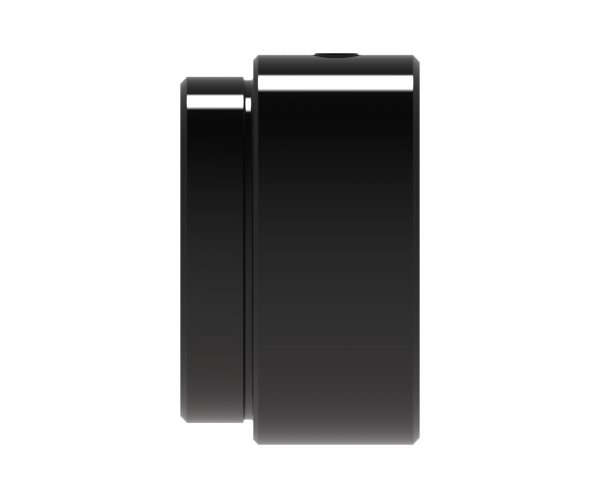

HUBX Series Hub For Use With Sprocket Or Pulley
X series hub with 1.375 inch round with keyway bore, setscrew
Weasler hubs are available in the bore options spline, square, round, and hexagon. All Weasler hubs are referenced by their series letter V, W, X, or XX. Sprockets and pulleys fit the hubs with the corresponding series letter.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | SETSCREW | |
| Keyway 1 | 0.31 inches | 8 mm |
| Length | 1.43 inches | 36 mm |
| Outside Diameter | 2.25 inches | 57 mm |
| Shipping Dimensions | 1.4375" L × 2.25" H × 0.4375" W | 4cm L × 6cm H × 1cm W |
| Shipping Volume | 1.42 in3 | 23 cm3 |
| Shipping Weight | 1.14 pounds | 1 kilograms |
| Weight | 1.14 pounds | 1 kilograms |
| Weld Diameter | 2.00 inches | 51 mm |
| Width | 0.43 inches | 11 mm |
